Rotational Molding Customization 2, 3 And 4 Position Units Kayak Linear Rotomolding Machines In China

1.a given quantity of plastic material,powder or liquid,islaid in one half of the mould

2.the mould is closed

3.the mould is rotated in the oven revolving on two axes.

4.plastic material melts,forming a coating layer on the mould internal surface.

5.the mould is removed from the oven and cooled off.

6.the mould is opened and the hollow item is extracted

1.Low cost
2.Rotomolding machinery invests less than other plastic molding machines such as injection molding machines
3.Suitable for simultaneous production of multiple types of products
4.The surface of the product is straight and uniform in thickness
5.Suitable for large hollow products

6.products are not subject to high stress,little scraps are generated

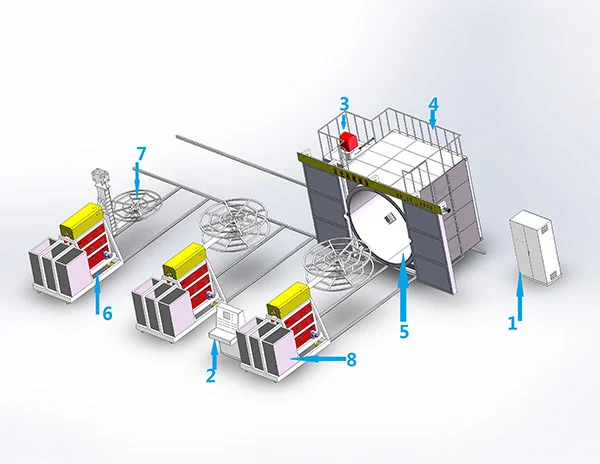

1.The heating type of linear position rotary moulding machine is mobile mechanism, and the turning arm car is side by side. It can customize 2, 3 and 4 position units according to customers'needs. Comparatively suitable for a wide variety of rolling products with large demand and output.

2.Customers can customize the disassembly platform according to product requirements.

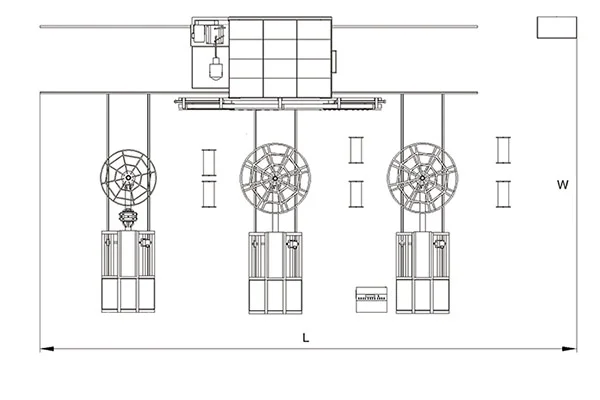

Model No

Floor size

Operating
platform

Biggest tank made

L(m)

W(m)

H(m)

RC-GW-1600

12.6

7.3

3

×

750L

RC-GW-2000

13.4

8.1

3.5

×

1000L

RC-GW-2500

14.5

9

3.8

×

2500L

RC-GW-3000

16.5

11

4.3

×

4500L

RC-GW-3500

18.5

11.5

4.9

×

7000L

RC-GW-4000

20

12

5.3

×

10000L

21

12.5

5.8

×

14000L
