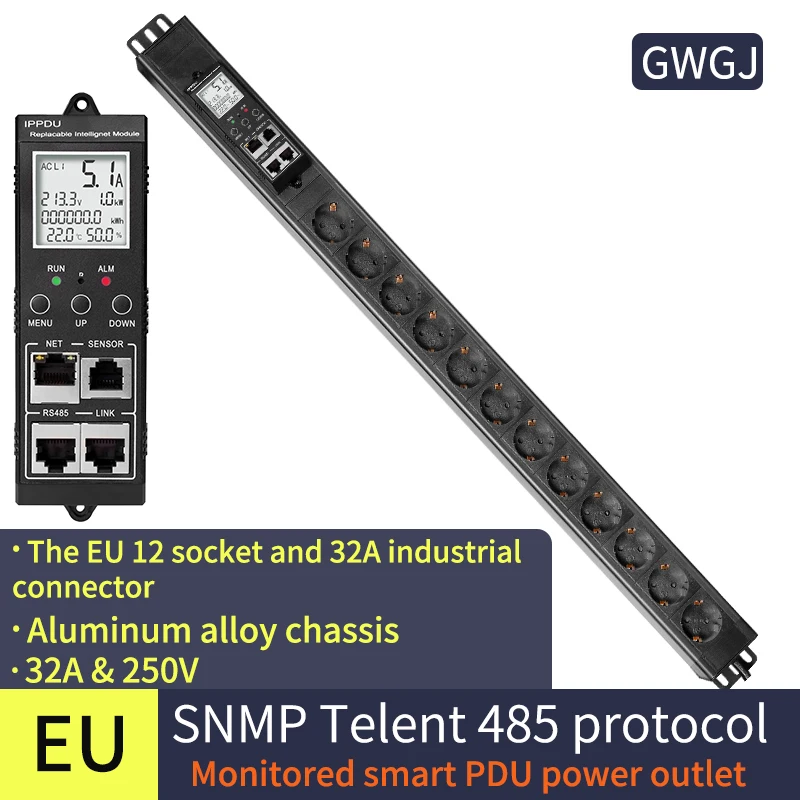

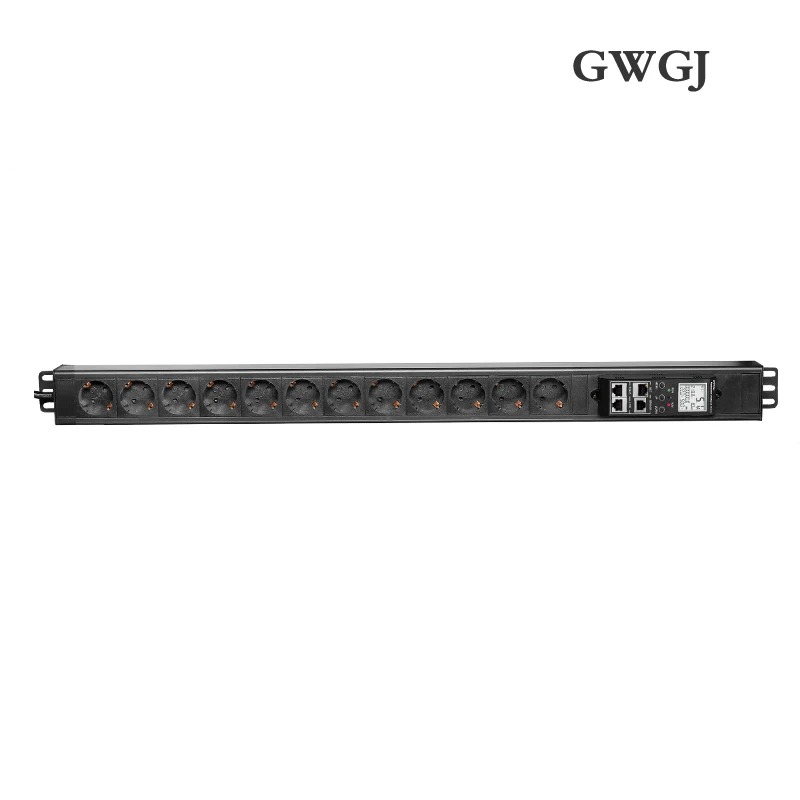

Monitoring Switchde Rack PDU power socket 12 bit EU SNMP485 interface Telnet command line voltage current power cascade
- Category: >>>
- Supplier: Shenzhen Terpress Technology Co. Ltd.
Share on (62133297979):
Product Overview
Description
Product Description

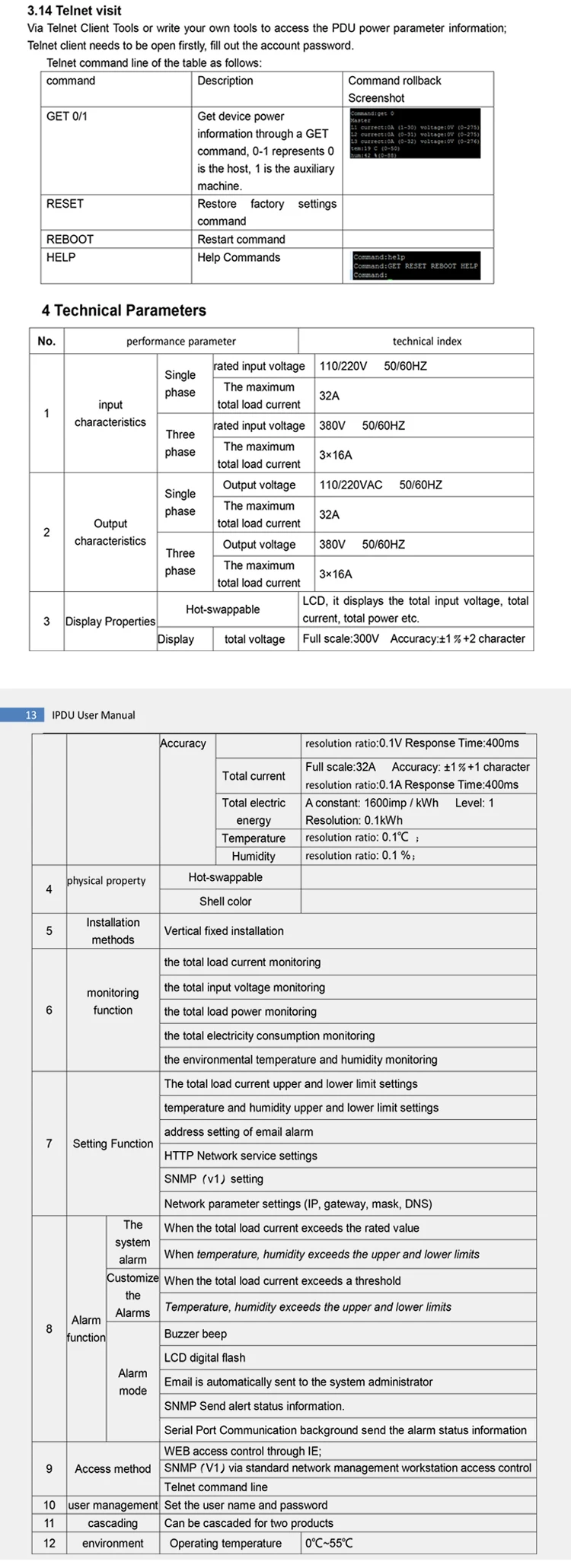

| performance parameter | technical index | ||||
| input characteristics | Single phase | rated input voltage | 110/220V 50/60HZ | ||
| The maximum total load current | 32A | ||||
| Three phase | rated input voltage | 380V 50/60HZ | |||
| The maximum total load current | 3×16A | ||||
| Output characteristics | Single phase | Output voltage | 110/220VAC 50/60HZ | ||
| The maximum total load current | 32A | ||||
| Three phase | Output voltage | 380V 50/60HZ | |||
| The maximum total load current | 3×16A | ||||

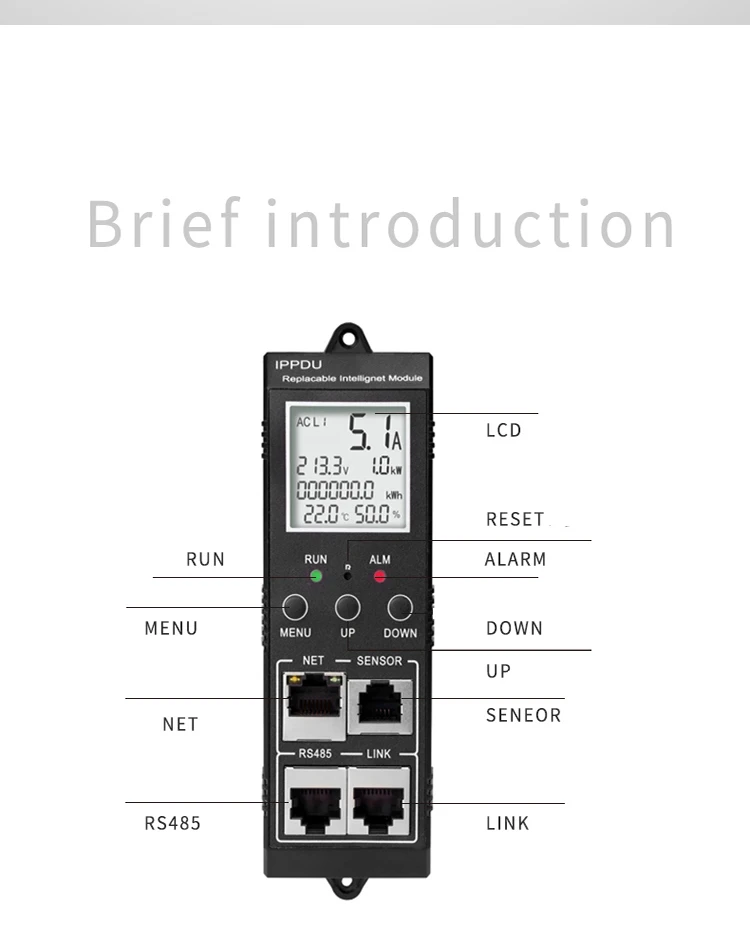

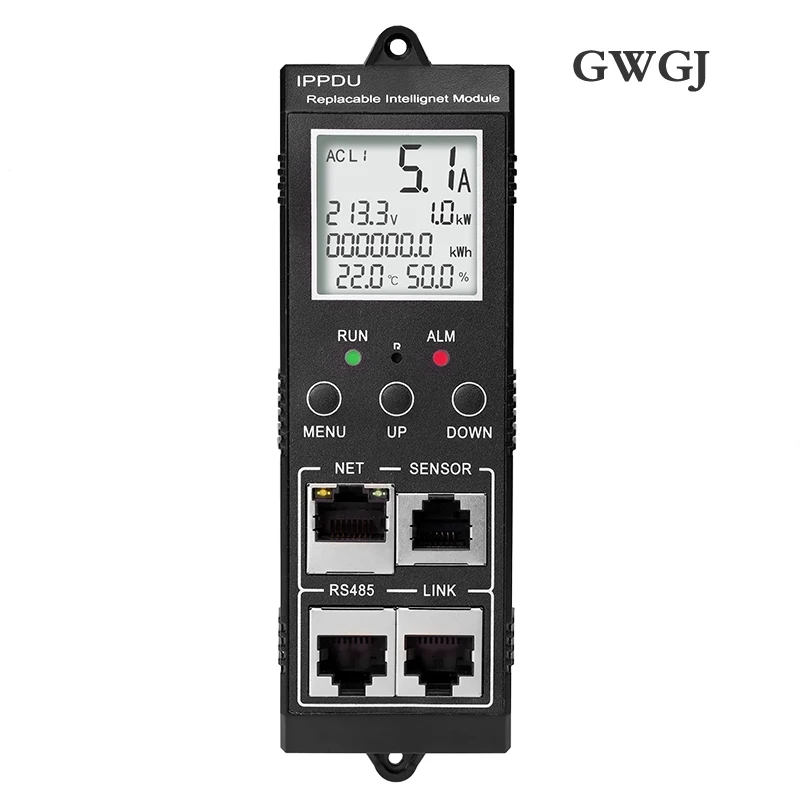

| Display Properties | Hot-swappable | LCD, it displays the total input voltage, total current, total power etc. | |||
| Display Accuracy | total voltage | Full scale:300V Accuracy:+2 character | |||
| resolution ratio:0.1V Response Time:400ms | |||||
| Total current | Full scale:32A Accuracy: +1 character | ||||
| resolution ratio:0.1A Response Time:400ms | |||||
| Total electric energy | A constant: 1600imp / kWh Level: 1 | ||||
| Resolution: 0.1kWh | |||||
| Temperature | resolution ratio: 0.1℃ ; | ||||
| Humidity | resolution ratio: 0.1 ; | ||||
| physical property | Hot-swappable | ||||
| Shell color | |||||
| Installation methods | Vertical fixed installation | ||||
| monitoring function | the total load current monitoring | ||||
| the total input voltage monitoring | |||||
| the total load power monitoring | |||||
| the total electricity consumption monitoring | |||||

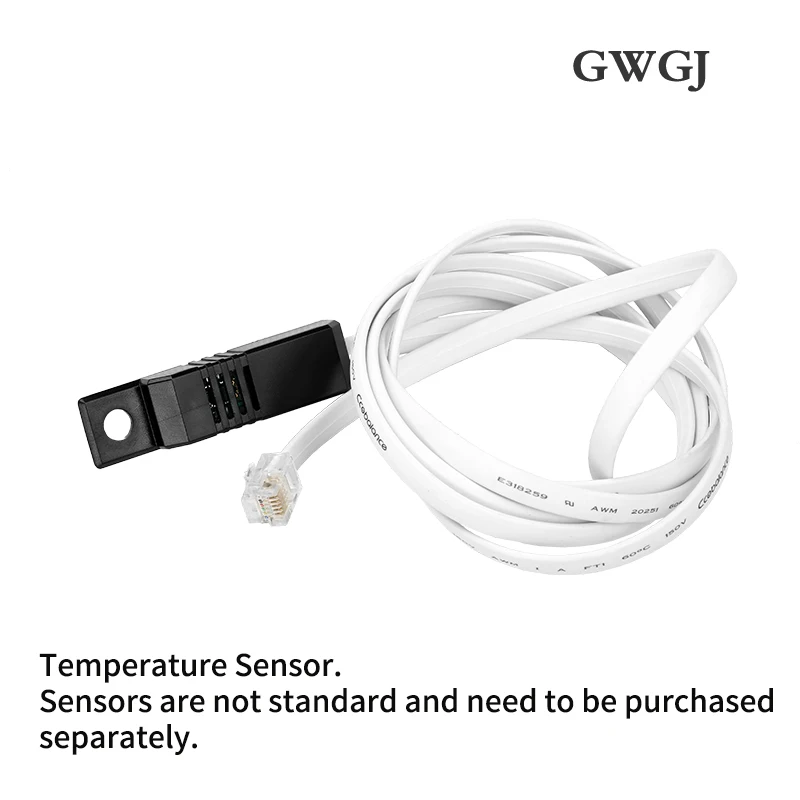

| the environmental temperature and humidity monitoring | |||||

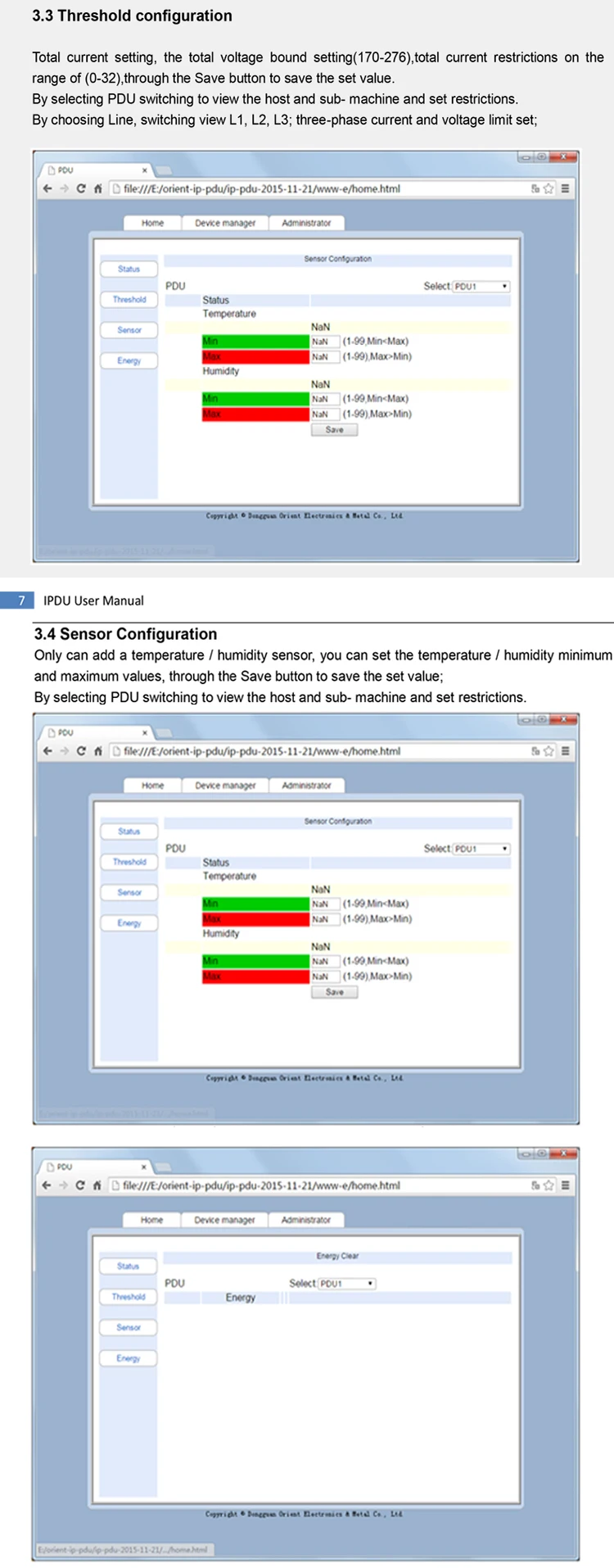

| Setting Function | The total load current upper and lower limit settings | ||||
| temperature and humidity upper and lower limit settings | |||||
| address setting of email alarm | |||||

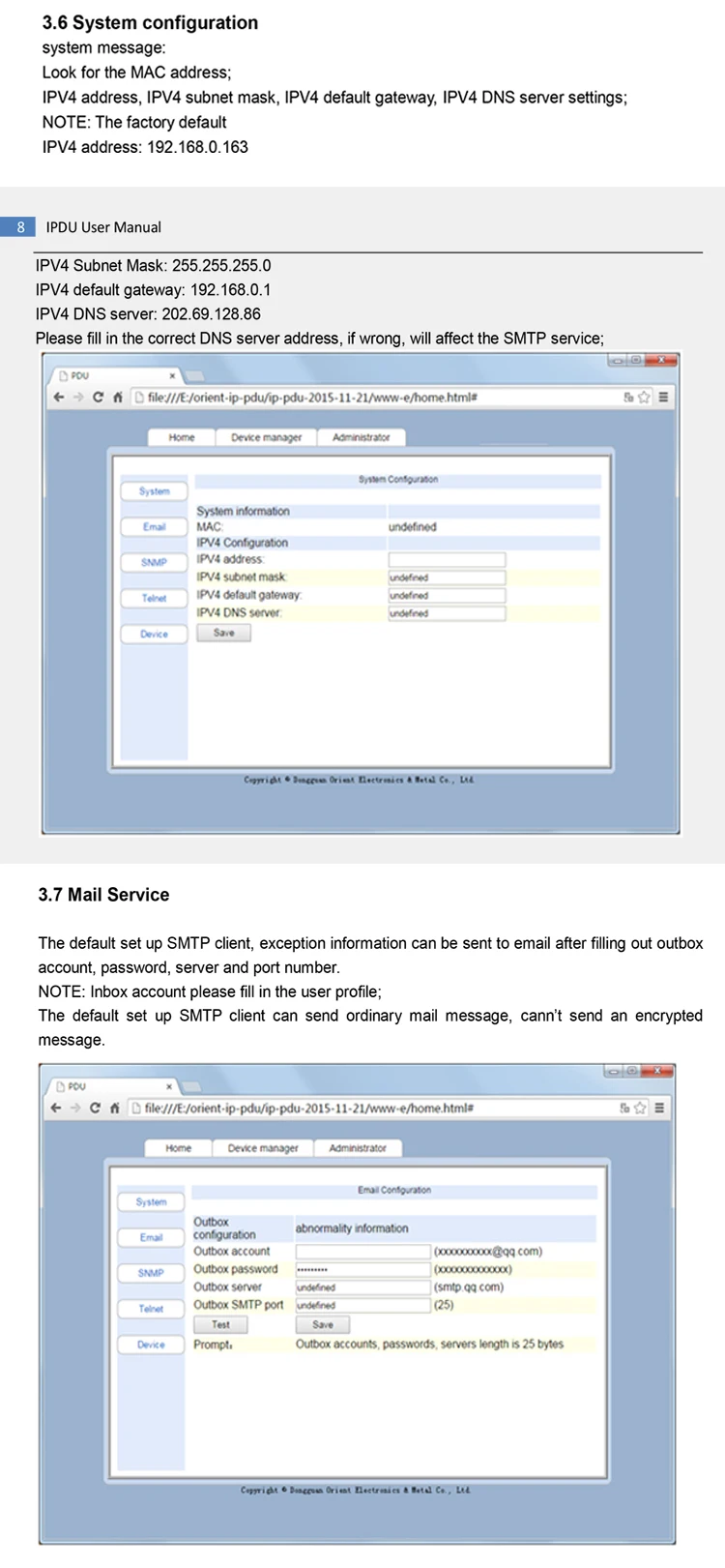

| HTTP Network service settings | |||||

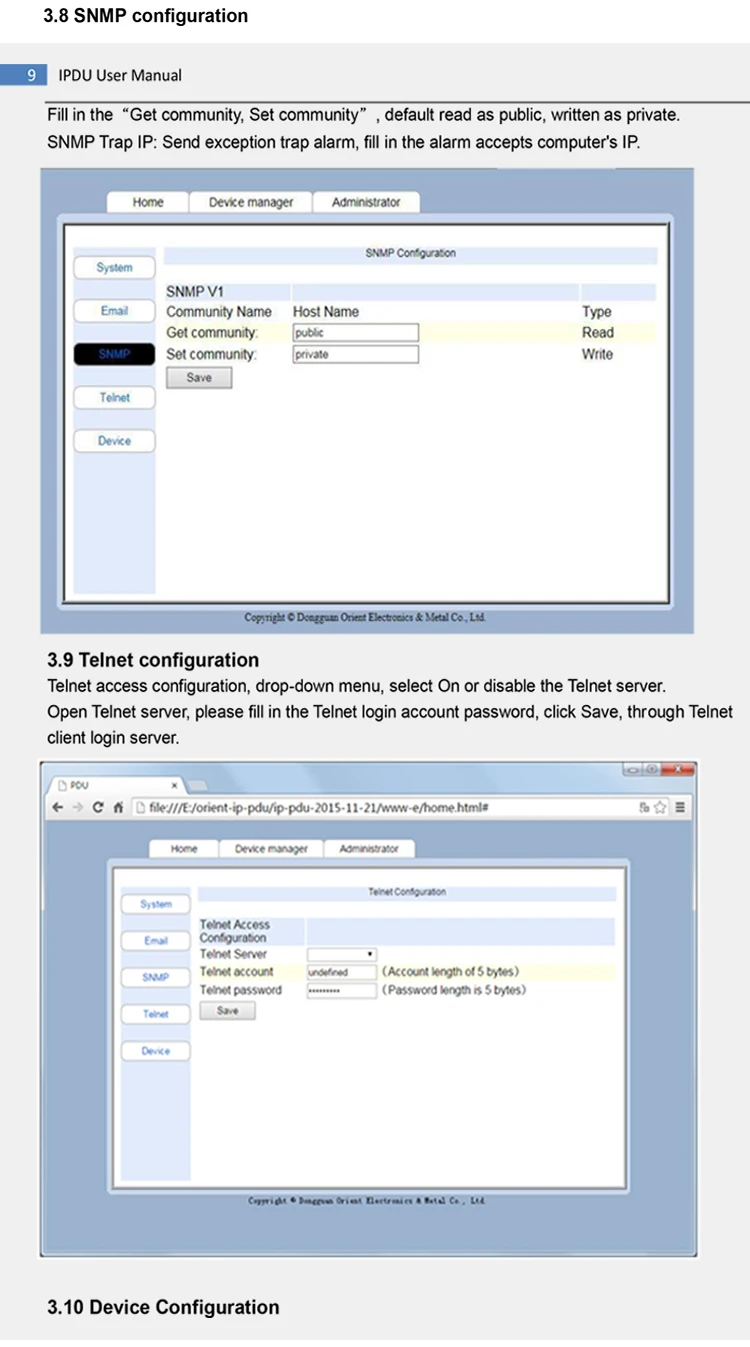

| SNMP(v1)setting | |||||
| Network parameter settings (IP, gateway, mask, DNS) | |||||
| Alarm function | The system alarm | When the total load current exceeds the rated value | |||
| When temperature, humidity exceeds the upper and lower limits | |||||
| Customize the Alarms | When the total load current exceeds a threshold | ||||
| Temperature, humidity exceeds the upper and lower limits | |||||
| Alarm mode | Buzzer beep | ||||
| LCD digital flash | |||||
| Email is automatically sent to the system administrator | |||||
| SNMP Send alert status information. | |||||
| · Serial Port Communication background send the alarm status information | |||||

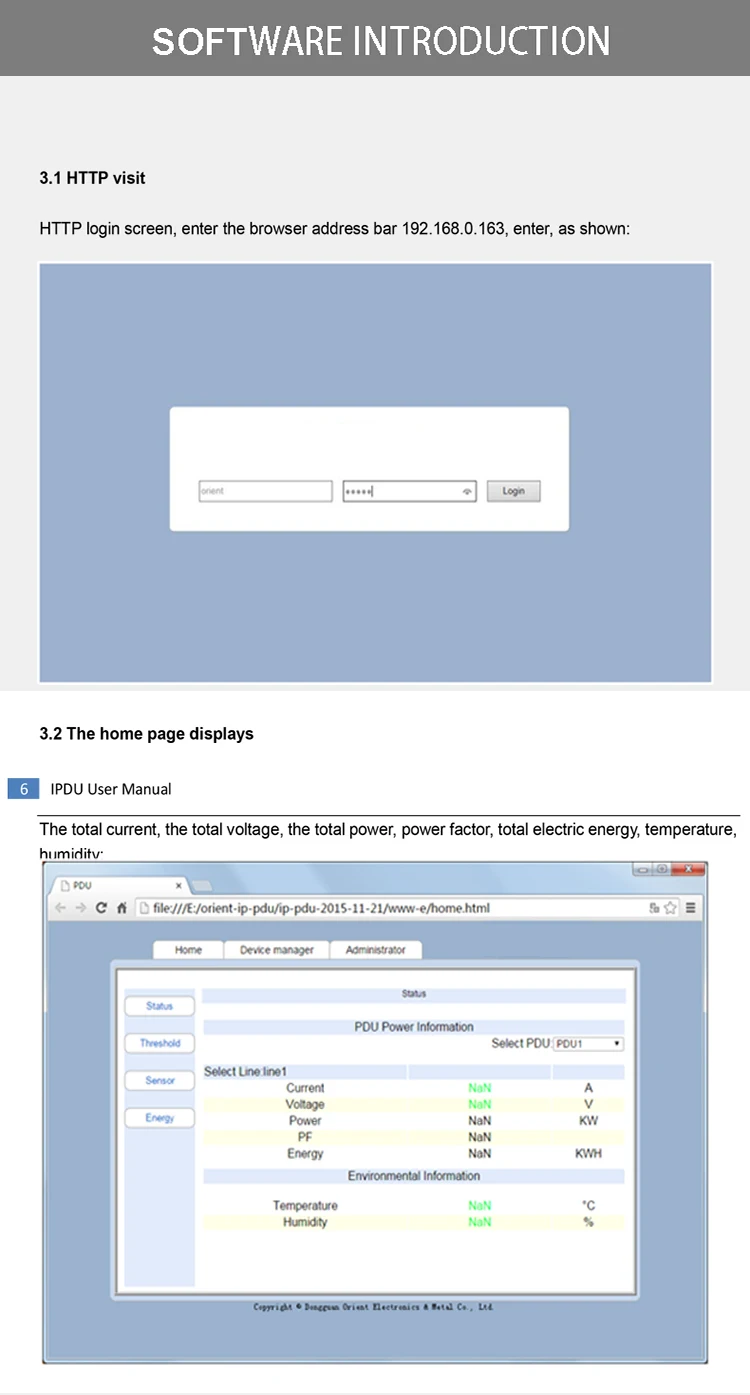

| Access method | WEB access control through IE; | ||||
| SNMP(V1)via standard network management workstation access control | |||||
| Telnet command line | |||||

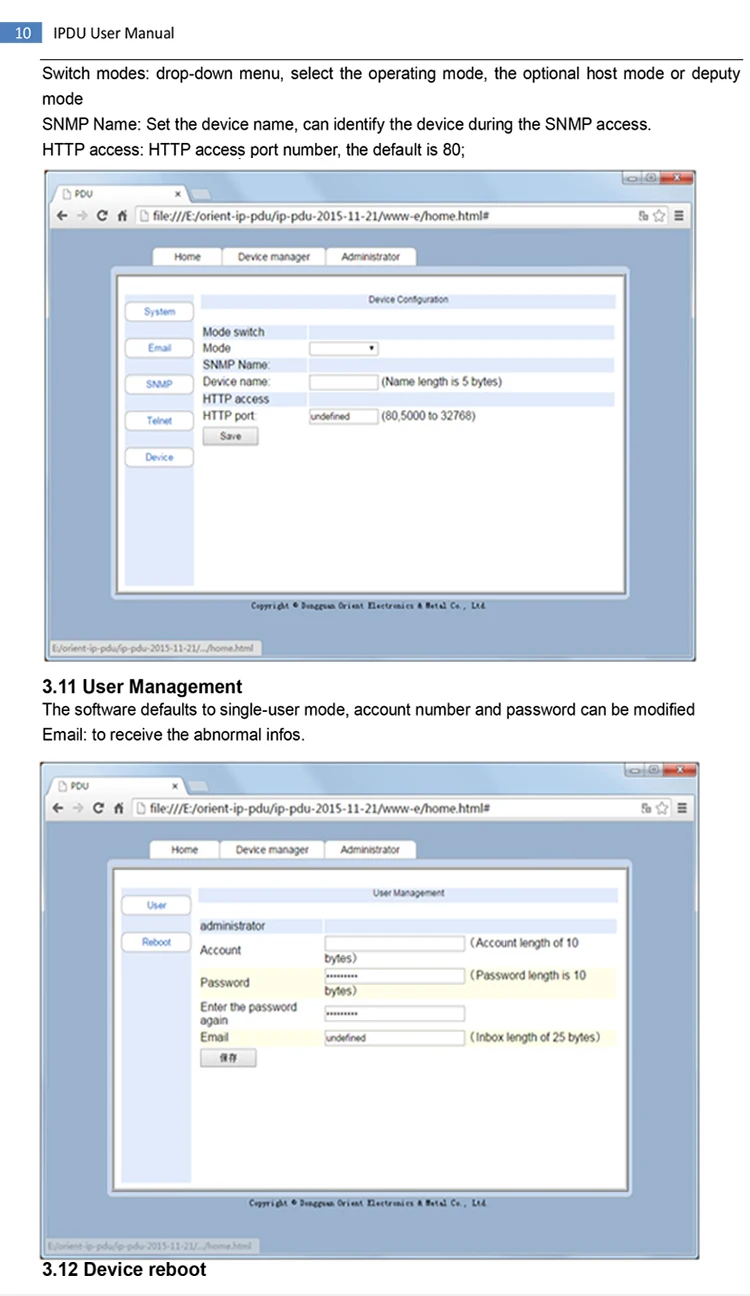

| user management | Set the user name and password | ||||
| cascading | Can be cascaded for two products | ||||
| environment | Operating temperature | 0℃~55℃ | |||
| relative humidity | 10~90 | ||||
| storage temperature | -20℃ ~ +70℃ | ||||
Q:Are you manufacturer or trader?
A: We are a professional manufacturer in Dongguan China, Our R & D and technical data center is based in our Shenzhen office,we are specializing in PDU (power distribution unit) (Basic PDU and smart PDU)& Server case for over 12 years.
Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
Q:What is the lead time for your product?
A: For sample: Normally 3-7 days for basic PDU and 3-10 days for customized PDU.
For mass production: Normally 7-15 days for basic PDU and 10-20 days for customized PDU.
Q:Can I print my logo on your products?
A: Yes. We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make sample for you asap.
Q:I make business on Amazon,can you ship my goods to Amazon FBA?
A:Yes. We know FBA requirements,for example,dimension & weight limits,package label request. Our freight forwarder can ship your products to any fulfillment center with DDP service at a fair price.
Q:How does your factory do regarding quality control?
A: A pre-production sample is approved by customer before mass production; First article inspection and final inspection are on site conducted either by quality engineer or SGS; All of our products are complied with international standards such as UL, ETL, CE, EMC, SSA. All materials and components are in compliance with RoHS, VDE and UL.
Q:Why should I buy from you,not others?
A:We can provide professional IT support consisting of IT consultants and power distribution solutions to all worldwide customers. Our PDUs and smart PDUs associated with SNMP-A series which is specially designed for high power supply with large load power and stable performance covering a wide voltage range: 110V, 208V, 380V, 415V, 488V, current load range: 32A, 63A, 100A, 125A. Abundant of API interfaces, support SNMP, HTTPS, https Telnet, 485modbus, SSH and other mainstream hot protocols.
We can provide both hardware and software customizations along with superior quality and competitive costs for global valued customers.
Q: What's your payment terms?
A: Via Alibaba trade assurance, or T/T. Also other payments can also be negotiated.
Q: May I be your agent in overseas?
A: Yes. We can authorize you to sell our products or apply our GWGJ brands in your local markets. Further details pls contact our regional sales managers.
