Crash lock Bottom Cardboard Box Automatic Folder Gluer Machine With Competitive rice!
- Category: >>>
- Supplier: Shanghai Printyoung International Industry Co. Ltd.
Share on (62133497585):
Product Overview
Description
Product Description
ZH-D series is the updated model on the basis of ZH-G series.
Difference from ZH-G series
1, ZH800D adds the upper belt on the folding unit to improve the stability of the box moving.
2, The upper belt equipped with lifting devices, more convenient to operate.
3, Main engine power has been increased and the speed is faster.
4, Pressing unit has separate motor to control speed, only when there comes the box, the pressing section works..
5, The machine outlook is more beautiful.
Technical parameters:
Line speed: 0—220m/min adjustable |
Paperboard: 210-600gsm paperboard |
| Box forming:pre fold and crash lock. |
| Gluing: four stations, 2 upper stations, 2 lower stations. Each lower station has a grinding wheel for cleaning UV varnish and ink off the flap before gluing. |
| Auto Feeding |
| Power:3 .7Kw AC220V |
| Weight: 2000KG |
| Dimension: 8500*900*1300(mm) |
| Auto Counting Range: 0-999999 number with batching facility |
Technical Data
Model | Box type | (A Max) | (A Min) | (B Max) | (B Min) | (C Max) | (C Min) | (D Max) | (E Min) |
ZH-800G(D) | Straight line box(I) | 560 | 106 | 500 | 65 | 270 | 50 | 7 | 6 |
Pre-fold box(I) | 560 | 180 | 500 | 65 | 270 | 90 | 10 | 6 | |
Crash lock bottom box(II) | 560 | 160 | 500 | 65 | 270 | 80 | 40 | 6 | |
ZH-880G(D) | Straight line box(I) | 660 | 110 | 500 | 65 | 320 | 50 | 7 | 6 |
Pre-fold box(I) | 660 | 180 | 500 | 65 | 320 | 90 | 10 | 6 | |
Crash lock bottom box(II) | 660 | 160 | 500 | 65 | 320 | 80 | 50 | 6 | |
ZH-1000G(D) | Straight line box(I) | 760 | 130 | 600 | 80 | 370 | 60 | 10 | 8 |
Pre-fold box(I) | 760 | 180 | 600 | 80 | 370 | 90 | 15 | 8 | |
Crash lock bottom box (II) | 760 | 180 | 600 | 80 | 370 | 90 | 60 | 8 |

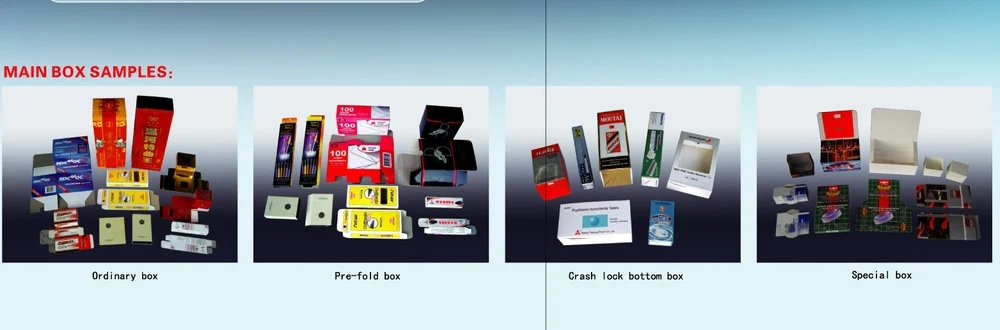

Box Samples:

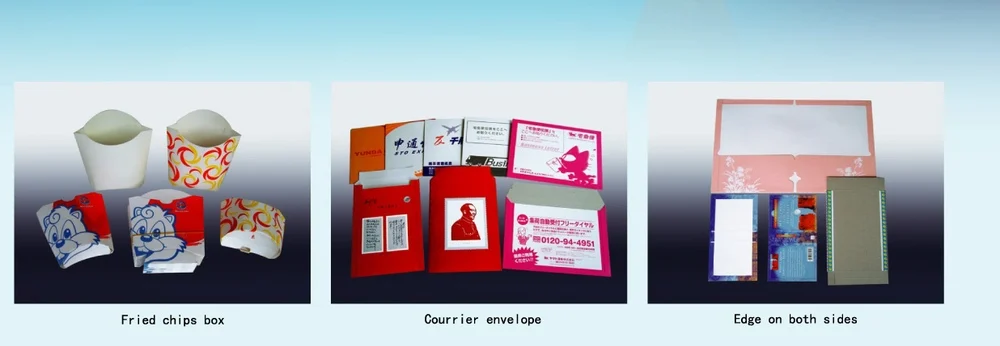

Optional:
Packaging & Shipping
Company Information
Shanghai Printyoung International Industry Co., Ltd. is a professional printing and packaging equipment manufacturer and supplier. Our company is located in Shanghai, China. And we have factories in Zhejiang, Shandong and Guangdong province. Our people have more than 10 year experience in printing field. Our company has passed the Factory Audit by Intertek company, as well as SGS Inspection.

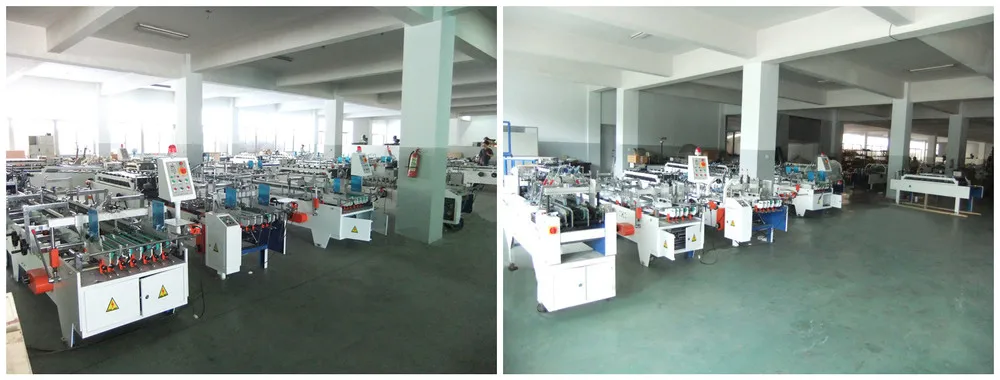

We specialize in printing equipment, post-printing equipment as well as printing materials. Among them, our folder gluer and die cutting machine are the best selling ones. We have large scale production and many in stock. For the regular model, it can be delivered within 15days. We also offer the clients competitive price with complete service. Our products have been sold all around the world, such as the Middle East, South Africa, Europe, Latin America and Asia total 55countries.
We have joined many professional exhibitions in different countries, such as Drupa in Germany, Ipex in Britian, Printing fair in U.S.A, Polygraphinter in Russia, Expogrfia in Mexico, Printing fair in Brazil, Gulf Pack & Print in Dubai, All print in Indonesia, etc.
"Profession, Responsibility, Solutions" are the essence of our business. We guarantee our clients with good quality and the best service. The cornerstone of our business is to have mutual benefits with our clients. Our clients are our partners.
Printyoung is young and full of energy. We are seeking the highest achievements and providing you with the best satisfaction.
Our team:

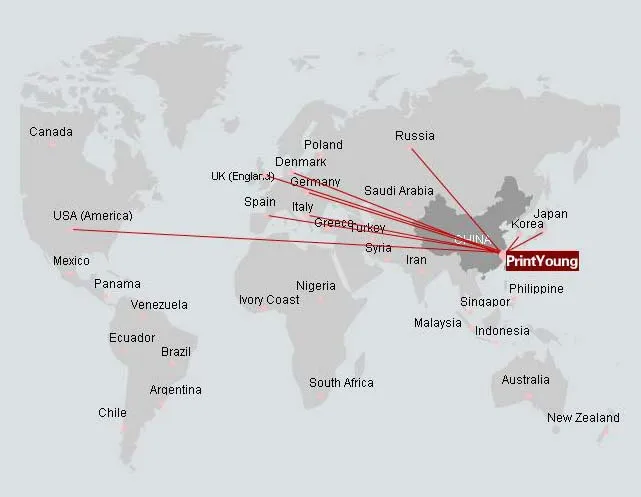

Sales Network:
