QZYK1370DH Touch Screen Double Hydraulic Double Guide Paper Cutting Machine

NAME: QZYK1370DH touch screen double hydraulic double guide paper cutting machine

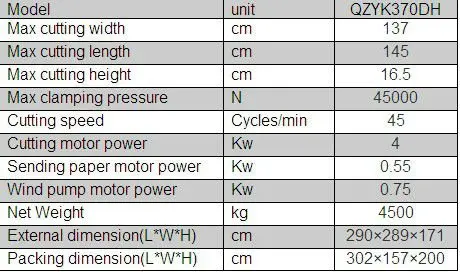

Parameter

Function

This series of machine adopts whole slotless worktable surrounded double guide paper sending system. For this system, paper sending speed is high, and paper sender posit precisely.
The cutting system adopts the high wearable worm wheel decelerated transmission, friction clutch is controlled through hydraulic system which make the pressure can be adjusted bigger. The paper –pressing pressure can be adjusted from 200N to 55000N, which ensure the cutting quality. The cutting is operated by double hands. And the machine is installed with safe device, such as photo cell, electronic knife lock and single recycle cutting. It has features of low noise, large cutting power, high precision. Customer can choose to equip the machine with the electric components imported from France, Germany, Japan, high speed ball screw of Taiwan and the hydraulic system with European safety certificate.

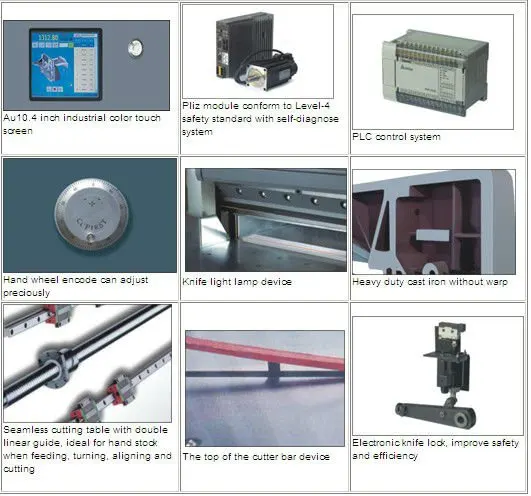

Configuration
