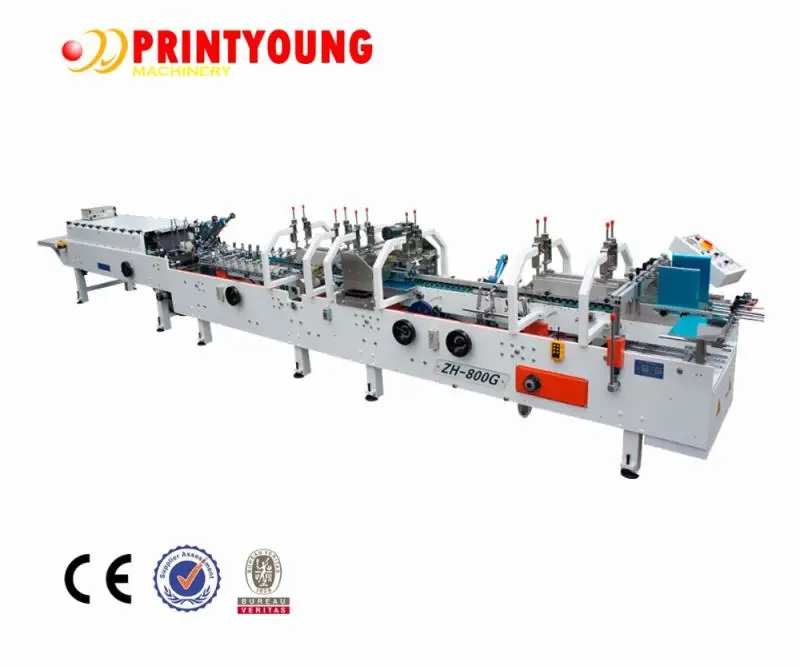

ZH 800G Automatic Eyebrow Pencil Paper Box Making Machine

Product Overview

Description







ZH-800G Automatic eyebrow pencil paper box making machine is the latest multi-functional crash lock bottom folder gluer; it made indelible contributions to the field of folder gluer. It combines a variety of folder gluer features, the general-paste, pre-folded lines with crash lock bottom. We got two patterns for this model. It’s powerful, widely usage, easy operating and adjusting as well as economic. Especially for the current packaging and printing industry, it can solve the problem of many different boxes, less quantity, the delivery of the tight schedule and so on. It will help you to recover the investment cost back quickly.

 It is widely used in processing medicine box, Wine box, Cosmetics box and Electric appliances packing box etc.





Technical parameters

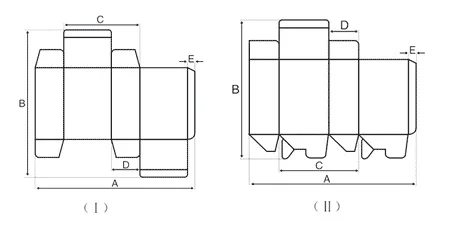

Model	Box type	(A Max)	(A Min)	(B Max)	(B Min)	(C Max)	(C Min)	(D Max)	(E Min)
ZH-800G	Straight line box(I)	560	106	500	65	270	50	7	6
	Pre-fold box(I)	560	180	500	65	270	90	10	6
	Crash lock bottom box(II)	560	160	500	65	270	80	40	6
ZH-880G	Straight line box(I)	660	110	500	65	320	50	7	6
	Pre-fold box(I)	660	180	500	65	320	90	10	6
	Crash lock bottom box(II)	660	160	500	65	320	80	50	6
ZH-1000G	Straight line box(I)	760	130	600	80	370	60	10	8
	Pre-fold box(I)	760	180	600	80	370	90	15	8
	Crash lock bottom box (II)	760	180	600	80	370	90	60	8
