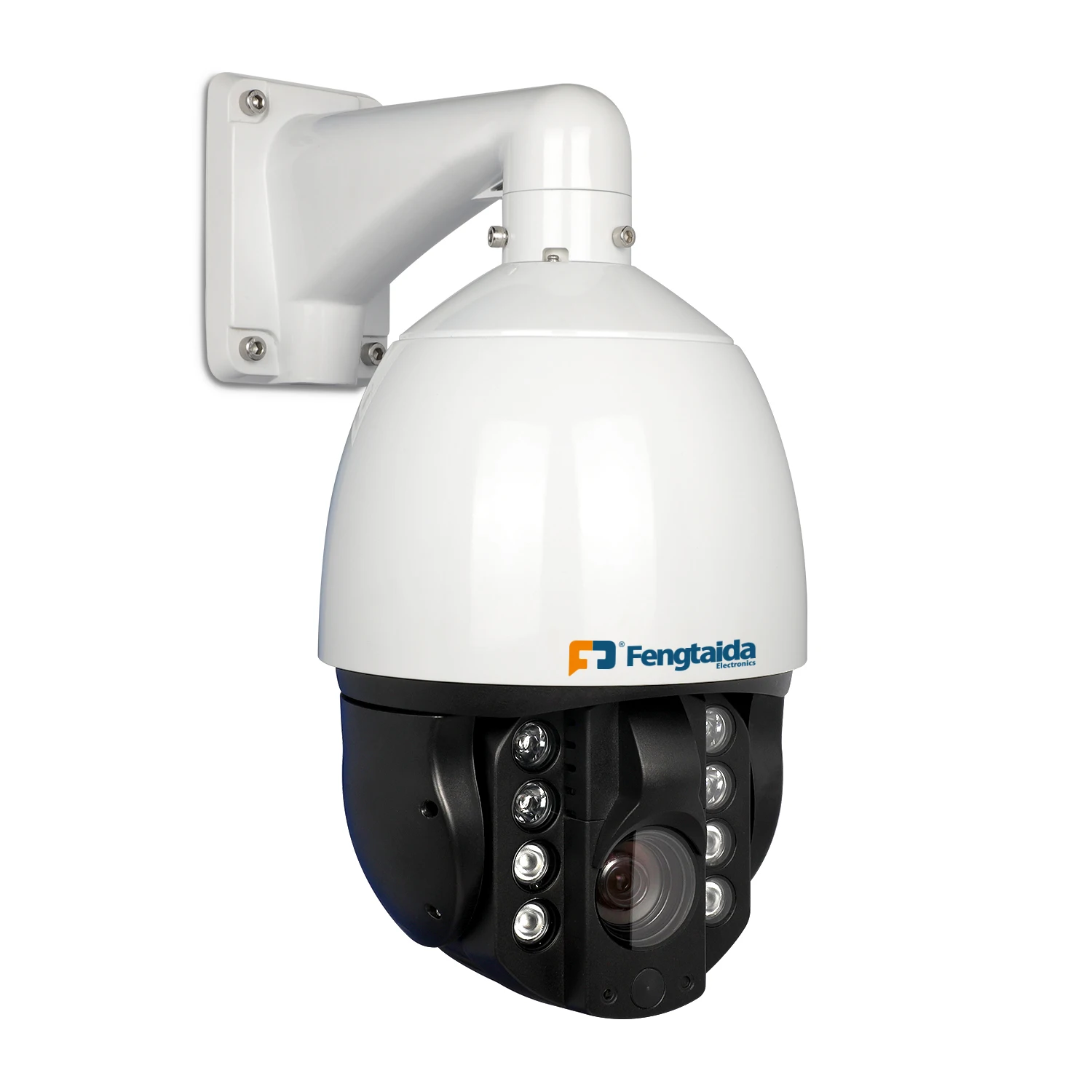

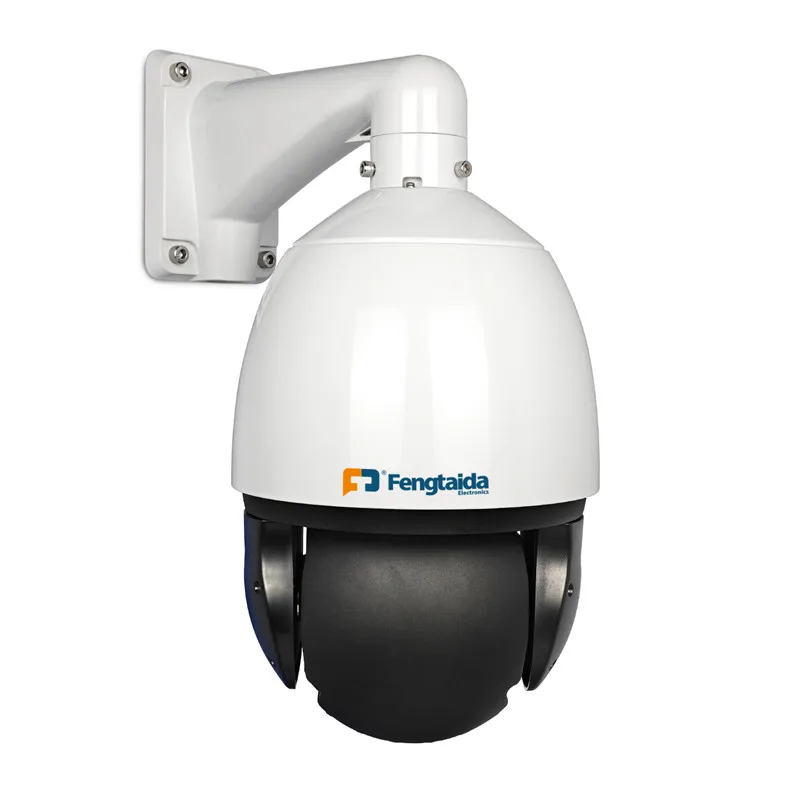

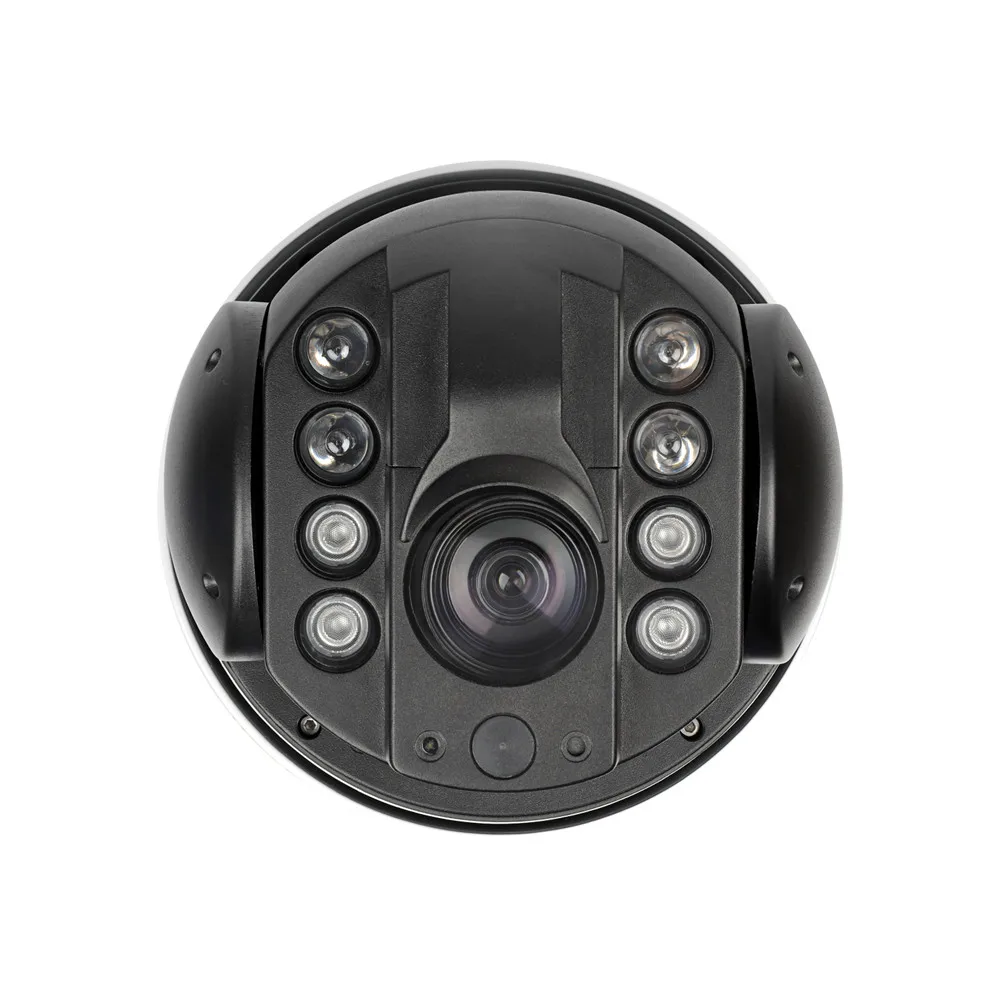

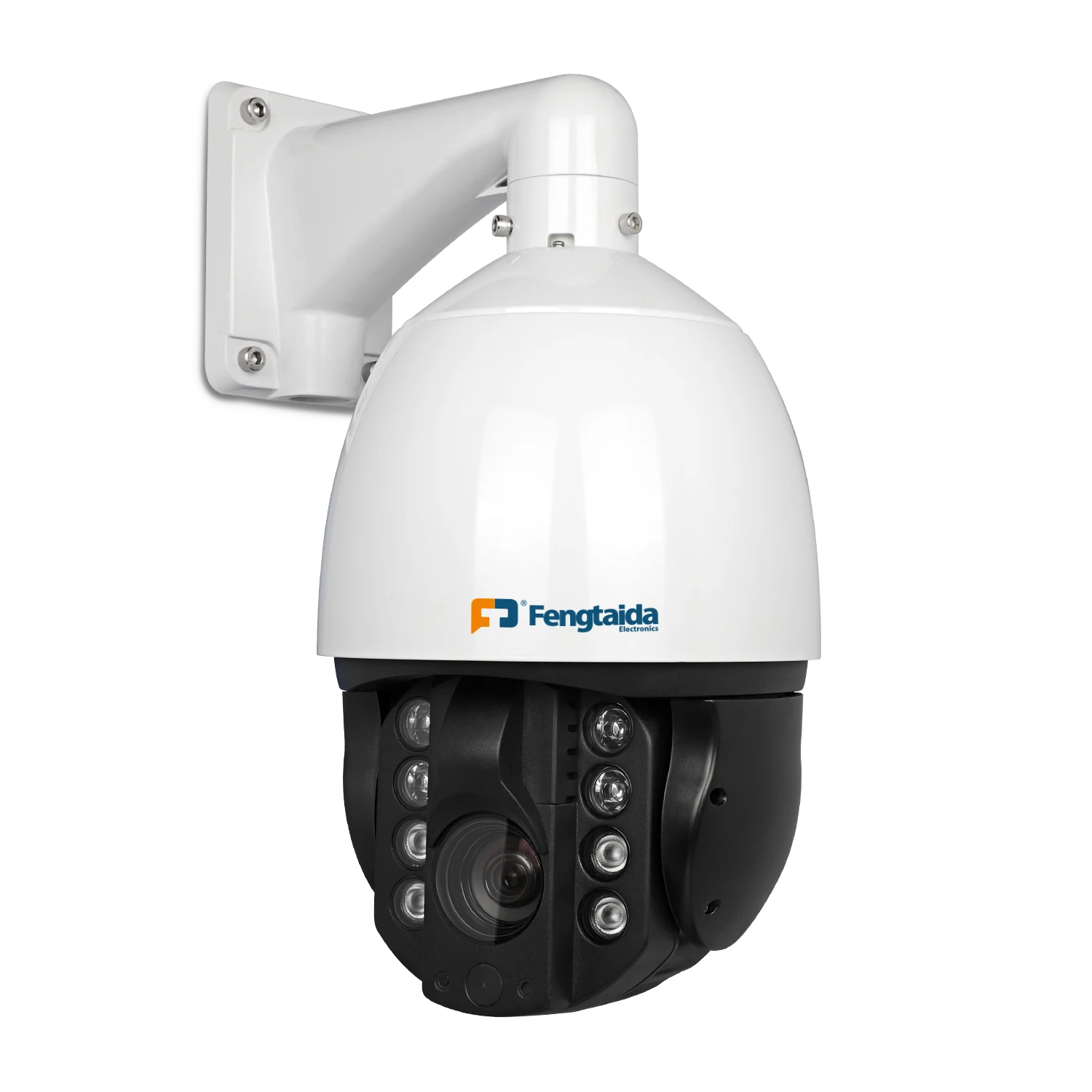

Air Wiper X38 Zoom Lens Starlight waterproof IP66 High Speed 1080P IP Mini Ptz IP CCTV Dome IR Camera
- Category: >>>
- Supplier: Shenzhen Fengtaida Electrionics Co. Ltd.
Share on (62133917537):
Product Overview
Description
Product Description
Air Wiper 1080P X38 Zoom Lens Starlight IR PTZ Surveillance High Speed Dome Camera
World's First Ever “invisible wiper” with smart rain sensor,no scratch
High precision step motor,preset accuracy is less than ±0.1 degree
Durable housing, no corrosion and flaking after 300hr spray test
300m IR night vision, IP66 waterproof
360º endless Pan, -10~90° Tilt auto.flip
| Dome type | IRS2-001 Series High Definition IP Speed Dome Specifications | ||||||
| FTD-IRS2-1822GW (38X) | |||||||
| Network | Network Interface | Ethernet 10/100Base-T (4G&WIFI) | |||||
| Network Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,P2P | ||||||
| Compatibility | Support most of the platforms on the market | ||||||
| Interface Protocol | ONVIF2.4/GB28181(Option- Customize) | ||||||
| Mobile monitoring | Operating System | Android/IOS | |||||
| Camera | Image Sensor | 1/1.8” 2.0M Pixel CMOS IMX385 | |||||
| Optical Zoom | 38X | ||||||
| Minimum Illumination | Color: 0.005Lux at F1.5; B/W: 0.001Lux at F1.5; 0Lux(IR on) | ||||||
| WDR | 80dB | ||||||
| S/N Ratio | More than 50dB(AGC off) | ||||||
| Day/Night | Auto(ICR) / Color / B/W | ||||||
| Angle of View | H: 60° ~ 2° | ||||||
| Electronic Shutter Speed | 1/2 - 1/20,000s | ||||||
| Noise Reduction | DNR,3DNR | ||||||
| Defog | Support | ||||||
| Max. Aperture | F1.5~F4.8 | ||||||
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | ||||||
| Gain Control | Auto / Manual | ||||||
| Video | Compression | H.265/H.264/MJPEG | |||||
| Video Interface | 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC (S/N ratio≥ 55dB) | ||||||
| Resolution | Main stream:1920x1080,1280x960,1280×720,720×576,640×480 | ||||||
| Sub stream:640×480,352×288,320×240,176×144 | |||||||
| MJPEG:1920x1080,1280×720 | |||||||
| Max Frame Rate | H.265/H.264: 30fps at 1920x1080 | ||||||
| Bitrate | MainStream:10.0Mbps at VBR/Sub Stream:32Kbps at VBR | ||||||
| Audio | Algorithm | G711,G726,PCM,AAC | |||||
| Input | 1 x Line-In (Mini-stereo, Single Mono) | ||||||
| Output | 1 x Line-Out (Mini-stereo, Single Mono) | ||||||
| Pan/Tilt | Range | Pan : 360°(Endless)/ Tilt: -10~90° | |||||
| Pan/Tilt Speed | Preset Max.:131°/sec | ||||||
| Manual : 0.1° ~ 131°/sec (Zoom Proportional) | |||||||
| Patrol : 1.4°~131° /sec | |||||||
| Preset | 246Presets and 9 presets for special function | ||||||
| Patrol Scan | 3 Group Patrol | ||||||
| Air Wiper | Auto / Manual | ||||||
| Other Functions | Auto Flip, Auto Parking, Power-up Action & etc | ||||||
| Alarm | Alarm Input | 1(ON/OFF signal) | |||||
| Alarm Output | 1(ON/OFF signal) | ||||||
| Infrared | IR distance | 200m-300m(Max.) | |||||
| Wave | 850nm | ||||||
| Physical | IP protection | With IP66 | |||||
| Operating Temperature | –35℃~60℃ | ||||||
| Humidity | 0%~98% (Non condensing) | ||||||
| Power Source | AC24V 3A 60Hz/50Hz | ||||||
| Power Consumption | AC24V:8W-47W | ||||||
