Price:350 000,00 $ - 500 000,00 $

Quantity:


Product Overview

Description



Product Description


SPECIFICATIONS
Type
RLBZ800
RLBZ1000
Rated Production Capacity(t/h)
60
80
Install Power(KW)
145
175
Number Of Cold Storage
2
2
Cold Storage Capacity(m3)
10
10
Feeding Width(m)
3.5
3.5
Drum Dryer Length(m)
8
8
Drum Dryer Diameter(m)
1.8
1.8
Drum Dryer Drive Device(KW)
4×7.5
4×11
Burner
Fuel Burner
Fuel Burner
Fuel
Light Oil/Heavy Oil
Light Oil/Heavy Oil
Matching Asphalt Mixing Plant
YH1000-YH1500
YH1500-YH2000
Overall Dimensions(m)
32m×32m×15m
37m×32m×15m

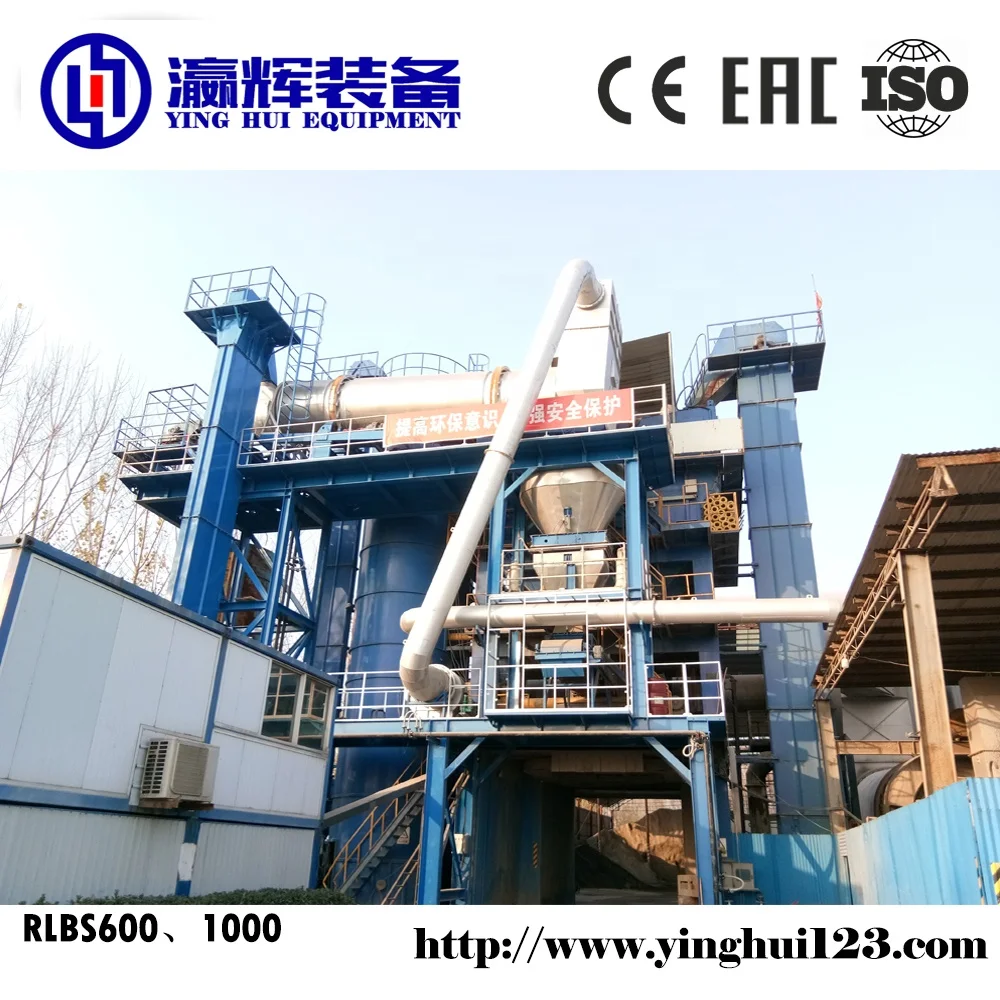

RLBZ series of asphalt recycling equipment is a kind of equipment which mix heated waste asphalt,some new aggregate and new asphalt under a certain proportion,to produce hot mix which meet the road performance requirements.By this recycling plant,not only solved the waste asphalt caused environmental pollution,but also re used asphalt and stone,which maximize the usage of limited resources.Reduce the cost and saving the investment for customer.Meet the requirements of the times,with significant economic and social benefits.

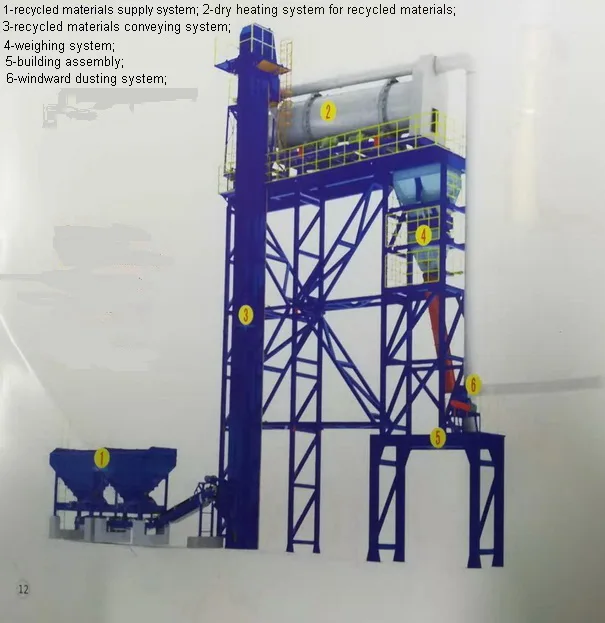

The equipment is mainly composed of recycled material feeding system,recycled material drying system,
burning system(coal,fuel oil),lifting system,dust removal system,weighing system and electrical control system. Modular control design,reasonable structure,compact,and connected batch mixing plant smooth,easy to install and transitions;electrical control system and host seamless convergence,not only can achieve automatic control,but also have function of lubrication,maintenance warning,Fault remote diagnosis, video monitoring and others,is an equipment with mechanical,electricity and air integration plant.



Main Features


1.Modular cold material ration system,using double cold bin form,frequency control,to achieve step-less adjustment.
2.Dry drum with a unique soft chain lifting and cleaning structure,heat exchange efficiency is high and not stick.
3.Storage system has a special structure and heating insulation
device to solve the problem of stick and poor mobility of the mixture.
4.Control system can accurately and reliably match the original machine,easy to operate(user-friendly interface).
5.High precision and good stability of the weighing system.



Our Service


Our services department could provide professional after-sales service for the customers:

1.One year warranty,
2.Turn-key project is available according to customer requests,
3.Assist customer for work site layout and planning,
4.Guide customer for equipment installation and commissioning,training for operator and maintenance persons,
5.Provide life-time service,
6.Provide original spare parts,
7.Provide specialized service like plant transferring,upgrading and work site planning etc.



Packaging & Shipment


Packaging: The Whole equipment is designed according to standard high cabinet container, standard package suit for international sea transportation, train transportation or truck transportation;
Port: Tianjin port, Qingdao port, Shanghai port.

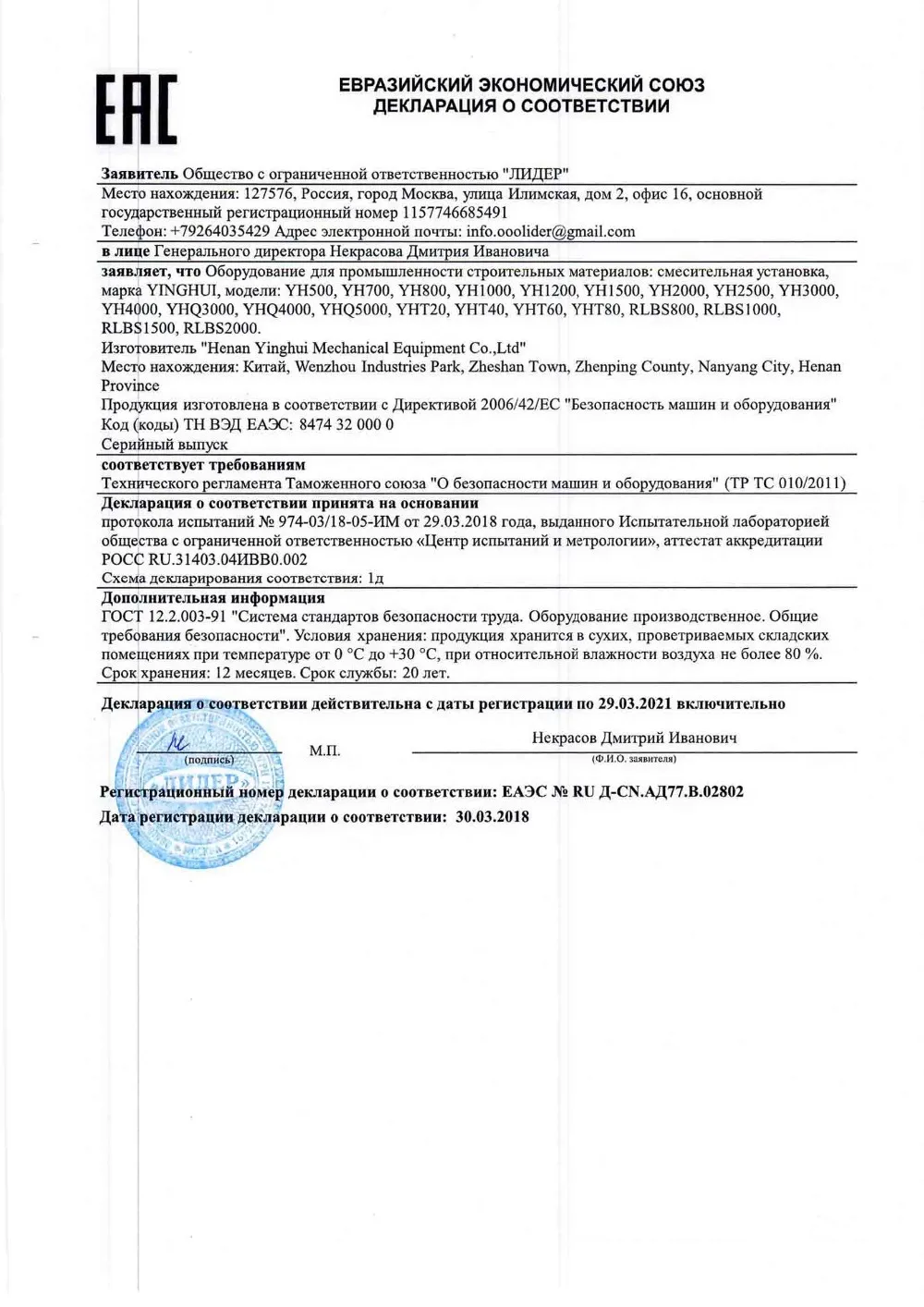

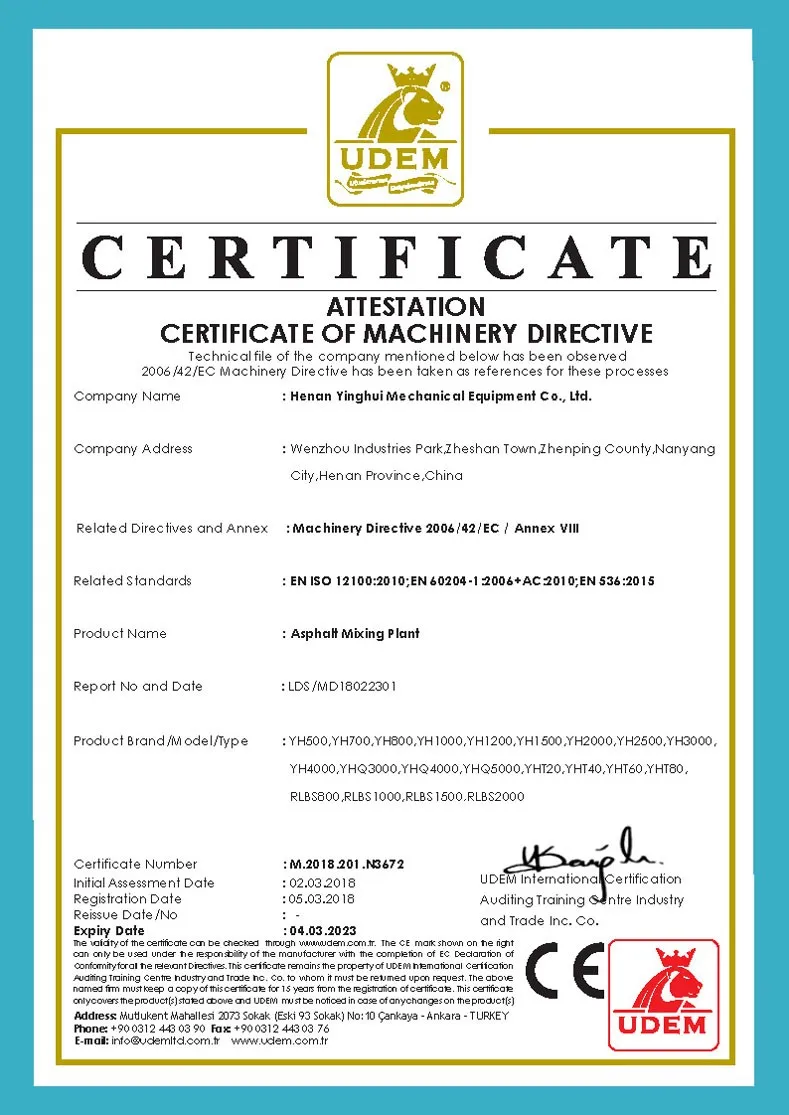

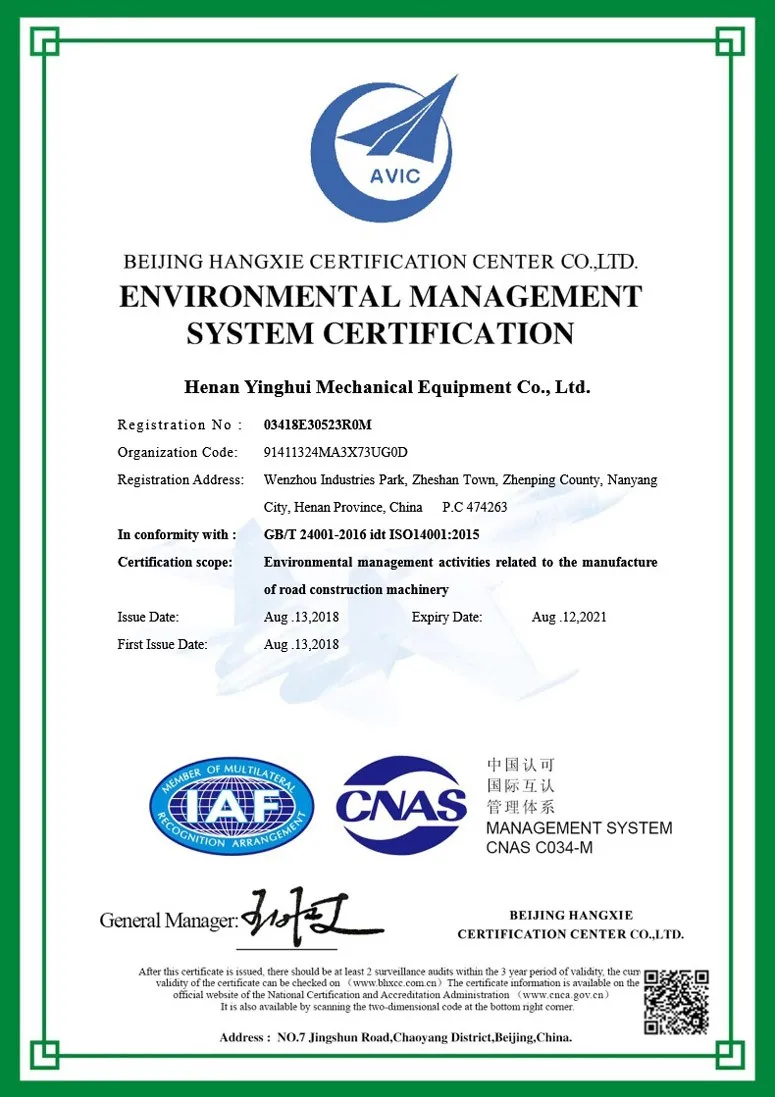

Certifications








Company Profile



Henan Yinghui Machinery Equipment Co., Ltd., located in Wenzhou Industrial Park, Zheshan Town, Nanyang City, Henan Province, is
engaged in producing the asphalt mixing plant for more than 20 years so far, integrating with R&D, production and sales together
to make the high quality asphalt mixing equipment.
Our main products include four series: asphalt mixing equipment, asphalt recycling plant, drum asphalt mixing equipment, stable
oil mixing equipment etc. We have already passed certification of CE, EAC and GHOST to ensure our clients to use our high quality
asphalt mixing equipment.
We adhere to “pursuit of quality, customer first” core philosophy, fine production management, and continuously improve product
quality, provide first-class products for customers to create the greatest benefits.








Why Do You Choose Us?
Our services department could provide professional after-sales service for the customers:
1.One year warranty,
2.Turn-key project is available according to customer requests,
3.Assist customer for work site layout and planning,
4.Guide customer for equipment installation and commissioning,training for operator and maintenance persons,
5.Provide life-time service,
6.Provide original spare parts,
7.Provide specialized service like plant transferring,upgrading and work site planning etc.


Packaging & Shipment:
Packaging: The Whole equipment is designed according to standard 20GP/40GP/40HQ/20FC/20TO containers, standard package suit for
international sea transportation, train transportation or truck transportation;Port: Tianjin port, Qingdao port, Shanghai port.


Please Contact Us At: +86 13248355310 (wechat/whatsapp), E-mail: wxtab(at)126.com, Attn: Henry/export sales manager;

Thank you for your trust and support. Your trust and choice on us will be our biggest drive force for progression. We shall do
our best to enhance and improve our own equipment quality better and better to meet your demand.


Item Name: RLBZ800-RLBZ1000 Asphalt Recycling Plant
