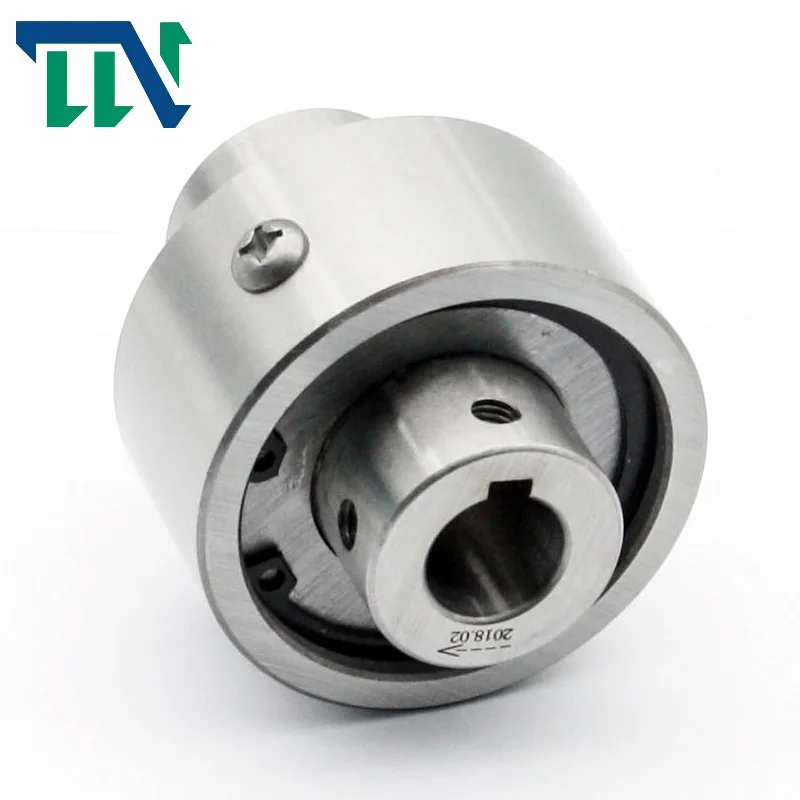

PB8 Sprag One Way Clutch Backstop Cam Clutch

Name: PB8 Sprag One Way Clutch Backstop Cam Clutch
SKU: 62134197969
Availability: InStock

Price:

Quantity:

Product Description

Technical Datas

Item	PB Series
Material	GCr15
Bore dia.	10-45 mm
Outer dia.	23-75 mm
Width	50-112 mm
Torque capacity	29.4-2110 N.m
Weight	0.23-6.0 kg
Package	Carton box, wooden box or as your requirements

Dimensions and Capacities

Model	Torque Capacity (N·m)	Drag Torque (N·m)	Max. Overrunning (r/min)		Max. indexing (cycle/min)	Bore Size		A	B	C (h7)	D	E	F		Outer Race Keyway		Weight (kg)	Lubrication Filler Plug SizexPitch
Model	Torque Capacity (N·m)	Drag Torque (N·m)	Inner Race	Outer Race	Max. indexing (cycle/min)	Dia.(J7)	Keyway							G	K	L
PB 3	29.4	0.20	1,800	900	150	10	4x1.5	50	50	23	22	25	21	25.7	4× 2.5	16	0.23	M6× P1.0
PB 5	147	0.20	1,800	900	150	16	5x2	70	60	32	32	35	25	38.8	5× 3.0	20	0.58	M6× P1.0
PB 6	382	0.20	1,500	800	150	20	5x2	82	73	38	38	37	33	41	5× 3.0	27	1.1	M6× P1.0
PB 8	568	0.29	1,200	650	150	25	7x3	85	83	45	40	45	33	42	7× 4.0	27	1.6	M6× P1.0
PB 10	843	0.39	1,000	400	150	31.5	10x3.5	92	95	60	41	56	37	44	10 × 4.5	28	2.5	M6× P1.0
PB 12	1530	0.39	800	300	150	40	10x3.5	100	113	65	50	66	37	52.6	10 × 4.5	29	3.6	M6× P1.0
PB 14	2110	0.59	700	300	150	45	12x3.5	112	133	75	54	76	41	57.3	12 × 4.5	30	6.0	M6× P1.0
