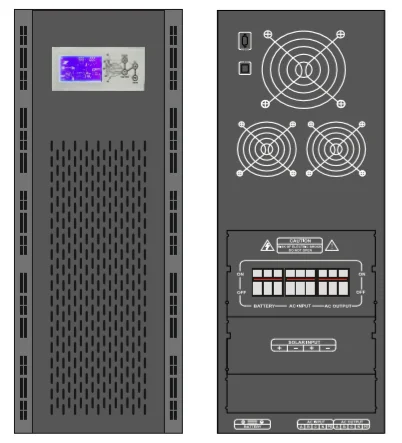

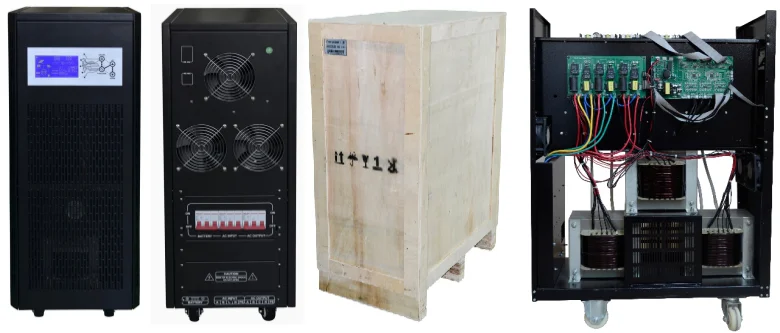

HDSX M series 7KW 10KW 15KW 20KW Three Phase Solar Inverter
- Category: >>>
- Supplier: Zhangjiagang Great Energy Co. Ltd.
Share on (62134200226):
Product Overview
Description
Product Details
Product Description
♦ Main Features
1. 100% unbalance loads design.
2. Low frequency, pure sine wave output.
3. Wide AC voltage input range, AVR output.
4. Peak power more than 3 times.
5. Built-in MPPT solar controller.
6. LCD display for all working datas.
7. AC prior/EC mode/Solar prior selectable.
8. AC charge current 0~45A selectable.
9. Max PV charge current selectable.
10. Seven battery type selectable.
11. 50Hz/60Hz automatic recognition.
12. Support diesel/gasoline generator input.
13. RS232//RS485/APP/SNMP/GSM communication port optional.

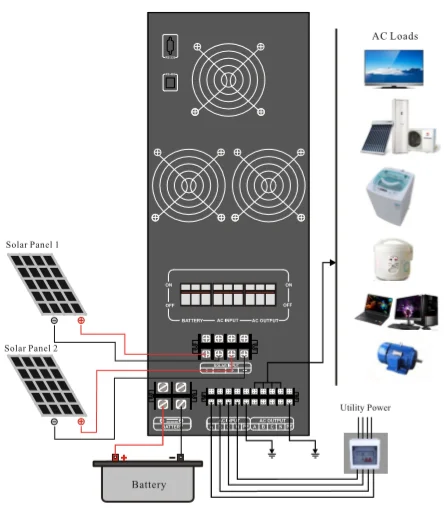

| Specification | |||||||||||||
| Model HDSX-M | 70248-80 | 70296-50 | 702192-50 | 10348-100 | 10396-100 | 103192-100 | 15396-100 | 153192-100 | 153384-100 | 20396-100 | 203192-100 | 203384-100 | |
| Rated Power | 7KW | 7KW | 7KW | 10KW | 10KW | 10KW | 15KW | 15KW | 15KW | 20KW | 20KW | 20KW | |
| Battery Voltage | 48VDC | 96VDC | 192VDC | 96VDC | 192VDC | 384VDC | 96VDC | 192VDC | 384VDC | 96VDC | 192VDC | 384VDC | |
| N.W.(kg) | 102 | 104 | 104 | 120 | 120 | 120 | 155 | 155 | 155 | 174 | 174 | 174 | |
| G.W.(kg) | 120 | 122 | 122 | 138 | 138 | 138 | 173 | 173 | 173 | 192 | 192 | 192 | |
| Size(L*W*Hmm) | 725*365*1010 | ||||||||||||
| Packing Size(L*W*Hmm) | 785*425*1135 | ||||||||||||
| Parameter | |||||||||||||
| Input | Battery Input Voltage Range | 42V~60V for 48V system; 84V~120V for 96V system; 168V~240V for 192V system; 336V~480V for 384V system | |||||||||||
| AC Input Voltage Range | 380Vac/400Vac±10%(customized 190Vac/200Vac) | ||||||||||||
| AC Input Frequency Range | 45Hz-65Hz | ||||||||||||
| Phase | 3/N/PE | ||||||||||||
| Output | Efficiency(Battery Mode) | ≥85% | |||||||||||
| Output Voltage(Battery Mode) | 380Vac/400Vac±10%(customized 190Vac/200Vac) | ||||||||||||
| Output Frequency(Battery Mode) | 50/60Hz ±1% | ||||||||||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||||||||||
| Output waveform distortion | Linear load≤3% | ||||||||||||
| Efficiency(AC Mode) | >99% | ||||||||||||
| Output Voltage(AC Mode) | Conforming to AC input | ||||||||||||
| Output Frequency(AC Mode) | Conforming to AC input | ||||||||||||
| Phase | 3/N/PE | ||||||||||||
| AC charger | AC charging current | 0~45A selectable | |||||||||||
| AC charging method | Three-stage(constant current, constant voltage, floating charge) | ||||||||||||
| Solar charger | Charging Mode | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT |
| PV charging current selectable | Max 80A | Max 50A | Max 50A | Max 100A | Max 100A | Max 100A | Max 100A | Max 100A | Max 100A | Max 100A | Max 100A | Max 100A | |
| MPPT working voltage range | 50V-120V | 120V-176V | 240V-352V | 50V-120V | 120V-176V | 240V-352V | 120V-176V | 240V-352V | 480V-704V | 120V-176V | 240V-352V | 480V-704V | |
| Max PV Input Voltage(At 25℃) | 150V | 200V | 400V | 150V | 200V | 400V | 200V | 400V | 750V | 200V | 400V | 750V | |
| Max PV Array Power | 4480W | 5600W | 11.2KW | 5600W | 11.2KW | 22.4KW | 11.2KW | 22.4KW | 44.8KW | 11.2KW | 22.4KW | 44.8KW | |
| Maximum conversion efficiency | >98% | ||||||||||||
| Battery type (Optional) | U0: Gel U.S.A | Charge Voltage: 56V for 48V system, 112V for 96V system, 224V for 192V system, 448V for 384V system; Float Voltage: 54.8V for 48V system, 109.6V for 96V system, 219.2V for 192V system, 438.4V for 384V system. | |||||||||||
| U1: A.G.M.1 | Charge Voltage: 56.4V for 48V system, 112.8V for 96V system, 225.6V for 192V system, 451.2V for 384V system; Float Voltage: 53.6V for 48V system, 107.2V for 96V system, 214.4V for 192V system, 428.8V for 384V system. | ||||||||||||
| U2: A.G.M.2 | Charge Voltage: 58.4V for 48V system, 116.8V for 96V system, 233.6V for 192V system, 467.2V for 384V system; Float Voltage: 54.8V for 48V system, 109.6V for 96V system, 219.2V for 192V system, 438.4V for 384V system. | ||||||||||||
| U3: Sealed lead Acid | Charge Voltage: 57.6V for 48V system, 115.2V for 96V system, 230.4V for 192V system, 460.8V for 384V system; Float Voltage: 54.4V for 48V system, 108.8V for 96V system, 217.6V for 192V system, 435.2V for 384V system. | ||||||||||||
| U4: Gel European | Charge Voltage: 57.6V for 48V system, 115.2V for 96V system, 230.4V for 192V system, 460.8V for 384V system; Float Voltage: 55.2V for 48V system, 110.4V for 96V system, 220.8V for 192V system, 441.6V for 384V system. | ||||||||||||
| U5: Open lead Acid | Charge Voltage: 59.2V for 48V system, 118.4V for 96V system, 236.8V for 192V system, 477.2V for 384V system; Float Voltage: 54V for 48V system, 108V for 96V system, 216V for 192V system, 432V for 384V system. | ||||||||||||
| U6: Calcuim(open) | Charge Voltage: 60.4V for 48V system, 120.8V for 96V system, 241.6V for 192V system, 483.2V for 384V system; Float Voltage: 54.4V for 48V system, 108.8V for 96V system, 217.6V for 192V system, 435.2V for 384V system. | ||||||||||||
| U7: Sulphation cycle | 15.5V for 4hrs | ||||||||||||
| customize battery | Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.) can be customized according to user requirements. | ||||||||||||
| Working Mode(Selectable) | AC prior(d1) | Under AC prior mode, device will always use utility source and through regulator to supply loads as well as charge battery(charging current selectable); when utility power is with high/low/serious distortion or other abnormal, device will auto converter battery source to supply loads. | |||||||||||
| EC mode(d2) | Under Energy saving mode, device dedects load, when the load is <10% rated power, device will auto on/off AC output; when the load is > 10% rated power, device will start AC output. | ||||||||||||
| Solar prior(d3) | Under Solar prior mode, device will always use solar source to supply load and rest to charge battery; when solar source is insufficient, device will auto converter battery source supply loads together; when battery source is failed, device will auto use utility source and through regulator to supply loads. | ||||||||||||
| Protection | Battery low voltage alarm | 44V for 48V system, 88V for 96V system, 176V for 192V system, 352V for 384V system | |||||||||||
| Battery low voltage protection | 42V for 48V system, 84V for 96V system, 168V for 192V system, 336V for 384V system | ||||||||||||
| Battery high voltage alarm | 60V for 48V system, 120V for 96V system, 240V for 192V system, 480V for 384V system | ||||||||||||
| Battery high voltage protection | 68V for 48V system, 136V for 96V system, 272V for 192V system, 544V for 384V system | ||||||||||||
| Battery high voltage recover | 58V for 48V system, 116V for 96V system, 232V for 192V system, 464V for 384V system | ||||||||||||
| Overload protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||||||||
| Output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||||||||
| Temperature protection | >90°C(Shut down output) | ||||||||||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |||||||||||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||||||||||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||||||||||||
| Transfer Time | ≤4ms | ||||||||||||
| Display | LCD | ||||||||||||
| Thermal method | Cooling fan in intelligent control | ||||||||||||
| Communication | RS232/RS485/APP/SNMP/GSM(Optional) | ||||||||||||
| Environment | Operating temperature | -10℃~40℃ | |||||||||||
| Storage temperature | -15℃~60℃ | ||||||||||||
| Noise | 2000m(More than derating) | ||||||||||||
| Elevation | ≤65dB | ||||||||||||
| Humidity | 0%~95% ,No condensation | ||||||||||||
