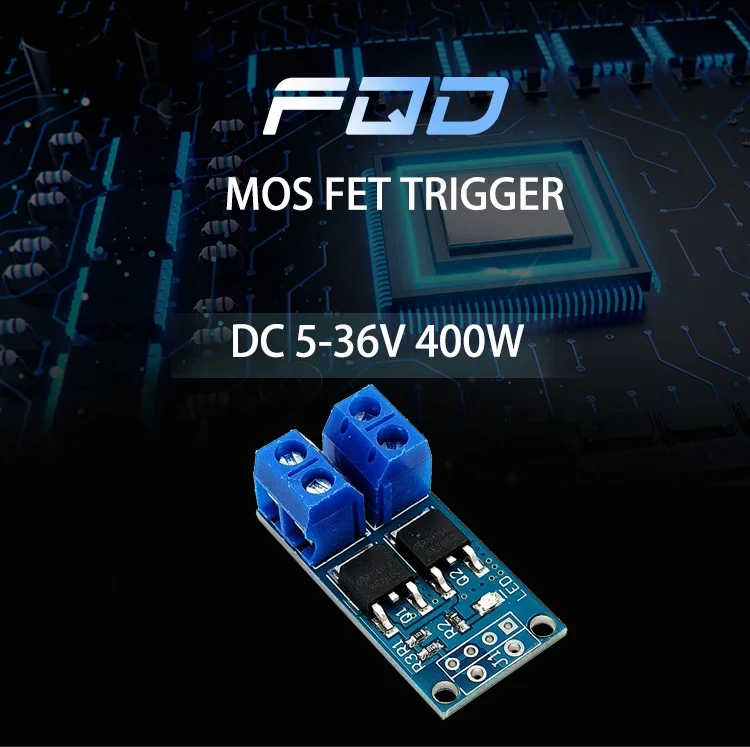

High Power MOS FET DC DC 36VMOS FET Trigger Switch MOS FET 15A Module Board Driving
- Category: Switches >>>
- Supplier: Shenzhen Fuqida Technology Co. Ltd.
Share on (62134200697):
Product Overview
Description
High Power MOS FET DC DC 36VMOS FET Trigger Switch MOS FET 15A Module Board Driving
Product Description
High-power MOS TUBE
Field effect transistor
Trigger switch
Drive module PWM adjustment electronic switch control board

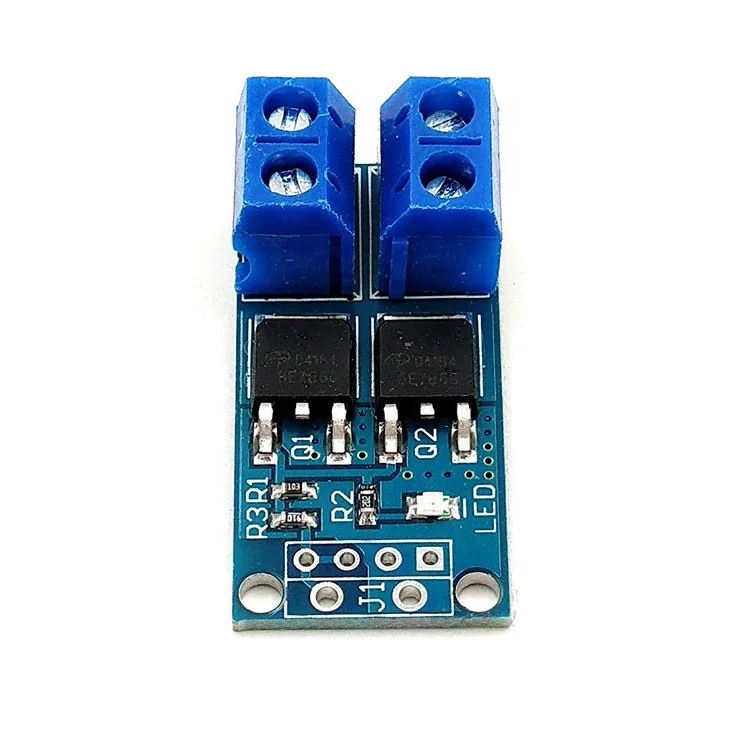

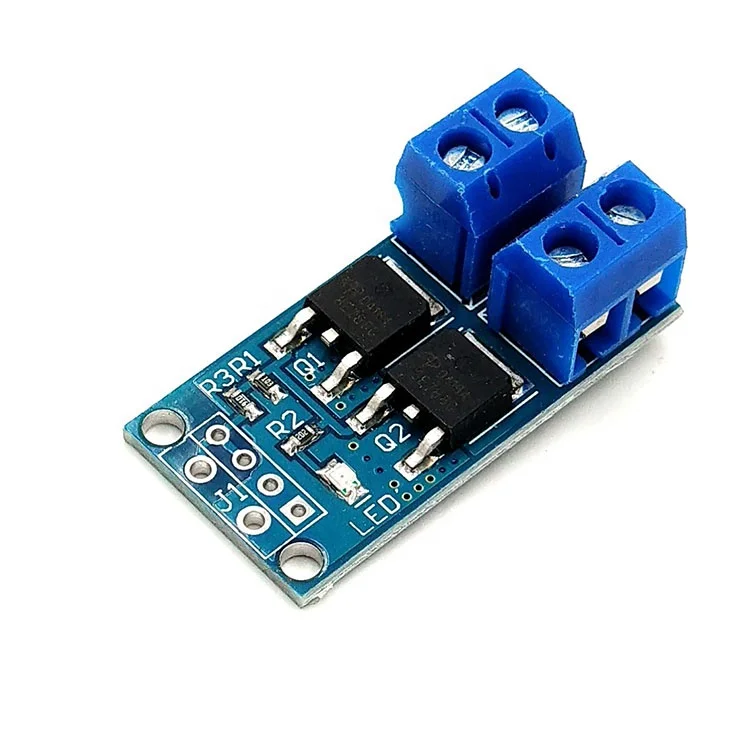

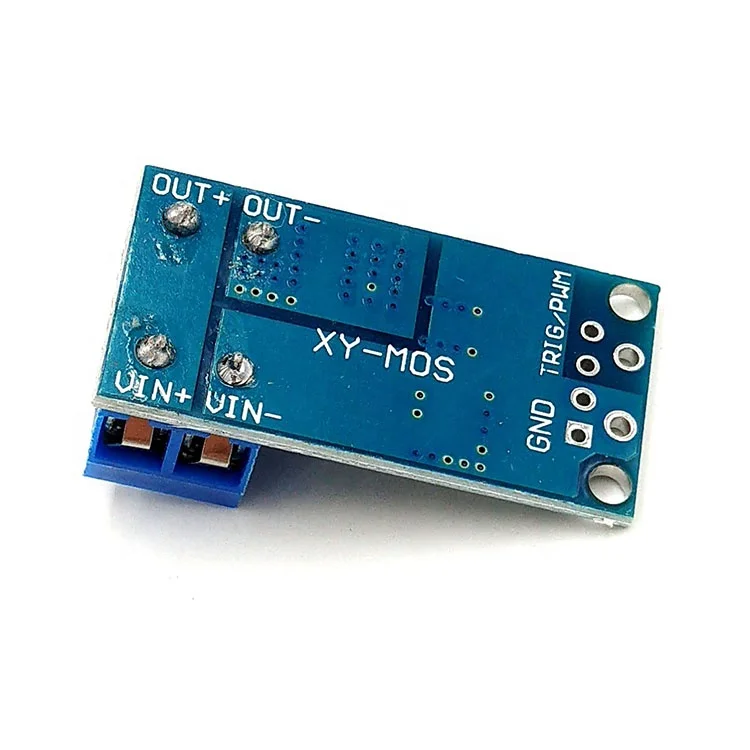

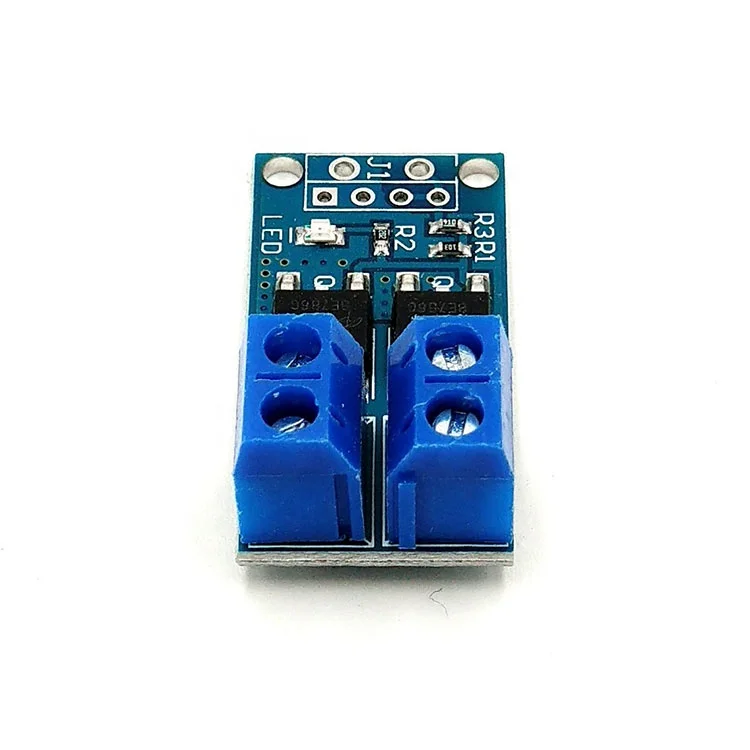

Module highlights:
1.Using Original imported , double MOS
Parallel active output, lower internal resistance, higher current, strong power,
At normal temperature 15A,400W, which meets the needs of most devices;
2.Wide voltage, perfect supportPWM;
3.Easily control high-power equipment.
Product parameters and applications:
SUNLEPHANT
1:Operating voltage: DC 5V--36V;
2:Trigger signal Source: Digital quantity high and low level (DC3.3V--20V), can be connected to SCM IO port, PLC interface, DC PSU, etc., can be connected to PWM signal, signal frequency 0- 20kHz perfect support.
3:Output Capacity: DC DC 5V 36V, continuous current 15A at normal temperature, power 400W! Under the condition of auxiliary heat dissipation, the maximum current can reach 30A.
4:Application: the output terminal can control high-power equipment, motor, bulb, LED light band, DC motor, micro water pump, solenoid valve, etc. It can input PWM, control the rotation speed of motor, brightness of lamp, etc.
5:Service life: unlimited switch; Working temperature:-40-85℃; Size: 3.4*1.7*1.2cm

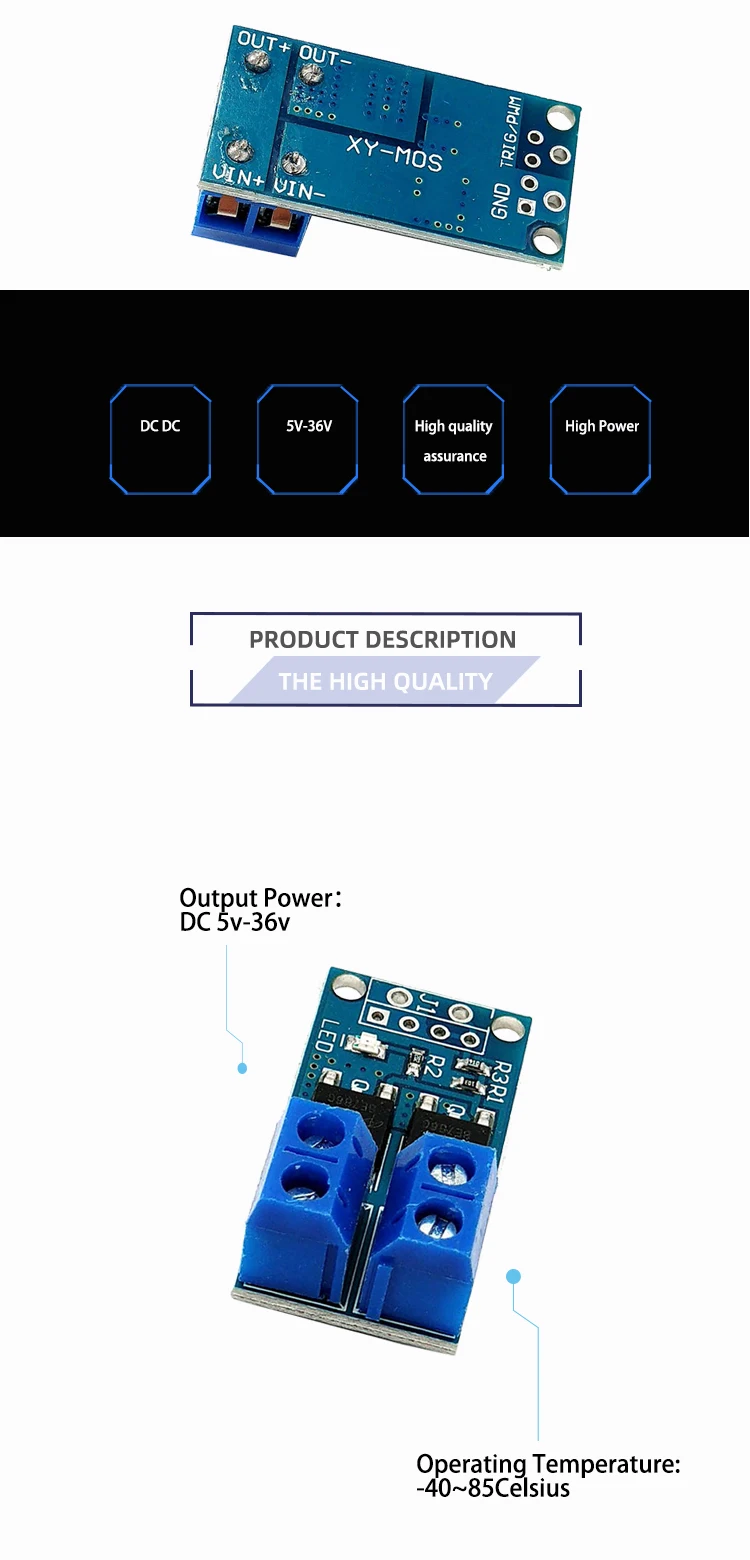

| Operating Voltage | DC 5V-36V |
| Output Power | DC 5v-36v |
| Operating Temperature | -40~85 Celsius |
| Weight | 10g |
