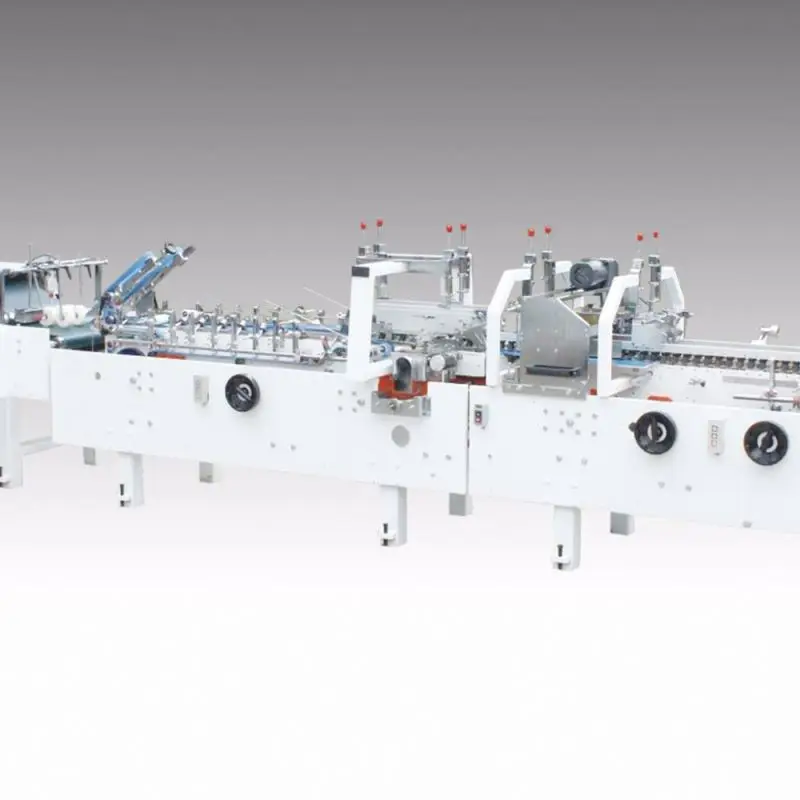

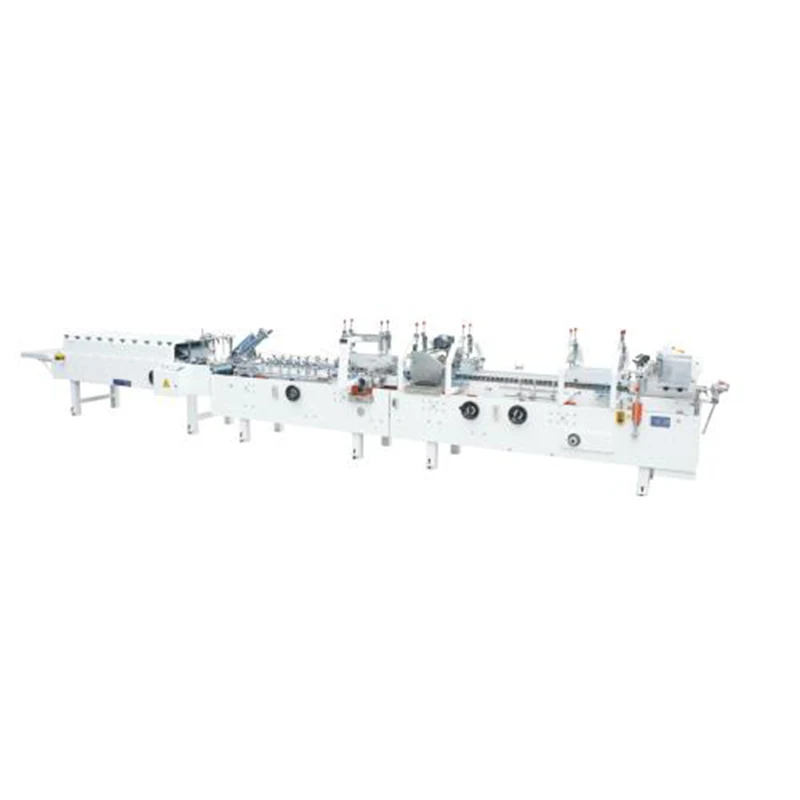

ZH 600G&700G&800G Automatic Muti Functional Crash Lock Bottom Folder Gluer Machine
- Category: >>>
- Supplier: Shanghai Printyoung International Industry Co. Ltd.
Share on (62134401878):
Product Overview
Description
Product Description

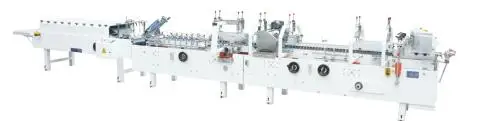

ZH-600G &700G &800G
Automatic Muti-functional Crash Lock Bottom Folder Gluer
Features
1,It combines a variety of folder gluer functions: straight line box, pre-fold box, crash lock bottom box.
2,The crash lock bottom structure has obtained two national patents.
3,The function is universal and easy to debug.
4,The conveyor’s independent speed adjustment motor has a waiting function.
5,Wireless remote control operation.
Technical indicators | |||
1,Line speed
| 0-220m/min adjustable
| ||
2,Usage paper
| 210-600g/m²paperboard | ||
3,Box forming
| one side gluing, two side gluing or bottom gluing
| ||
4,Way of folding
| First, second and fourth lines fold 180 degree, third line fold 135 degree | ||
5,Paper Feeding: | Automatic continuous feeding | ||
6,Glue type
| Gold glue | ||
7,Power | ZH-600G: 380V 3.2KW | ZH-700G: 380V 3.2KW | ZH-800G: 380V 4.5KW |
8,weight | ZH-600G: 1600KGS | ZH-700G: 1700KGS | ZH-800G: 1900KGS |
9,Dimension | ZH-600G: 8.5*1.2*1.3 | ZH-700G:8.5*1.35*1.3 | ZH-800G:10.2*1.5*1.3 |
10,Package dimensions
| ZH-600G 8.94m³ 1585/1817kg | ZH-700G 9.54m³ 1623/1866kg | ZH-800G 12.32m³1888/2185kg |
Feeder
| 2700*950*1235=3.17 m³ 742/827kg | 2700*1050*1235=3.50m³ 763/856kg | 2700*1150*1235=3.83m³ 783/886kg |
Folding unit | 2185*1100*1235=2.97m³ 443/520kg | 2185*1200*1235=3.24m³ 460/540kg | 2885*1300*1235=4.63m³ 630/712kg |
conveyor | 2660*950*1110=2.80 m³ 400/470kg | 2660*950*1110=2.80 m³ 400/470kg | 3660*950*1110=3.86 m³ 475/587kg |

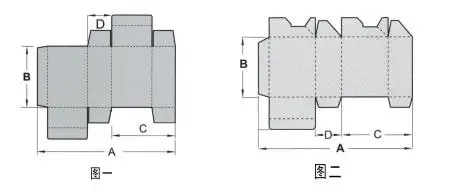

Technical Parameters Unit: mm | |||||
Model | Box type | A MM | B MM | C Minimum MM | D Minimum MM |
ZH-600G | Straight line box | 110-600 | 60-500 | 50 | 10 |
Pre-fold box | 170-600 | 60-500 | 80 | 10 | |
Crash lock bottom box | 180-560 | 100-500 | 80 | 40 | |
ZH-700G | Straight line box | 110-700 | 60-500 | 50 | 10 |
Pre-fold box | 170-700 | 60-500 | 80 | 10 | |
Crash lock bottom box | 180-660 | 100-500 | 80 | 40 | |
ZH-800G | Straight line box | 130-800 | 60-700 | 60 | 10 |
Pre-fold box | 170-800 | 60-700 | 80 | 10 | |
Crash lock bottom box | 180-760 | 100-700 | 90 | 50 | |
Shanghai Printyoung International Industry Co., Ltd. is a professional printing and packaging equipment manufacturer and supplier. Our company is located in Shanghai, China. And we have factories in Zhejiang, Shandong and Guangdong province. Our people have more than 20 year experience in printing field.
We specialize in printing equipment, post-printing equipment as well as printing materials. Among them, our folder gluer and die cutting machine are the best selling ones.. Our products have been sold all around the world, such as the Middle East, South Africa, Europe, Latin America and Asia total 55countries.
Printyoung is young and full of energy. We are seeking the highest achievements and providing you with the best satisfaction.
