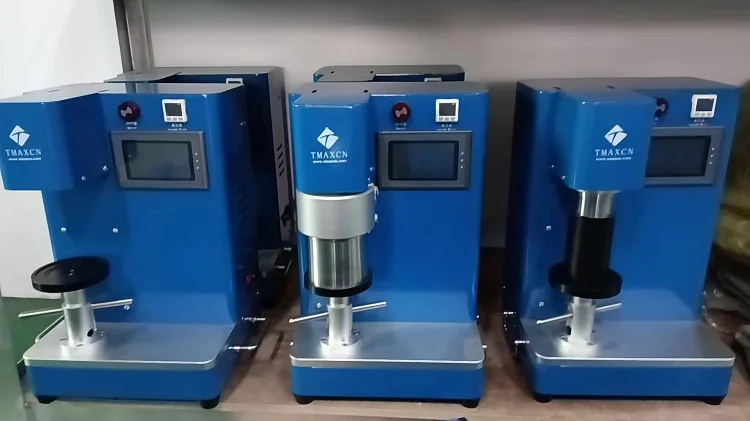

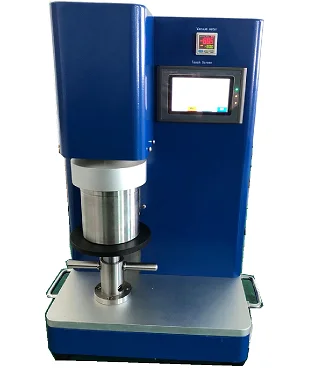

TMAX brand 250ml/500ml Compact Dual Shaft Planetary Vacuum Mixer for Lithium Battery Materials

Voltage Input & Power

One listed 100-240 VAC IN

Rotary Speed

0 - 600 rpm

Mixing Container

1. One 500 mL stainless steel vacuum sealed container is included.

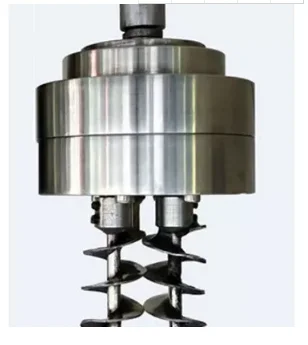

2. Dual helical ribbon mixing blades are built on the lid of the container.

Vacuum Pump

Built-in single stage vacuum pump
Vacuum Level: -0.08 MPa

Contol Panel

1. Color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off
2. Mixing Time: 0 - 600 minute
3. Mixing Speed: 0 - 600 RPM and 3 segments programmable
4. Note: Max. mixing speed depends on slurry viscosity. Max.10000 mPa.s is allowed at 600 rpm. Lower speed will be required for more sticky slurry

Timing Range

0 to 120 minutes for built-in mechanical timer

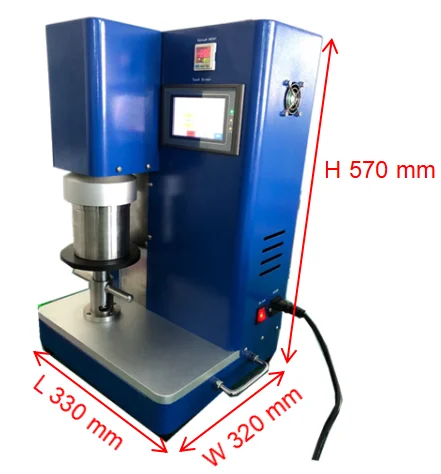

Dimensions

330 mm x 320 mm × 570 mm

Compliance

CE Certified

Warranty

two years limited warranty with lifetime technical support

Net Weight

40 kg (88 lbs)
