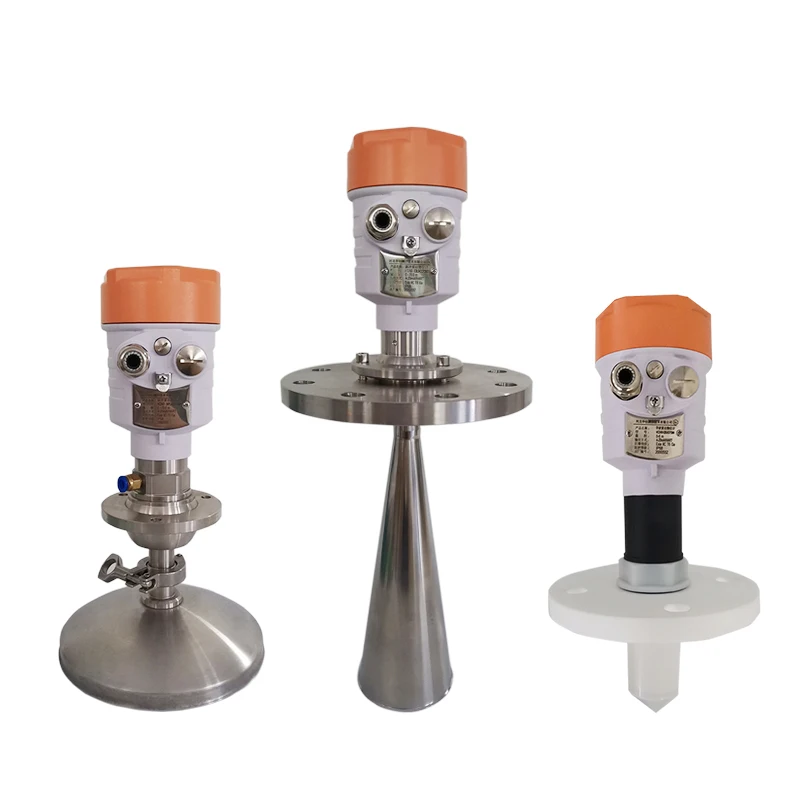

HCCK Solid particle and block material radar level meter ,rader level sensor
- Category: >>>
- Supplier: Hebei Huachuang M&c Technology Co. Ltd.
Share on (62134521717):
Product Overview
Description
Products Description

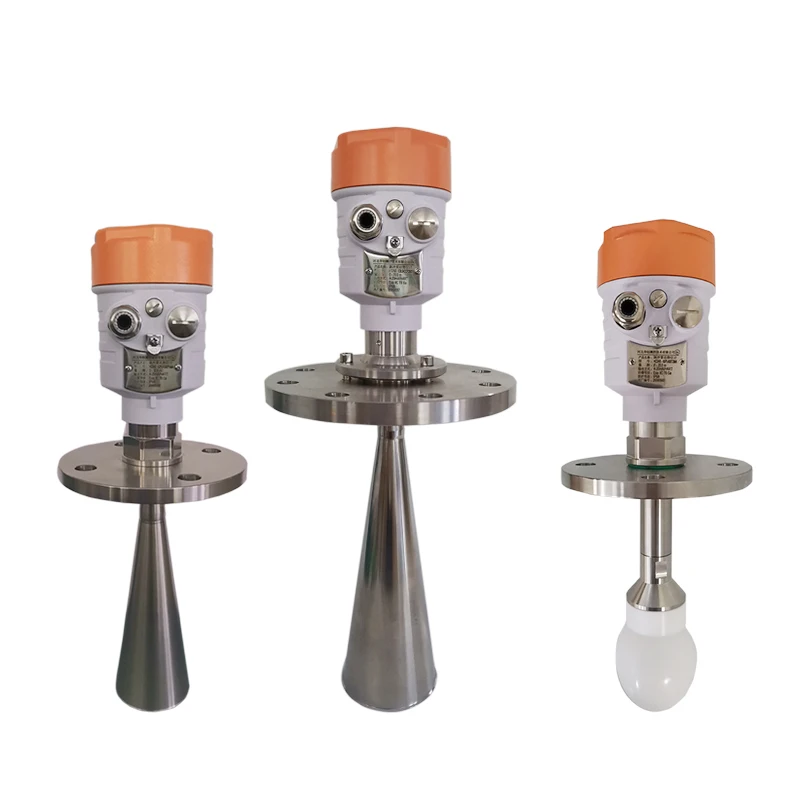

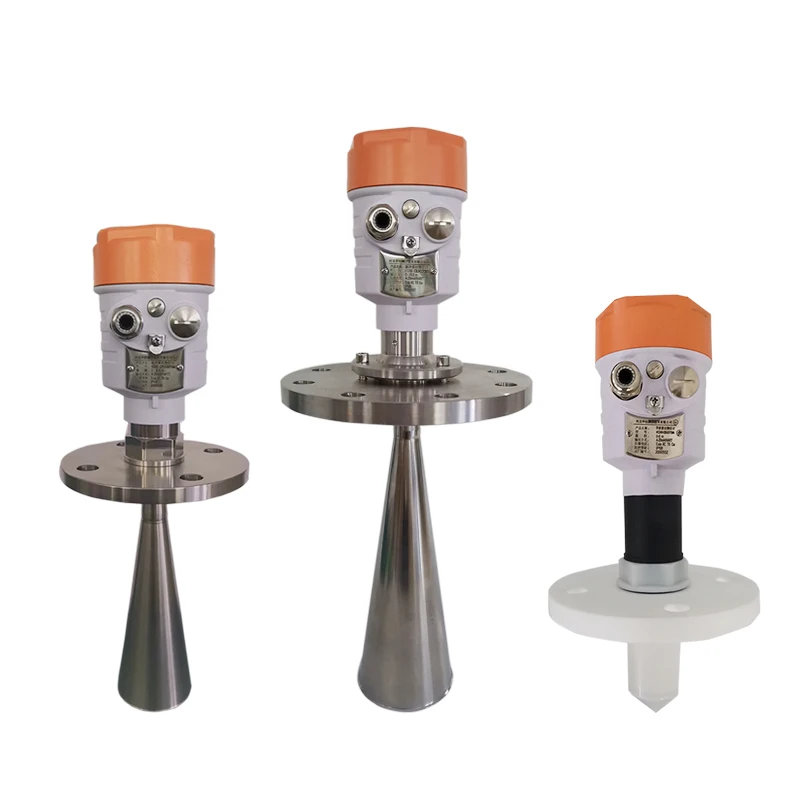

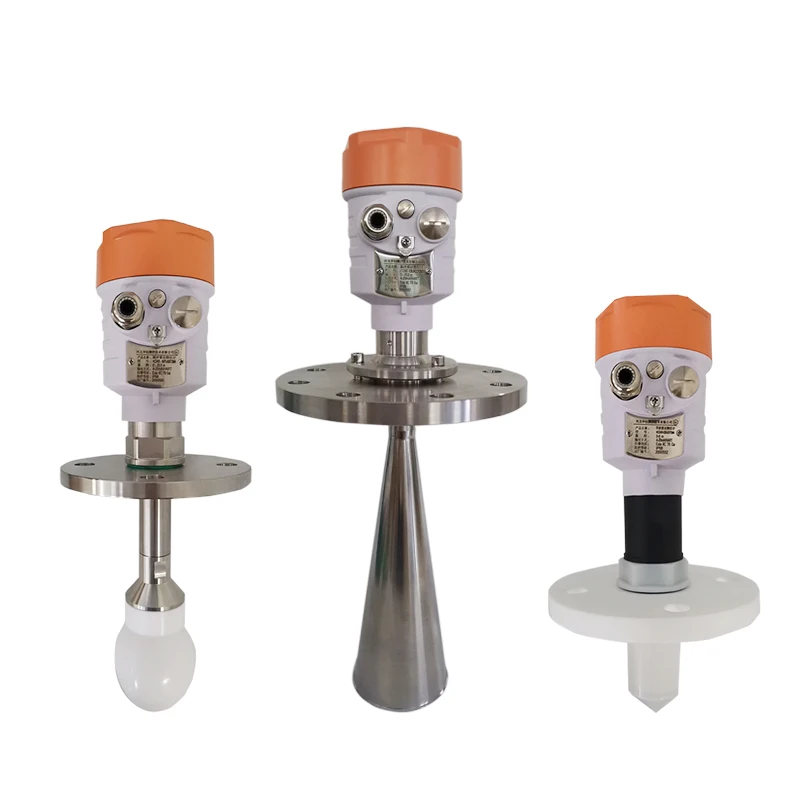

HCCK 26G liquids and Solid particles Radar Level Sensor
Why Choose and trust HCCK?
You benefits from:
Factory experience:
More than 16 years of experience in Level sensor industry.
large stock:
within 24 hours delivery for standard specifications.
Supply ability:
At least 50000 pcs per Month.
Supply area:
All over the world, about 105 countries (Most of them are from North America, Europe, Australia,Asia and Africa.
You benefits from:
Factory experience:
More than 16 years of experience in Level sensor industry.
large stock:
within 24 hours delivery for standard specifications.
Supply ability:
At least 50000 pcs per Month.
Supply area:
All over the world, about 105 countries (Most of them are from North America, Europe, Australia,Asia and Africa.
Certificate:
CE, ISO9001 audited by TUV Rheinland
OEM/ODM : Accept.
OEM/ODM : Accept.
What's the features of Radar Level Sensor?
Sensor is 26G High Frequency radar level sensor, measure the maximum distance to 70 meters.
Sensor is 26G High Frequency radar level sensor, measure the maximum distance to 70 meters.
Antenna being further optimized, fast new microprocessor could be higher-speed signals processing, makes the instrument can be used in reactors, solid-state storage bin and some complicated
measuring conditions.

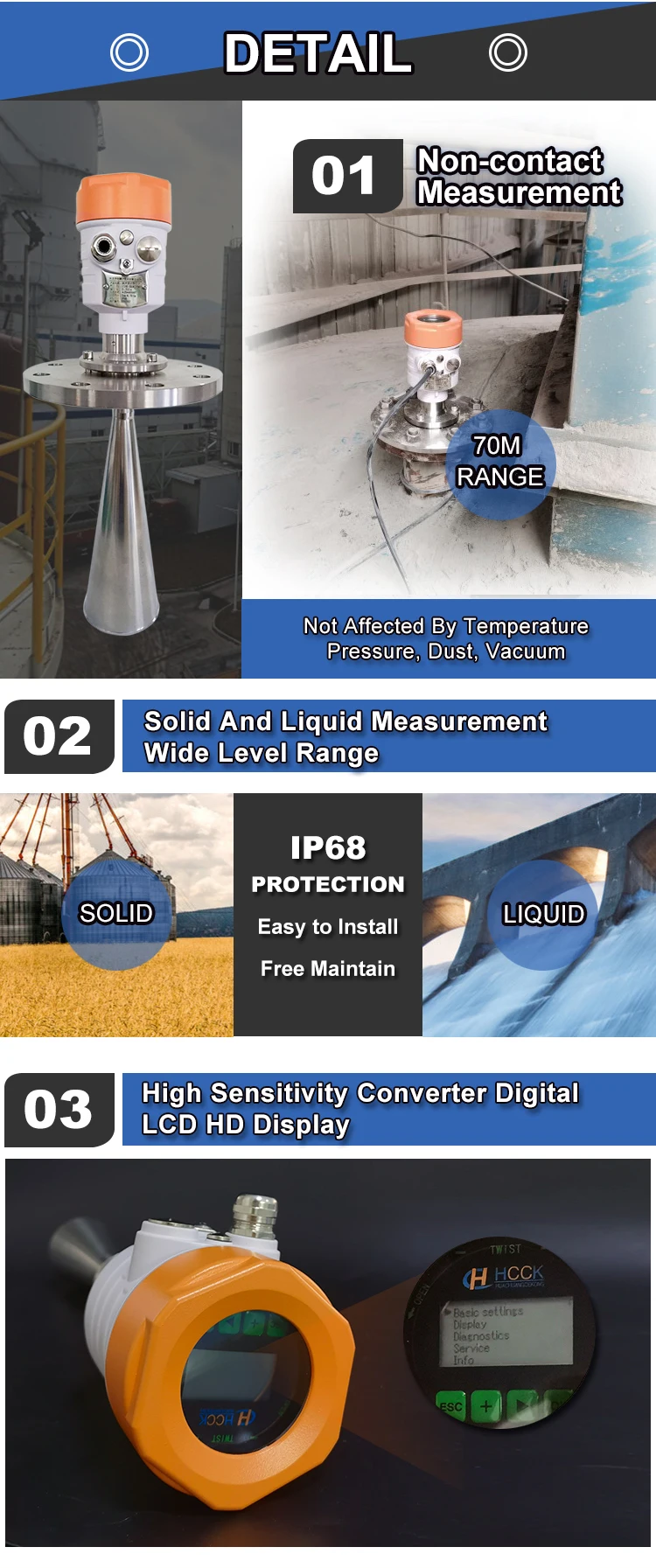

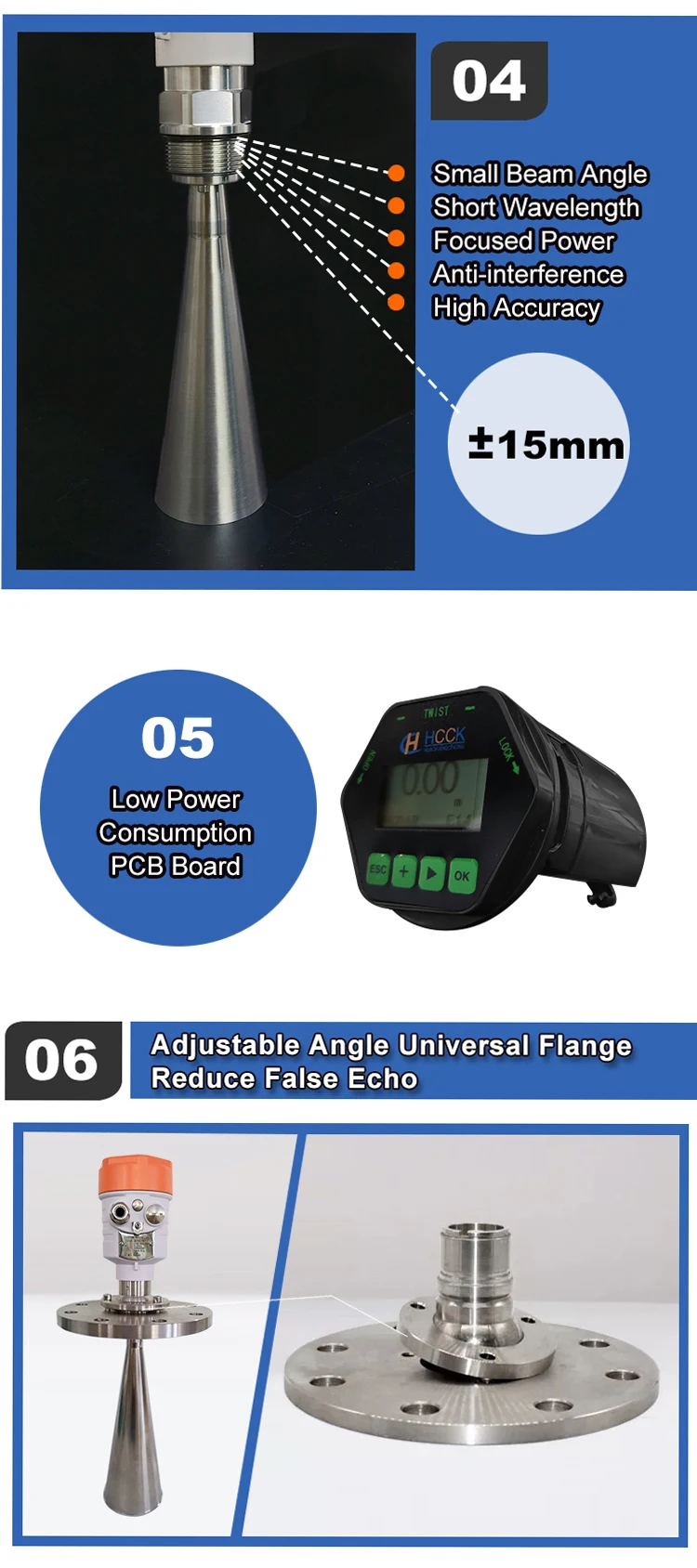

Antenna size is small, easy to install; non-contact radar, no abrasion, no pollution. Which is almost not influenced by corrosion and foam. And virtually unaffected by water vapor, temperature and pressure changes in the atmosphere. Serious dust environment has little effect on high frequency level meter. Shorter wavelength, and has a better reflection on inclined solid surface. Beam angle, energy concentration, while enhanced echo and to avoid the interference. Measure blind spots smaller
canisters measure will achieve good results. The low noise ratio, even in case of fluctuations can get
better performance. High frequency is the best choice for measuring solids and low dielectric constant.

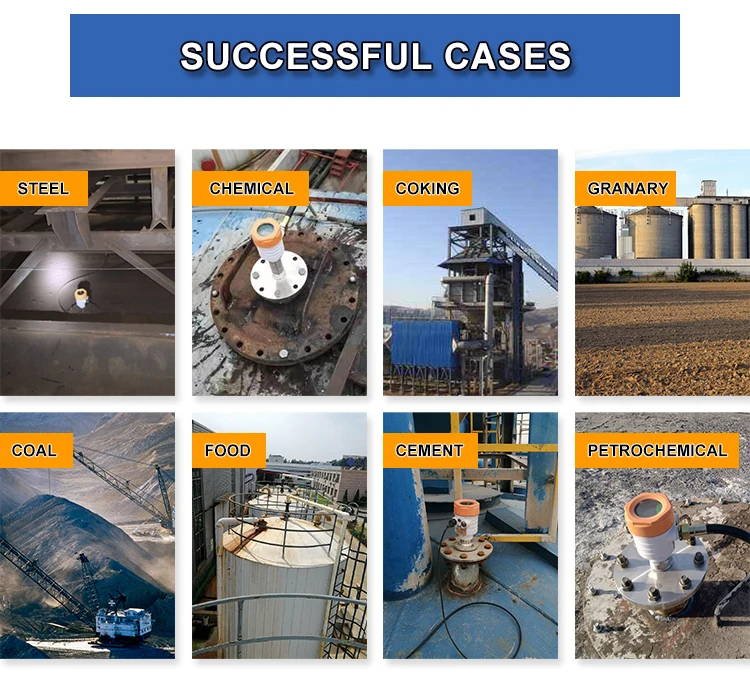

Application | Solid Particles, Solid Powder, All kinds Of Dust Environment |
Measuring Range | 0～70m |
Connection Process | Flange |
Medium Temperature | （-40～350）℃ |
Process Pressure | （-0.1～2）MPa Directional |
Accuracy | ±15mm |
Signal Output | 4～20)mA HART/RS485 MODBUS |
Explosion-Proof Grade | Ex ia IIC T1-T6 Ga/Ex d IIC T6 Gb |
Protection Grade | IP68 |
Frequency Range | 26GHZ |
This series of HCDAR-6X adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 70 meters. Antenna is optimized further processing, the new microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.
>>>Adoptina the international advanced dual-core radar technology more processing capacity, more reliable system design, more han one core, more stable system.
>>>Small beam Angle, concentrated enerav, ancstronger anti-interference ability, greatly improvehe measurement accuracy and reliability .
>>>Sensitive measurement, fast refresh ratesmall antenna size, easy to installation,strong and durable, and maintenance free.
Matching table |
DN50 | external diameter 155 thickness 15 centre distance 125 hole count 4 |
DN65 | external diameter 175 thickness 17 centre distance 145 hole count 8 |
DN80 | external diameter 190 thickness 17 centre distance 160 hole count 8 |
DN100 | external diameter 210 thickness 18 centre distance 180 hole count 8 |
DN50 | external diameter 275 thickness18 centre distance 240 hole count 8 |
Horn Antenna Φ78 horn |
Horn Antenna Φ98 horn |
Horn Antenna Φ125horn |
FAQ
Q:Can you accept ODM & OEM service ?
A:We professional provide OEM &ODM service for radar level transmitter.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the level sensor?
A:We have the certification of ISO,CE and ATEX,we could send the certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q: How can I get my sensors?/ What's the means of transport?
A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator
Q. How to order ?
A. In order to recommend you the most suitable radar level sensors and make an accurate quotation, please provide the following
information and send it to our sales when you are going to make an inquiry, thanks !
1. What is your medium? Water, oil or others?
2. Level range: 0-10meters, or others?
3. Output signal: 4-20mA, RS485 or others?
A:We professional provide OEM &ODM service for radar level transmitter.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the level sensor?
A:We have the certification of ISO,CE and ATEX,we could send the certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q: How can I get my sensors?/ What's the means of transport?
A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator
Q. How to order ?
A. In order to recommend you the most suitable radar level sensors and make an accurate quotation, please provide the following
information and send it to our sales when you are going to make an inquiry, thanks !
1. What is your medium? Water, oil or others?
2. Level range: 0-10meters, or others?
3. Output signal: 4-20mA, RS485 or others?
