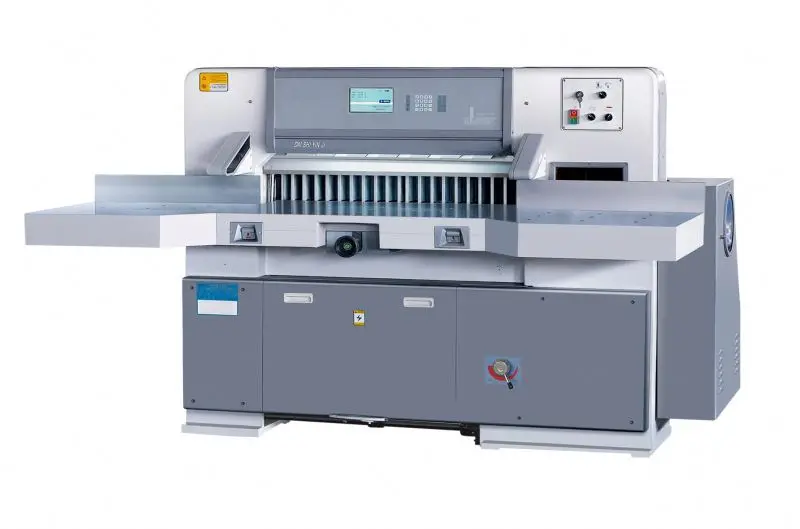

QZYK1150D Industrial Paper Cutting Machine

Product Overview

Description

Parameter:

Model	QZYK1150D	Unit
Max cutting width	115	cm
Max cutting length	116	cm
Max cutting height	16.5	cm
Max clamping pressure	40000	N
Cutting speed	45	cycles/min
Sending paper motor power	0.55	kw
Cutting motor power	4	kw
Wind pump motor power	0.75	kw
Net weight	4500	kg
External dimension	261×267×165	cm
Packing dimension	260×157×200	cm





Function



QZYK1150D program control large format paper cutter adopts whole slotless worktable surrounded double guide paper sending system. For this system, paper sending speed is high, and paper sender posit precisely.
The cutting system adopts the high wearable worm wheel decelerated transmission, friction clutch is controlled through hydraulic system which make the pressure can be adjusted bigger. The paper –pressing pressure can be adjusted from 200N to 55000N, which ensure the cutting quality. The cutting is operated by double hands. And the machine is installed with safe device, such as photo cell, electronic knife lock and single recycle cutting. It has features of low noise, large cutting power, high precision. Customer can choose to equip the machine with the electric components imported from France, Germany, Japan, high speed ball screw of Taiwan and the hydraulic system with European safety certificate.

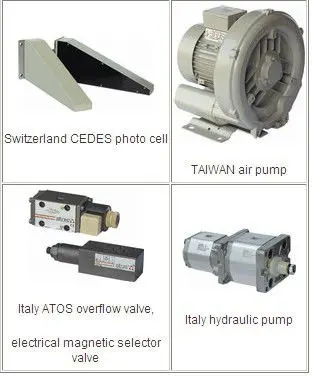

Configuration
