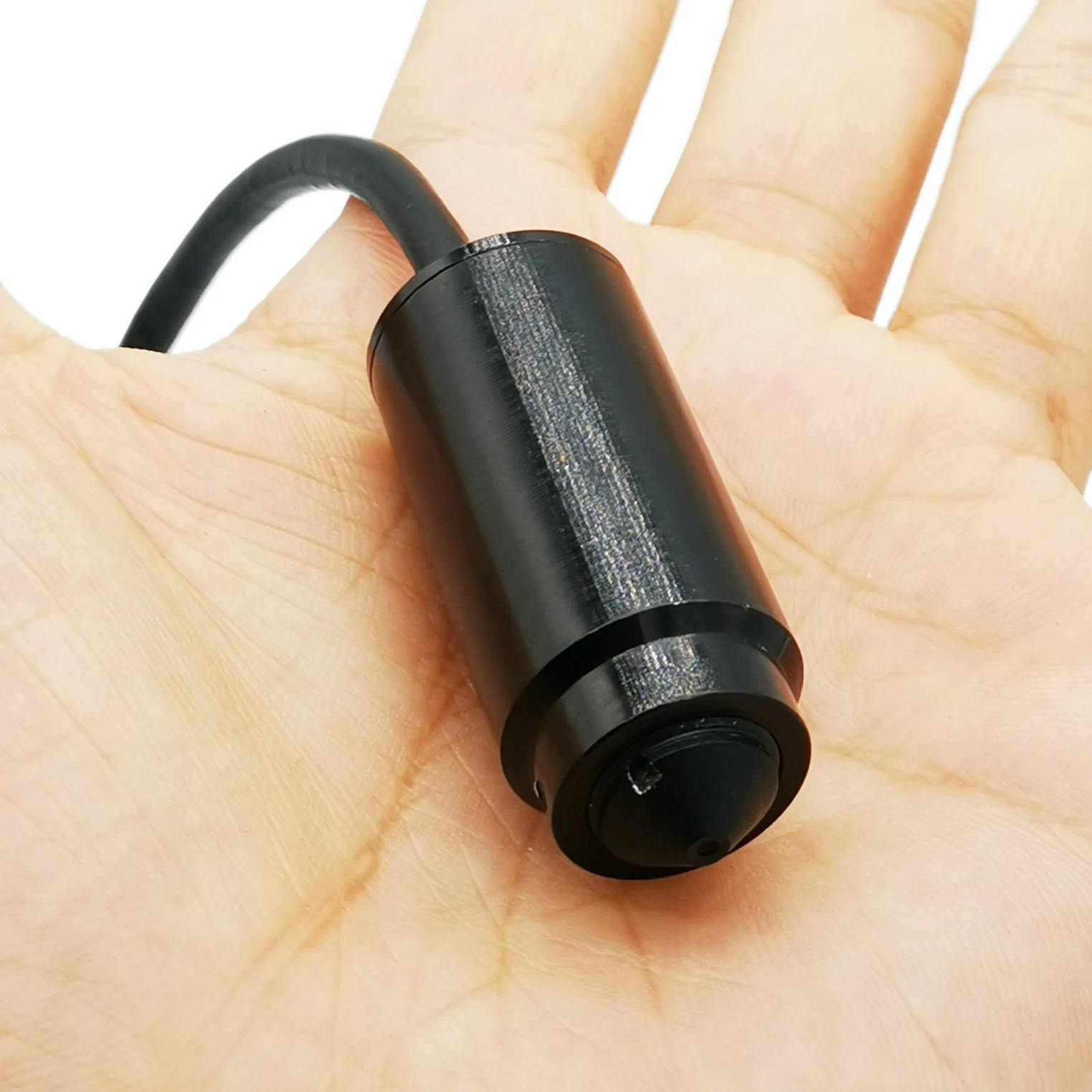

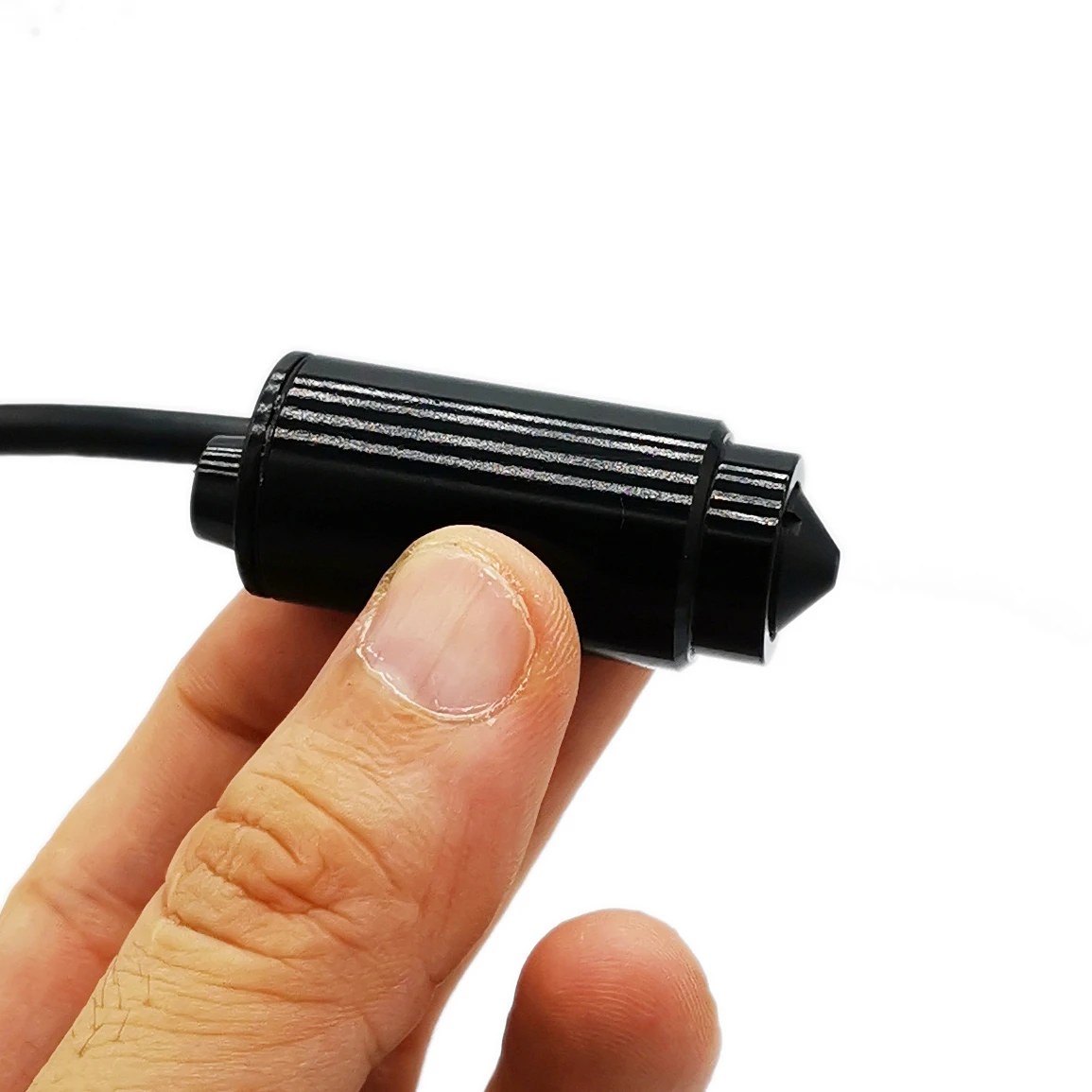

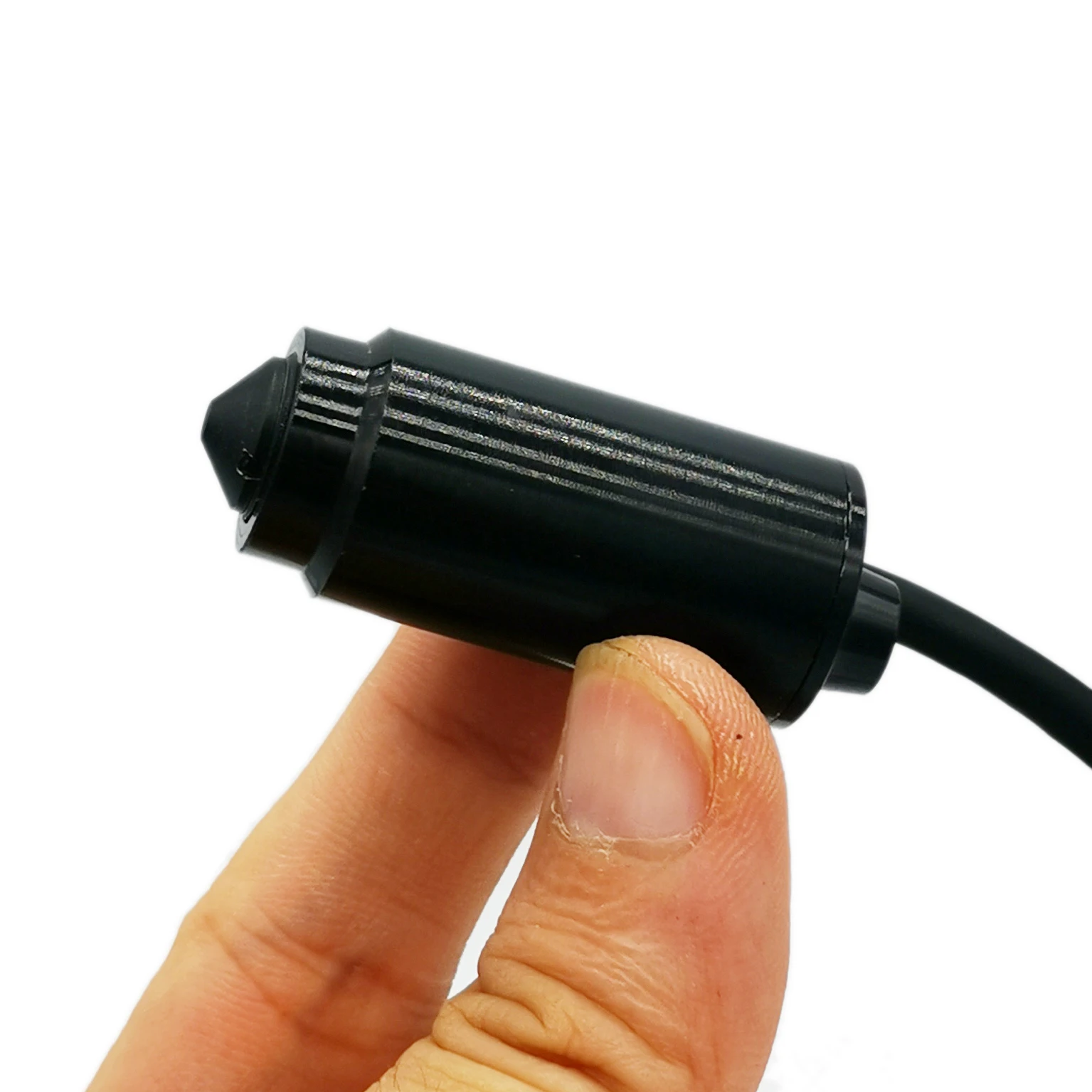

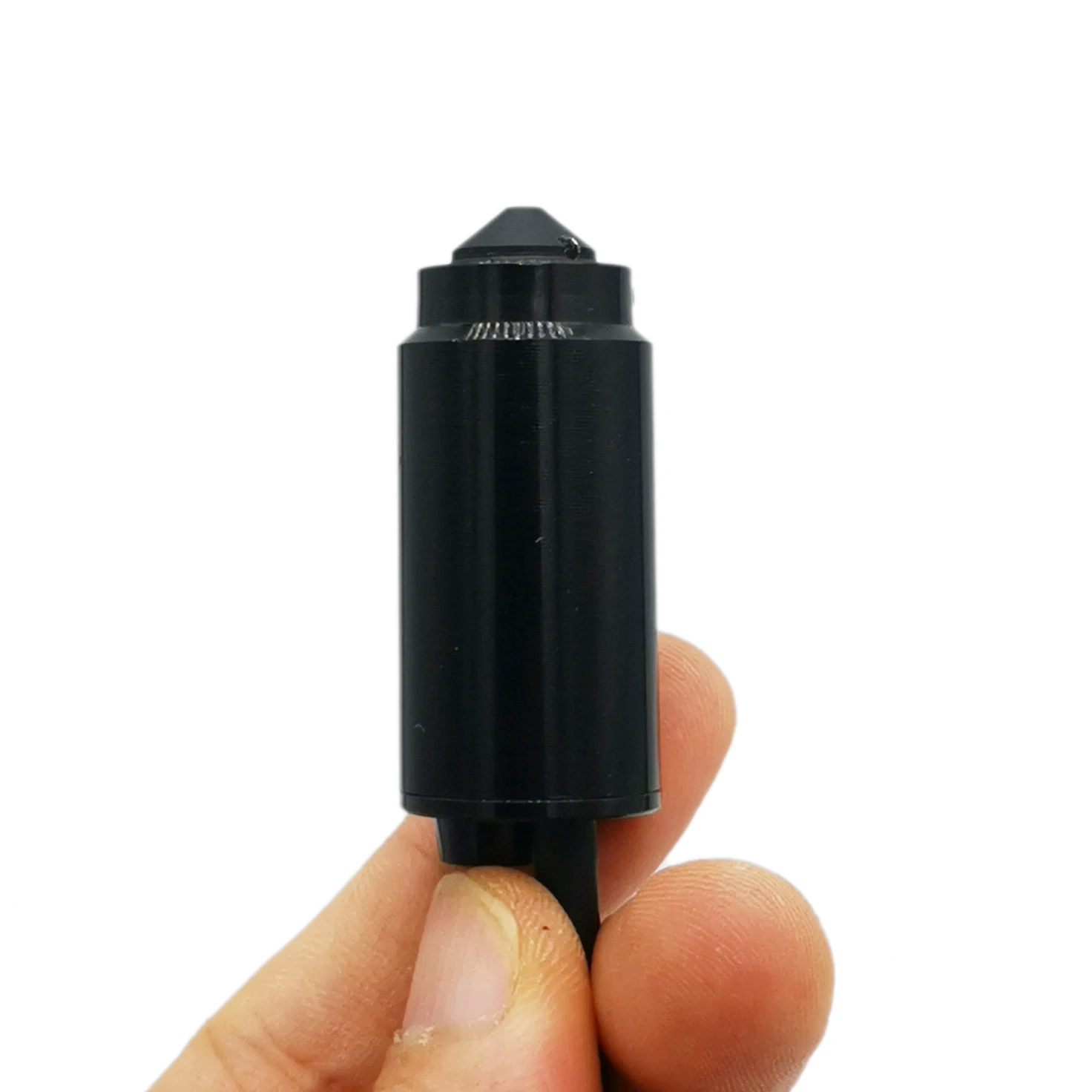

1080P Size 20mm Miniature 2MP WDR Hidden Pinhole Bullet Industrial inspection vision Medical detection Super Mini SDI Camera
- Category: >>>
- Supplier: Shenzhen Hanqin Electronic Technology Co. Ltd.
Share on (62134692138):
Product Overview
Description
1 1/2.8 IMX307 Progressive-Scan CMOS
2 Digital: 1080P 30fps
3 3.7mm megapixel lens
4 MOQ 1
Specification
Image Sensor | 1/3"IMX307 Progressive-Scan CMOS |
Total Pixel | 2010(H) x 1108(V) = 2,227,080 |
Active Pixel | 1944(H) x 1092(V)= 2,122,848 |
Scanning system | Progressive |
Resolution | Digital: 1080(30P), 720(60P) Max: 1,100TV lines(1080P) |
Min. Illumination | Color: 0.2 lux, BW : 0.01 lux, |
Video Output | Digital : BT.1120, 3G-SDI, Analog : NTSC/PAL CVBS(w/o WDR) |
S/N Ratio | More than 50dB (AGC off) |
Lens | |
Lens | 3.7mm |
Function | |
Lens | DC/Manual |
AGC | 0-20 steps |
Shutter Speed | AUTO/MANUAL(1/25 ~ 1/30,000 sec) |
Digital Slow Shutter | Off/On(x4) |
Brightness | 0 -20 |
WDR/BLC | Off/BLC/WDR |
ACE | Off/On |
Day & Night | Auto/Color/B&W |
White Balance | Auto/Auto ext/Pushing/Manual |
DNR (Digital Noise Reduction) | Off/Low/Middle/High |
Mirror | Off/On |
Flip | Off/On |
Sharpness | 0-10 steps |
Shading | Off/On |
Digital Zoom | 0-96 steps |
Privacy Mask | 32 Masks |
Motion Detection | Off/On |
Language | English / French / German / Japanese / Korean / Russian / Chinese |
Electrical | |
Power (Max.) supply | DC12V, Less than 2Watts |
General | |
Power Input | DC12V |

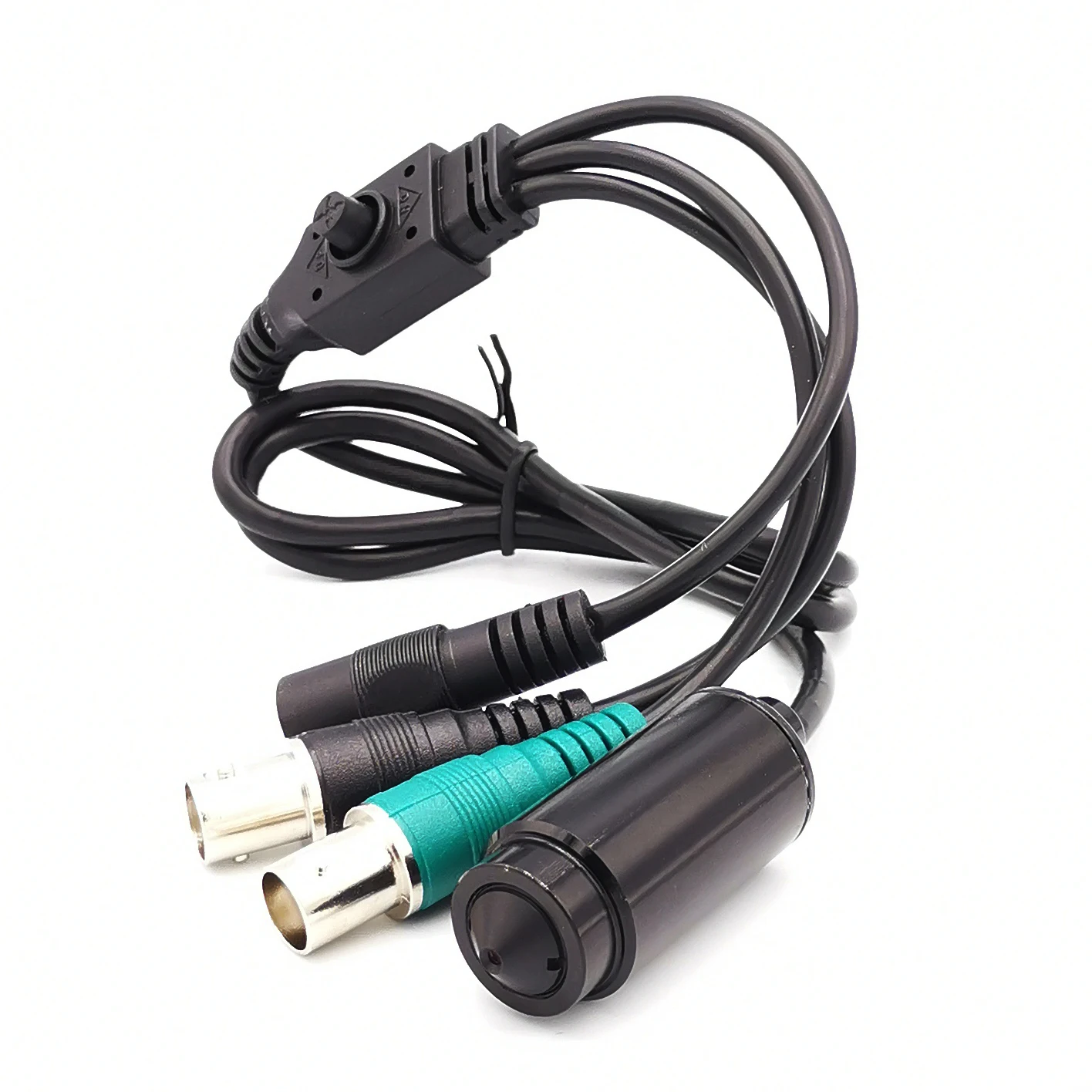

Video Output | HD-SDI: BNC connector /Analog: BNC connector |
Power consumption | 85mA |
Operating temperature | -10 C~+50 C |
Operating Humidity | Max 90%RH |

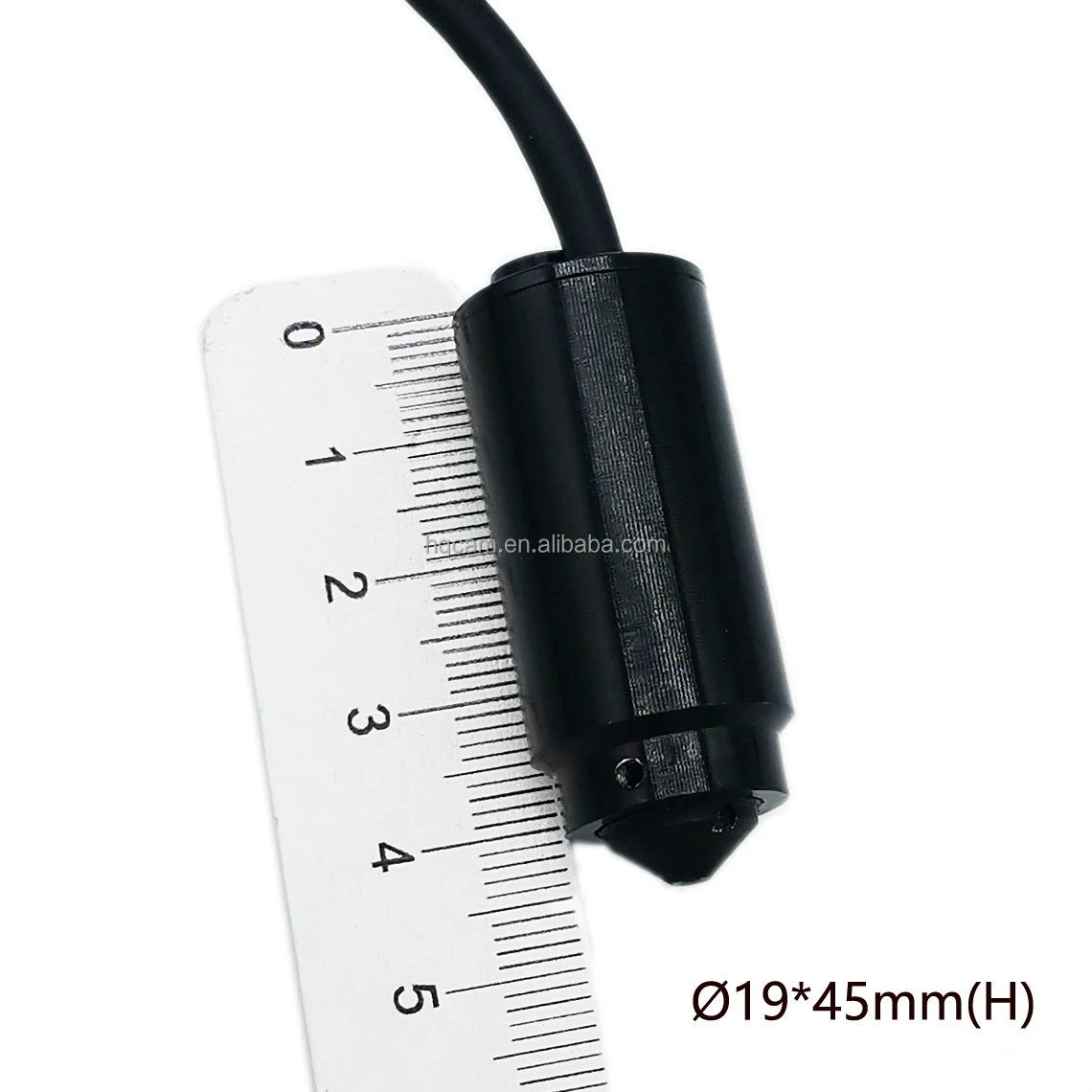

Dimension | Dia: 19mm x 45mm |
