Kelly KLS7230S Motor Controller with TFT display speedometer for QS 3000w motor

1. Kits including

1 X Custimized wire KLS7230S motor controller+ USB convertor cable + matched plug

1 X Bluetooth

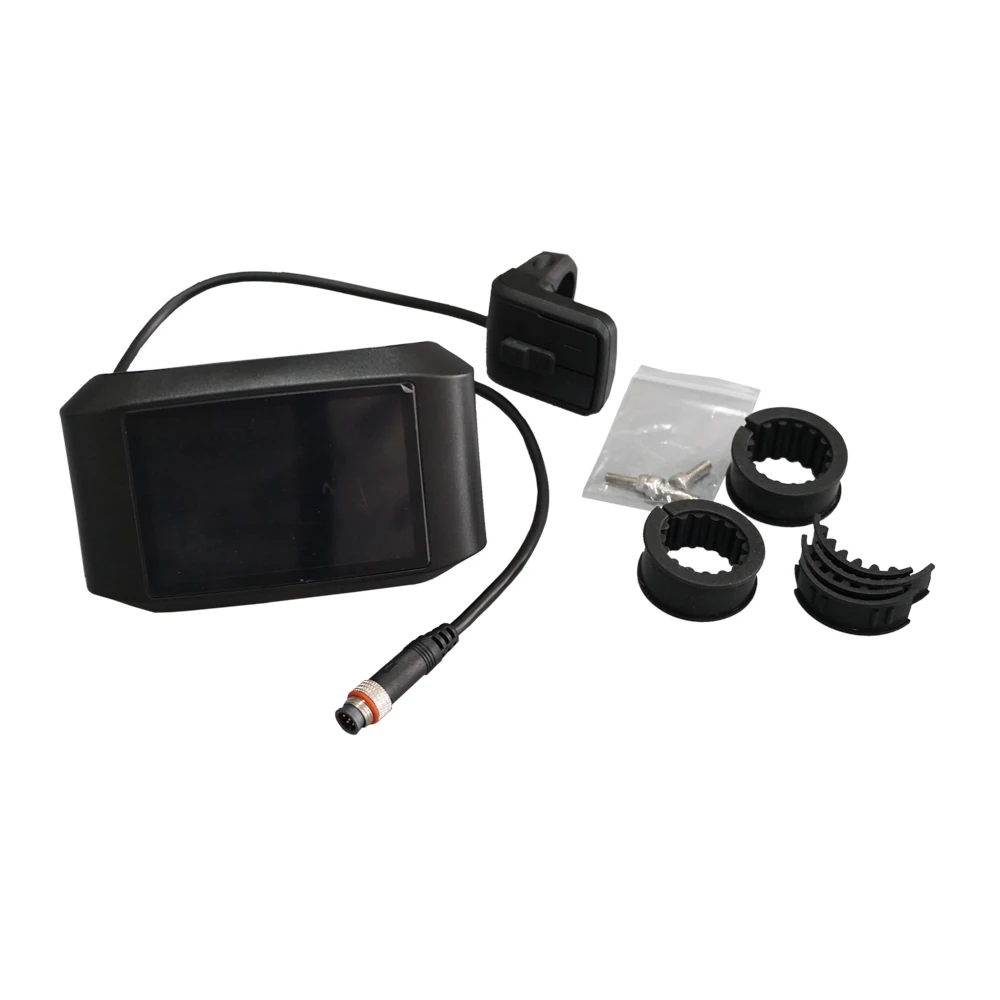

1 X TFT color speedometer display

1 X User Manual

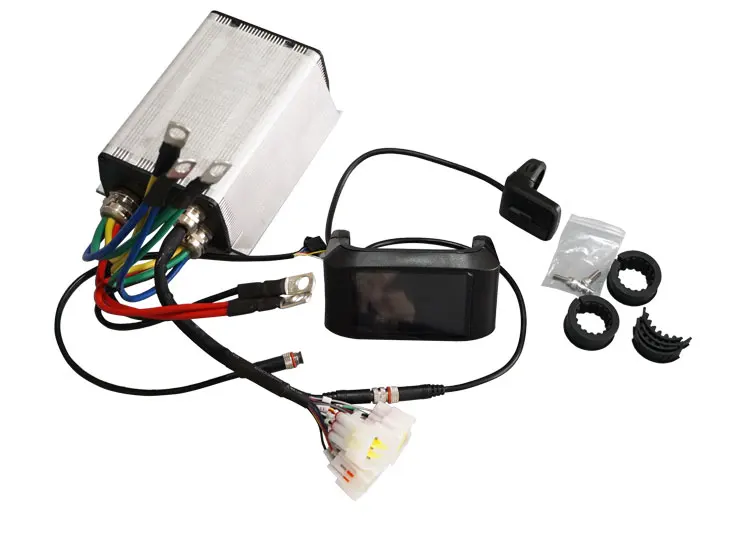

Below is picture of these products for your reference, please kindly have a look.

2. Key features:

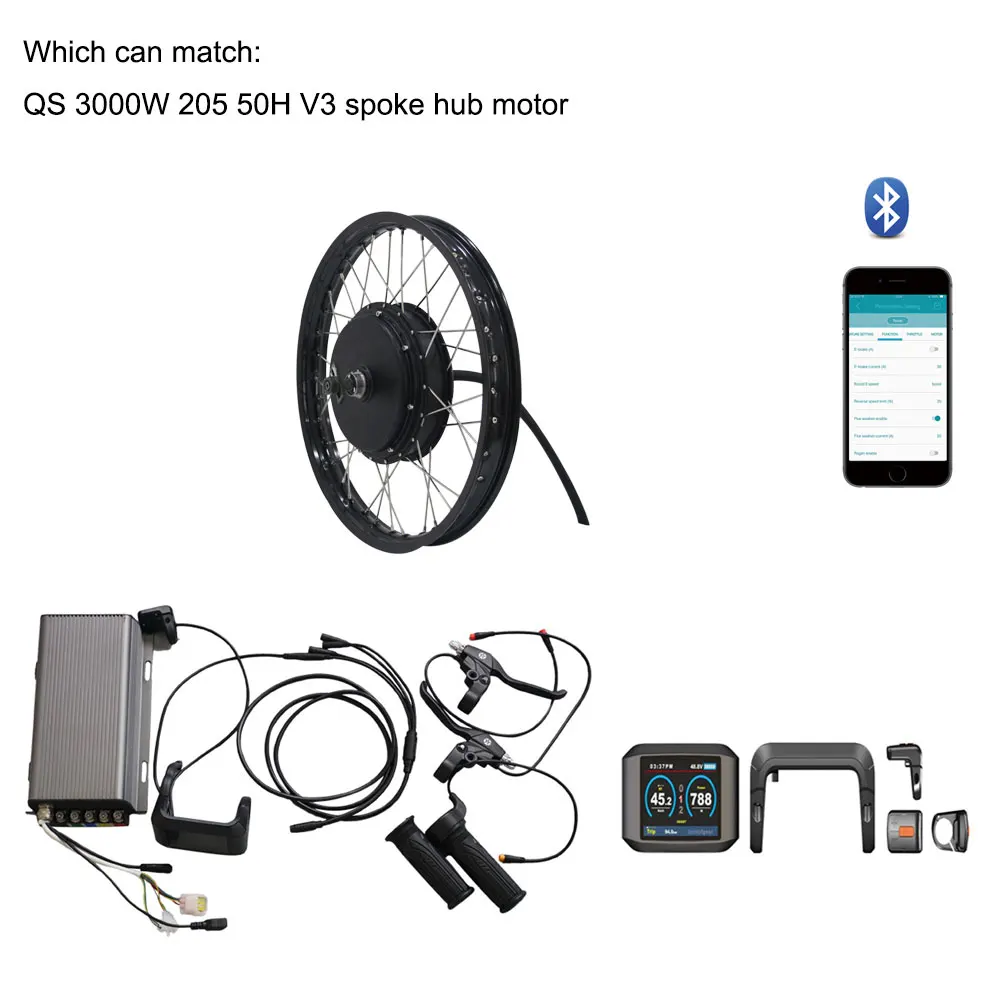

1. It's special design for QS brushless motor controller and display for Conversion Kits, which can match with QS HUB MOTOR Rated Power 3000W E-bike Spoke Hub Motor.

2. Controller: Motor Current Limit, 20 seconds: 300A, continuous: 120A, Suit for 48-72V Voltage, which includes one controller + USB convertor cable + matched plug

3.  750C TFT Display: 24V/36V/48V/52V/72V battery supply, Max output current to controller : 100mA, Speedometer wire length: 1.5m

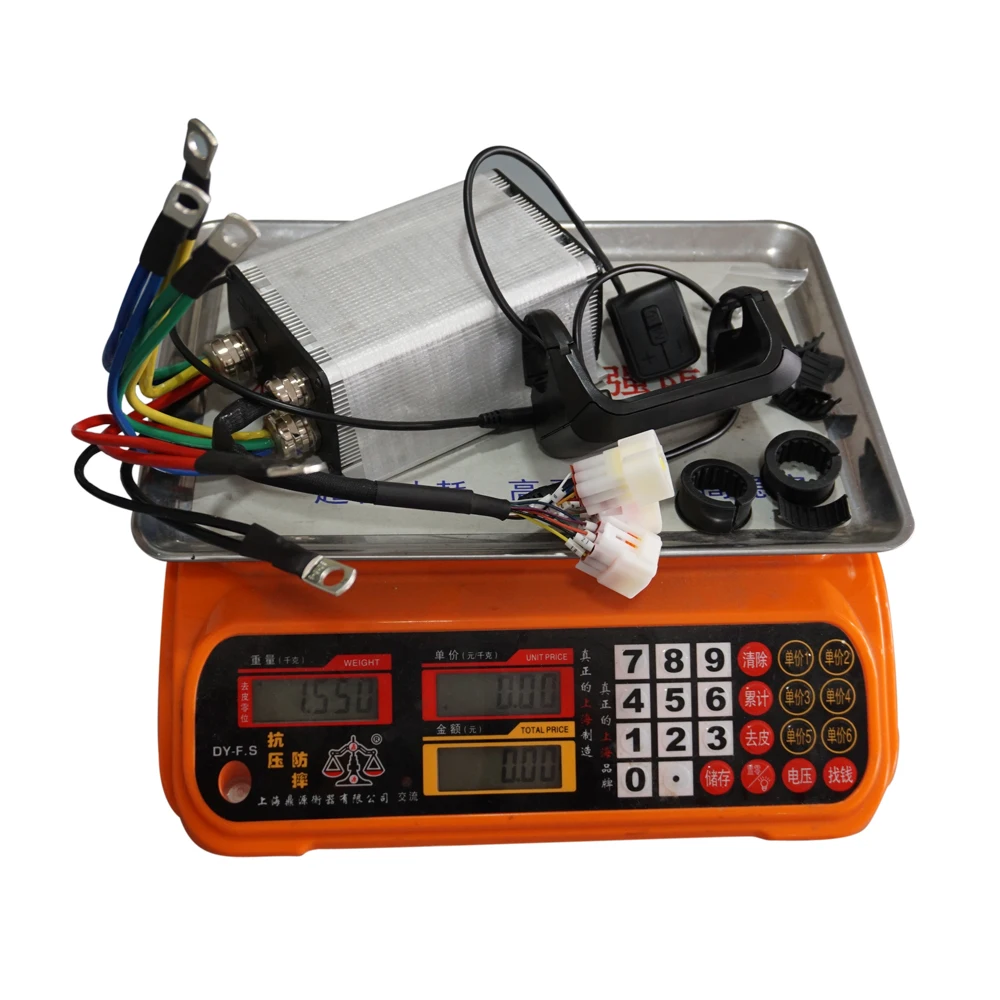

4. Total net weight: 1.55kg

5. Before using pls contact us for Specific User Manual and Software

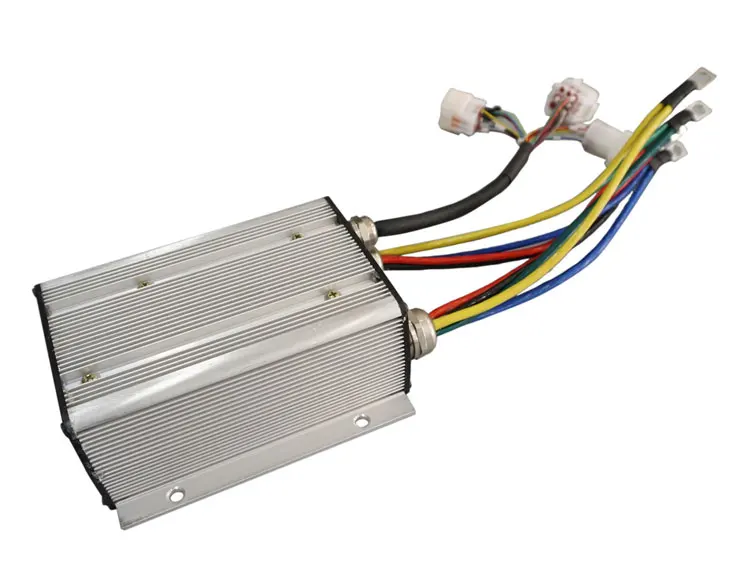

3. Specification for the controller KLS7230S

1. sine wave controller, programmable, with regen function

2. Motor Current Limit, 20 seconds: 300A

3. Motor Current Limit, continuous: 120A

4. Thermic Probe: KTY83-122

5. Including one controller + USB convertor cable + matched plug

6. controller size: 148mm*53mm*94mm

7. net weight: 0.55kg

8. waterproof IP54

9. default not including bluetooth, waterproof(those function are optional); CAN BUS not support

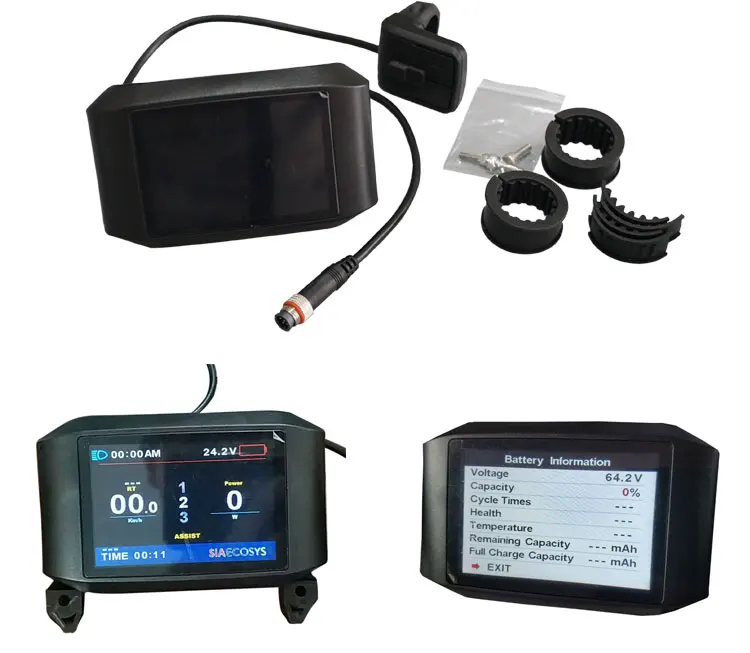

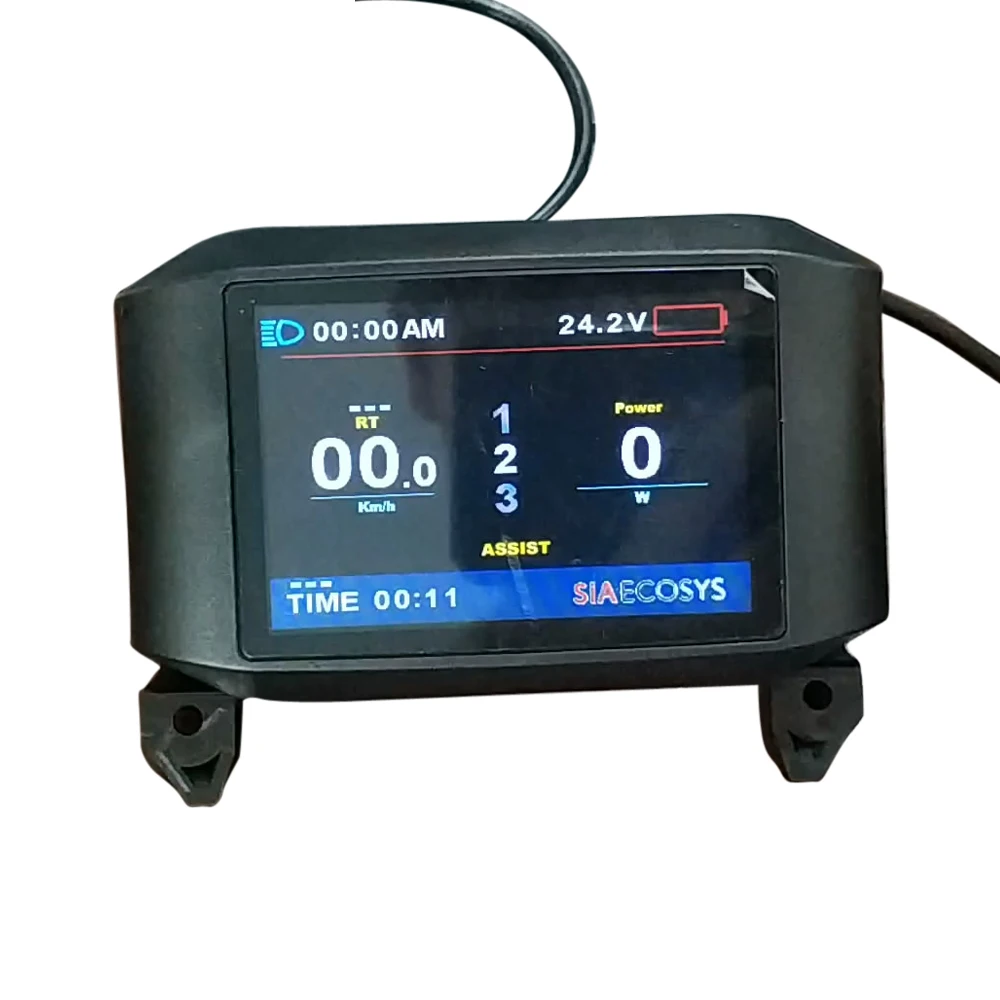

3.  Specification for TFT display

Function:

1. 36v-72v TFT display Setting : 5 levers speed control ; wheel size choose; password setting; distance; time .

2. Programmable through PC and Bluetooth Adapter by IPhone or Android mobile phone : Voltage; DC Current ; e- Brake open & close; e-Brake Current ; Flux weakening open & close; Flux weakening Current ; Regenerative open & close; Regenerative Current; Temperature protection setting for motor & controller ; Error types and so on .

4. Download (before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.

5. Application

About US

SIAECOSYS is an union of manufactories in electric driving industry, and belongs to Taizhou SIA Trading Co., Ltd that set from QS Factory in 2013 year.

Currently, more than 80 top factories join SIAECOSYS, and they are willing to provide customized products and service for international customers who has passion in e-scooter/tricycle/car industry.

SIAECOSYS focus on organizing member factories together to customize specific e-driving system solution and products for different requirements from customers in the world.

Nowadays, SIAECOSYS has more than 5000 customers from the world and more than 40 customers send inquiry every day.

SIAECOSYS has sale department, Technology department, Quality inspection department, general accounting department, purchase department and after-sale service department.

Q1. Are you trader or manufacture?

A: We're manufacture.

Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).

The specific delivery time depends on the items and the quantity of your order.

Q3. How long is your warranty time?

A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.

Q4. About Customs Clearance

For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.

Special countries list:

Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.

Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.

05. Does your products with CE certification?

Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
