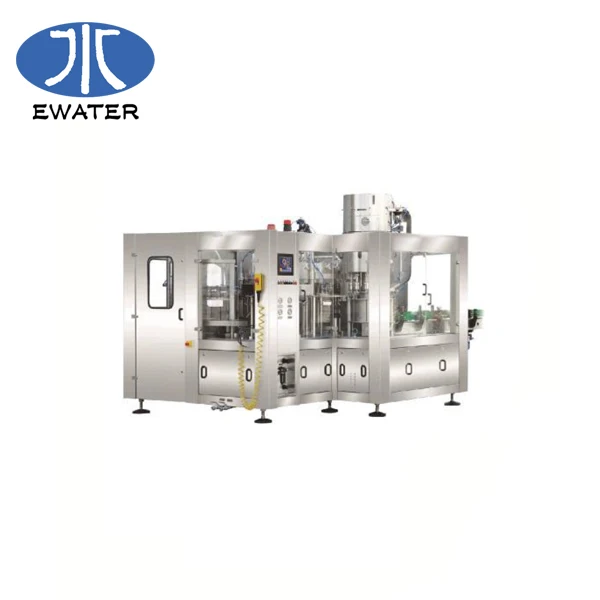

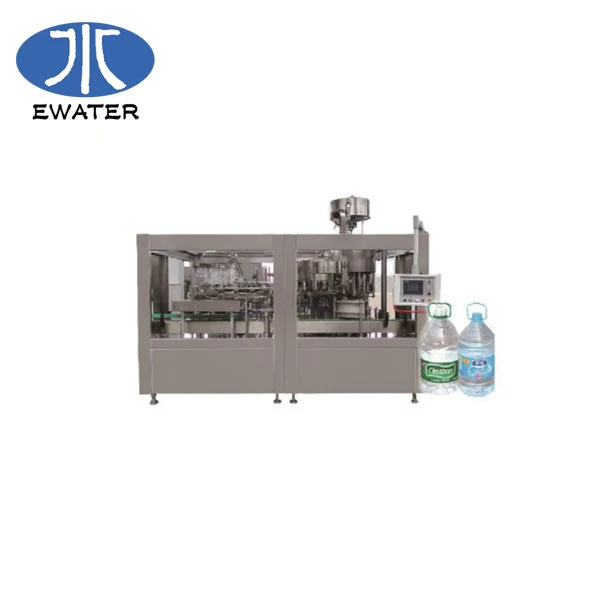

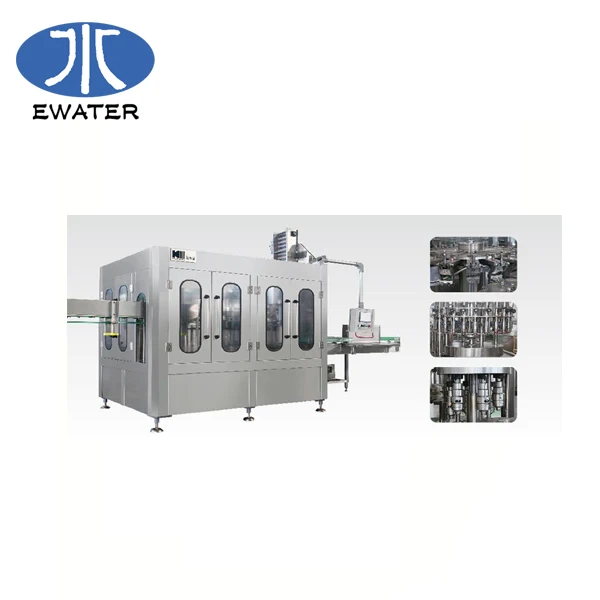

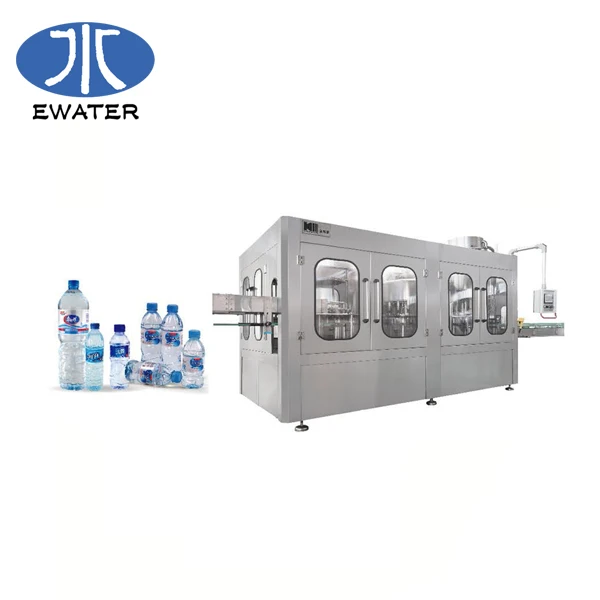

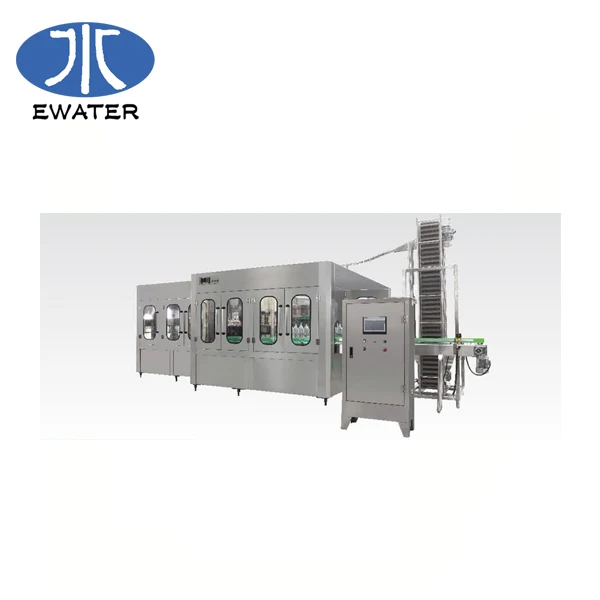

Liquid bottled water filling machine automatic PET Bottle Filling Machine




Product Description




1. The water filling machine is automatic.It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.
2. Washing part in the bottle water machine is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
3. Filling part in the water filling machine is composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.
4. Capping part in this water filling machine is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

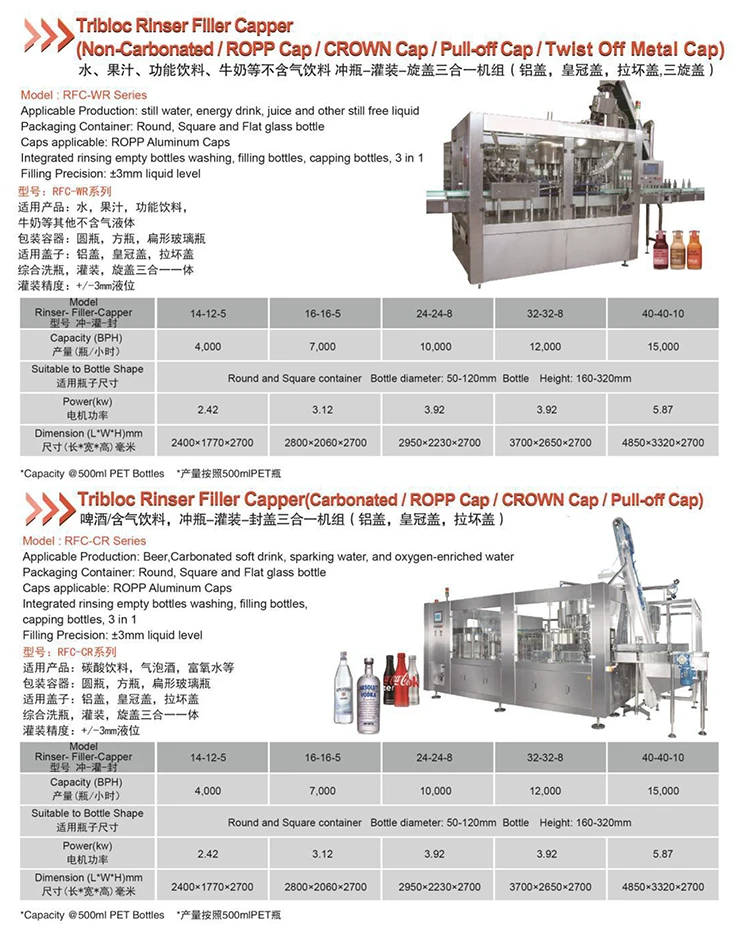

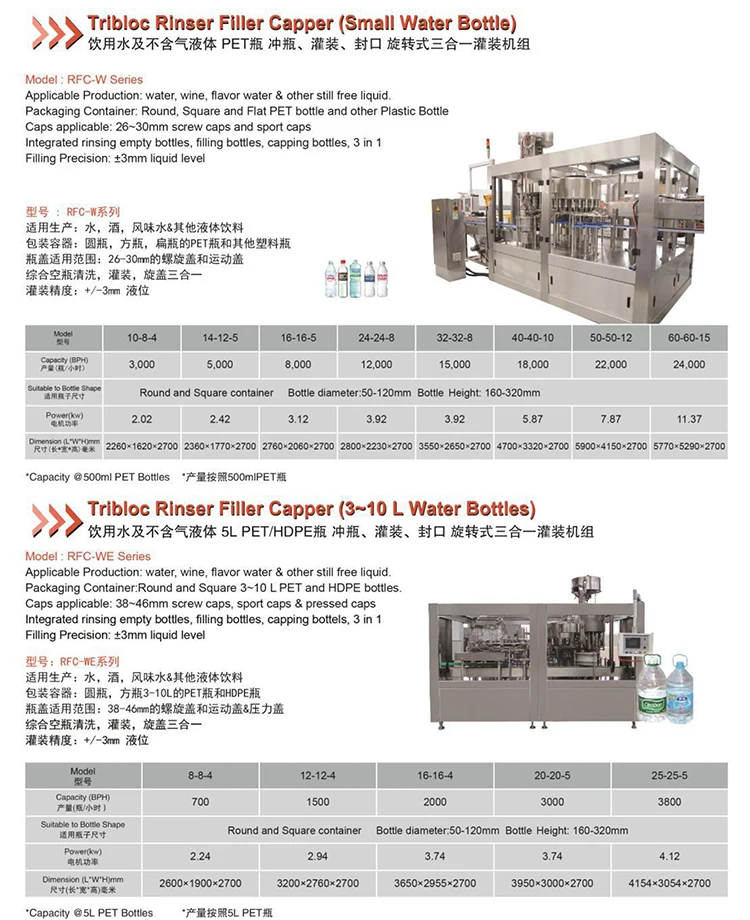

Model(RFC-W)


14-12-5


16-16-5


24-24-8


32-32-8


40-40-10


50-50-12


60-60-15


72-72-18


Capacity(BPH)


5000


8000


12000


15000


18000


22000


24000


34000


Rinsing water Pump Power(KW)


0.37


0.37


0.37


0.37


0.37


0.37


0.37


0.37


Drive Motor


2.42


3.12


3.92


3.92


5.87


7.87


11.37


11.37


Rinsing Time(s)


2.5


1.8


1.8


1.92


2


2


2


2


Drain Time(s)


1.4


1


1


1.7


1.2


1.2


1.2


1.2


Water Consumption(T/H)


1.5


1.5


2


2


3


3


3


3


(m³/min)


0.8


0.8


0.8


0.8


0.8


0.8


0.8


0.8
