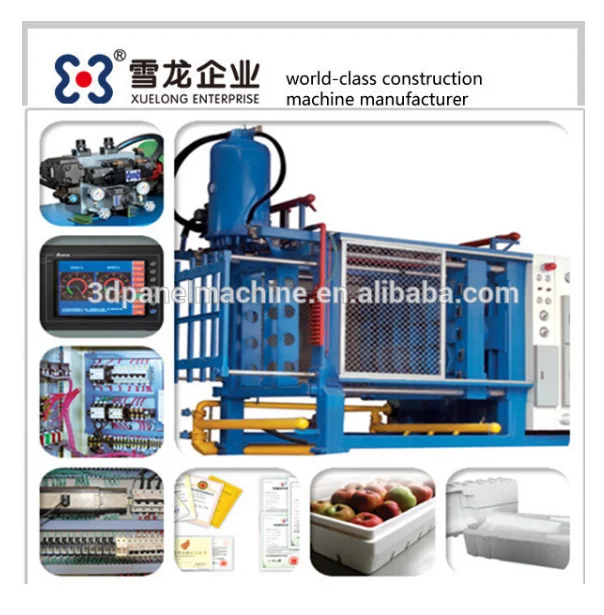

1.Brief introduction for Energy-saving EPS ICF styropor complete insulation concrete shape moulding machine for ICF box
Xuelong Full-automatic Expandable Polystyrene (EPS ) Shape Moulding Machine is one of the main products produced by Hebei Xuelong Machinery Manufacture Co.,Ltd, The features of the EPS Shape Moulding Machine: Electric system of Shape Moulding Machine: the electric system adopts the most advanced PLC, touch screen, electromagnetic valve, encoder to ensure the reliable operation of Shape Molding Machine.
All parts and fittings of Shape Moulding Machine, such as the vacuum pump, the hydraulic pressure system, the valve body are customized and manufactured by prestigious manufacturers domestic and abroad, in order to accelerate the efficiency and reduce the failure rate of the of Shape Moulding Machine.
2.Feagures for Energy-saving EPS ICF styropor complete insulation concrete shape moulding machine for ICF box
1) The electric system adopts the most advanced PLC, touch screen, electromagnetic valve, encoder to ensure the reliable operation of Shape Molding Machine. 2) All parts and fittings of Shape Molding Machine, such as the vacuum pump, the hydraulic pressure system, the valve body are customized and manufactured by prestigious manufacturers domestic and abroad, in order to accelerate the efficiency and reduce the failure rate of the of Shape Molding Machine. 3) The programmeof Shape Molding Machine makes your work easy and produces high quality EPS products.You can operate the machines easily with the well-designed programs and the machines can producehigh quality EPS products. 4) We can make the shape molding machineby requirements.
3.Specifications for Energy-saving EPS ICF styropor complete insulation concrete shape moulding machine for ICF box

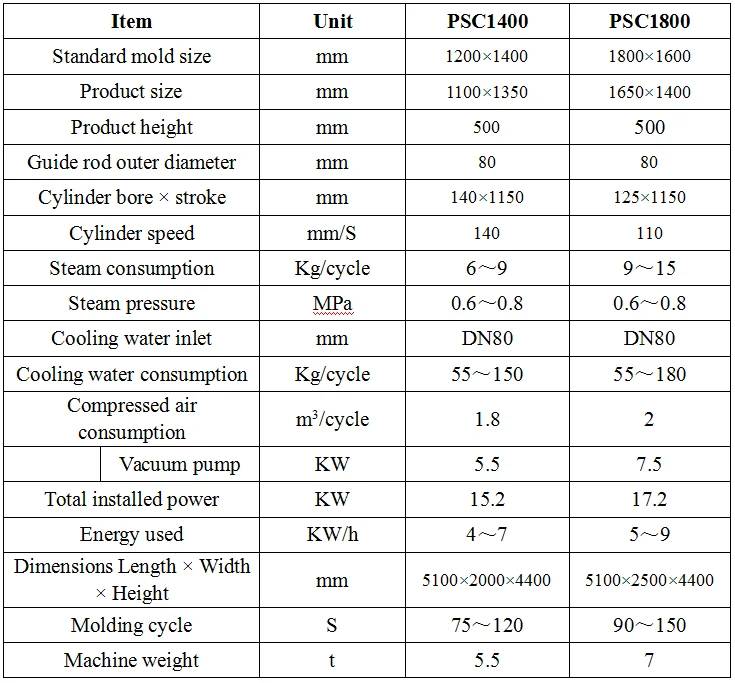

We provide 2 kinds of standard settings : PSC1400 and PSC1800:
The difference:
1)Standard Mold Size Is Different:
The standard mold size and product size of the PSC1800 is slightly larger than the PSC1400, suitable for large products;
2)The Stroke Is Different:
The stroke of the PSC1800 cylinder, the cylinder speed is lower than the PSC1400, because the PSC1800 has a large size, a long stroke and a large number of cylinders;
3)The Steam Consumption:
The steam consumption of the PSC1800 is also slightly larger than the PSC1400. However, the steam pressure required in the production process is the same; both are 0.6-0.8Mpa;
4)The Installed Power And Weight:
There is a difference between the size of the exterior, the installed power and the weight of the equipment;
5) Other Sides:
In cooling water, compressed air and energy consumption, PSC1800 is slightly higher than PSC1400;
4.Fetures for Energy-saving EPS ICF styropor complete insulation concrete shape moulding machine for ICF box

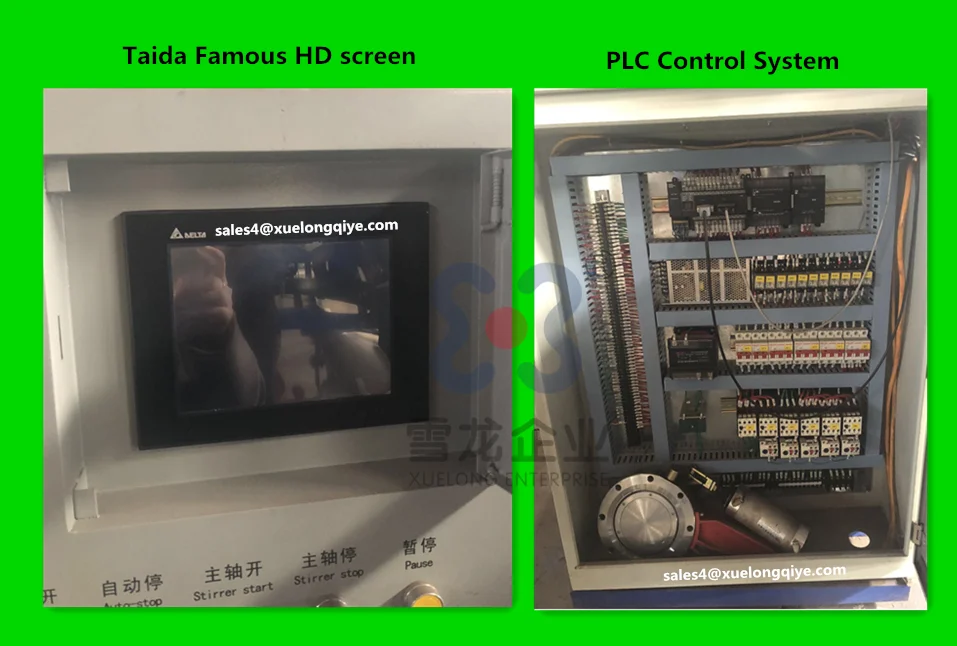

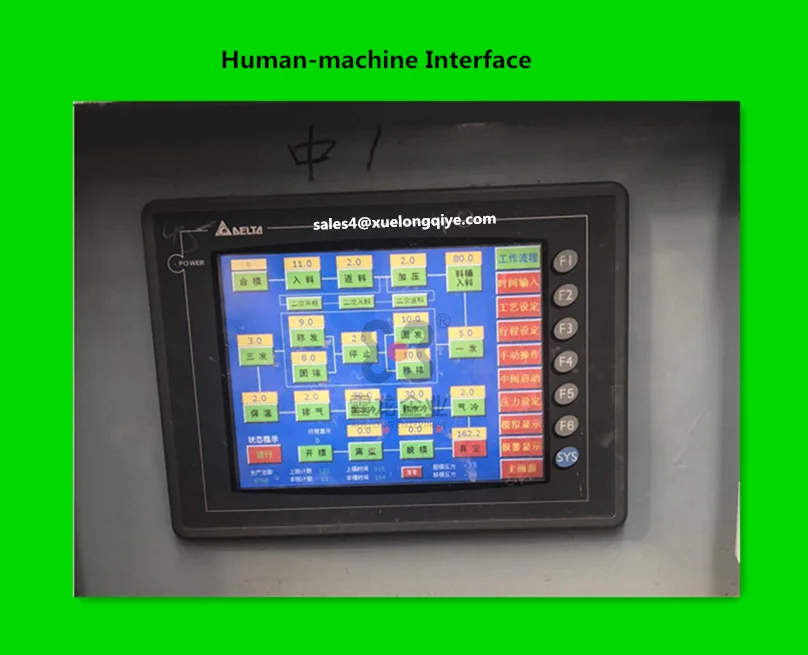

1)Using PLC programmable control machinery and touch screen control system, it can produce all kinds of foam plastic products that are difficult to form, difficult to demould and have high water content, which greatly improves the accuracy and work efficiency, and the operation is simple and feasible.

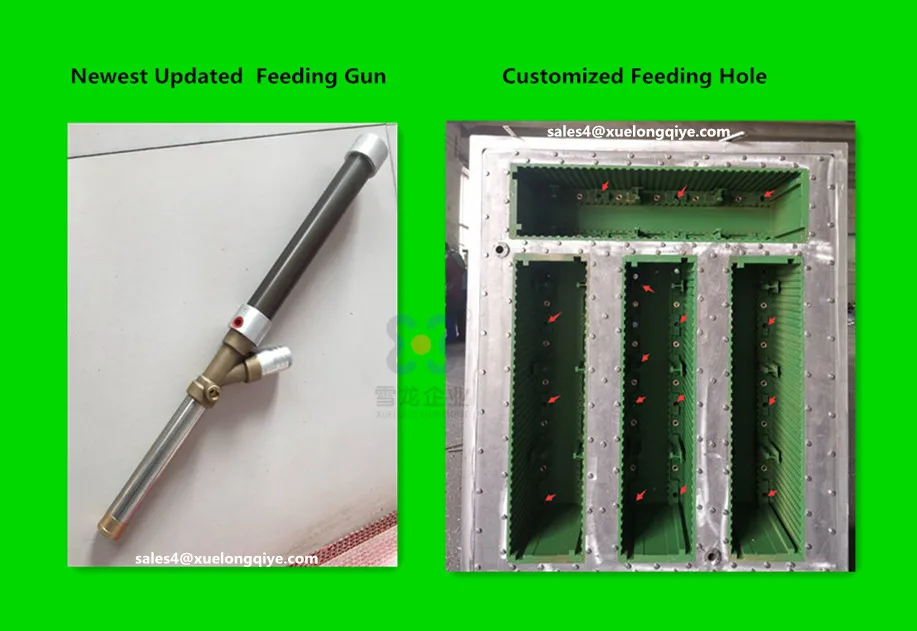

2)Equipped with high-pressure feeding system, the mold feeding speed is fast, and the material can be sufficient. According to the number of different products, 30-40 automatic feeding guns can be installed in the same feeding .(Normal product only has 28-30 guns in the market)
3)According to different product specifications and mold strokes, two kinds of demoulding methods, namely mechanical demoulding and cylinder demoulding are designed, which are more precise, stable in motion and coordinated in work, and will not cause product damage.

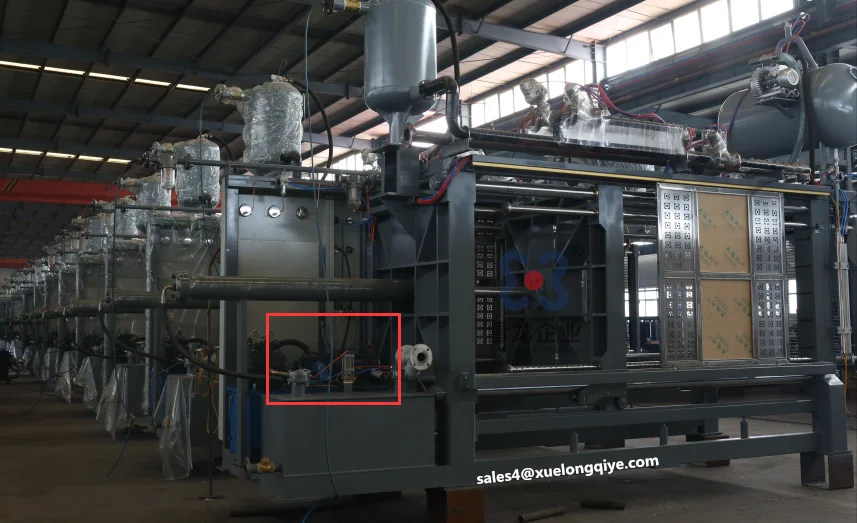

4)The fully automatic shape molding machine is equipped with a vacuuming system to speed up the molding of foamed plastic products, shorten the cooling time and reduce the moisture content of foamed plastic products.

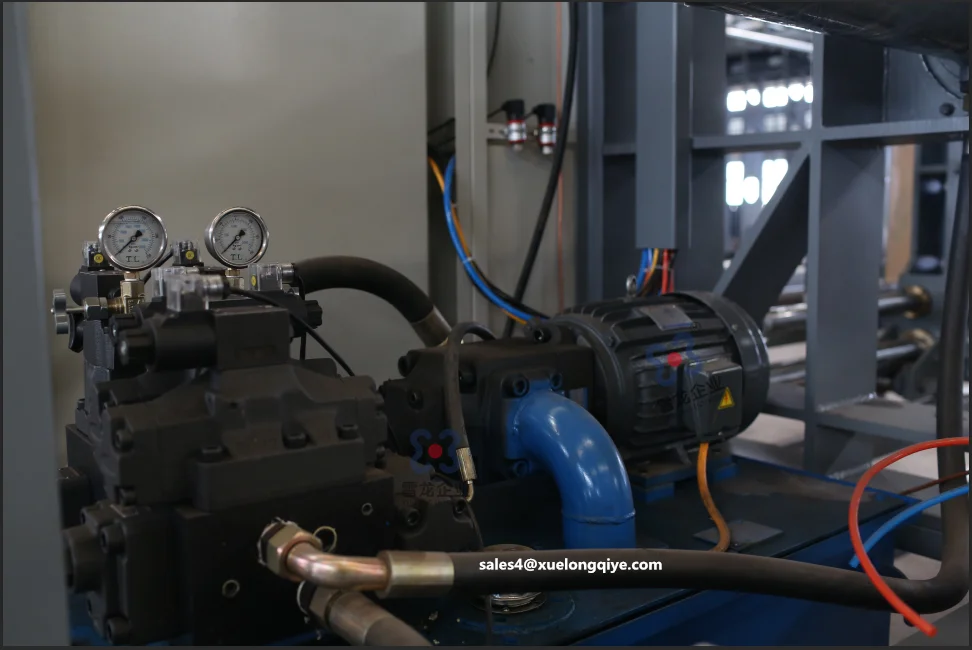

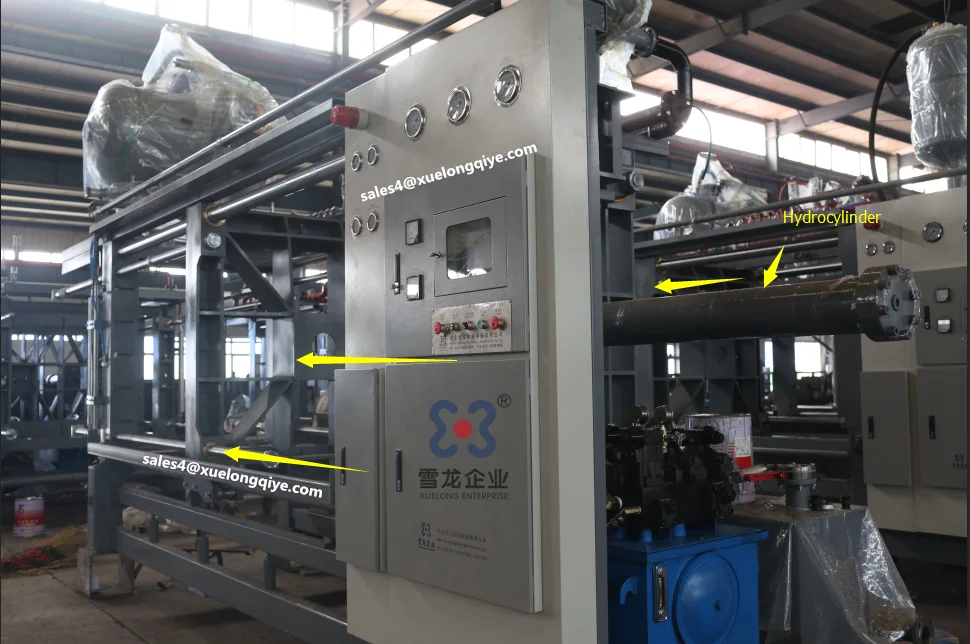

5)Adopt imported hydraulic station, which is designed by German designers. Smooth operation, accurate control of the oil volume of the cylinder and the pressure inside the cylinder, so that the surface of the product is smooth, improve the quality of the product; at the same time effectively control the moisture attached to the product and reduce the moisture content of the product;

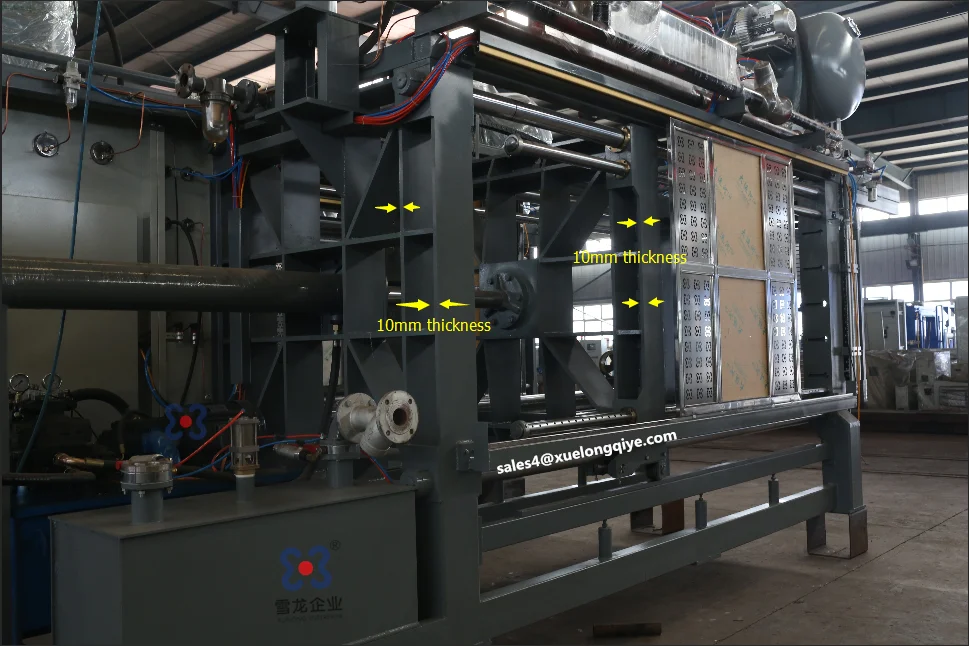

6)Using Q345 high-quality steel, the thickness can reach 10mm (the thickness is usually 5-8mm on the market); 5 times of healthy and pollution-free paint spraying, greatly improving the corrosion resistance and oxidation resistance of the product, preventing Corrosion of water such as steam during production can ensure no rust for 15-20 years;

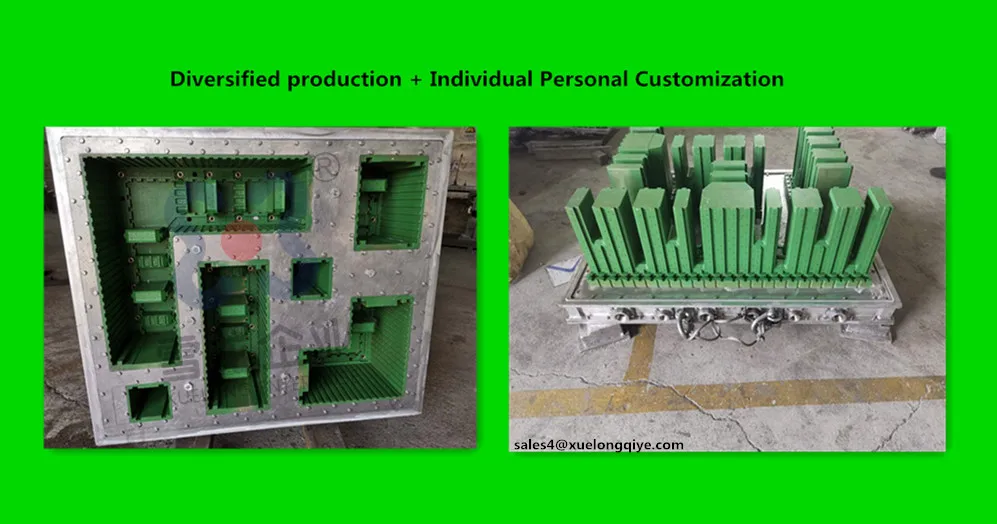

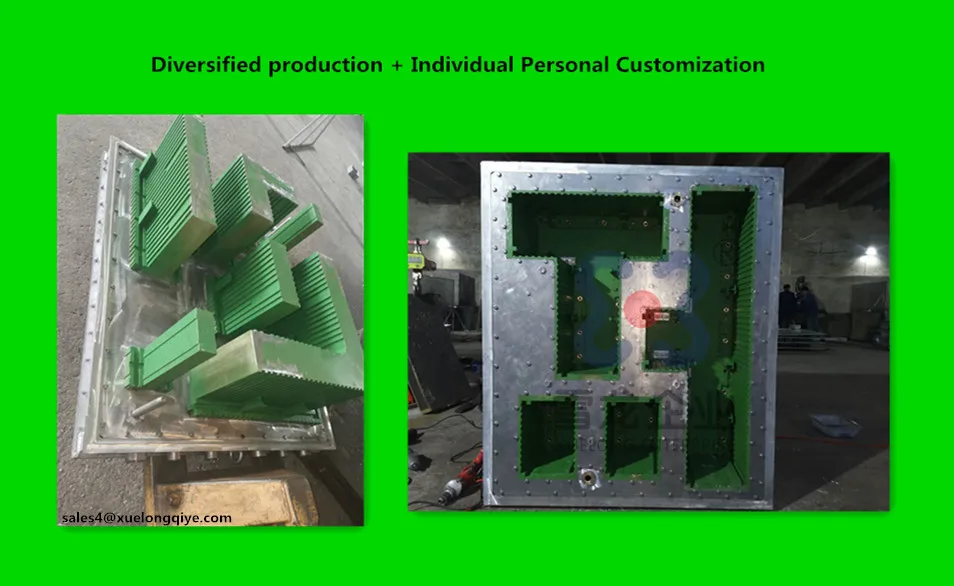

7)About the mold: all aluminum material + 5 times painting, greatly reducing the corrosion of water vapor on the mold during the production process, the service life of more than 20 years;
It can produce modules of various shapes at the same time, and the production efficiency is high;
At the same time, it can also be customized according to customer's requirements, and the mold can be designed separately. It is highly targeted and accurate in size, which is beneficial to customers' personalized and diversified production;
Our Inspection Service In Every Step:
In the production process of the shape molding machine, we will inspect the equipment in every step to ensure that the equipment can run smoothly and efficiently in all aspects of the operation process, and produce high-quality customer-satisfied products;
1)The installation process checks the material gun to ensure that each material gun works normally; it greatly avoids the molding difficulties caused by insufficient feeding, the increase of waste products and the low efficiency;
2)Close the test of the mold before the feeding, and check the leakage, greatly avoid the increase of energy consumption caused by air leakage or water leakage, reduce the production efficiency and cause serious corrosion to the machine;
3)Check the integrity of the mold to ensure that the mold is intact, to prevent the product edge from exceeding the predetermined size due to the damage of the mold, and the product size is not accurate;
4)Inspection of the vacuum, to strengthen the closure of the mold, ensure that the moisture caused by the difference in vacuum is not easy to gasification and product swelling, to ensure that the final product surface is flat, rapid setting;
5)Checking the pressure, including the feed and the pressure check of various controllers, ensuring accurate pressure control of the equipment, smooth operation in all aspects of feeding, steam heating and product cooling to ensure work efficiency;
About our company :

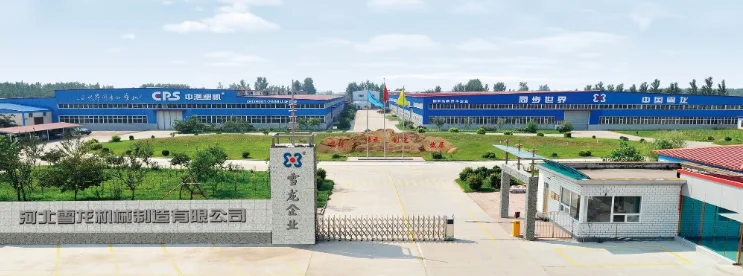

Established in 1994 , through 25 years’ stable development ,Xuelong company has been association including 10 independent corporate enterprises . Passed ISO9001:2008 quality management system certification and national high-tech enterprise certification .
Xuelong company is strategic partner of Tsinghua university(Most famous University in China) ,machine design research institute of China university of mining and technology.
As most famous 3D & EPS panel construction house system solution supplier in China , Xuelong company’s main products scope are : 3D panel machine line ,EPS machine line , EPS raw material marketing center ,precast concrete elements production line and ICF construction panel plant system .Through years of development, now Xuelong company become the largest professional manufacturer of 3D panel production line, also the largest professional EPS machinery manufacturer in China which covers an area of more than 110000 square meters with about 650 employees, including 46 senior mechanical engineers, and 48 engineers . the group total sales in 2015 came up to 50 million USD .Following the concept of “Quality is Life”, and cooperation with Tsinghua university ,we believe that could bring more value to partners worldly.
Contact me :
Our Services
Our Services:
1)Customers` Design ,Size,Color&Logo are accepted. 2)With15years professional manufacture experience 3)Prompt Delivery&Competitive Price 4)Main markets:Middle East, Europe, North America, Africa,Southeast Asia.
After-sales service: 1.We provide the technical support for whole life of our machines. 2.If buyers need the technician to go abroad ,we will arrange the technician, but the buyers should take all the cost,including visa,roundtripticket etc.
FAQ
FAQ:
Q: Are you a trading company or a manufacture factory?
A: We are a factory with 100000 m2 area and established in 1994 . the most pretigious welded wire mesh styrofoam panel machine/production line/plant supplier in China
Q: Can your factory customize the machine for clients ?
A: Yes, we can customize welded wire mesh styrofoam panel machine/production line/plant for customers according to different specificationrequirements
Q: What is your payment terms ?
A: T/T or L/C . Normally, 40% as the deposit first by T/T, the rest 60% will be paid before shipping by T/T.
Q: How about after-sales service ?
A: 1- 2 year free warranty, Lifetime technical service support.
Q: How can I install the machine and get a commissioning ?
A: We send our engineer for installation and commissioning and offer operation training for customers' technicians
Q:Have you some videos where we can see the line producing ?
A: Yes, we can provide some videos for reference.
Q : Where is your company loacated in ? how to arrive in your factory to purchase ?
A: Our factory area totally 100000 square meters . located in Shijiazhuang City , Hebei Province . (only 1.2 hours from Beijing to my city by high-speed rail ) . only 3 hours by air from Guangzhou , 2 hours by air from Shanghai .
Q. Do you test all your machines before delivery? A: Yes, we have 100% test before delivery.
Q. Do you have some videos where we can see the line producing? A: Yes, we can provide some videos for reference.
Q: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
