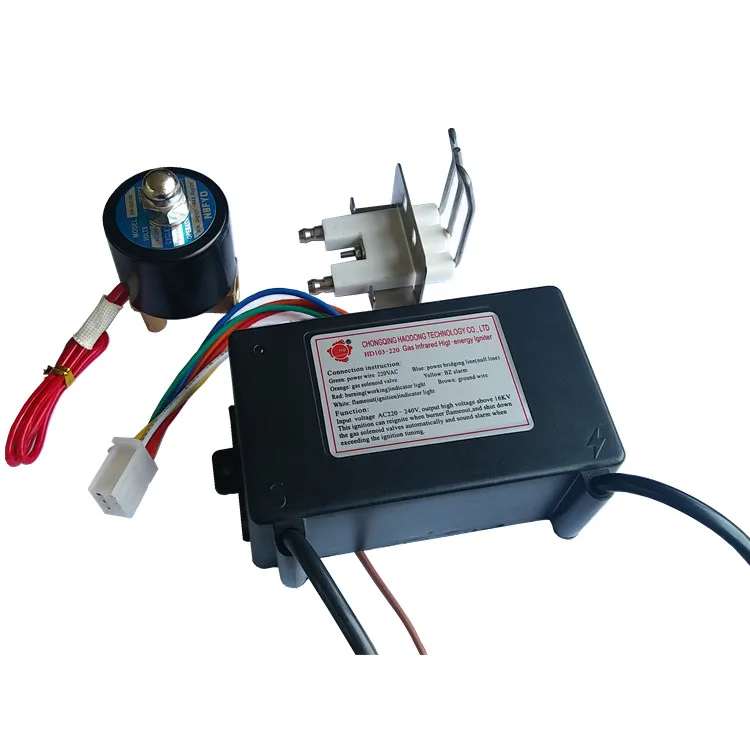

Electric gas pulse igniter for oven furnace

Product Overview

Description



Product Name: Electric gas pulse igniter for oven, furnace







Product Purpose

This product is mainly used for the ignition and control of industrial equipment with the energy of liquefied petroleum gas, natural gas and coal gas.







Features:

    Electric ignition or switching control ignition

    Ignite the gas again automatically if the fire went out accidentally.

    Automatic monitoring or photoelectric control. If the fire went out, it can give warning automatically.

    If it failed to ignite the gas or the fire went out accidentally, it can cut off the gas supply immediately.

    Technology of Single-chip and digital microcomputer

    lightning proof





Technical Parameter of Electric gas pulse igniter for oven, furnace



Items	Quotas
Rated operational voltage	VAC
Discharge frequency	50HZ
Arcing distance	>=6mm
Duration of ignition	10s
Duration of rekingdling	10s
Discharge energy	>=4J
Discharge cycle	<=400ms
Width	>=12us
Deferent high pressure	>=15KV

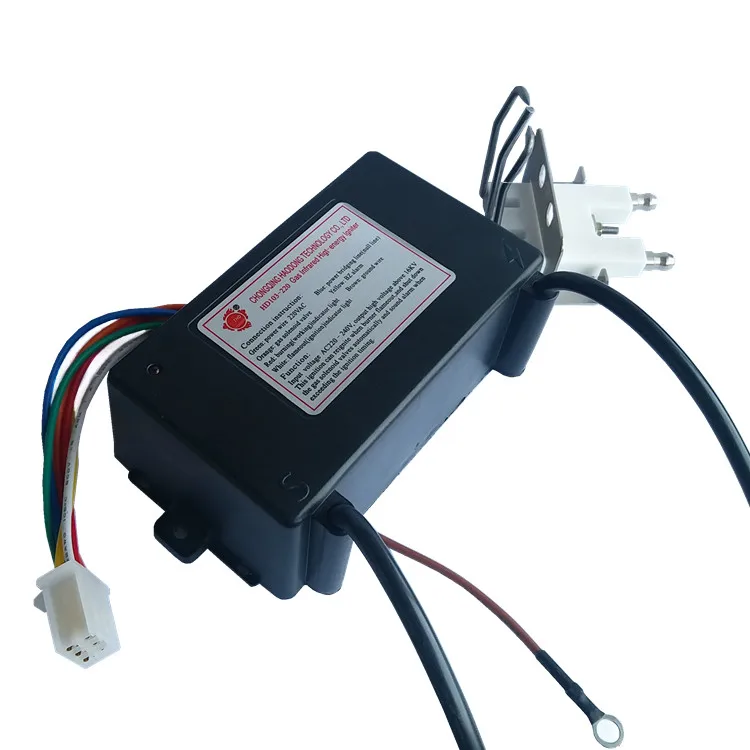

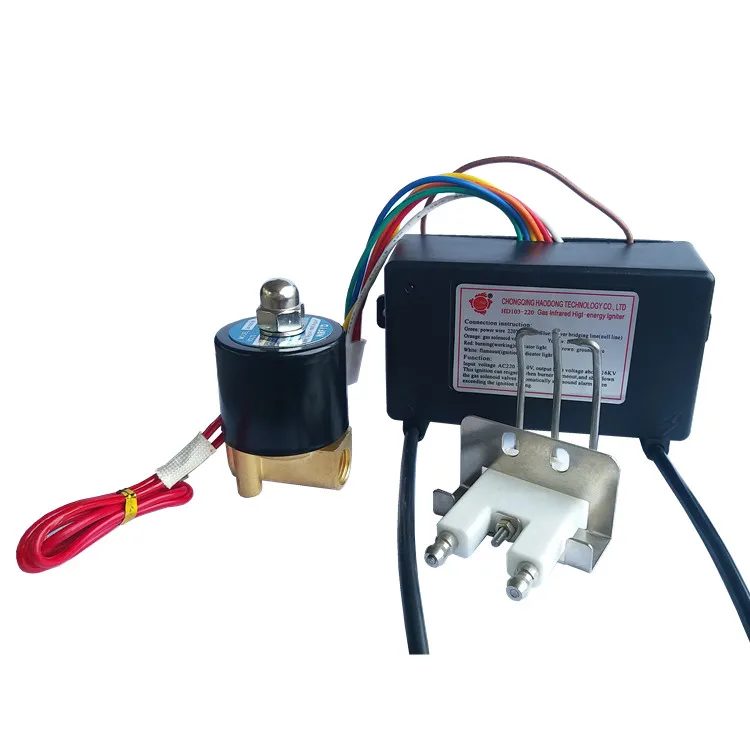

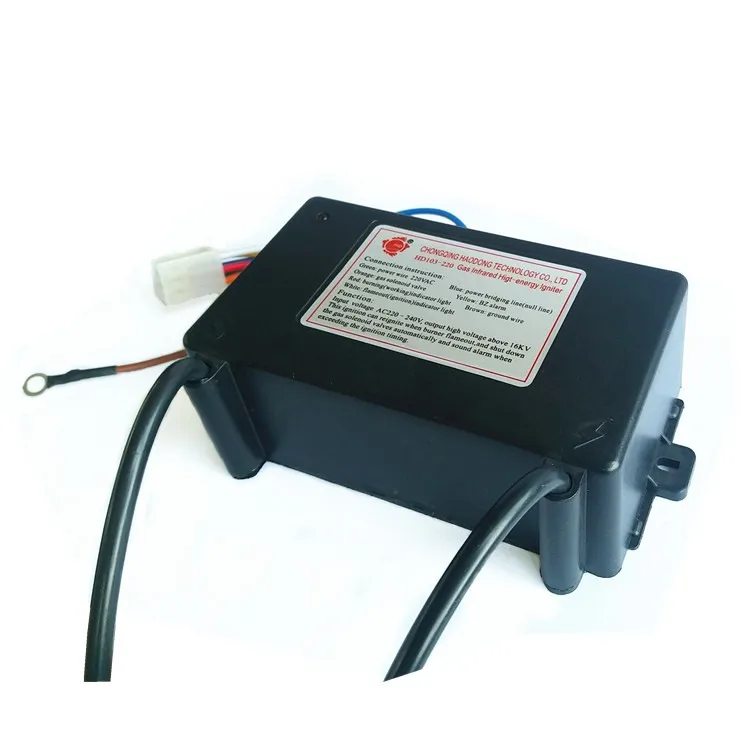

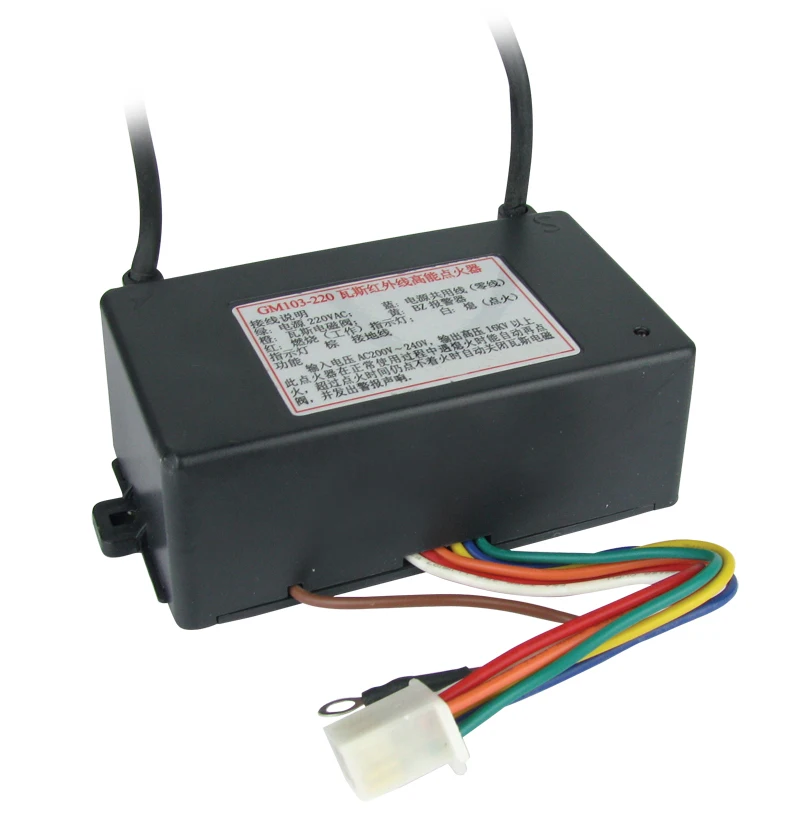

Detail picture for Electric gas pulse igniter for oven, furnace
