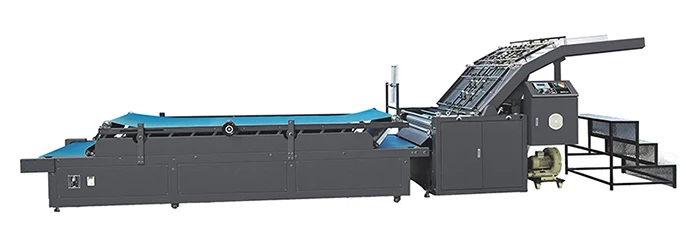

FMB G Series Semi Automatic Flute Laminating Machine
- Category: >>>
- Supplier: Shanghai Printyoung International Industry Co. Ltd.
Share on (62135369407):
Product Overview
Description
Product Description
FMB-G Series Semi-Automatic Flute Laminating Machine
Performance And Charcteristics:
1. Heightened top sheet feeder enable bottom sheet loading without production stop.
2. Turnup bridge plate is convenient for cleaning, discontinuous water-circulating system ensures washing clean.
3. Automatic feeding for bottom sheet, manual feeding for top sheet (feeding from side for top sheet is optional).
4. Flexible front register, bottom sheet is not exceeding the top sheet, and it's adjustable for the front-and-rear lamination between bottom sheet and top sheet.
5. Bottom sheet can be paperboard more than 350gsm, A/B/C/D/E/F corrugated cardboard.
6. Intelligent control and compacted energy-saving and controlling play from the stack of paper.
7. Using high-precision plastic block device, save glue.
8. Side feeding is optional for top sheet.
*Optional: PLC control, lengthening compression part, elevatable platform for top sheet.
Performance And Characteristics:
Model | FMB-1300-G | FMB-1450-G | FMB-1650-G |
Max. Sheet size | 1300x1300mm | 1450x1450mm | 1650x1650mm |
Min. Sheet size | 350x400mm | 350x400mm | 350x400mm |
Power consumption | 9kw | 9kw | 12kw |
Speed | 0-108m/min | 0-108m/min | 0-90m/min |
Weight | 3.1t | 3.5t | 5.3t |
Overall Dimensions | 9000x1950x1900mm | 9000x2150x1900mm | 9200x2500x1900mm |
