RTN 905 microwave transmission IDU 905 1E
- Category: >>>
- Supplier: Shenzhen Hong Telecom Equipment Service Limited [Guangdong China]Shenzhen
Share on (62135422177):
Product Overview
Description
Product Overview

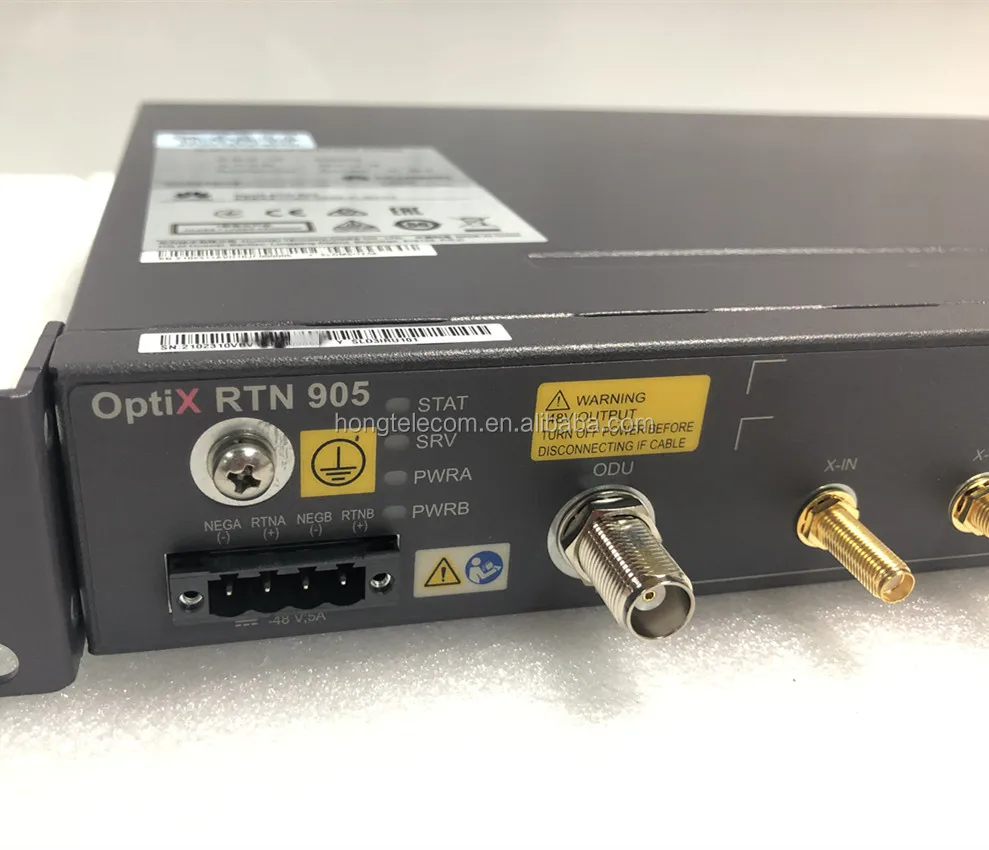

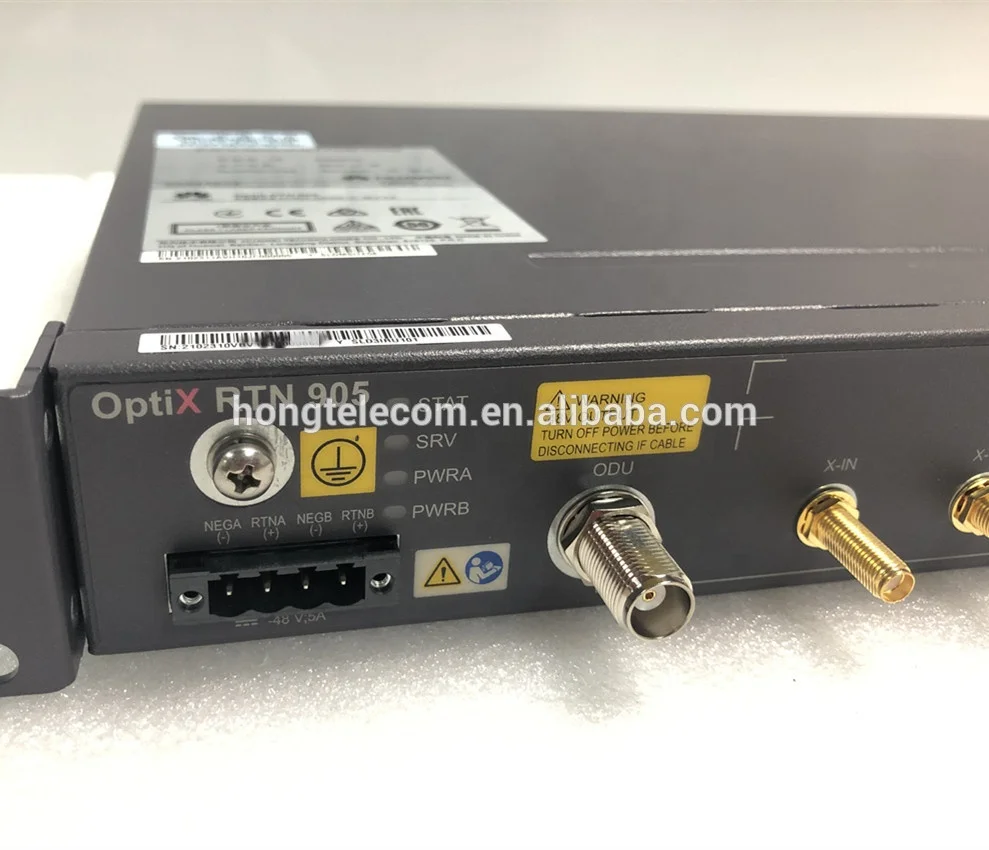

OptiX RTN 905 microwave transmission IDU 905 1E
Product Appearance
Device Attributes
| BOM | Model | Enhanced Combining and Distribution Unit |
| 52440746 | EHD0AA301 | Microwave Accessory,Coupler,6G,UDR70,3dB XMC,With English doc |
| 52440559 | EHD0CB301 | Microwave Accessory,Coupler,7&8G,UBR84,3dB XMC,With English doc |
| 52440645 | C11B03RRC | Microwave Accessory,Coupler,10/11G,UBR100,3dB XMC,With English doc |
| 52440570 | EHD0FD301 | Microwave Accessory,Coupler,13G,UBR120,3dB XMC,With English doc |
| 52440561 | EHD0GE301 | Microwave Accessory,Coupler,15G,UBR140,3dB XMC,With English doc |
| 52440572 | EHD0HF301 | Microwave Accessory,Coupler,18G,UBR220,3dB XMC,With English doc |
| 52440563 | EHD0IF301 | Microwave Accessory,Coupler,23G,UBR220,3dB XMC,With English doc |
| 52440597 | EHD0JF301 | Microwave Accessory,Coupler,26G,UBR220,3dB XMC,With English doc |
| 52440714 | EHD0KG301 | Microwave Accessory,Coupler,28G,UBR320,3dB XMC,With English doc |
| 52440716 | EHD0LG301 | Microwave Accessory,Coupler,32G,UBR320,3dB XMC,With English doc |
| 52440599 | EHD0MG301 | Microwave Accessory,Coupler,38G,UBR320,3dB XMC,With English doc |
| 52440637 | EHD0NH301 | Microwave Accessory,Coupler,42G,UG383/U-R400,3dB XMC,With English doc |
Technical Specifications
The OptiX RTN 905 adopts a split structure. The system consists of the IDU 905 and the ODU. Each ODU is connected to the IDU 905 through an IF cable.

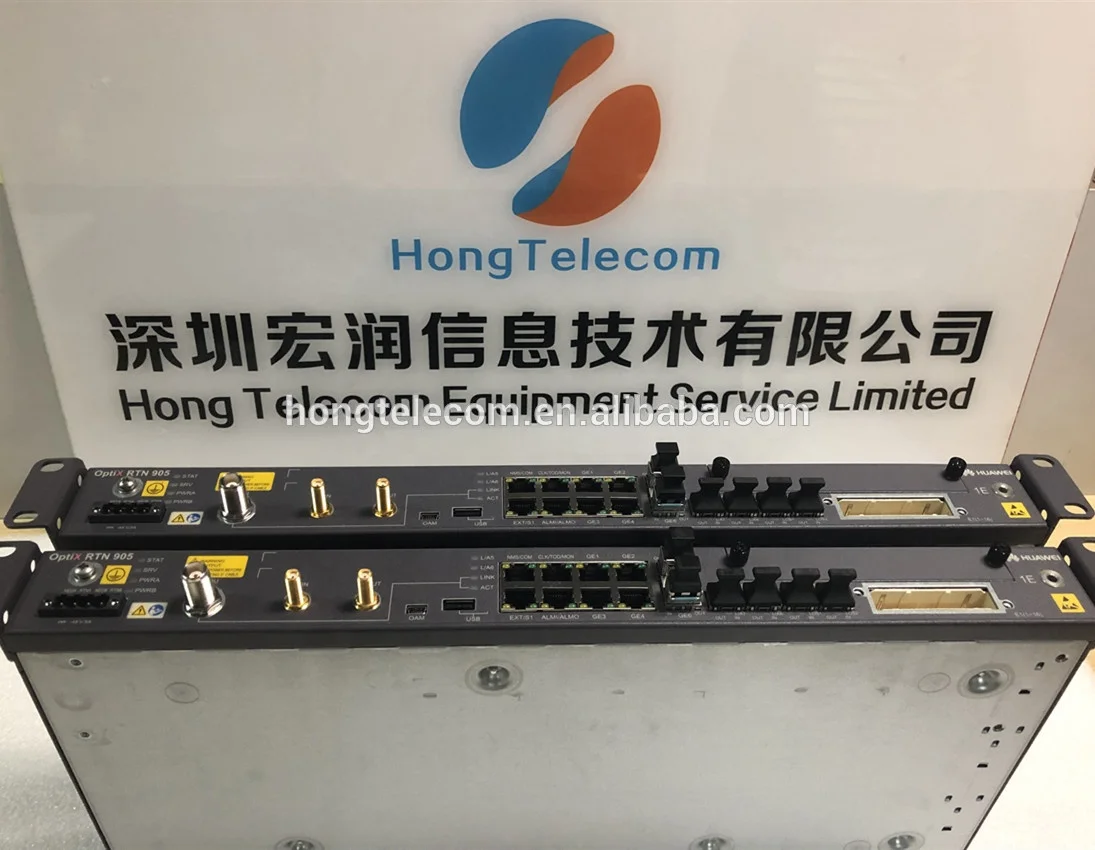

IDU 905
The IDU 905 is the indoor unit for an OptiX RTN 905 system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.
| IDU 905 Item | Description |
| Chassis height | 1U |
| Extended subcard | Supported |
| The maximum number of radio directions | 20 |
| Service interface | 4 x GE electronic interface 4 x GE/FE optical interface or GE electrical interface (SFP)b 2 x 2.5GE optical interface(SFP+/SFP)c 16 x E1 interface 1 x multifunction cascading interfacea, b 1 x E1 services cascading interfaceb 2 x STM-1 interface |
| Radio type | Integrated IP radio (E1 + Ethernet) Integrated IP radio (STM-1 + Ethernet) SDH radio |
| Highest modulation | 2048QAM |
| Number of radio directions | 1 |
| RF configuration mode | 1+0 1+1 HSB/FD/SD (NE cascading) XPIC (NE cascading) |

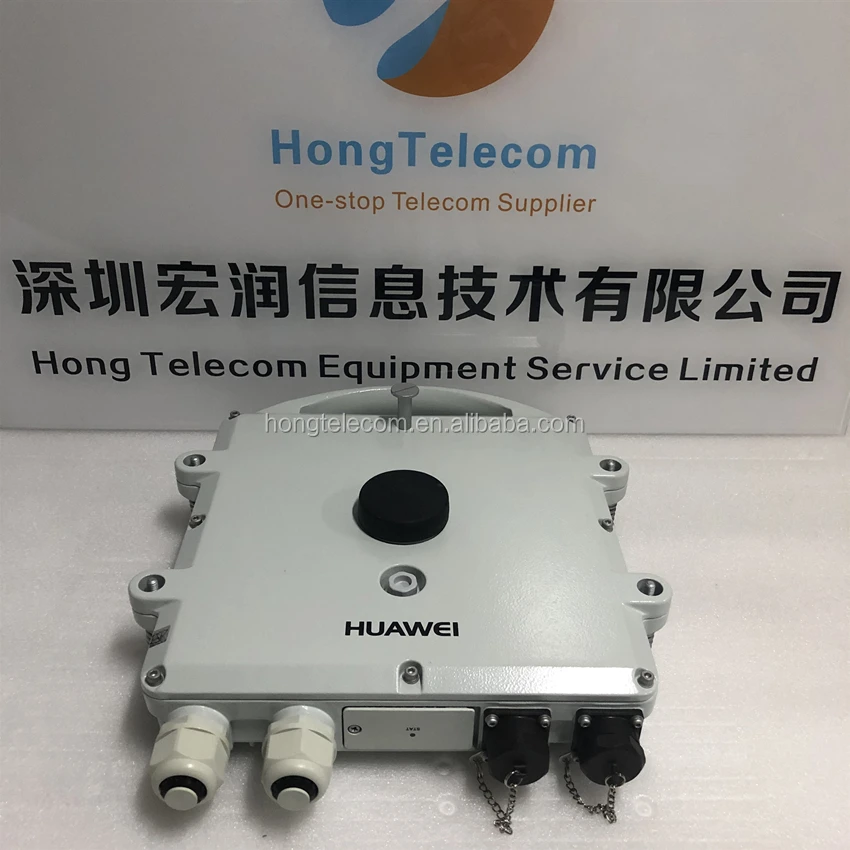

ODU
The ODU is the outdoor unit for the OptiX RTN 900. It converts frequencies and amplifies signals.
The OptiX RTN 900 product series can use the RTN 600 ODU and RTN XMC ODU, covering the entire frequency band from 6 GHz to 42 GHz.
RTN XMC ODUs that the OptiX RTN 905 supports
| ODU type | Frequency band | Highest-order Modulation | Channel spacing |
| XMC-2 | 6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz | 2048QAM (13/15/18/23/38 GHz, 7/8 GHz XMC-2E) 1024QAM (6/10/10.5/11/26/28/32/42 GHz) 256QAM (7/8 GHz Normal) | 3.5/7/14/28/40/50/56 MHz |
| XMC-2H | 6/7/8/11 GHz | 2048QAM | 7/14/28/40/56 MHz |
| XMC-3 | 7/8/11/13/15/18/23/26/28/32/38 GHz | 2048QAM | 7/14/28/40/56 MHz (7/8/11/13/15/18/23/26/28/32/38 GHz) |
| XMC-3W | 7/8/13/18/15/23 GHz | 2048QAM | 7/14/28/40/56 MHz |
RTN 600 ODUs that the OptiX RTN 905 supports
| Item | High-Power ODU | Standard Power ODU |
| ODU type | HP, HPA | SP, SPA |
| Frequency band | 6/7/8/10/10.5/11/13/15/18/23/26/28/32/38 GHz (HP ODU) 6/7/8/11/13/15/18/23 GHz (HPA ODU) | 7/8/11/13/15/18/23/26/38 GHz (SP ODU) 6/7/8/11/13/15/18/23 GHz (SPA ODU) |
| Highest-order Modulation | 256QAM | 256QAM |
| Channel spacing | 7/14/28/40/56 MHz (6/7/8/10/11/13/15/18/23/26/28/32/38 GHz) 7/14/28 MHz (10.5 GHz) | 3.5/7/14/28 MHz |
