FD 500 Full automatic non woven box bag making machine
FD-500 Full automatic non woven box bag making machine

FD 500 Full automatic non woven box bag making machine

Share on (62135453402):


Price:$80,000.00

Quantity:


Product Overview

Description


FD-500 Full automatic non woven box bag making machine



Product Description



The machine applies for laminating nonwoven fabrics,nonwoven fabrics material.The machine is mainly for producing nonwoven box bag automatically.  The machine equipped with computer controller,servo motor ,photocell tracking,auto-counting,alarming,automatic loop handling,automatic web guiding, pneumatic load material,auto temperature controller,automatic stop when the material finished and so on. The machine with computer monitoring device for good quantity bags.The machine is a good choice to economize manpower and material resources.



Specification





Model

XYFD-500

Gusset

80-200mm

Bag width

230-500mm

Bag height

200-450mm

Loop handle length

370-560mm

Bag making speed

30-55pcs/min

Total power

22kw

Air pressure

1.2m³/min, 0.8MPa

Voltage

380v, 50hz, 3-phase, 4-line

Overall dimension(L*W*H)

10000*2100*2300mm

Machine weight

7000kg

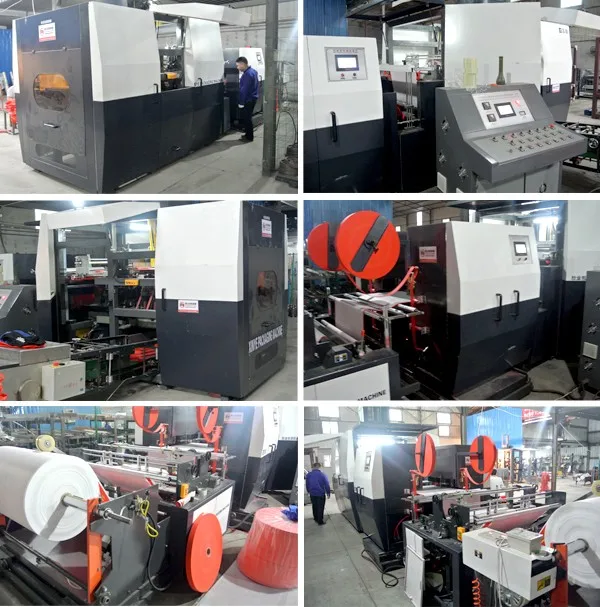

  Machine Parts

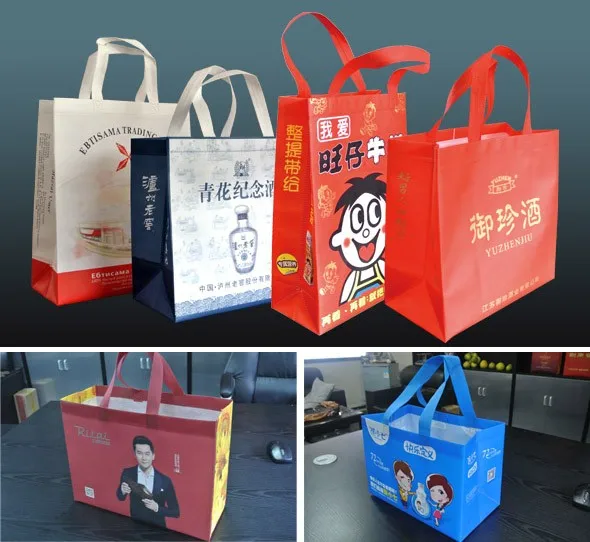

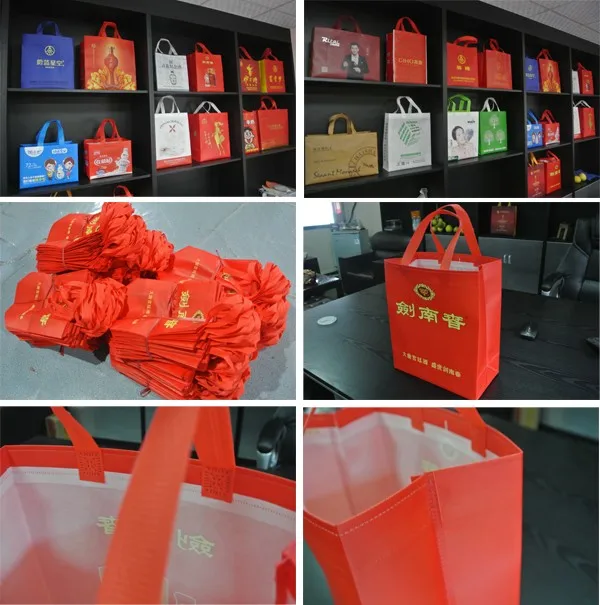

  Production Samples
