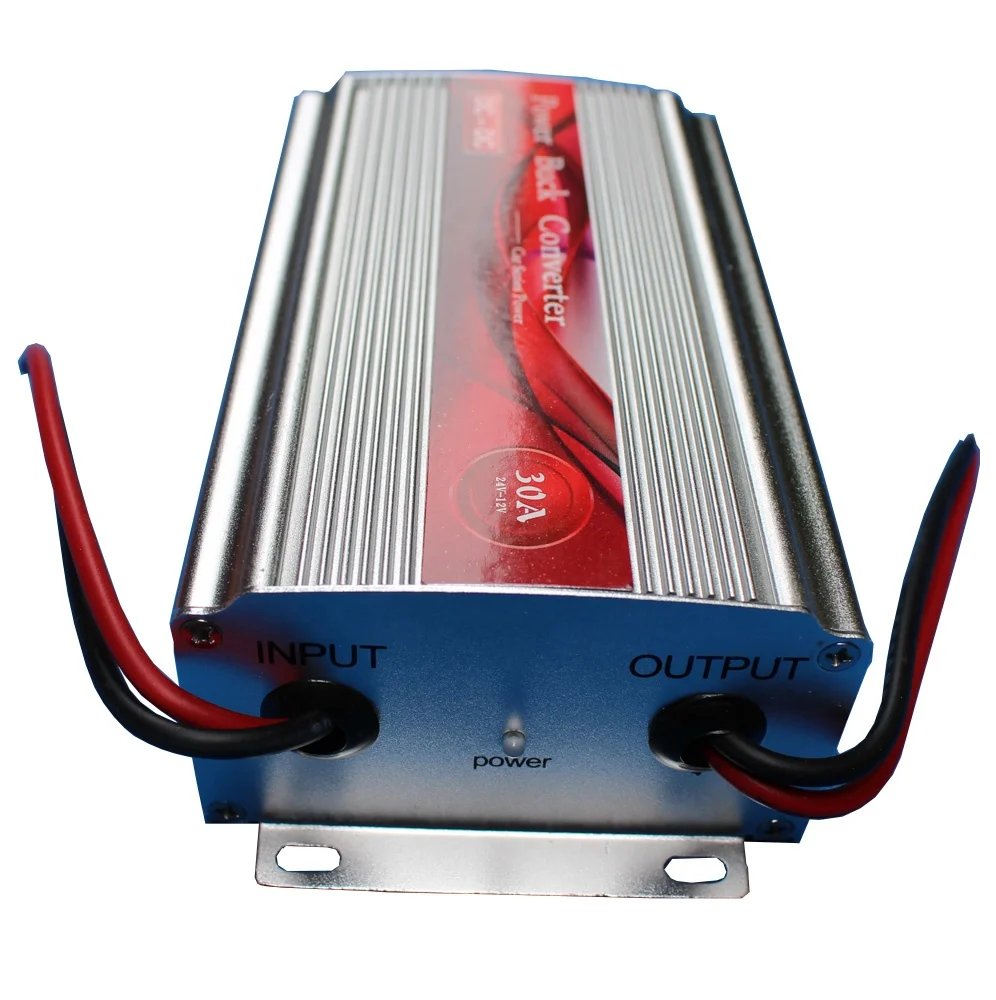

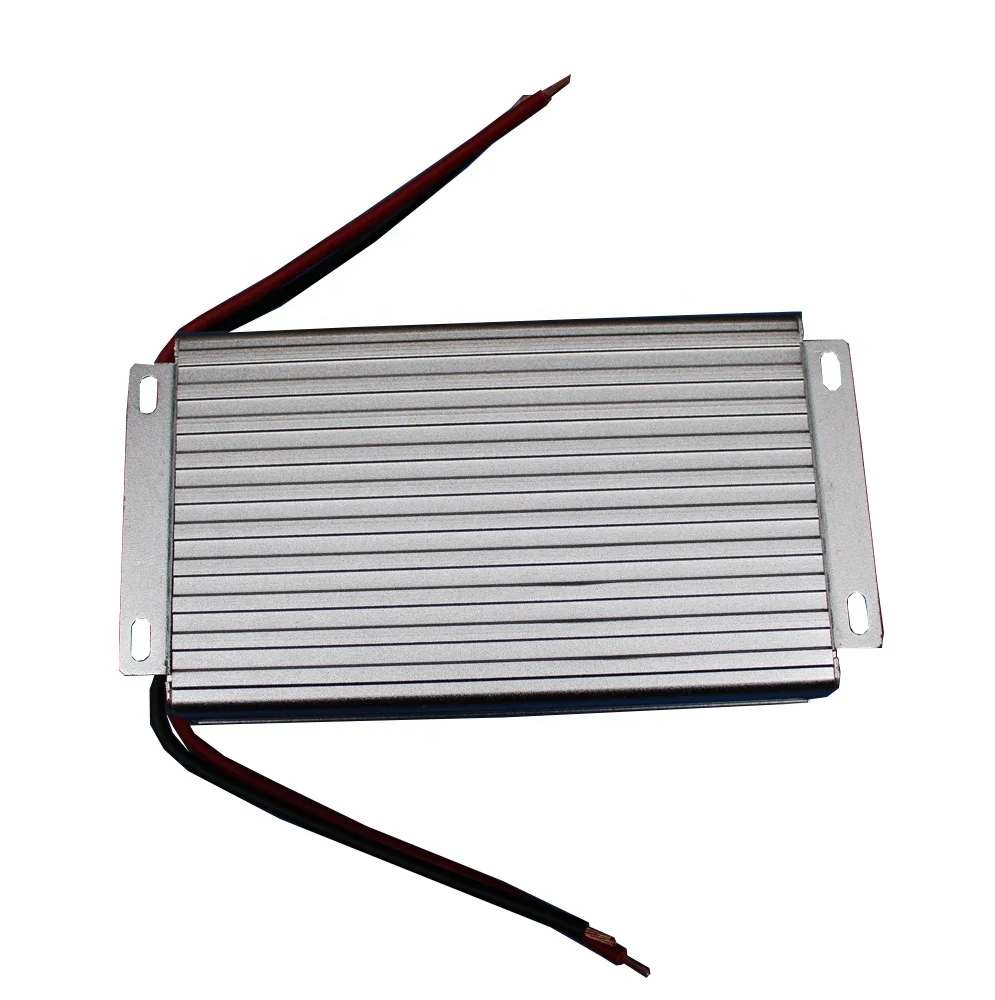

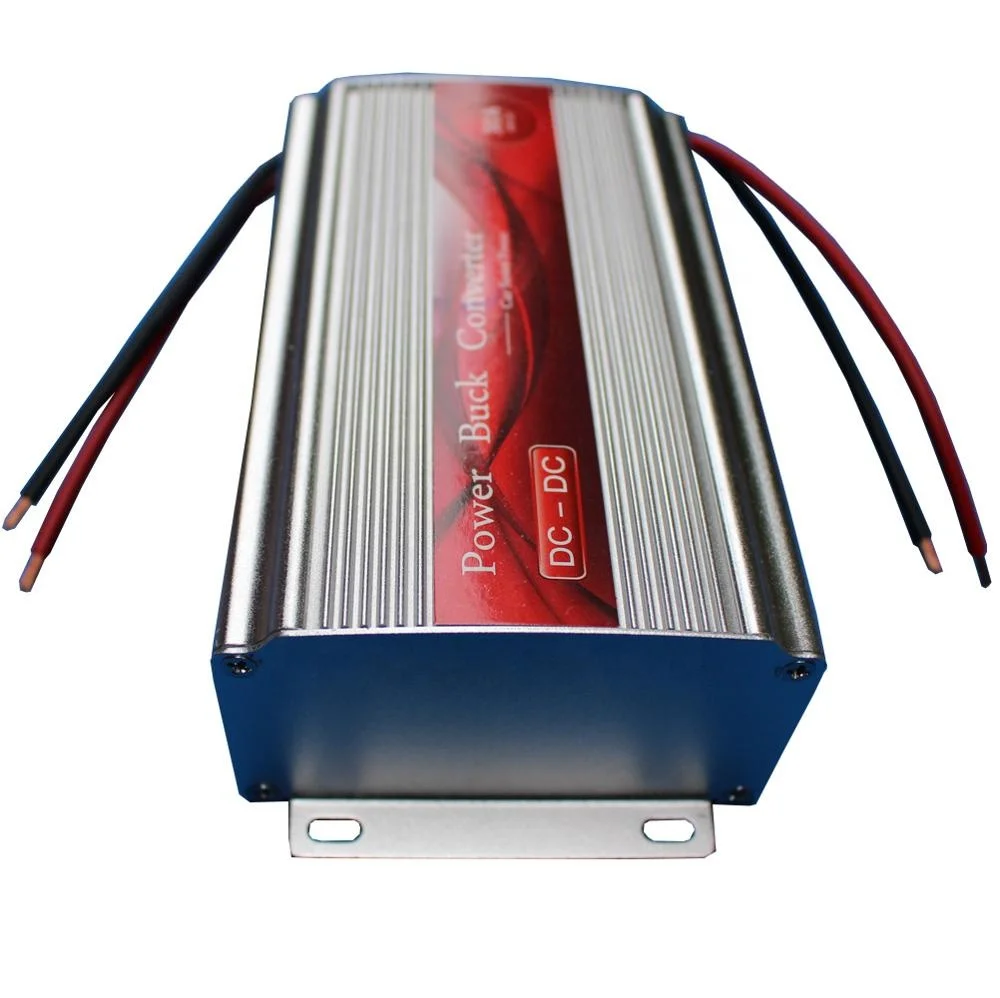

High efficiency 480W 24V to 12V 40A DC/DC step down converter
- Category: >>>
- Supplier: Shenzhen Gls Technology Co. Ltd.
Share on (62135476803):
Product Overview
Description
High efficiency 480W 24V to 12V DC/DC converter with CE Rohs Certificate
Product Description
24V to 12V DC/DC converter
Specification:
| Parameter | Unit | Values | ||
Min | Typ | Max | |||
Input | voltage range | V | 18 |
| 32 |
efficiency | % | 90 |
| 93 | |
static current | mA | 35 |
| 45 | |
Output | voltage | V | 12 |
| 12.8 |
current | A |
| 40 |
| |
power | W | 480 |
| 512 | |
ripple | mvp-p | 200 |
| 300 | |
Protection | over voltage | V | 16 | ||
over temperature | °C | 65-70 | |||
output short circuit current | A | 0.12 |
| 0.18 | |
Environment | working temperature | °C | -10 ~ +55 | ||
working humidity |
| 20%~90%RH | |||
storage temperature | °C | -20 ~ +70 | |||
Others | IP rating |
| IP 40 | ||
product dimension | mm | 160*87*52(L*W*H) | |||
package dimension | mm | 180*105*56(L*W*H) | |||
weight | Kg | 0.6 | |||
input/output wire length | mm | 160-170 | |||
color of the shell | Silver/Brown/Blue | ||||
material of the shell | Aluminium | ||||
LED indicator | Red on: fault; Green on: working | ||||
Production process

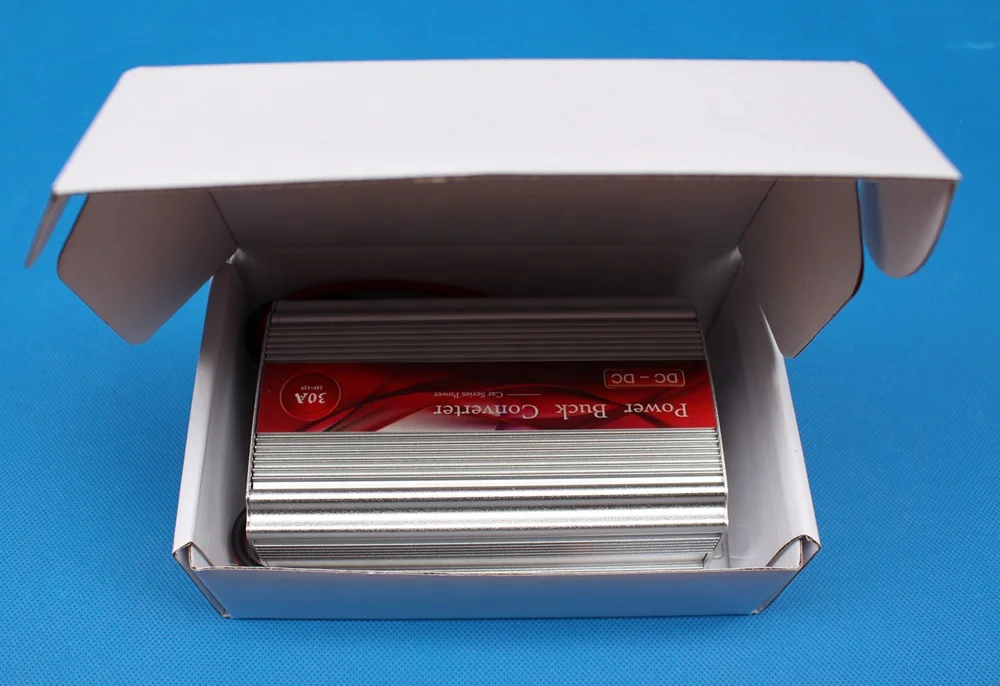

Packaging & Shipping
Company Information
- ast response to customer inquiries: reply within 10 hours.
- Provide quality products: select good suppliers for raw material, inspec incoming components, monitor the production process, aging test every single unit before shipment.
- Offer reasonable price 2 years warranty Offer competitive shipping price when required by customer Provide customized products according to different requirement.
- OEM and ODM are available Fast delivery after confirming the order.
- For the models we have stocks,we will ship them within 2 working days.
- For bulk order and customized models,please consult us for the shipping time.
