Rotary punching machine
US $55900

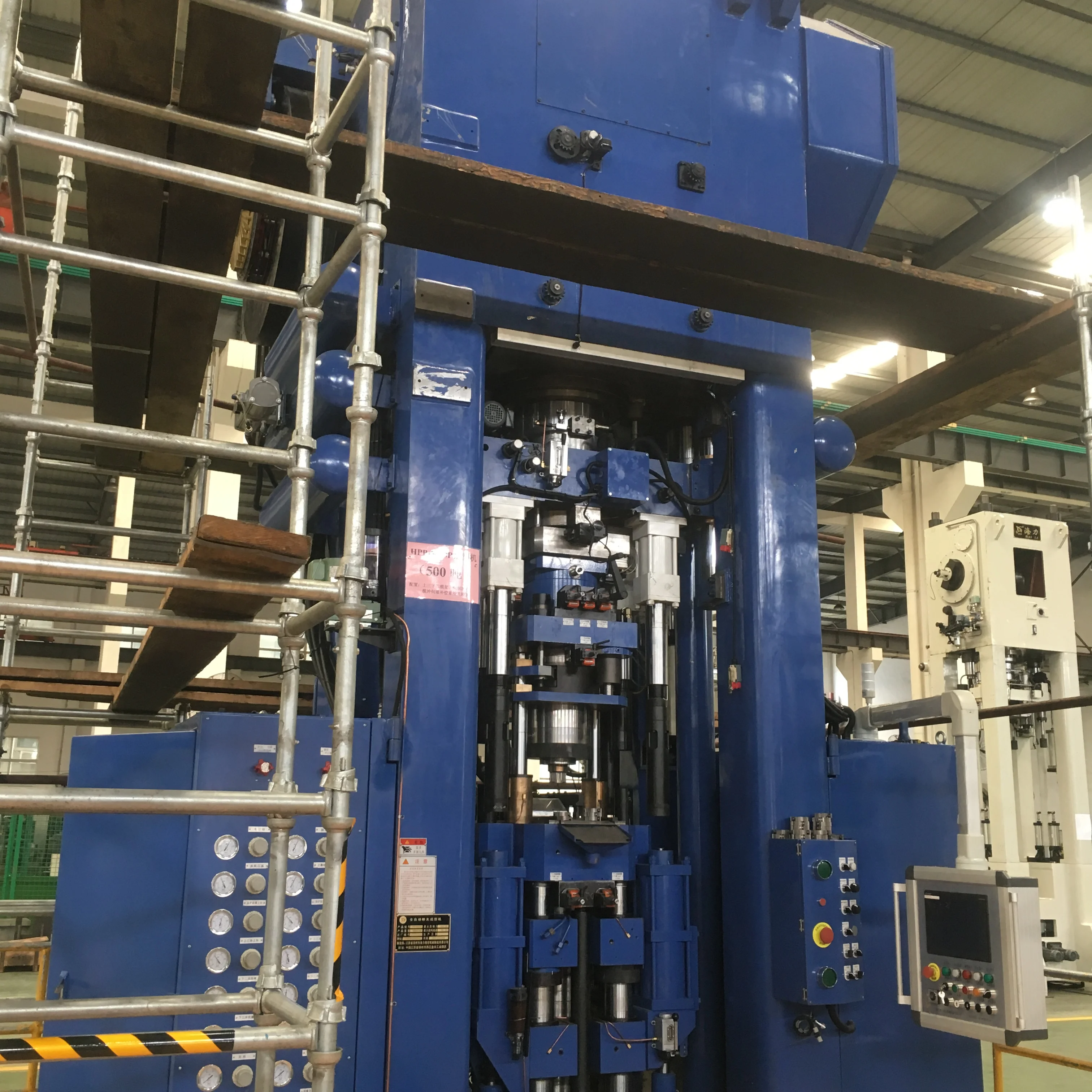

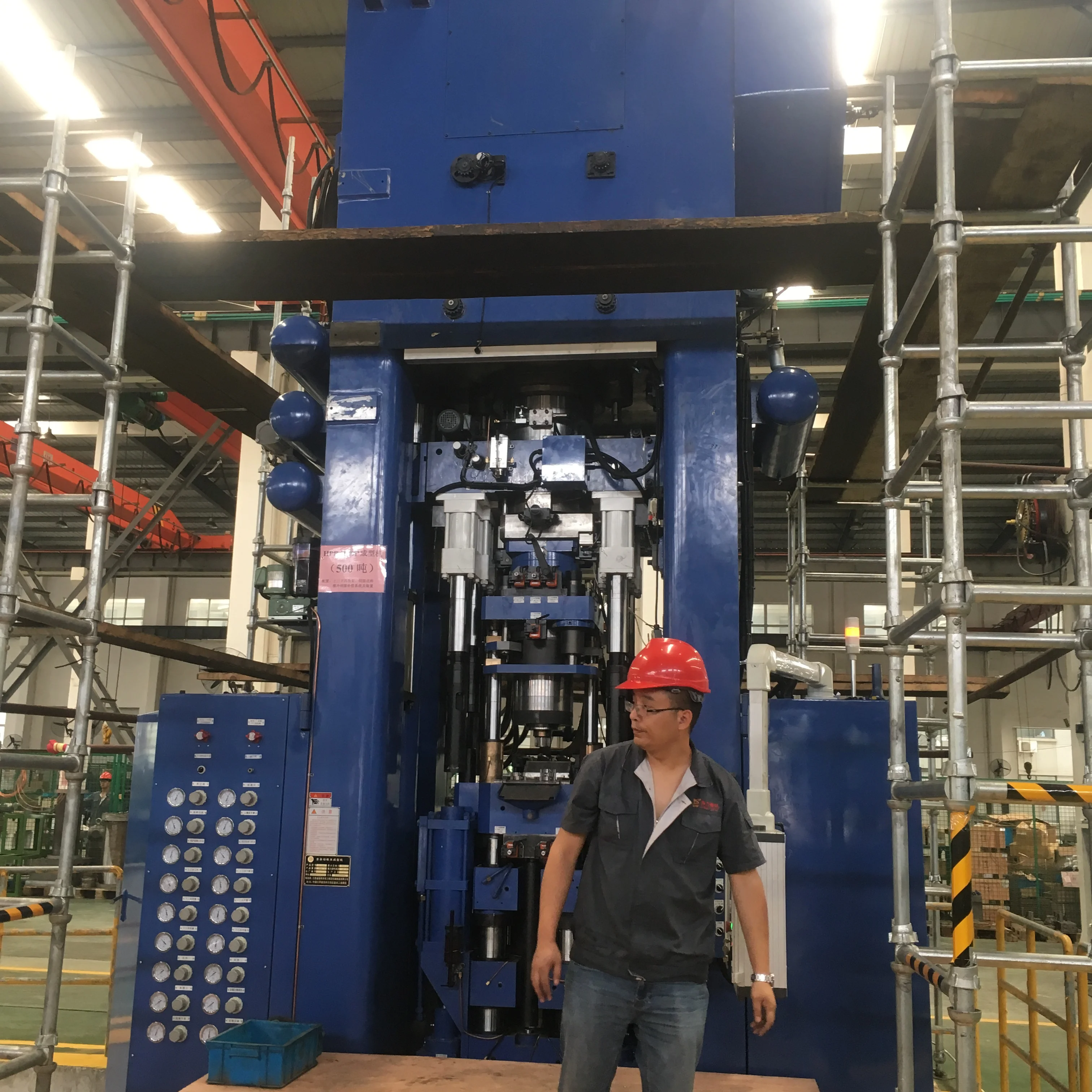

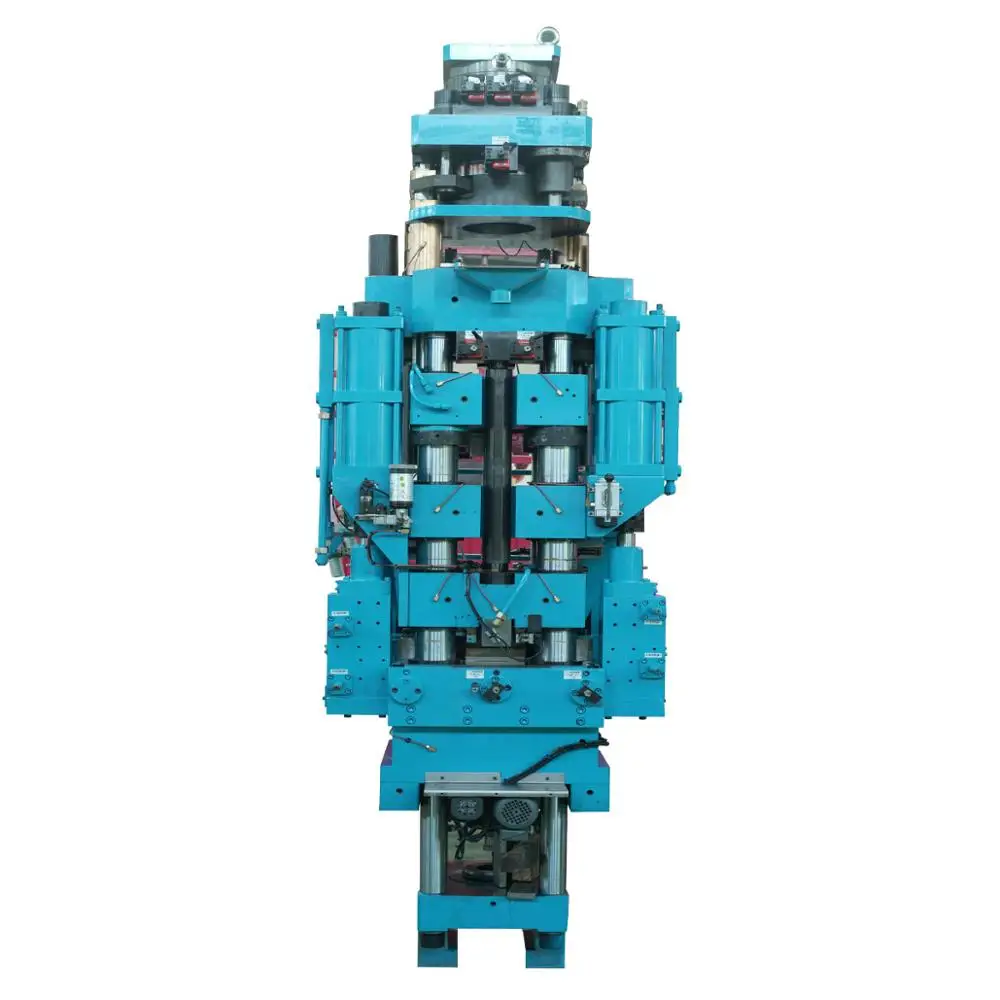

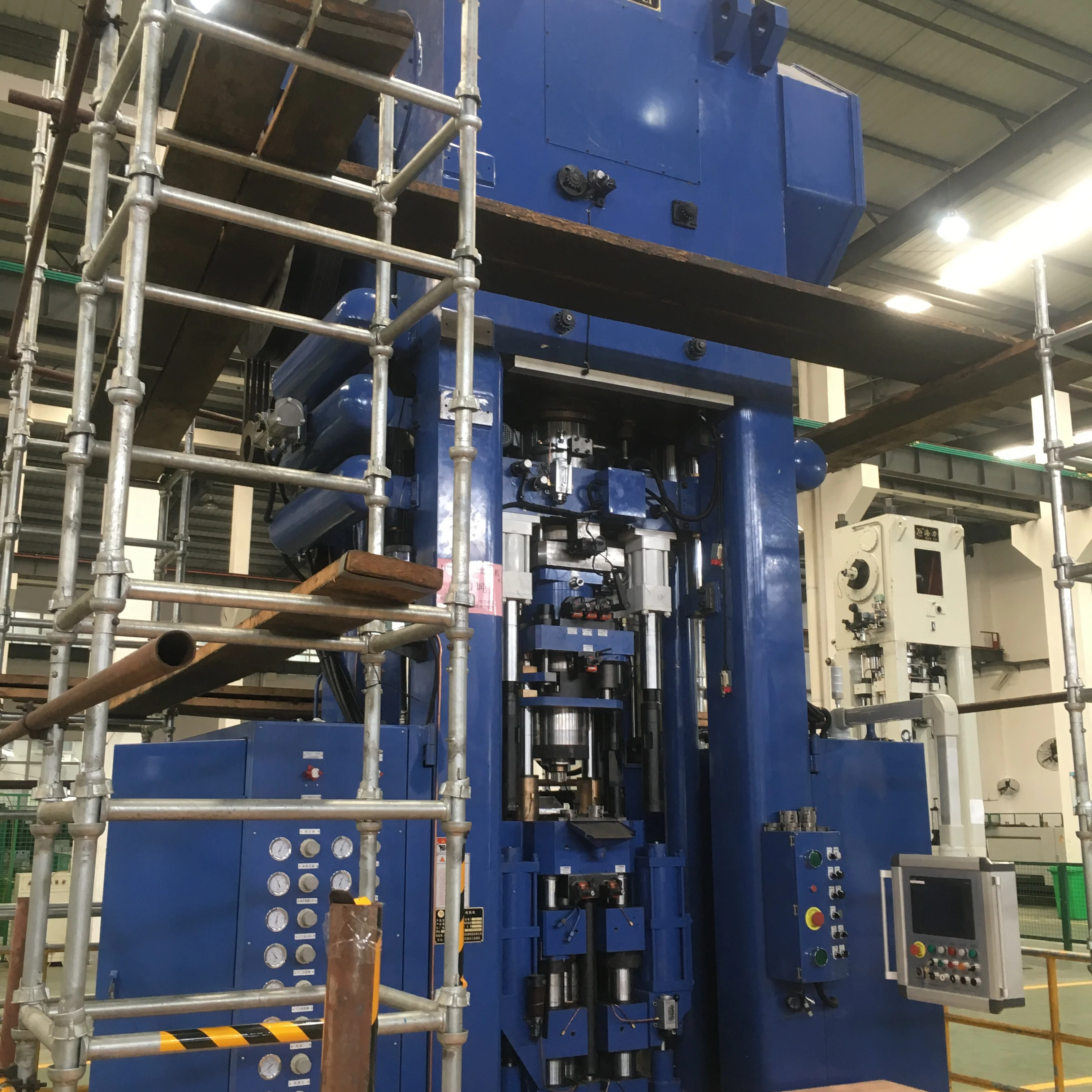

HPP 5000P powder metallurgy press
- Category: Punching Machines >>>
- Supplier: Yangzhou Haili Precision Machinery Manufacturing Co. Ltd.
Share on (62135957372):
Product Overview
Description
Product Description
Technical Specification
Max pressing capacity (KN) | 5000 |
Max ejecting capacity (KN) | 2200 |
Upper punch stroke (mm) | 200 |
Upper punch adjustment stroke (mm) | 120 |
Max filling height (mm) | 150 |
Max ejection stroke | 100 |
Max top press stroke (mm) | 0-10 |
Over (under) filling stroke (mm) | 7.5 |
Die ejection leverl adjustment (mm) | ±7.5 |
compacting rate(r/min) | 5-14 |
Weight of machine (KW) | 55 |
Configuration
No. | Name | Brand or manufacturer |
1 | Main pneumatic component | Japan TACO/SMC/America MAC |
2 | Button | France Schneider |
3 | Relay | France Schneider |
4 | Contactor | France Schneider |
5 | Touch screen | China MCGS |
6 | PLC | Japan Mitsubishi |
7 | Pressure Sensor | China Micro |
8 | Converter | Japan Mitsubishi |
9 | Sealing components | Japan NOK/Sealtech |
Characteristics
1.The machine use upper part driving way, little transmission wear, small place required for settle down, easily maintain as well.
2. Machine use air clutch with brake device, with few time delays
5. The adjusting of upper punch, filling, final pressing and die surface, all
2. Machine use air clutch with brake device, with few time delays
3. Machine use symmetric structure, power direct transfer from up to down. It saved the rocker arm in die floating device, so that the transmission wear will become less, and the component has higher wear resistance which can keep stable running for a long time
4. The ejection position is fixed, which is convenient for installing in mould and adjusting mould5. The adjusting of upper punch, filling, final pressing and die surface, all
