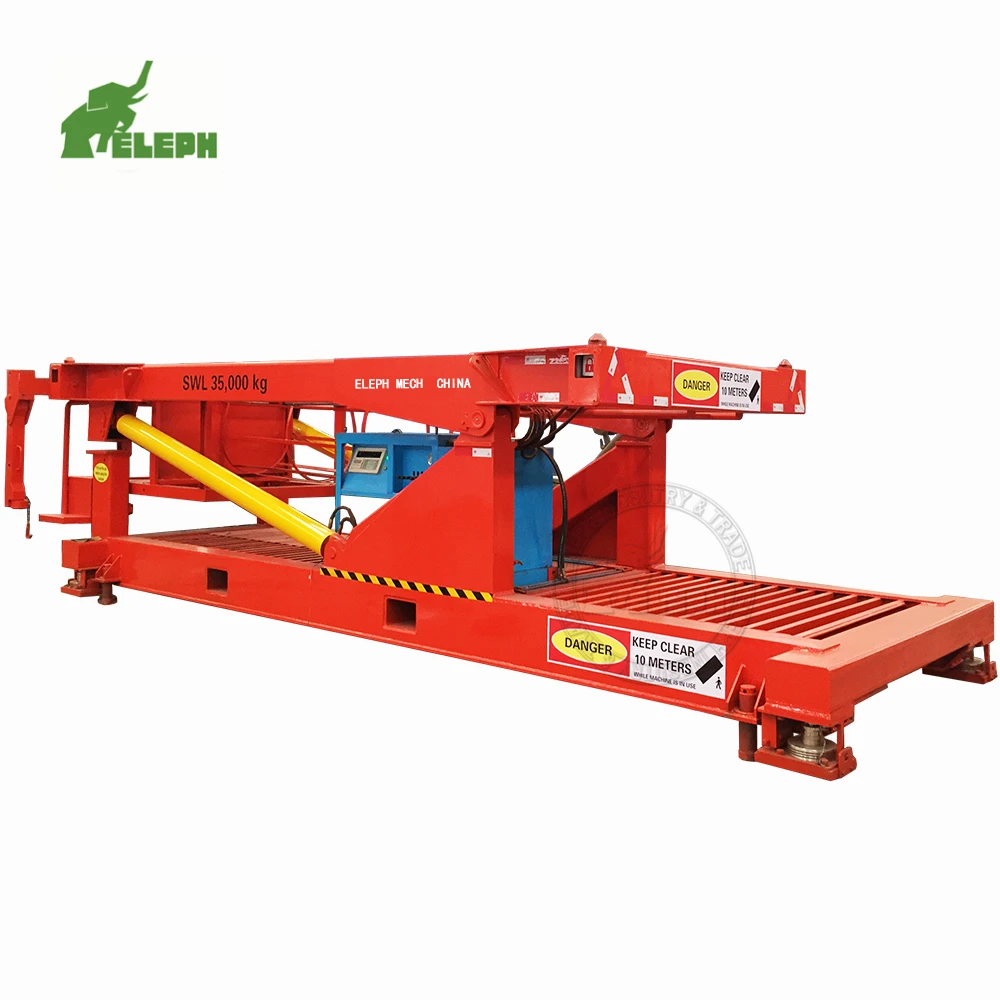

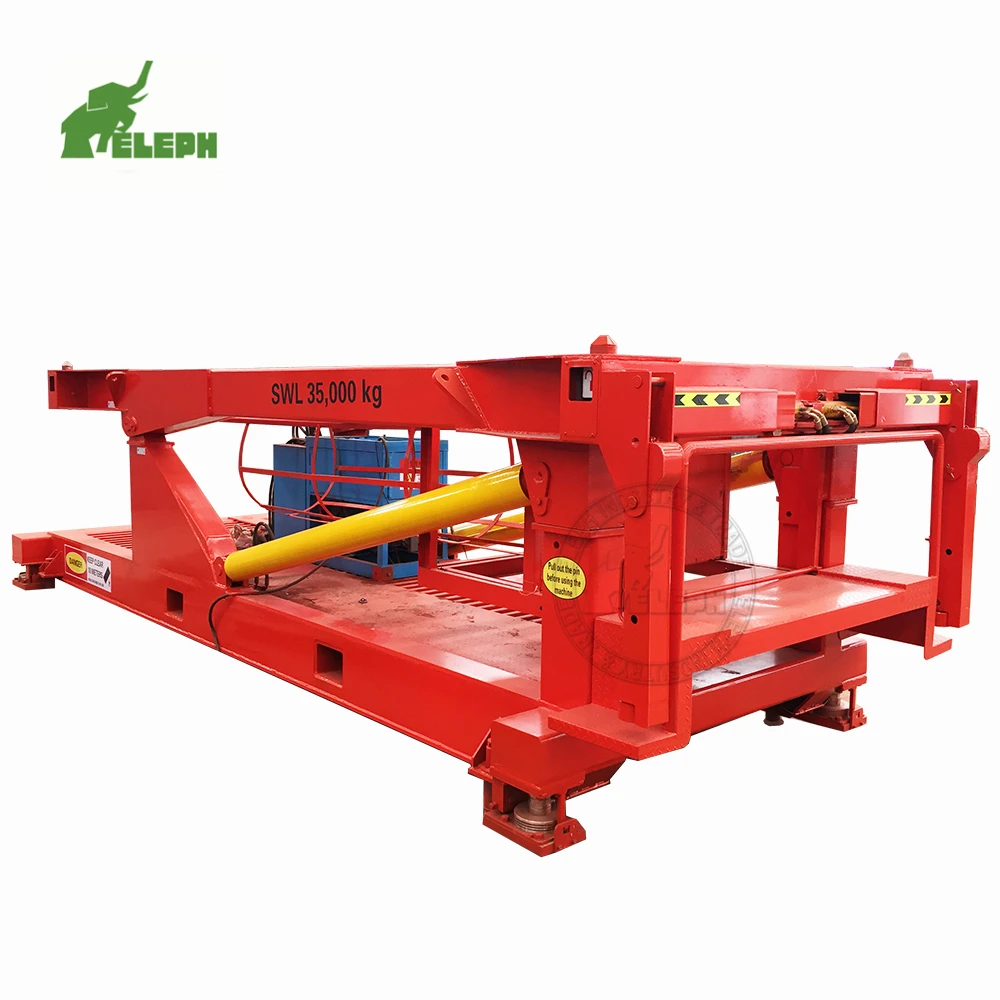

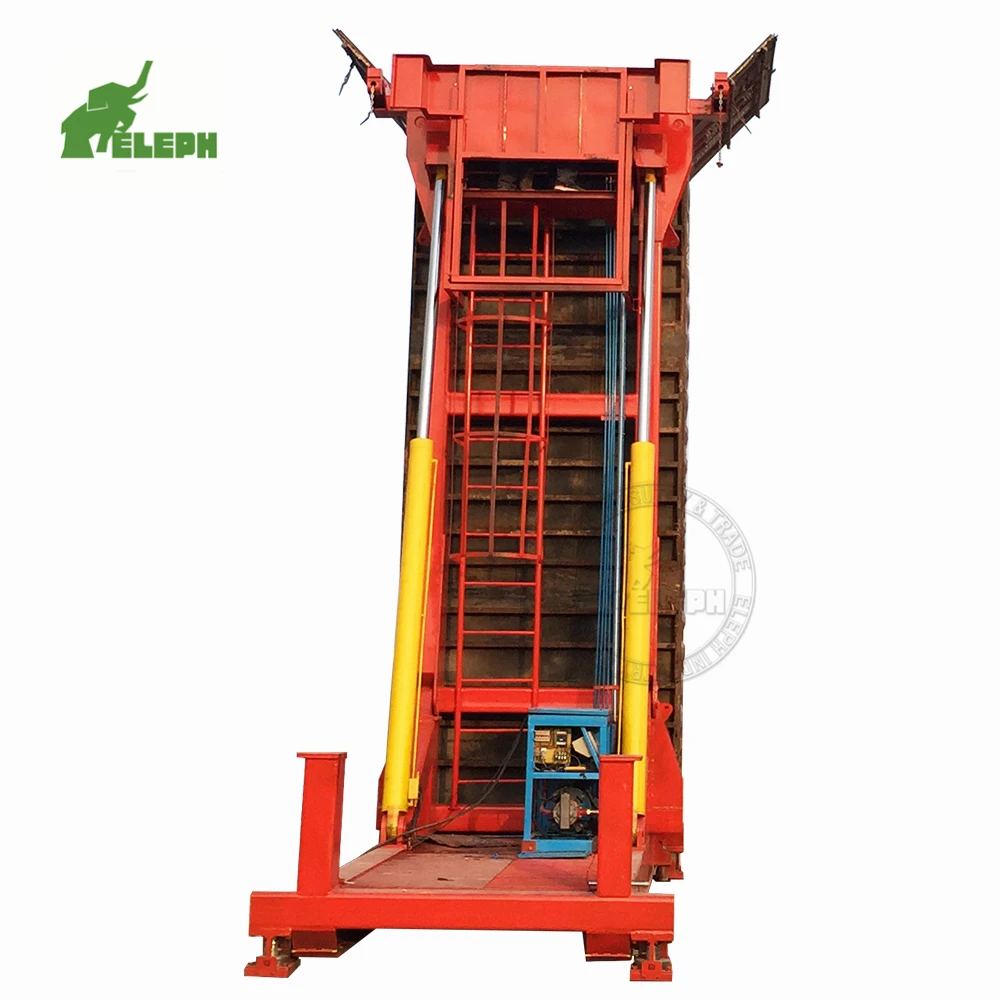

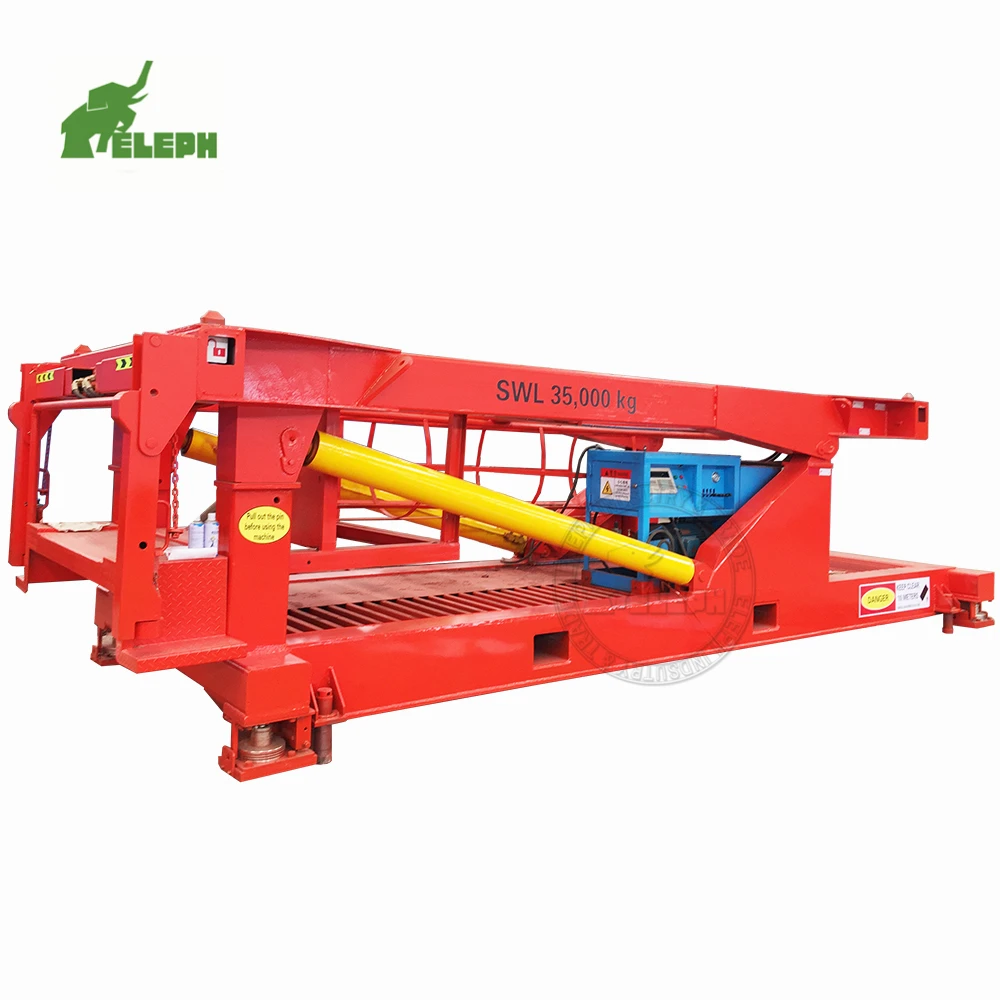

Container Turnover Tilting Machine for Port Farm Fast Bulk Discharging Container Cargo semi trailer

MODEL

ELEPH-20

USING RANGE

ISO 20’ CONTAINER

RATED TILT LOAD

35T

TILT RANGE

0~90°

TILT TIME

~30S

SELF-WEIGHT

~10T

SHAKE MODE

MOTOR DRIVE

MAIN ELECTRICAL COMPONENTS

SIEMENS, SCHNEIDER, ZHENGTAI, XUNJIE

POWER VOLTAGE/FREQUENCY

AC 380V/3P/50HZ (AS AGREED)

OPERATE CONTROL

CONTROL BOX WITH TOUCH SCREEN AND WIRELESS REMOTE

CONTROL VOLTAGE

DC24V&AC220V(AS AGREED)

TOTAL POWER

≤18KW

PRECAUTION CLASS

IP 55

OPERATE PRESSURE OF THE SYSTEM

205 BAR(3000 PSI)

AMBIENT TEMPERATURE

-20℃~+50℃

TWIST LOCK MODE

ISO TWIST LOCK, DRIVEN BY AN OIL CYLINDERS

TILT ACTION

TWIN HYDRAULIC DOUBLE ACTING CYLINDERS

OPEN DOOR MODE

HYDRAULIC CYLINDER DRIVE

WIND SPEED

108 KM/HR

DIESEL POWER GENERATOR

OPTIONAL

WAY OF LOAD CONTAINER

CRANE, FORKLIFT AND CONTAINER TRAILER

FUNCTION

IT’S ALL MADE OF HIGH STRENGTH STEEL WELDING FORMING, SO AS TO MINIMIZE THE WELDING DEFORMATION AND STRESS, GREATLY INCREASE THE SERVICE LIFE OF THE PRODUCT.

ADVANTAGE

CONTAINER HYDRAULIC TURNOVER MACHINE HAS MOBILE CONVENIENT, FLEXIBLE AND CONVENIENT OPERATION, GOOD STABILITY, WHEEL PRESSURE FROM BOTTOM, STACKING LAYER NUMBER IS HIGH, THE PILE FACTORY UTILIZATION ADVANCED STRENGTHS.
