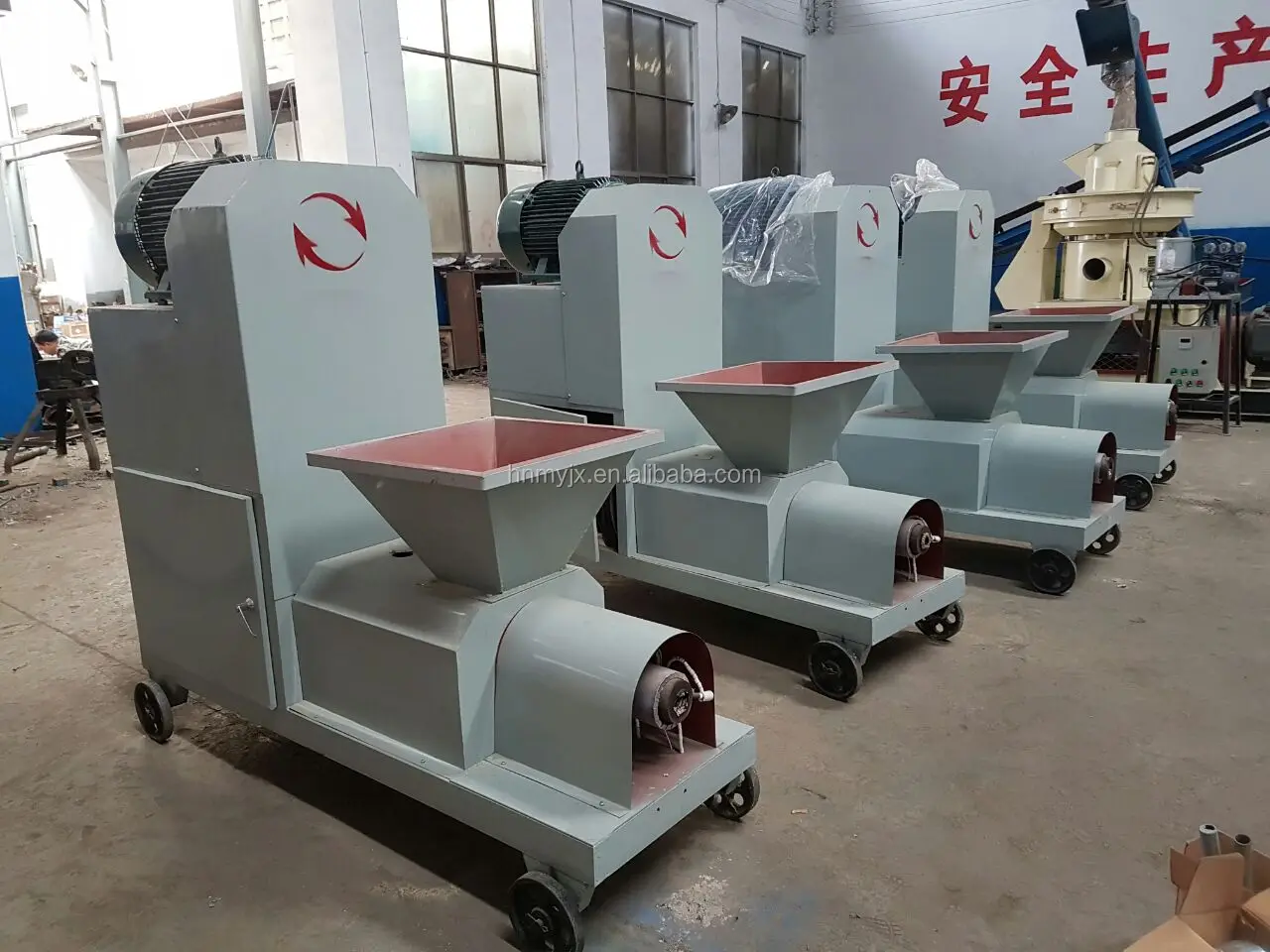

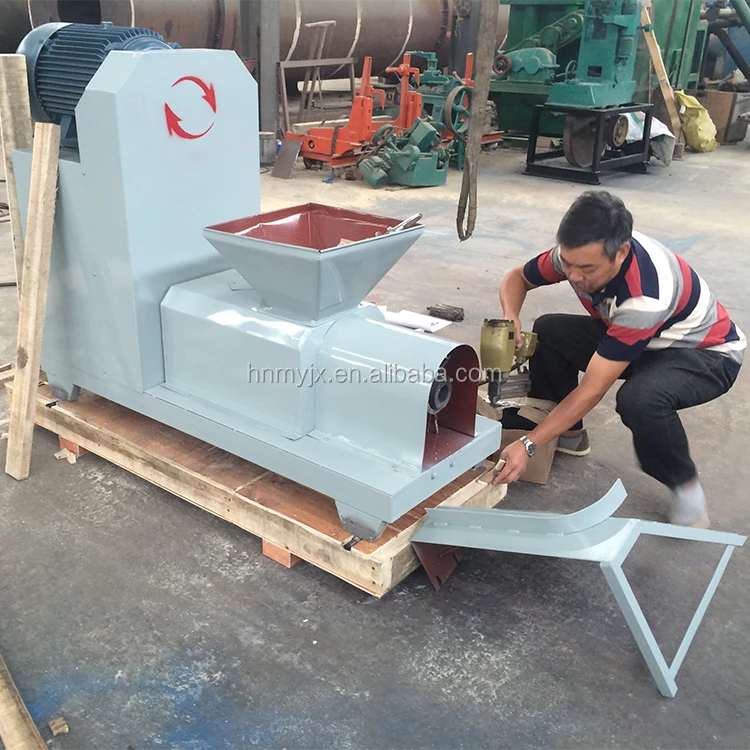

Cheap Price With Nice Quality Small Wood Chips Briquette Machine
US $786.00-$5986
2019, лидер продаж, машина для производства сельскохозяйственных отходов, деревообрабатывающая машина
- Category: Biomass Briquette Machines >>>
- Supplier: Gongyi Xiaoyi Mingyang Machinery Plant
Share on (62136027137):
Product Overview
Description
Product Description
The briquette packing machine is widely used for pressing briquettes with agricultural and industrial wastes, such as sawdust,rice husks, sugar cane trash, coffee husks, coir pith, sugarcane bagasse, jute sticks, silk cotton pods, groundnut shells, mustard stalks, cotton stalks and corn stalks etc. The charcoal briquettes are featured with long burning time, great firepower, smokeless and odorless, suitable for BBQ, family and industrial use.
Working principle
1. Wood briquette machine is used of sawdust, crop straw(corn stalks, large soybean straw, sorghum, cotton stalk, rape straw,peanut vine, sunflower stalk), rice husk, grass, shrubs, branches, wood cut-off head, material head, sugar cane slag
2. After crushed and heated in the propeller, under high pressure the raw material will processed into shape

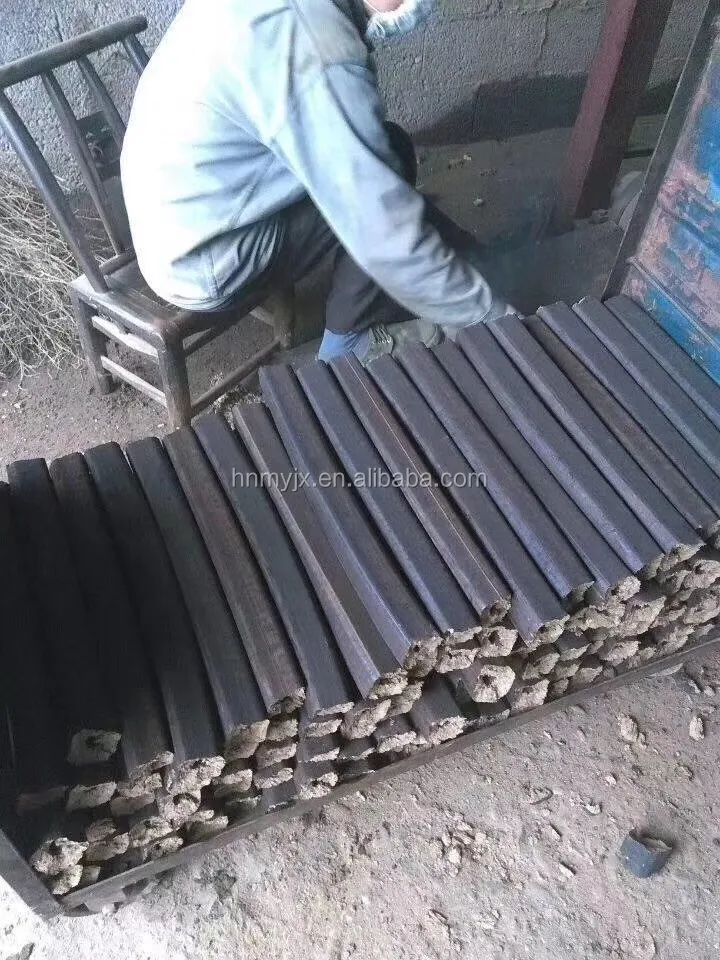

3. The product has a high density, small size, flammability, and can replace firewood and coal.
4. General product diameter 50-60mm
5. Also can make spherical, granular shape, honeycomb shape.
Model | Power | Capacity(h/t) | Weight(t) | Appearance size (mm) |
ZBJ50-9 | 11-15kw | 0.12-0.22t/h | 0.55t | 2200*600*1300 |
ZBJ50-C | 22kw | 0.35-0.42t/h | 0.75t | 2700*700*1550 |
ZBJ60-9 | 15-18.5kw | 0.22-0.25t/h | 0.65t | 2400*700*1350 |
ZBJ70-9 | 18.5-22kw | 0.28-0.34t/h | 0.78t | 2400*700*1400 |
ZBJ80-9 | 22kw | 0.32-0.36t/h | 0.85t | 2400*700*1400 |
ZBJ-90-9 | 30kw | 0.38-0.45t/h | 0.98t | 2600*800*1500 |
Detailed Images

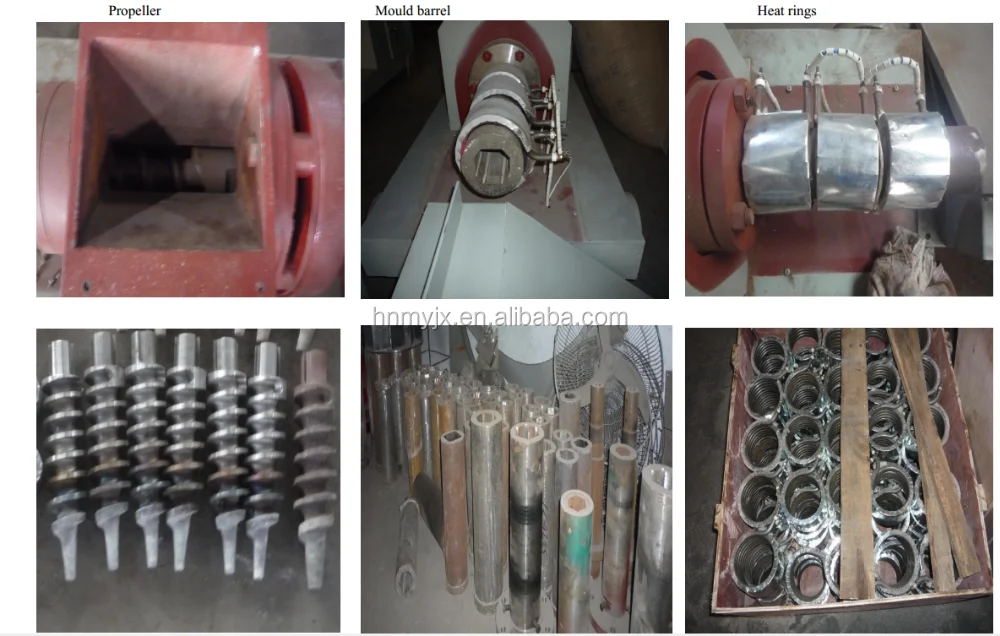

Machine Parts

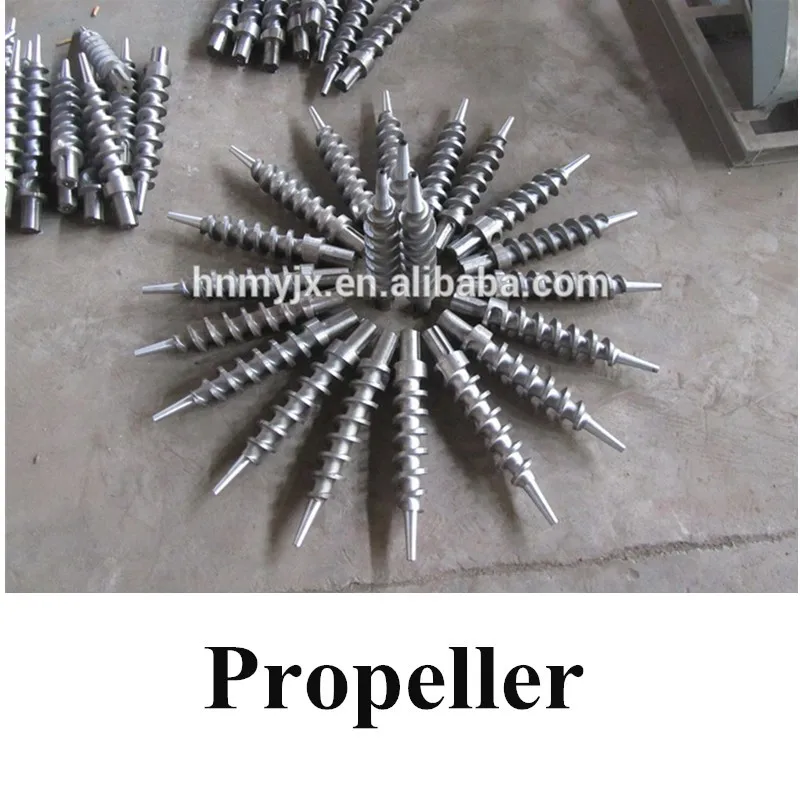

Name: Propeller
Brand:Mingyang Machinery Plant
Original: Henan, China
Propeller of coconut shell charcoal briquette machine
special chrome alloy 45# steel body, alloy powder coated
(1)most important parts , also call screw propel
(2)wear-resistant, high pressure resistance, high abrasion resistance.
(3)should be repair the angle after 12-15ton
(4)different raw material need different screw pitch
Main Features

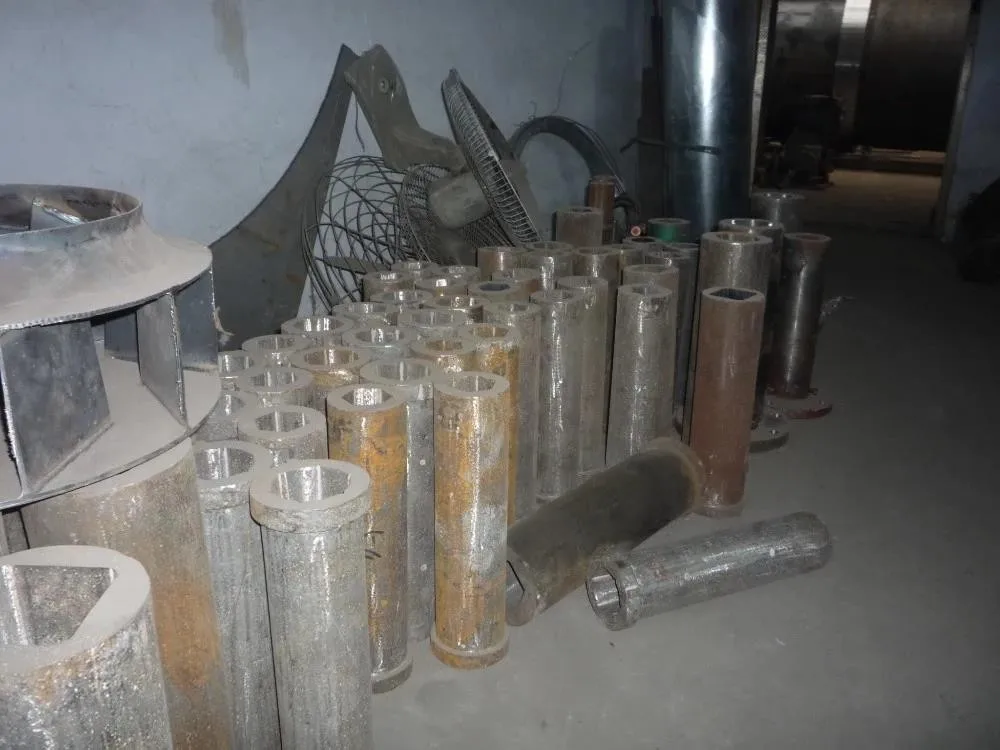

Name:Mould barrel
Brand:MING YANG
Original: Henan, China
Material: tungsten alloy
Functions:
(1)decide the shape, diameter of the final product (2)thickness:12mm,length:38-45cm,diameter 50-80mm
(3) 50-60mm suitale for making charcoal,70-80mm for making biomass fuel
(4) new type ,high-wear-resistant ,no need Scuff sleeve
Machine Parts

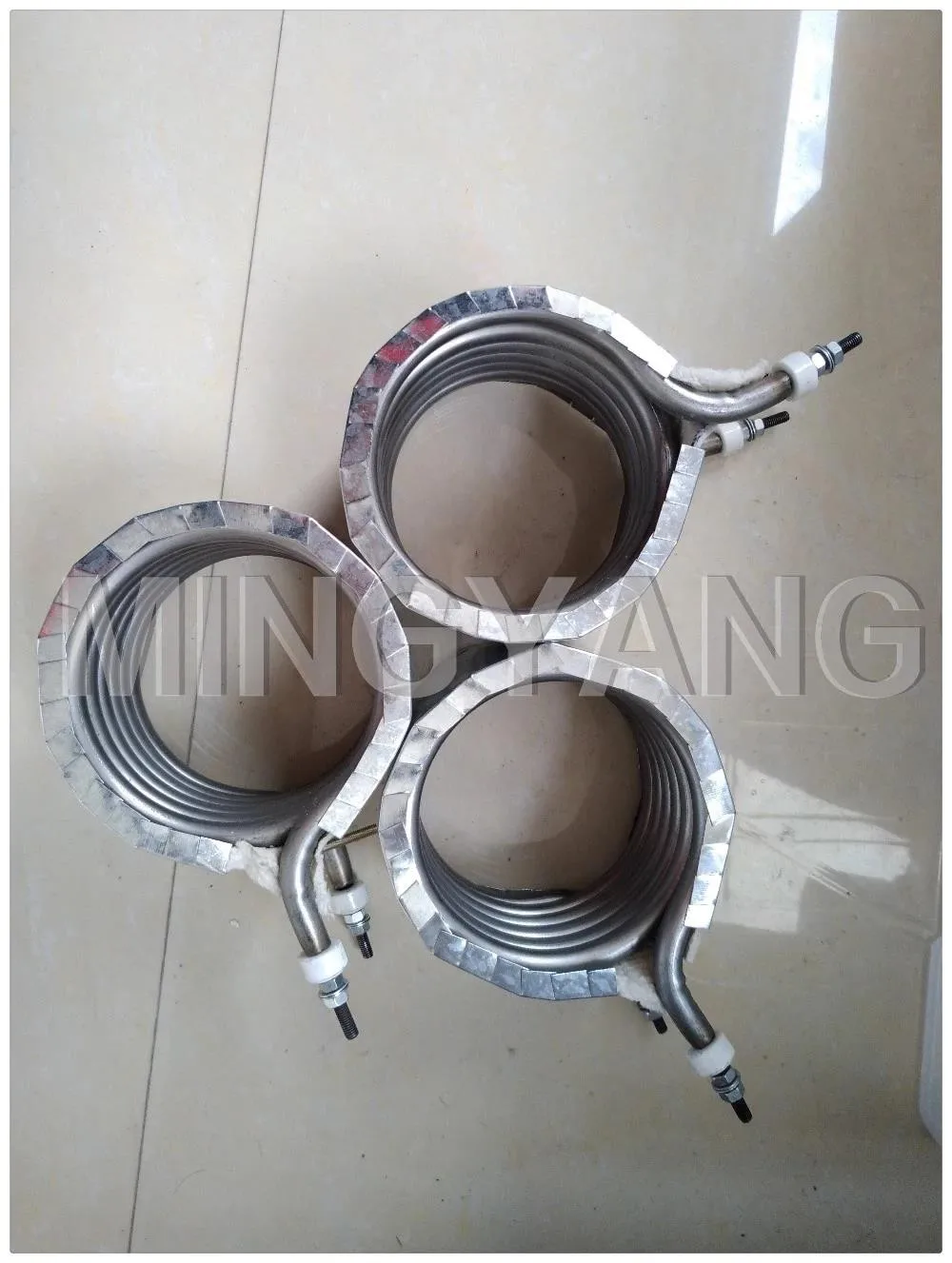

Name: Heating ring
Material:Chrome Nickel Steel
(1) 1 machine need 3 coil heater, diameter can be adjust (2)1ps coil heater will need one 1.5-3kw electrical motor
(3) basic construction consists of compacted MgO, high temperature resistance wire &Chrome Nickel Steel tube.
Main Features
Name: Motor and control of coconut shell charcoal briquette machine
Brand: MING YANG
Original: china
National standard also can change according to the clients special requirements.
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our Company
Gongyi Xiaoyi Mingyang Machinery Plant is one of the largest and earliest manufacturers of the biomass energy equipment (coconut shell charcoal briquette machine, biomass briquette machine line, charcoal making production line, wood pellet production line and the related machinery) for over 30 years. Now it has been an efficient group with more than 120 experienced workers. having a over 12000 square meter high level standard workshop with advanced producing equipment, Experienced technicians. We can produced 6 production line, more than 150 kinds of machines, awarded 10 patents in China.
