Product Overview
Description
CORRUGATED SHEET

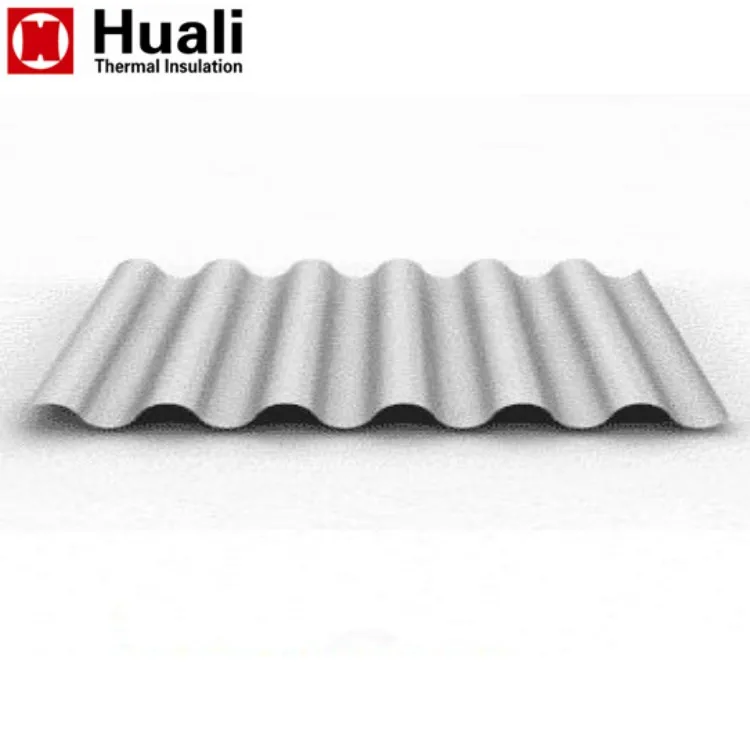

aluminium cladding corrugated thermal insulated aluminum sheet metal jacket for pipe insulation
Aluminum corrugated sheet is manufactured from aluminum alloy 1060 and 3003. Aluminum's resistance to atmospheric corrosion makes it the ideal metal jacketing in most marine, chemical and industrial environments. Excellent cost saving can be achieved through long service with little maintence.
Raw material : Aluminum sheet
Alloy: 1060 & 3003
Thickness: 0.4-1.0mm
Width: 1000mm
Length: 20-30m/roll, or by coil
Surface finish: smooth/bare/plain/mirror
Advantage: shed rain water the best
Disadvantage: highly reflective of sunlight
More: click the picture left for more
Specification
Product Name | Thickness mm | Length m | Width mm | Surface | Alloy No. | Laminated barrier |
Type V4.8 corrugated roll | 0.4-1.0 | 2-30 | 1000 | Smooth/embossed | 1060/3003 | Kraftpaper/ polysurlyn |
Type V32 deep corrugated sheet | 0.4-1.0 | 2-4 | 940 | Smooth/embossed | 1060/3003 | Kraftpaper/ polysurlyn |
Type V65 deep corrugated sheet | 0.4-1.0 | 2-4 | 900 | Smooth/embossed | 1060/3003 | Kraftpaper/ polysurlyn |

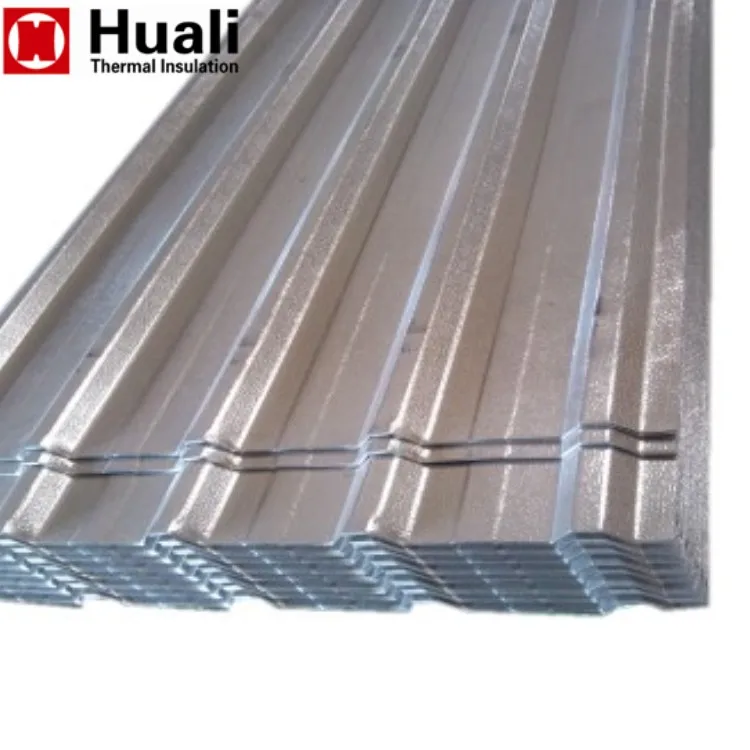

Type V820 box ribbed corrugated | 0.4-1.0 | 2-4 | 820 | Smooth/embossed | 1060/3003 | Kraftpaper/ polysurlyn |
Product Display
aluminium cladding corrugated thermal insulated aluminum sheet metal jacket for pipe insulation
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
Corrugated sheet can be laminated with moisture barrier to protect the inside insualtion material and prvent corrosion under insulation, thus protect the stainless steel tank or pipe
More: polysurlyn moisture barrier is also available, detailed information please contact us.

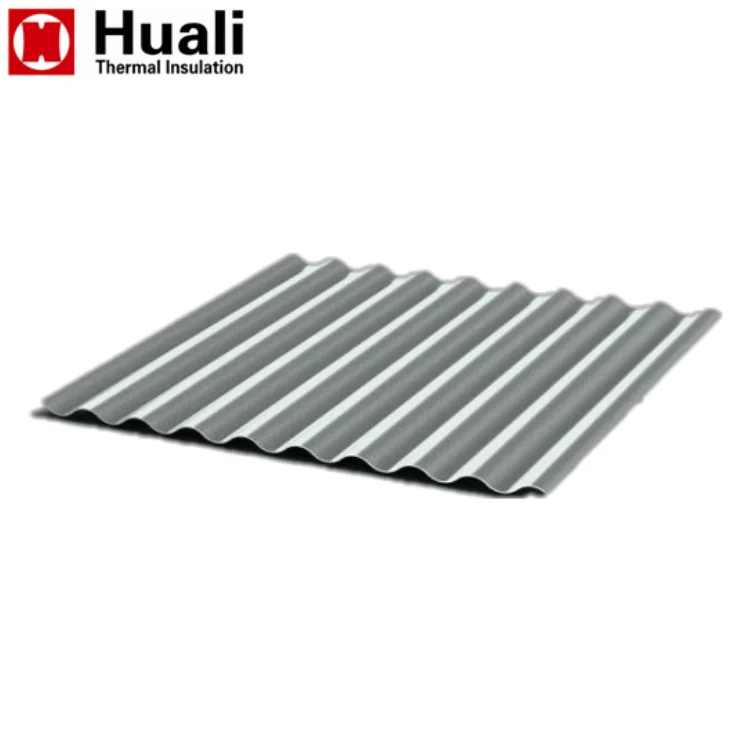

V4.8 smooth surface
V4.8 smooth with kraftpaper
V4.8 smooth with polysurlyn

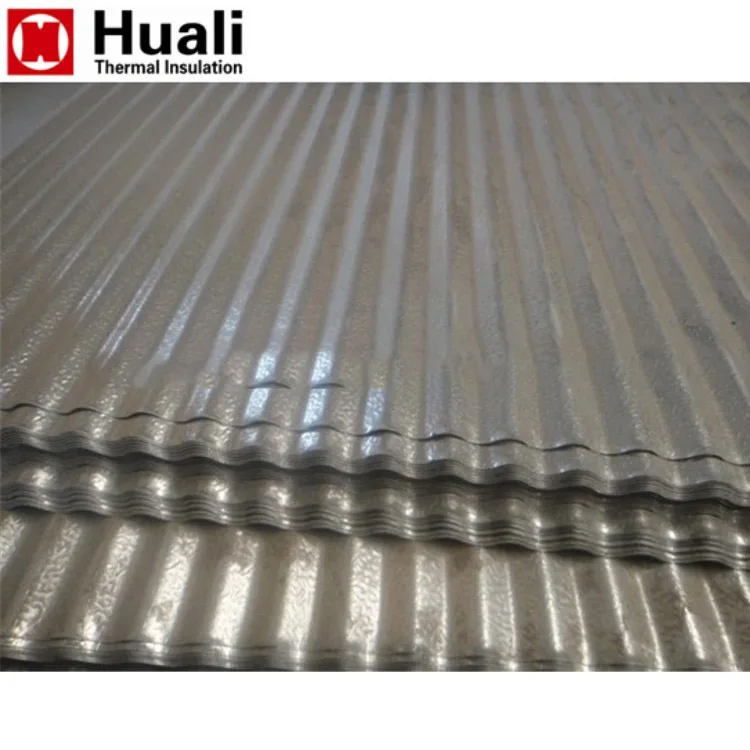

V32 embossed surface
V32 embossed surface with kraftpaper
V65 embossed surface
V65 embossed surface with kraftpaper
V820 smotth surface
V820 embossed surface
.
Application
aluminium cladding corrugated thermal insulated aluminum sheet metal jacket for pipe insulation
Aluminum corrugated sheet is widely used for tank, building, roof, wall etc.
Company Profile
aluminium cladding corrugated thermal insulated aluminum sheet metal jacket for pipe insulation

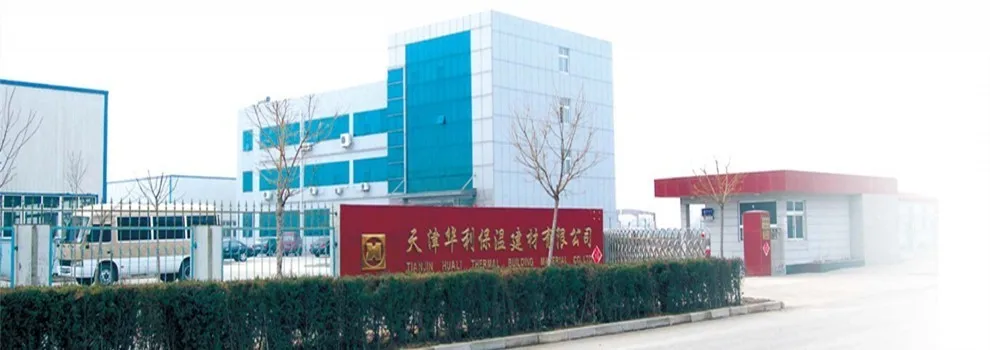

Located in Tianjin, China, Huali Insulation was established in 1995. Currently, the company owns asset of CNY 200 million and a total crew of more than 300 employees, including more than 80 management staff, a professional insulation construction team and another 40 technicians.
Huali has successfully been promoted to "the first tier" of Cryogenic Insulation engineering company in China with the performance in Ichthys project, Wheastone Project, Nyhamna project and also Yamal project.
FAQ
Q: Are you a manufacturer or a trading company ?
A: We are a manufacturer founded in 1995, located in Tianjin China.
Q: Can you accept neutral packing & OEM ?
A: Normally, our packing is carton with Huali logo , but we can accept the neutral packing andn OEM. However, custom should pay the packing charge.
Q: Can you provide the sample for free ?
A: We provide some samples for client, but the express charge should be bore by customer.
