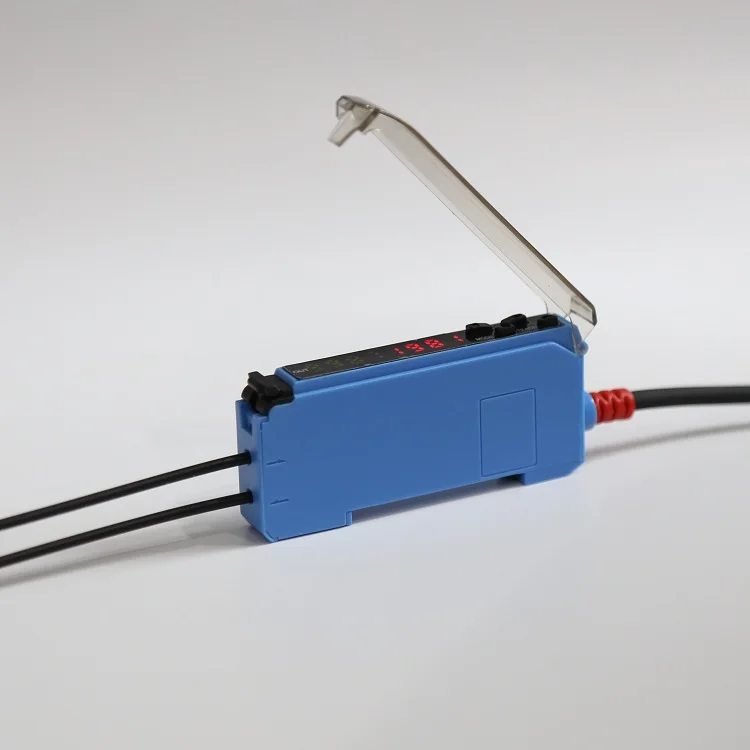

FF 403P Dual Display Optical Fiber Sensor Amplifier control Diffuse, through beam fibre cable
- Category: >>>
- Supplier: F&C Sensing Technology(Hunan) Co. Ltd.
Share on (62136244810):
Product Overview
Description

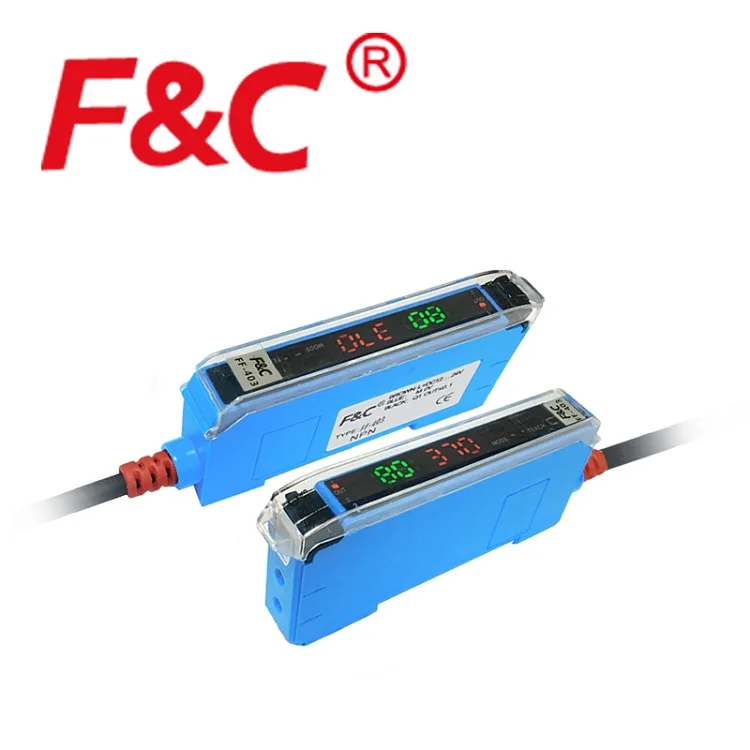

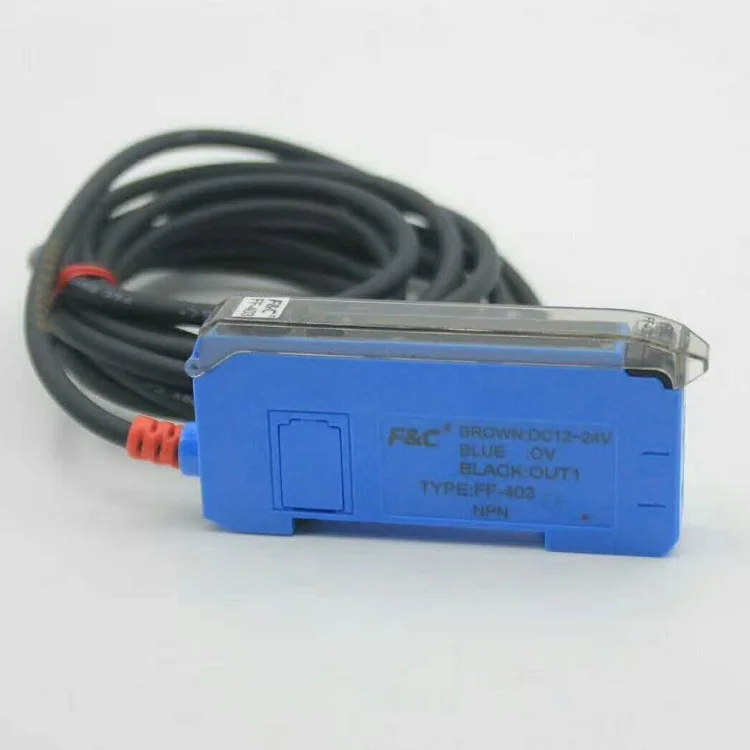

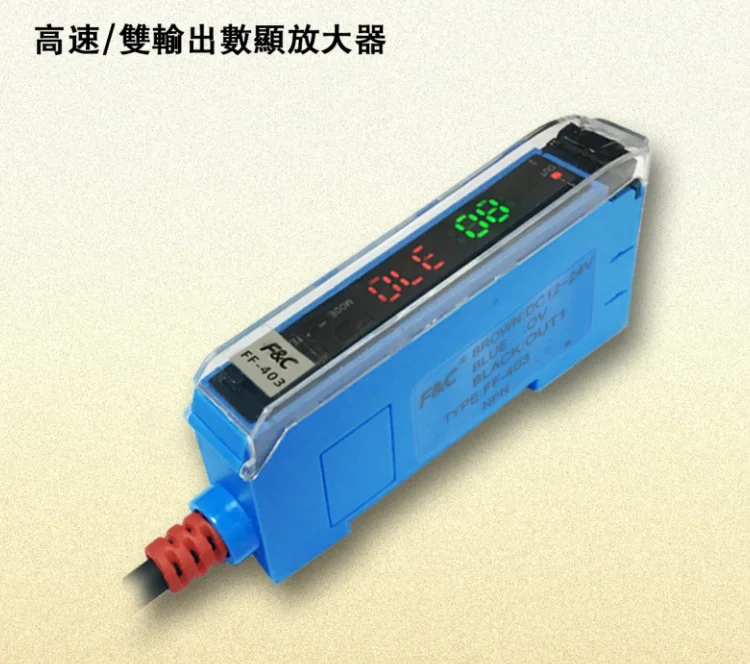

FF-403P Dual Display Optical Fiber Sensor Amplifier control Diffuse, through beam fibre cable
Product Description
Features:

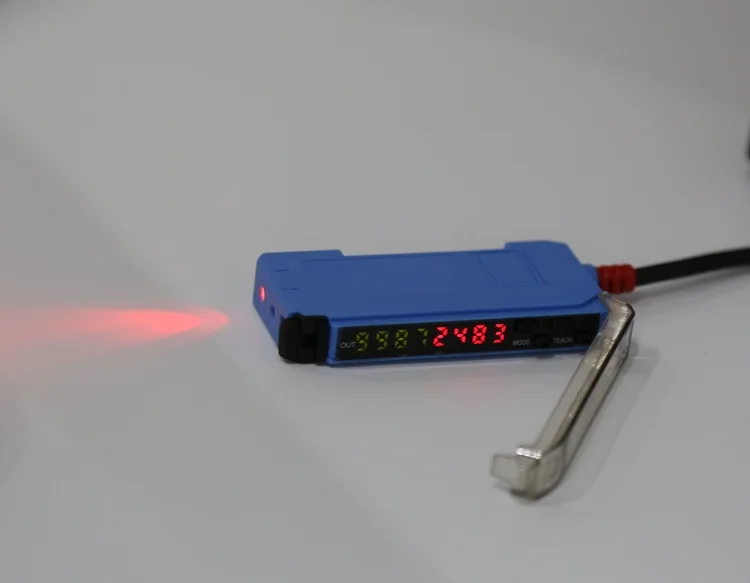

- Dual digital display for timely sensing value (Red) and set value (Green)
- 4 response speeds - Ultra-fast mode (100us), fast mode (300us), standard mode (1ms), long-distance mode (2ms)
- Display range : 0-9999
- Simple sensitivity adjustment settings
- Mutual interference prevention allows adjacent installation
- One key smart teach setting.
- Various LED light sources (red, green, blue) available for diverse applications
| New designed Blue 12V standard fiber signal amplifier | |
| Model | FF-403 |
| Output Mode | NPN/PNP |
| Operating Voltage | 12~24V DC |
| Reaction Time | 100us highest |
| Timer Function | adjustable |
| Current Consumption | 100mA Max |
| Load Current | 10mA Max @24V DC |
| Short-circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Output Indicator | Red LED |
| Power Indicator | Green LED |
| Isolation Resistance | 20M Ω @500V DC |
| Insulation Strength | 60 seconds @500V AC 60HZ |
| Operating Temperature | -10~50℃ |
| Operating Humidity | 35~85%RH |
| Waterproof Grade | IP64 |
| Power consumption | <40mA/24V |
| Weight | 65g |
| Detecting distance | 200mm for diffuse; 1200mm for Through-beam |
| Material | ABS/PC |

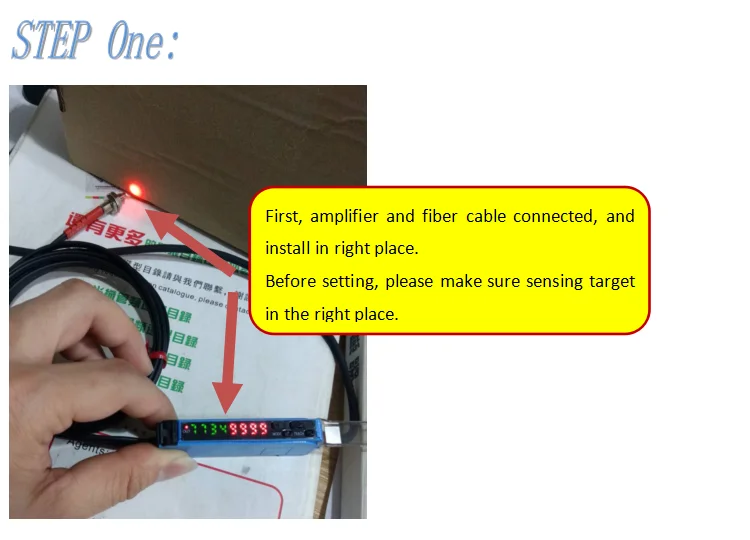

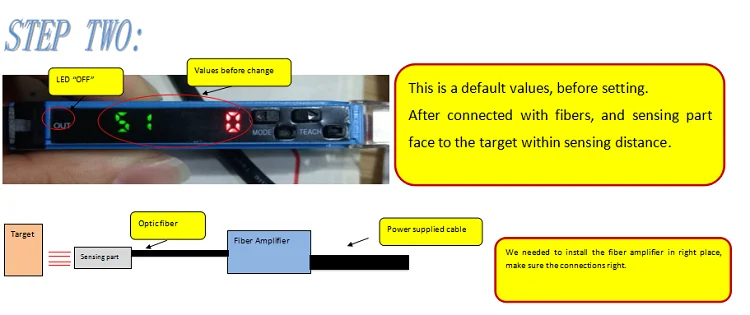

One Key Teach setting function fiber optic sensors

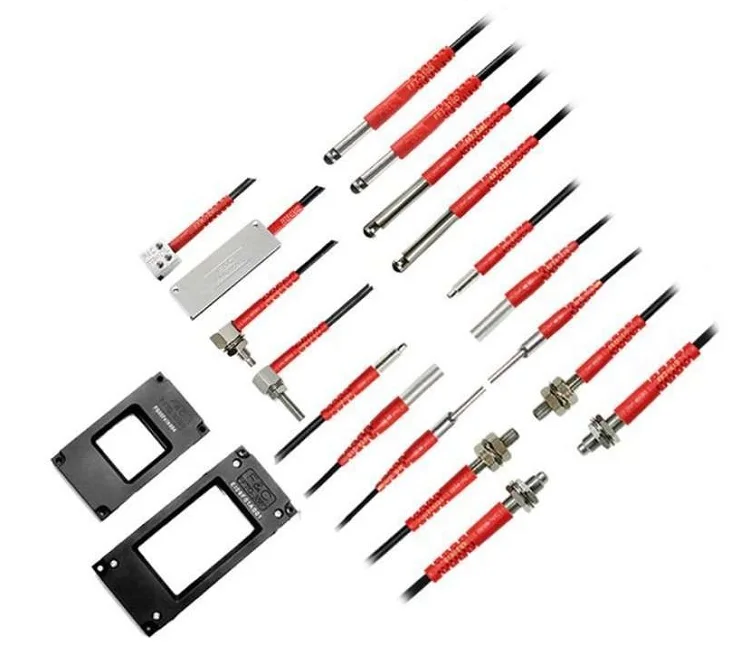

Fiber Optic sensor for all kinds of Optical fiber usage
Digital Fibre Optic sensor control amplifier:
| Model | light Source | output control | Power supply | Sensing Range |
| FF-403 | red light | NPN NO NC | 12-24VDC | 1000mm (through beam) ; 200mm(Diffuse) |
| FF-403P | red light | PNP NO NC | 12-24VDC | 1000mm (through beam) ; 200mm(Diffuse) |
| FF-403V | red light | 0-5V analog | 12-24VDC | 1000mm (through beam) ; 200mm(Diffuse) |
| FF-402 | red light | dual output NPN NO NC or PNP NO NC | 12-24VDC | 1000mm (through beam) ; 200mm(Diffuse) |
| FF-403G | Green light | NPN NO NC or PNP NO NC | 12-24VDC | 600mm (through beam) ; 100mm(Diffuse) |
