YG15 tungsten carbide wire drawing die pellet molds for stainless steel welding wire drawing machine
- Category: >>>
- Supplier: Zhuzhou Uko Cemented Carbide Co. Ltd.
Share on (62136244837):
Product Overview
Description

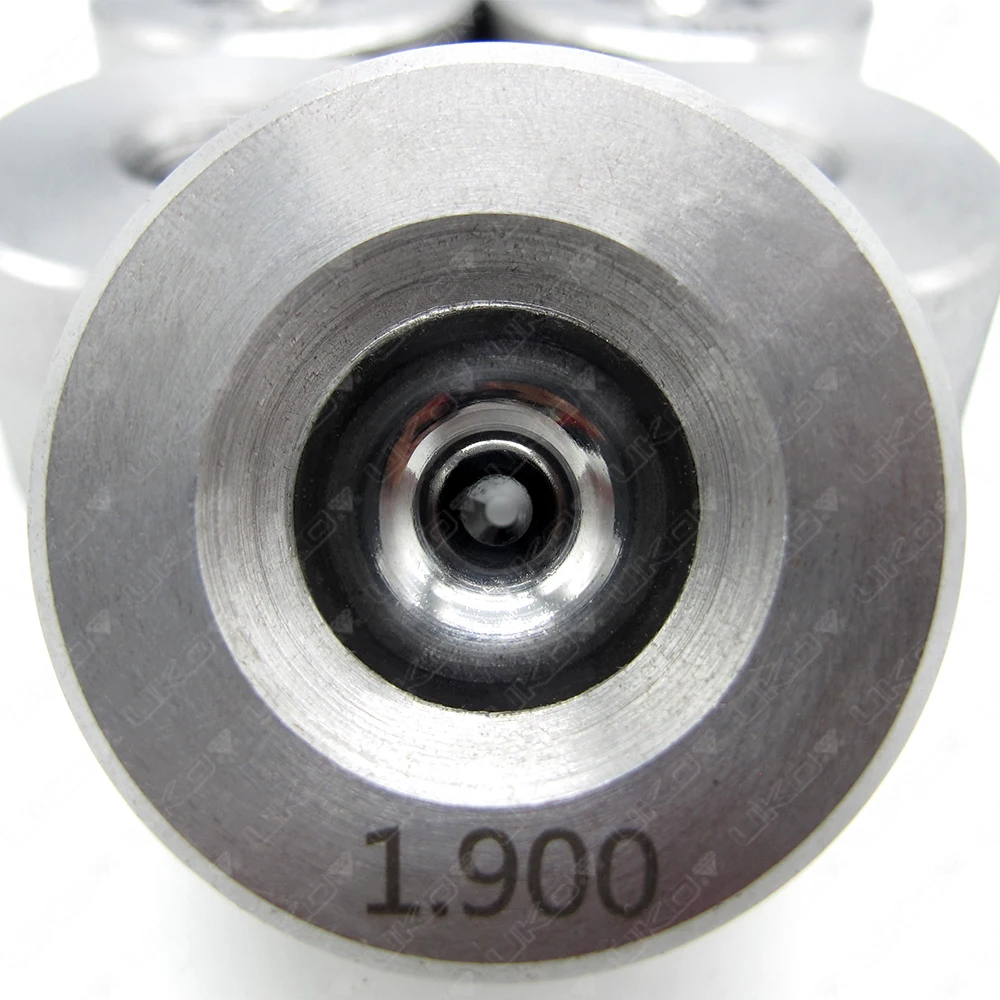

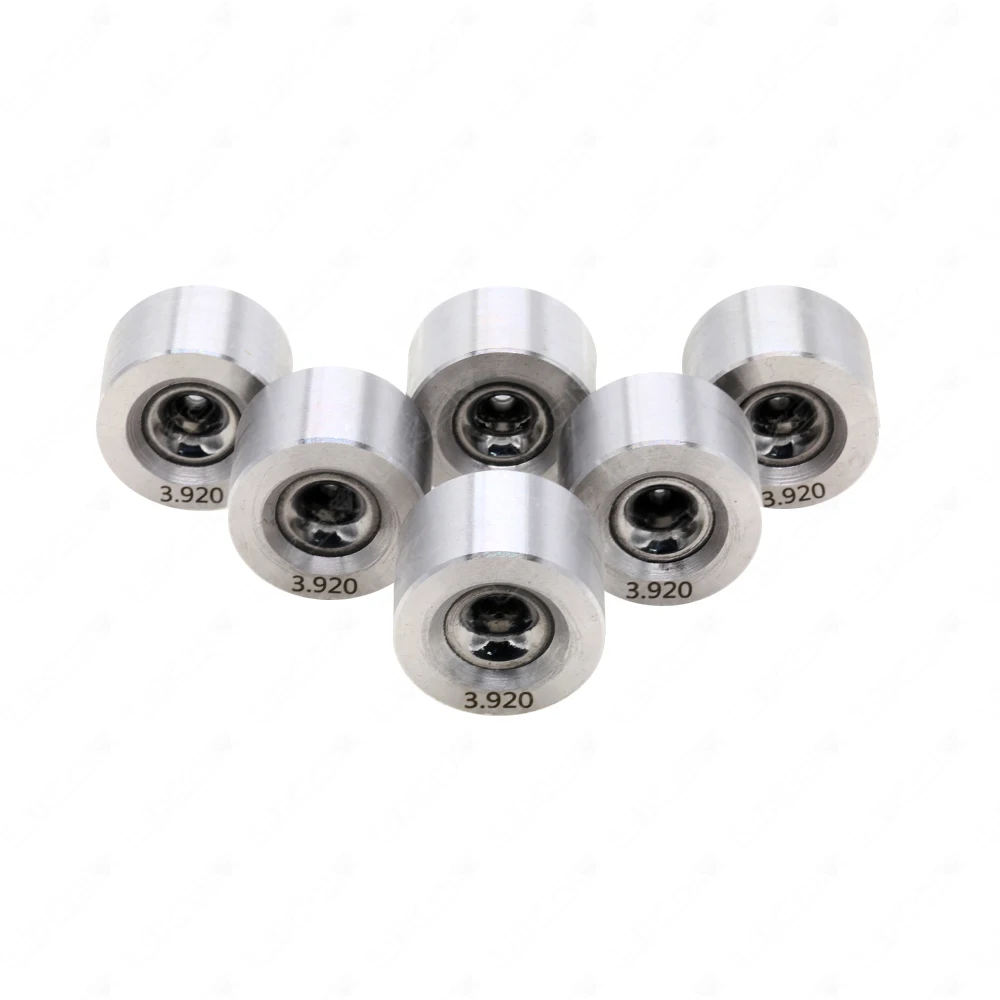

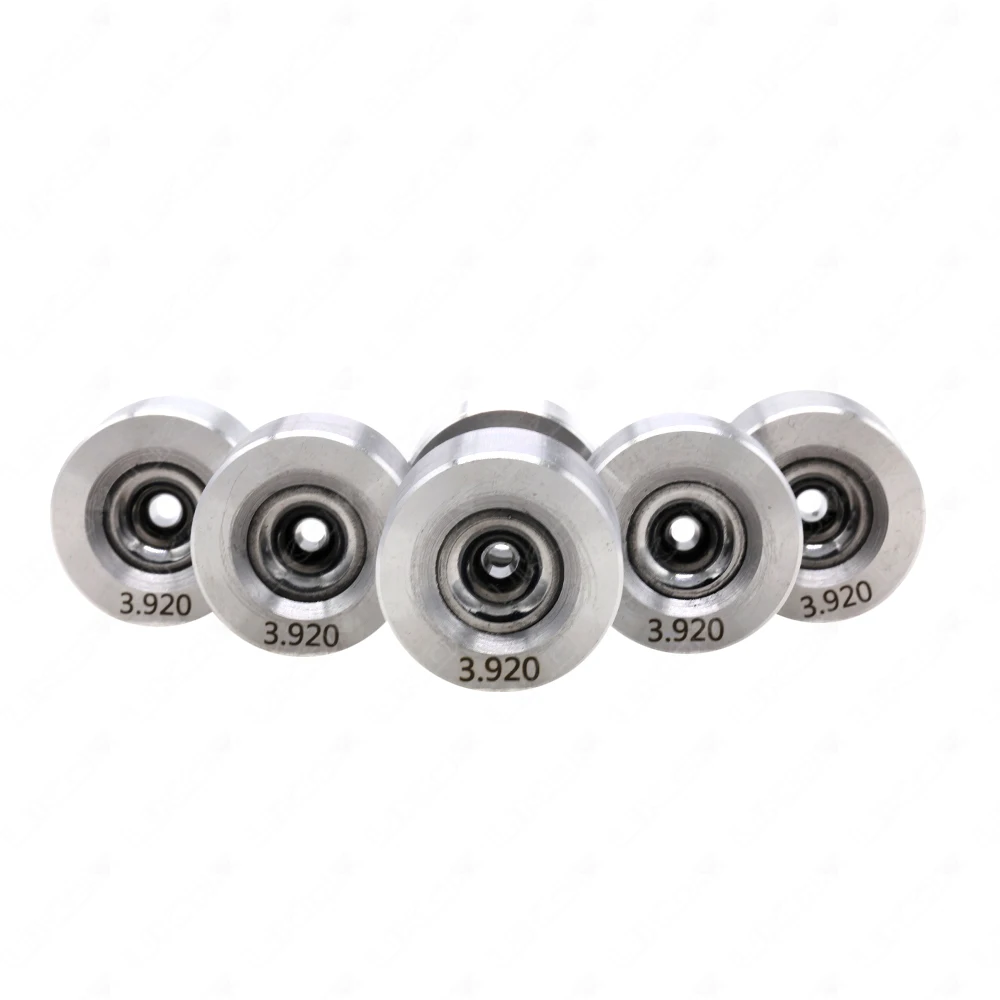

YG15 tungsten carbide wire drawing die pellet molds for stainless steel welding wire drawing machine
wire drawing dies
UKO supply various of tungsten carbide dies as a cost effective solution for wire drawing solution.
Regular Carbide nibs
Micro-bore Carbide nibs
Can be supplied in both sintered blanks or inner polish wire drawing dies
Or finished tungsten carbide wire drawing dies with steel case. |

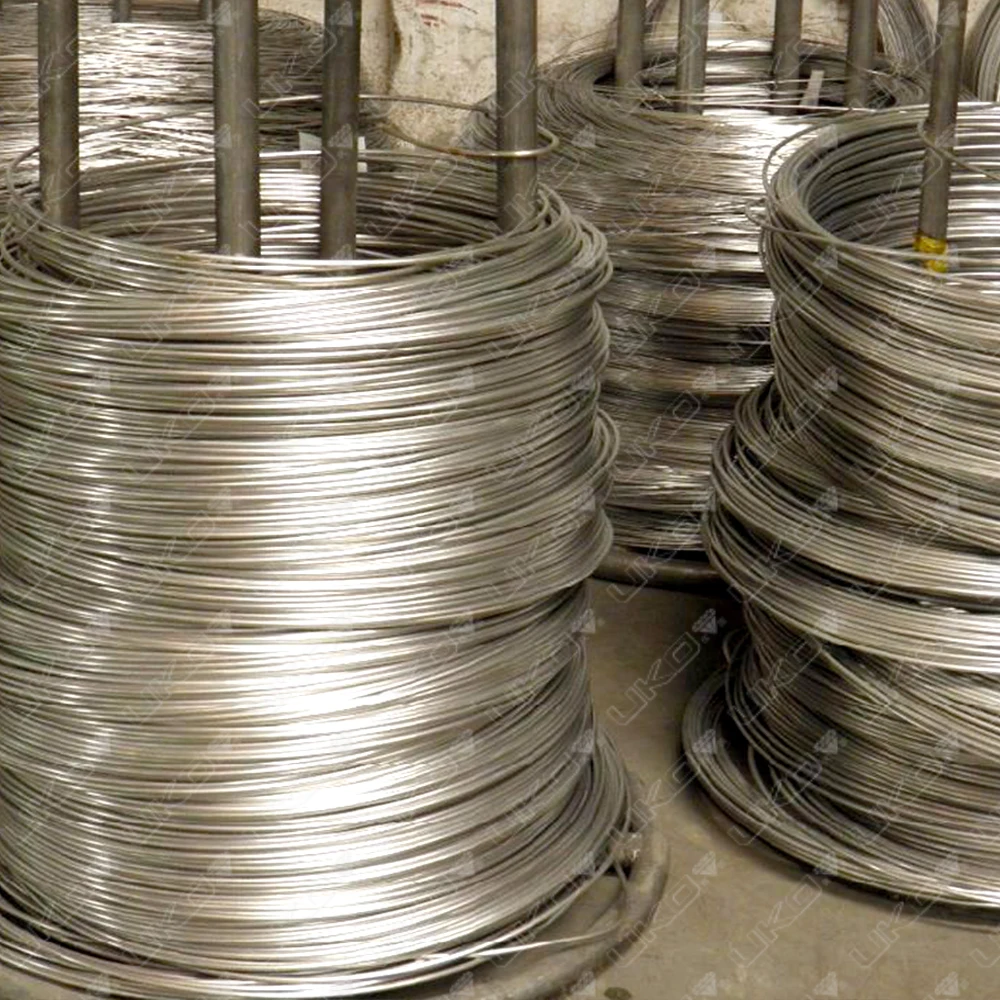

low carbon steel wire
middle carbon steel wire
high carbide steel wire
stainless steel wire
|
| Grade | Co Content(Co%) | Density | Hardness | TRS |
| (%) | g/cm2 | HRA | N/mm2 | |
| YG6X | 6 | 14.95 | 91.5 | 1800 |
| YG6 | 6 | 14.95 | 90.5 | 1900 |
| YG8 | 8 | 14.8 | 89.5 | 2200 |
| YG11 | 11 | 14.4 | 87.5 | 2400 |
| YG15 | 15 | 14 | 87 | 2800 |
| Case Size(mm) | Nib Size(mm) | Hole Size | Tolerance | ||
| OD | H | od | h | mm | mm |
| 25x12 | 9x6 | 0.15~0.5 | 0~-0.02 | ||
| 30x16 | 13x10 | 0.5~2.6 | 0~-0.02 | ||
| 32x23 | 16x13 | 0.8~3.5 | 0~-0.02 | ||
| 32x23 | 16x14 | 1.0~3.5 | 0~-0.02 | ||
| 40x25 | 20x17 | 1.5~6.5 | 0~-0.02 | ||
| 40x26 | 22x18 | 1.8~6.5 | 0~-0.02 | ||
| 50x28 | 25x20 | 3.0~9.5 | 0~-0.02 | ||
| 70x35 | 30x22 | 5.5~12.5 | 0~-0.02 | ||
| 75x35 | 35x25 | 8.5~16.5 | 0~-0.02 | ||
| 80x35 | 40x25 | 16.5~21.5 | 0~-0.02 | ||
| 110x45 | 50x28 | 21.5~24.5 | 0~-0.02 | ||
| 120x50 | 60x35 | 24.5~34.5 | 0~-0.02 | ||
| 130x60 | 70x35 | 34.5~43.5 | 0~-0.02 | ||
| 140x60 | 80x35 | 34.5~45.5 | 0~-0.02 | ||
| 150x60 | 90x35 | 45.5~51 | 0~-0.02 | ||
| 160x75 | 100x40 | 51~56 | 0~-0.02 | ||
| 170x75 | 110x40 | 57~65 | 0~-0.02 | ||
| 180x80 | 120x45 | 66~69 | 0~-0.02 | ||
| 190x85 | 130x50 | 70~76 | 0~-0.02 | ||
FAQ
Q1 : Are you manufacturer or trading company ?

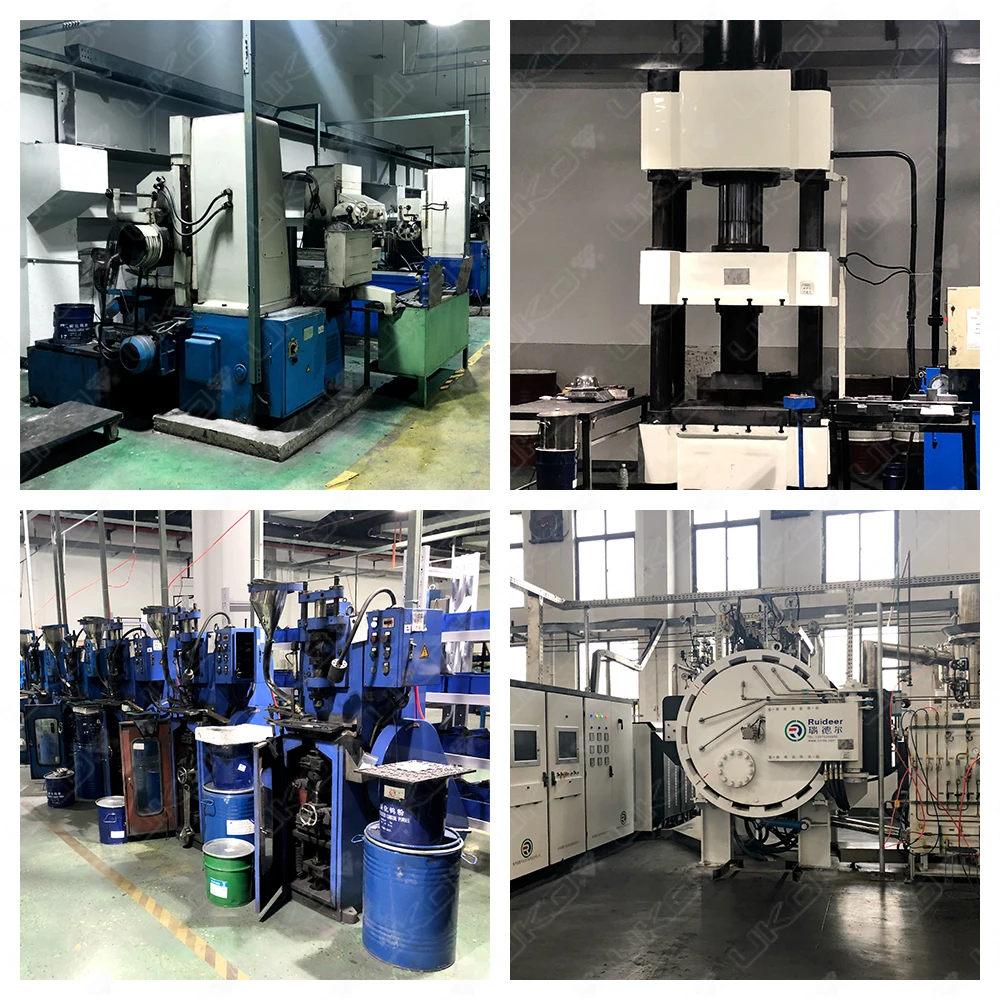

We are manufacturer of tungsten carbide products.
Q2: Where is your factory located ?
We are located in Zhuzhou city, Hunan province where is 2 hours-driving from Changsha airport
Q3: Is the price Competitive?
UKO offer reliable products with good price.
Q4: Are the products High Quality?
Yes. Raw material will be tested before bulk production, and we will check the phys-ical properties, shape and tolerance for ensuring qualified products before shipping.
Q5: How to place an order of tungsten carbide products?
1. Fill your Order List in our online Inquiry System.
(Also you can directly contact our salesperson by E-mail / Skype / Whats App)
2. within 24-hours feedback when receiving your message.
Q6: How we can trust your company ?
We support Alibaba trade insurance , 100% products quality protection, 100% on-
time shipment protection, 100% payment protection for your covered amount.
Q7: What’s your delivery time ?
For the normal type which we have mold it takes two weeks after receiving the
advance payment.
For the non standard which we do not have mold it takes 4 to 6 weeks when receiving
the advance payment.
