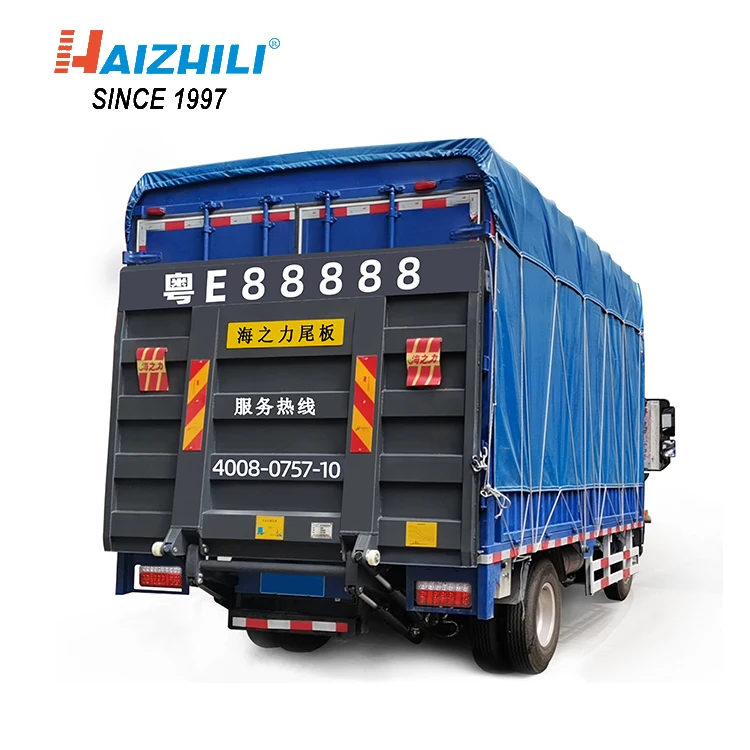

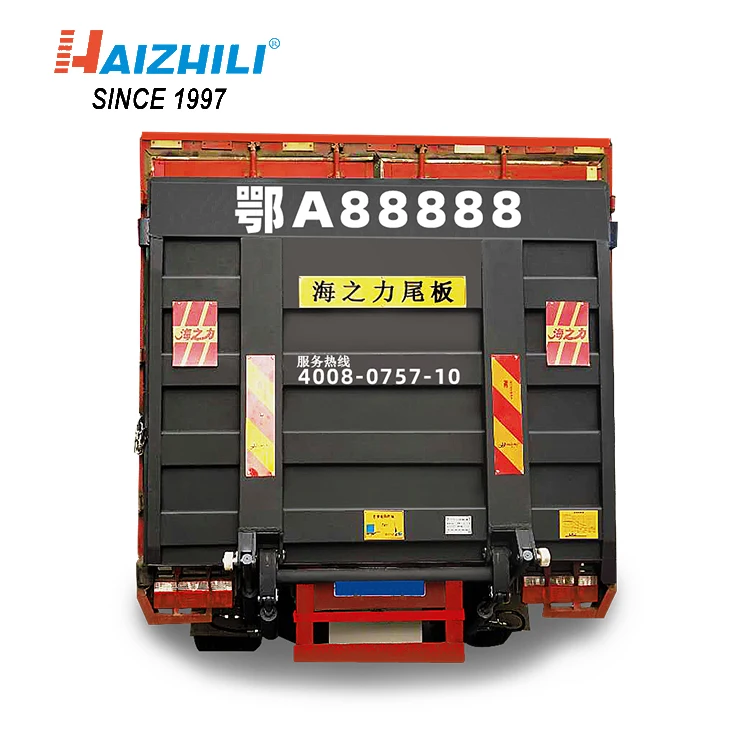

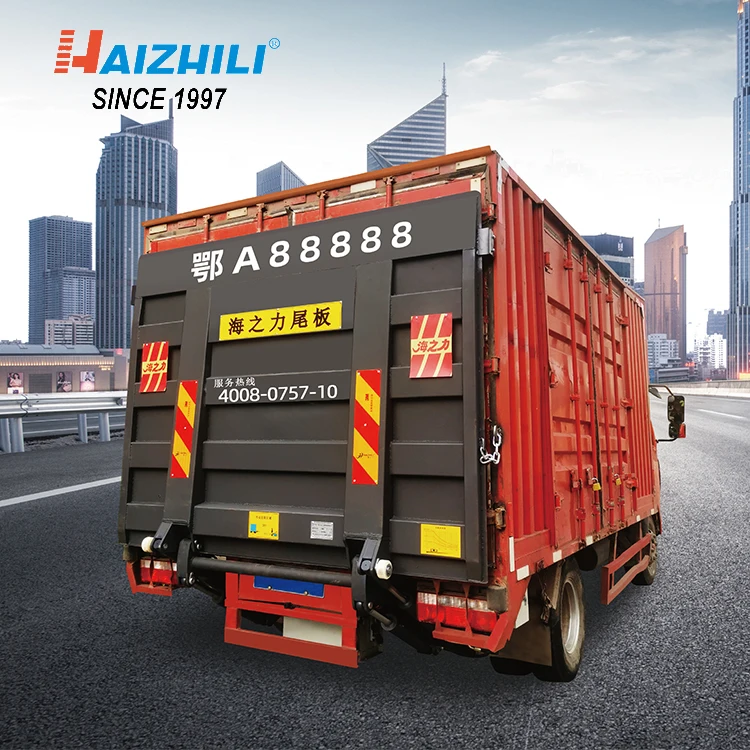

2000kg heavy duty truck trailer side board tail gate lifter
- Category: >>>
- Supplier: Haizhili (Jingshan) Machine Technology Co. Ltd.
Share on (62136278405):
Product Overview
Description
Product catalog
Details Images
CUSTOMIZED AVAILABLE | ||||||
Description /Model | 1T/1.5T | 1.5T | 2T | |||
Panel Size（Mm) | 1700*1600 | 1800*1600 | 2000*1800 | |||
1800*1600 | 1800*1700 | 2100*1800 | ||||
1800*1700 | 1900*1700 | 2200*1800 | ||||
1900*1700 | It can be made according to the width of the carriage | |||||
Rated Capacity(Kg) | 1000 | 1500 | 2000 | |||
Average Lifting Speed(Mm/S) | 60-80 Speed is adjustable | |||||
Net Weight(Kg) | 330 | 380 | 450 | |||
Motor Power(Kw) | 2 | 2.0/2.2/2.5 | 2.0/2.2/2.5 | |||
Motor | DC12V-24V/100AH-160AH | |||||
Bracket Arm Length(Mm) | 600/750/800 | 600/750/800 | 600/750/800 | |||
Bracket Inner Width(Mm) | 900/1020 | 900/1020 | 900/1020 | |||
Applicable Carriage Ground Height(Mm) | 700-1550 | 700-1550 | 700-1550 | |||
Open And Close Speed(Mm/Sec) | 10 | 10 | 10 | |||
Hydraulic Oil | 32#/46# Antiwear hydraulic oil | |||||
Working Inclination | 5°-9° | |||||
Recommend Products
Why Choose Us
Founded in 1997, Haizhili Machinery is a professional manufacturer of quality Material Handling Equipment.
We know exactly what you want. That’s why we only use the highest quality materials, and why we run our products through extensive tests before we add them to the Haizhili family.
Manufacturing Technique
1. Raw Material
2.Cutting Material
3.Stamping
4.Machining
5.Automatic Welding
6.Power Coatng
7.Assemble
8.Test
9.Packing
