Product Overview

Description

Product Description

Product introduction

QX series ultrasonic washer is essential washing machine in CSSD, operating room and laboratory.

SHINVA provides integrated ultrasonic washer solutions, including preliminary washing, secondary washing and deep washing with different frequency. Users can also choose the ultrasonic washing auxiliary machine for flushing and drying. The machine consists of washing tank, ultrasonic generator, ultrasonic transducer, heating tube, temperature transmitter, and water level transmitter , draining pump, basket and pipeline. It uses high frequency oscillation signal, which sent out by ultrasonic generator, and converts to high frequency mechanical oscillation signal and diffuses into the cleaning solution. The ultrasonic spreads forward in the cleaning solution to generate millions of tiny bubbles. During the process called " Cavitation" the bubbles implode immediately to generate high pressure and impacts the articles to spall the fouling adhered on the surface and gap of the articles to achieve cleaning purpose.

QX2000-A ultrasonic washer equipped with lift system that can lift the top lid and baskets automatic ally after washing which becreases the labor intensity.

Detailed Images

Product features

1. Excellent washing effect and high washing accuracy that could clean those instruments with uneven surface or tiny gap.

2. High washing speed improves working efficiency. It protects the instrument from contamination caused by hand contact.

3. The tank and outer cover adopt high quality stainless steel which is durable and easy to clean.

4.All tanks are auto water-injects water to certain water level.

5. All tanks are equipped with reliable LCD monitor that could be controlled independently.

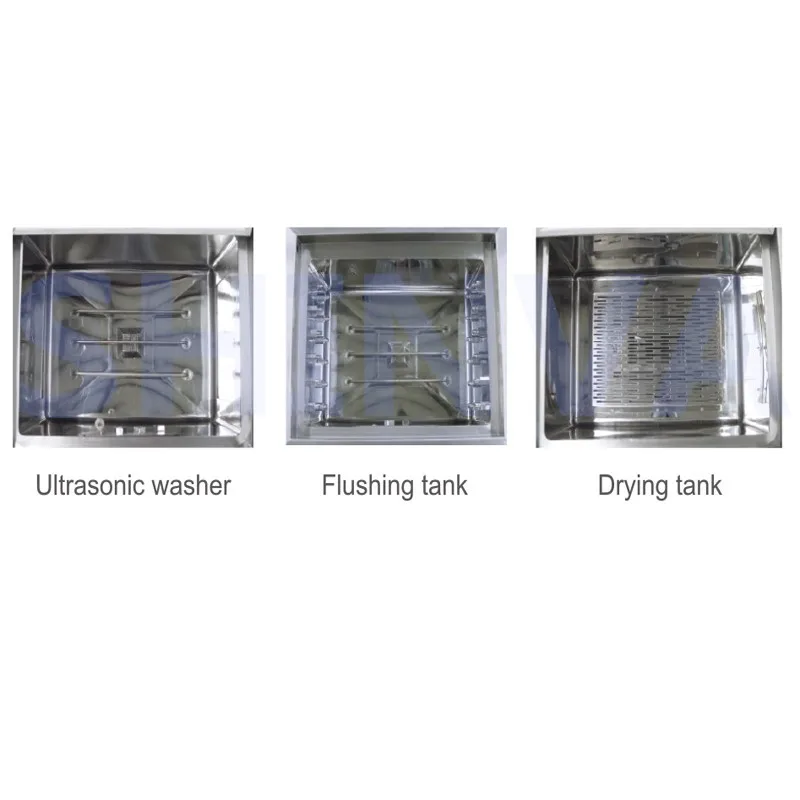

6. It can be equiped with extended-function tank; flushing tank, drying tank.

Flushing tank

High pressure water flushing after ultrasonic washing. It is equipped powerful circulating pump and specialize nozzle to flush, rinse, disinfect and lubricating on instrument.
Drying tank

Used to dry the instrument after washing; the high quality heater and efficient fan ensures the thoroughly dry.

Technical parameters

Model	QX2000
Order code	QX2000	QX2000-C	QX2000-G	QX2000-D	QX2000-S
Chamber dimension (LxWxH) mm	600x420x330 / 80L
Overall dimension (LxWxH)mm	800x640x830
Water consumption (L)	65	20x3			65	65
Max. Input power (kVA)	11.5	11.5	3	11.5	11.5
Ultrasonic power (kVA)	2			2	2
Function	Ultrasonic washing	Flush washing /lubricating /disinfection	Drying	Ultrasonic washing	Ultrasonic washing
Frequency(kHz)	40			40/100	40/80/100
Remark	Single frequency			Double frequency	Triple frequency

Model	QX1500
Order Code	QX1500	QX1500-D	QX1500-S
Chamber dimension (LxWxH) mm	700300310/60L
Overall dimension (LxWxH)mm	900x520x830
Water consumption (L)	65
Max. Input power(kVA)	11.5
Ultrasonic power(kVA)	1.5
Function	Ultrasonic washing
Frequency(kHz)	40	40/100	40/80/100
Remark	Single frequency	Double frequency	Triple frequency

Model	QX2000
Order code	QX2000-A	QX2000-DA	QX2000-SA
Chamber dimension (LxWxH) mm	600x420x330
Overall dimension (LxWxH)mm	800x694x830
Water consumption (L)	65
Max. Input power(kVA)	11.5
Ultrasonic power(kVA)	1.5
Function	Ultrasonic washing
Frequency(kHz)	40	40/100	40/80/100
Remark	Single frequency	Double frequency	Triple frequency

Packing & Delivery

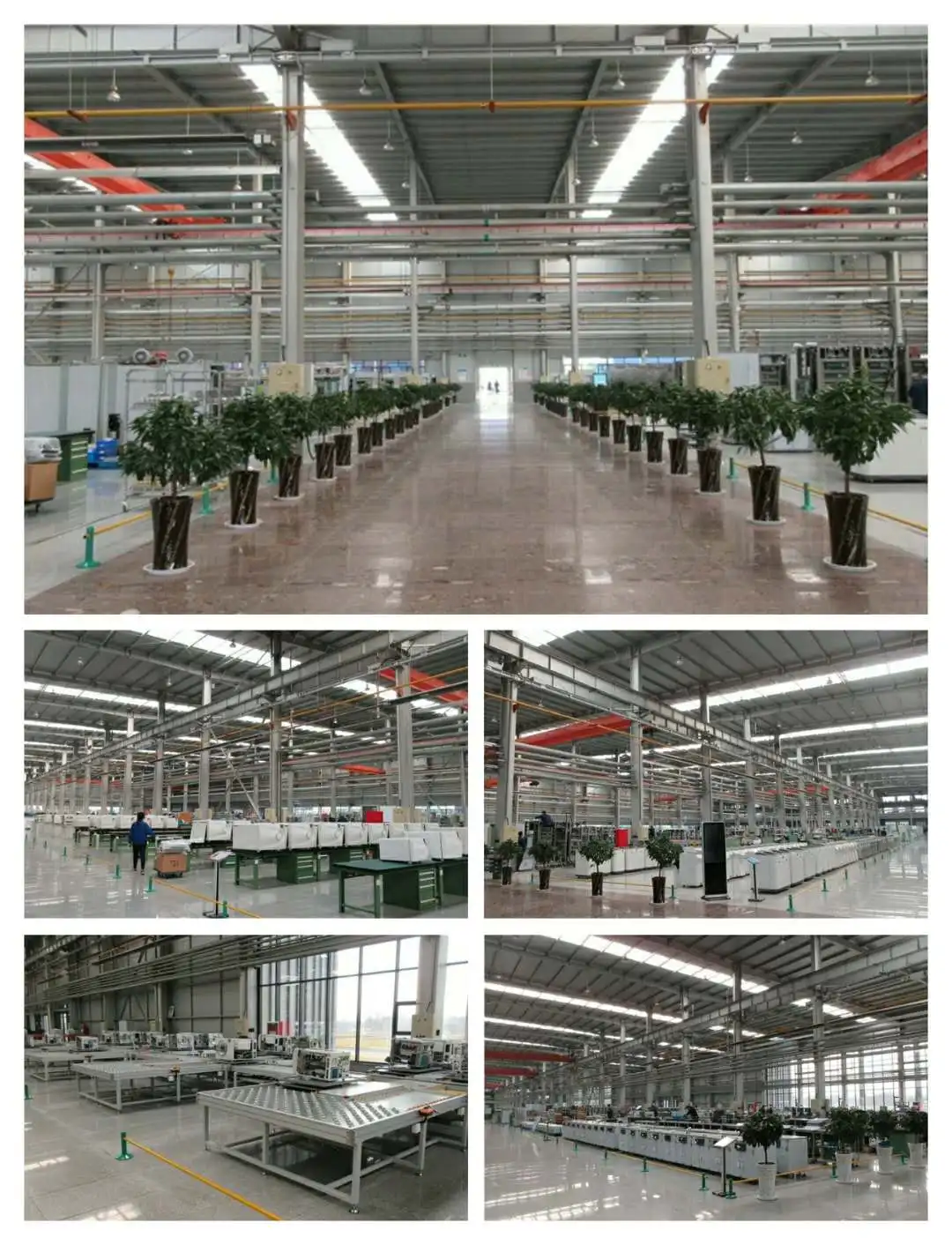

Our Company
