Машина для производства пластиковых бутылок 4 полости 750 мл л/машина для выдувного формования

Машина для производства пластиковых бутылок 4 полости 750 мл л/машина для выдувного формования

Category: Stretch Blow Moulding Machines >>>
Supplier: Taizhou,Sico,Machinery,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

Product Application

This machine is suitable for mineral water bottle,carbonated beverage bottle,daily chemical bottle,medicine bottle etc less than 1500ml.

Use the advanced touch-screen computer control,easy operation,stable quality and high safety.
The production process is finished by the automatic micro-computerized control,only need one operator.

\t Bottle Dropped Automatic 4 Cavity Semi Automatic PET Plastic Bottle Blow Molding Machine
\t Bottle Volume:	\t 50ml-1500ml
\t Cavity:	\t 4 cavities
\t Output:	\t 1600-2000BPH
\t Bottle Type:	\t PET bottle
\t Auxiliary Equipment Needed	\t Air compressor Air filter Air dryer (optional) Chiller (optional) Bottle mold
\t Auxiliary Equipment Needed

Advantage

1.Semi automatic running with theoretical output 1600-2000BPH for 50ml-1500ml bottle.

2.The bottle dropped automatic,reduce labor cost.
3.Advanced PLC control system with use-friendly touch screen.
3.Simple installation & start up operation.
5.Adopting double crank to adjust mould ,heavy locking mould, stable and fast.
6.Preforms are rotating in the heater to ensure being heated evenly.
7.Equipped with air cooling system ensure the bottle neck not deform.
8.Equipped with special designed air storage unit.
9.The machine surface is treated with baking varnish.

\t Model	\t SC-2000A Semi Automatic PET Bottle Blowing Machine
\t Theoretical output	\t 1600--2000 pcs/h
\t Finished bottle	\t Max. bottle volume	\t 1.5L
	\t Max. neck diameter	\t 38mm
	\t Max. bottle diameter	\t 105mm
	\t Max. bottle height	\t 305mm
\t Mold specifications	\t Cavity	\t 4 cavity
	\t Mold thickness	\t 110mm-230mm
	\t Open stroke	\t 160mm
\t Electrical system	\t Power voltage	\t 380v/3Phase/50HZ
	\t Installation power	\t 23kw
	\t Actual power consumption	\t 8kw
\t Air source	\t Recommend air compressor	\t 1.2m³/min 30Kg
\t Cooling water	\t Recommend water chiller	\t 5HP
\t Blowing machine size	\t Lengthwidthheight/weight	\t 18208201760mm/1100kg
\t Heater size	\t Lengthwidthheight/weight	\t 21705701360mm/450kg

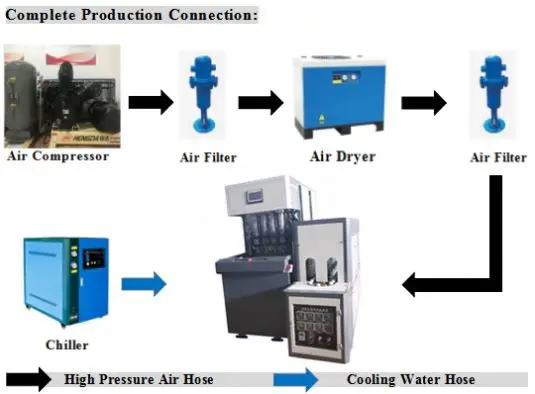

Production Line

Auxiliary Equipment

1. Air Compressor : Compress air,used for blowing bottle and blower action. ( Pressure 3.0Mpa )

2. Air Tank : Store high pressure air.

3. Air Filter : Including 1 set T-class filter (1um) and 1 set A-class filter (0.01um). Cleaning oil and dust.

4. Air Dryer : Cooling and dry air,improve bottle quality,prolong phnuematic parts life.

5. Chiller : Cooling mould,make the machine suitable to working 24 hour per day.

Bottle Design

We offer free bottle design service,a good bottle make your product competitor.

Terms

1. Payment Method

30% by T/T as down payment, 70% by T/T paid before delivery. (Other payment please notice in advance.)

2 . Mechanical Warranty

One year warranty and come with at least one year recommended spare parts.

3. Delivery & Packing \t

Delivery Time: 15 days after get down payment &confirm bottle design.

Packaging requirement:
1) The special packaging wooden case is according to the immunity standard in China,it suits for long-distance transport, damp proof, rustproof, land way and seaway
2) Transportation ways: Sea transportation
