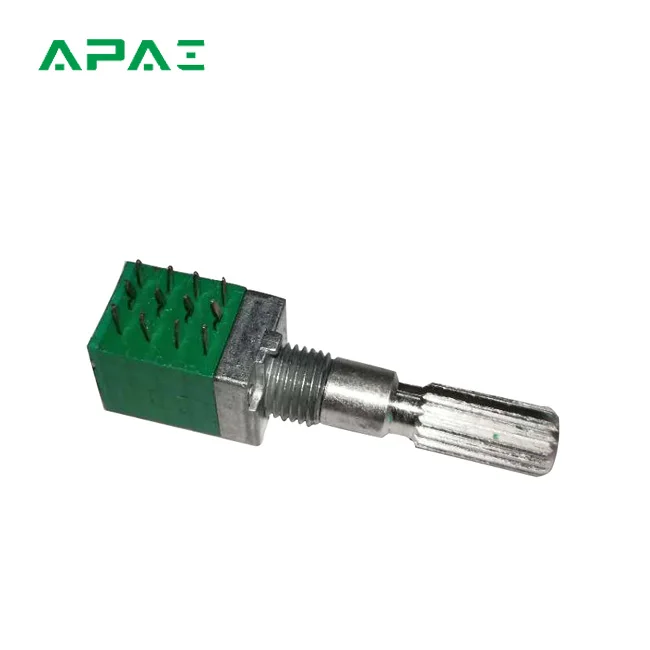

RK0974L quad multi unit rotary potentiometer 4 gangs potentiometer

Operating temperature: -10 ℃ ~ +70 ℃
Manual soldering: 260 ℃ Max 3sec
Total resistance: 1KΩ ~ 500KΩ
Resistance tolerance: ±20%
Resistance taper: A B C W
Sliding noise: Less than 68 mV
Residual resistance: Less than 20 Ω
Insulation resistance: More than 100MΩ at DC 250V
Rated power(W): 0.05W
Max. Operating voltage: 50V AC
Withstand voltage: 1 Minute at AC 300 V
Total rotational angle: 300° ± 5°
Rotational torque: 20 ~ 250 gf.cm
CC torque: 50 ~ 150 gf.cm
Rotational stopper strength: 4Kgf.cm Max
Shaft push-pull strength : 10Kgf.cm Max
Rotational life : 10,000 cycles
