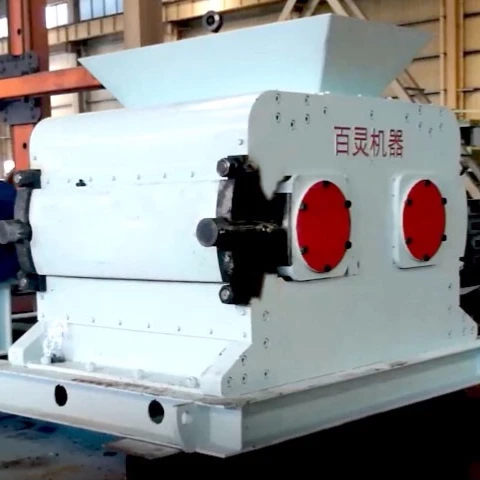

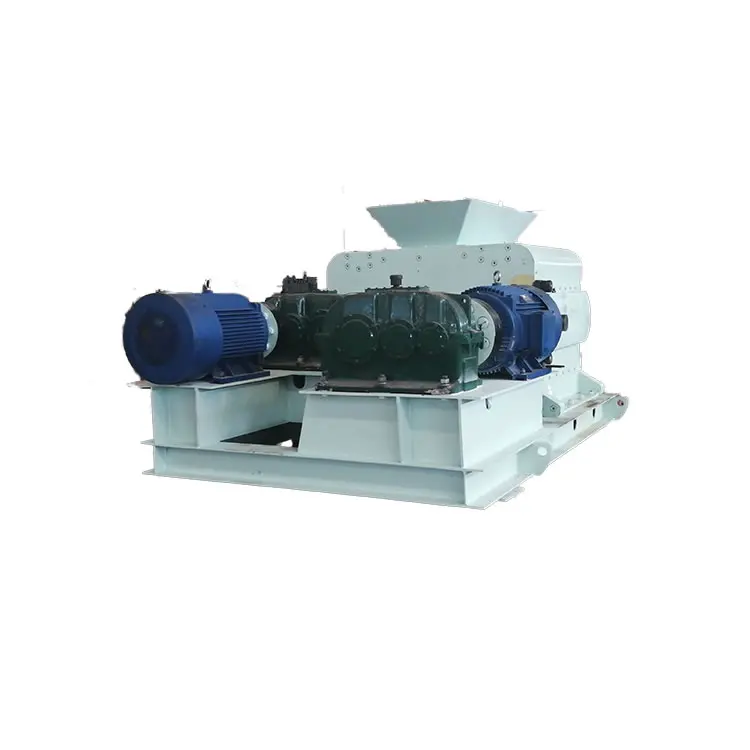

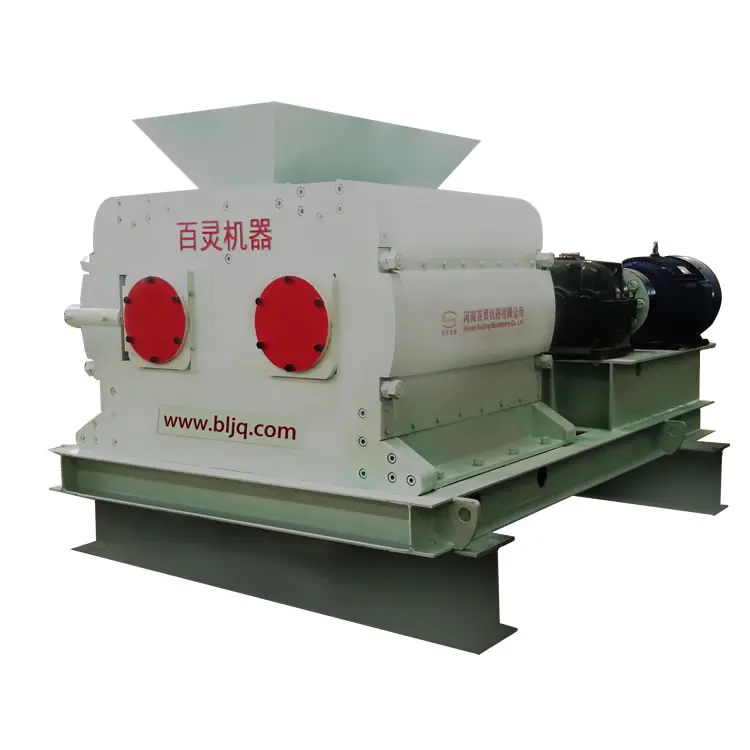

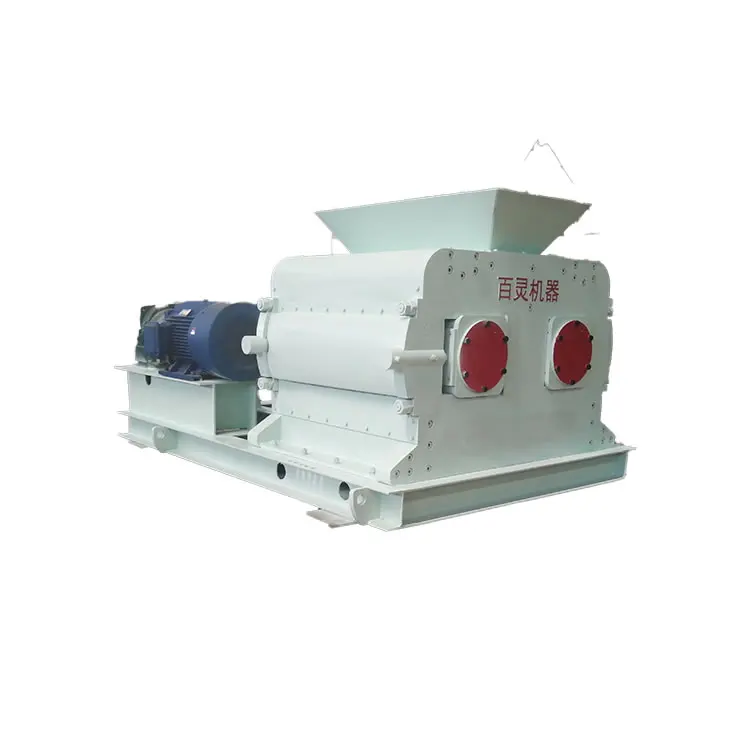

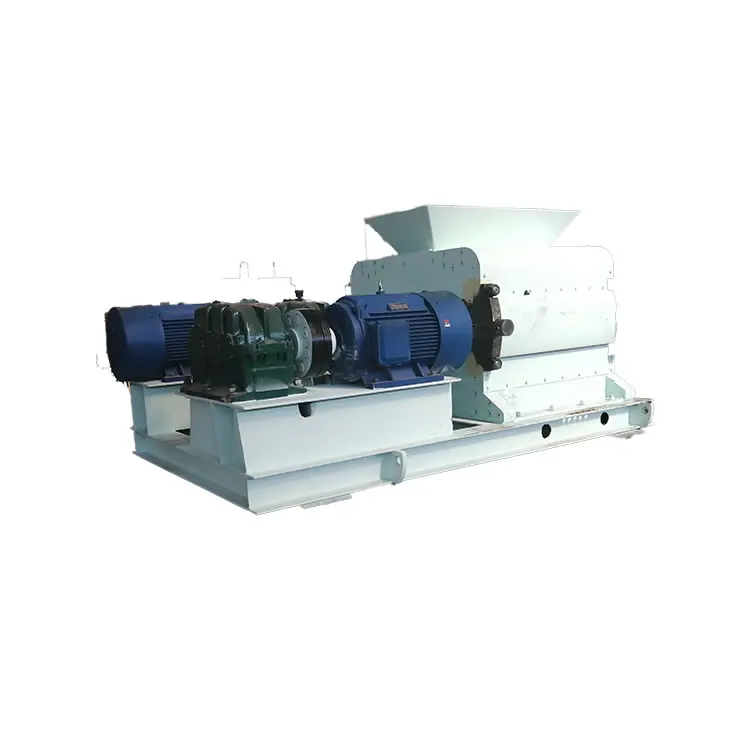

Brand new coal limestone feldspar roller crusher from direct factory
Brand new coal limestone feldspar roller crusher from direct factory
Brand new coal limestone feldspar roller crusher from direct factory
Brand new coal limestone feldspar roller crusher from direct factory
Brand new coal limestone feldspar roller crusher from direct factory
Brand new coal limestone feldspar roller crusher from direct factory
Brand new coal limestone feldspar roller crusher from direct factory

Brand new coal limestone feldspar roller crusher from direct factory

Share on (62136533157):


Price:$75,000.00

Quantity:


Product Overview

Description

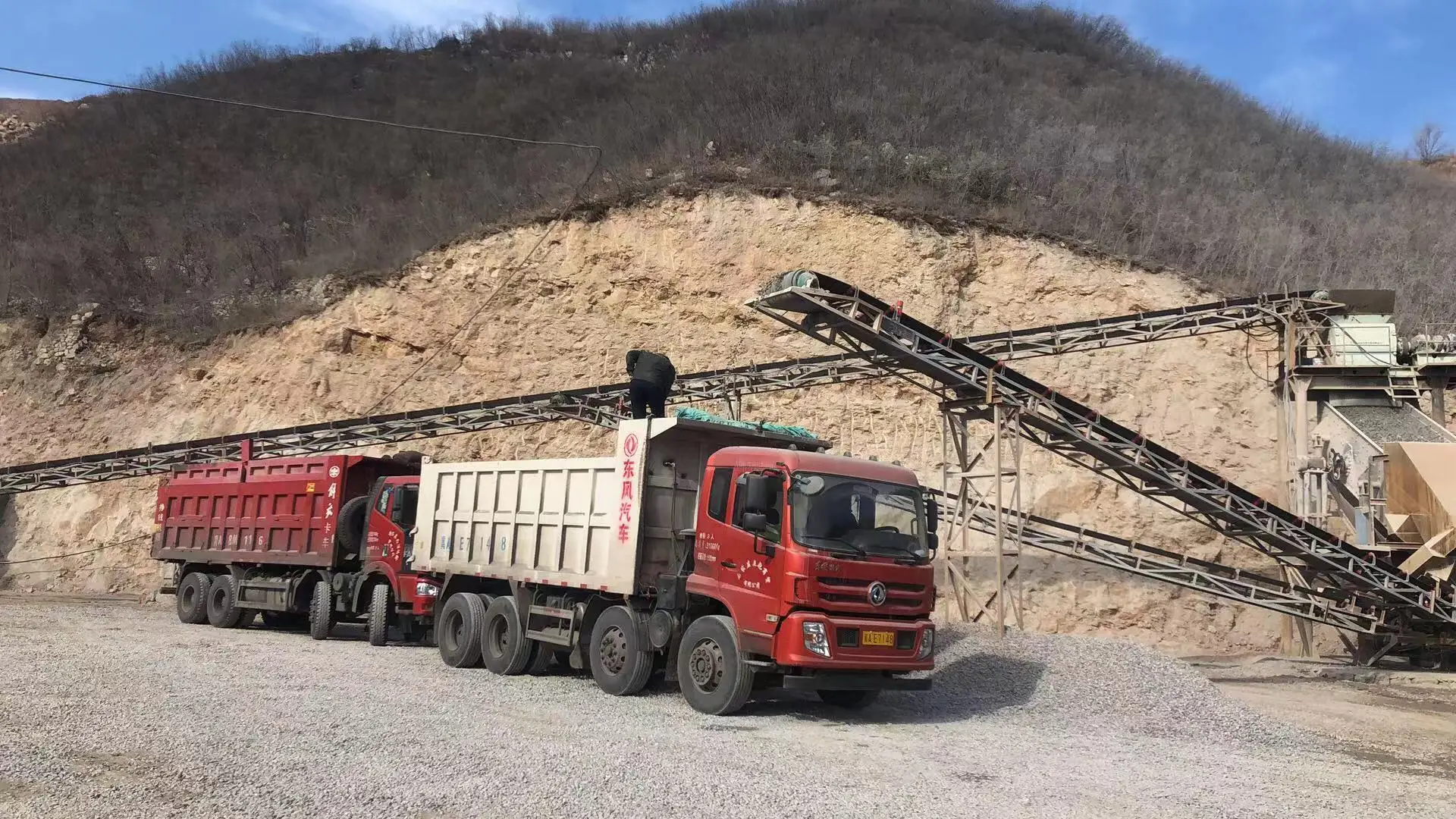

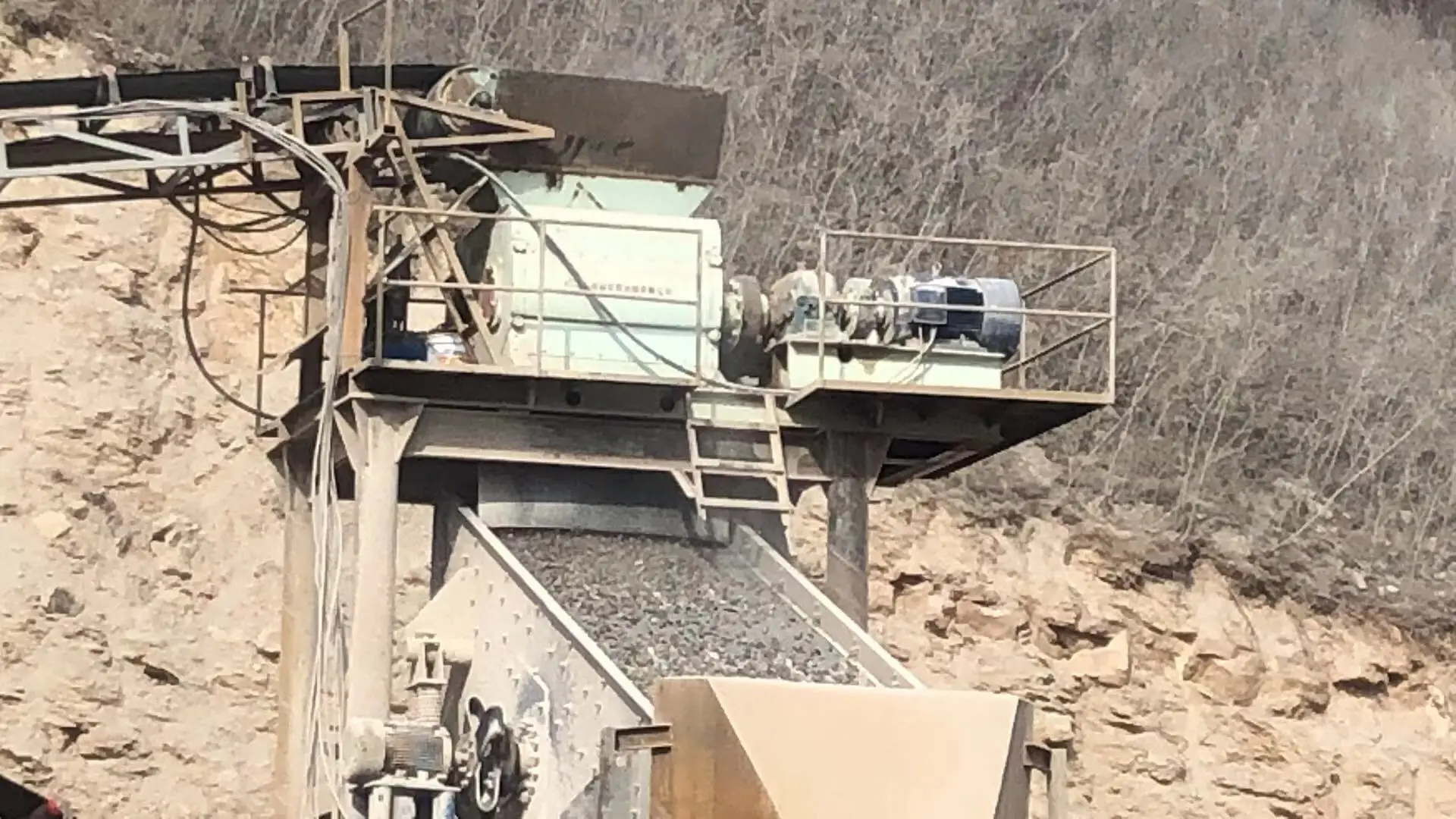

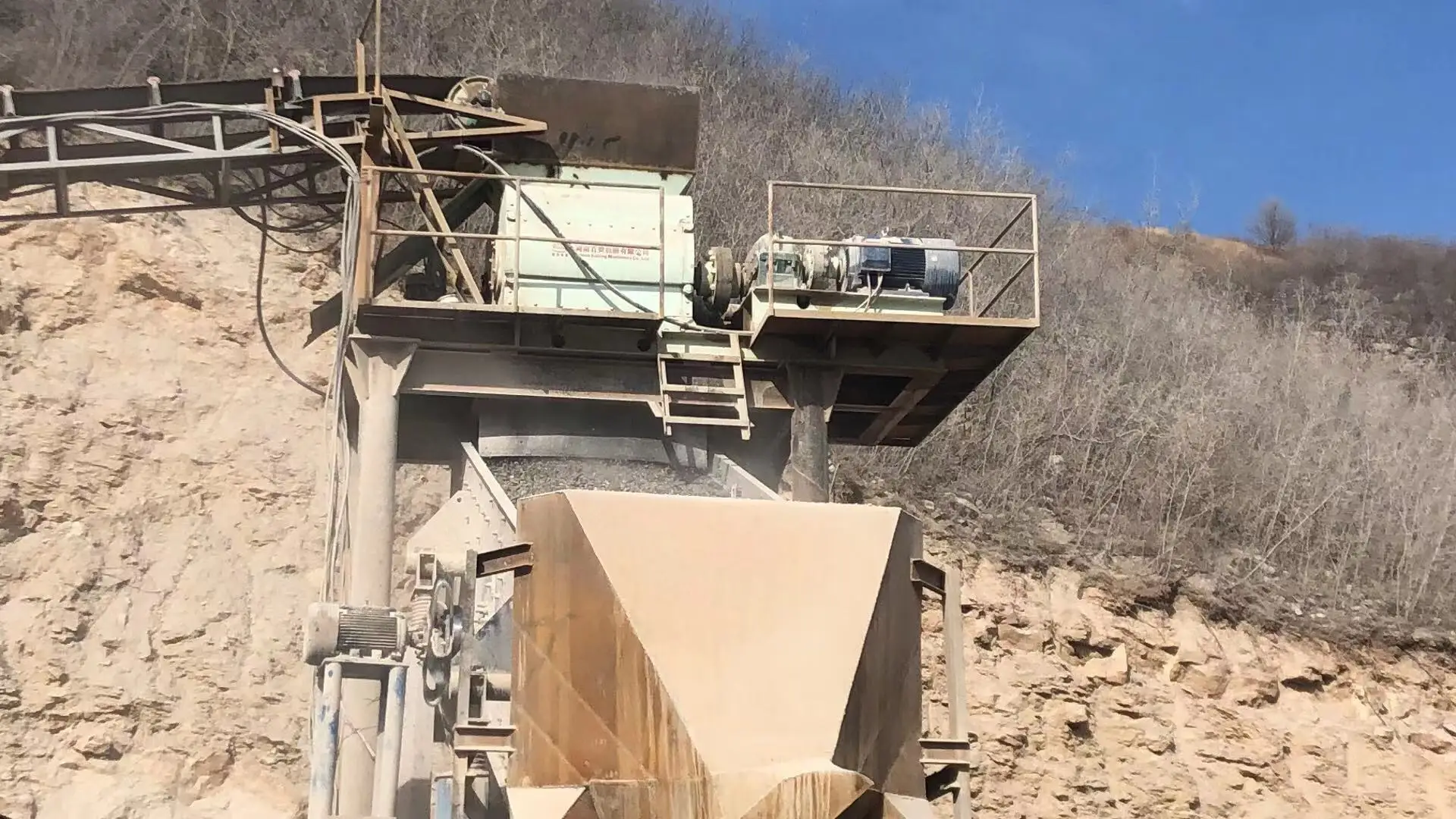

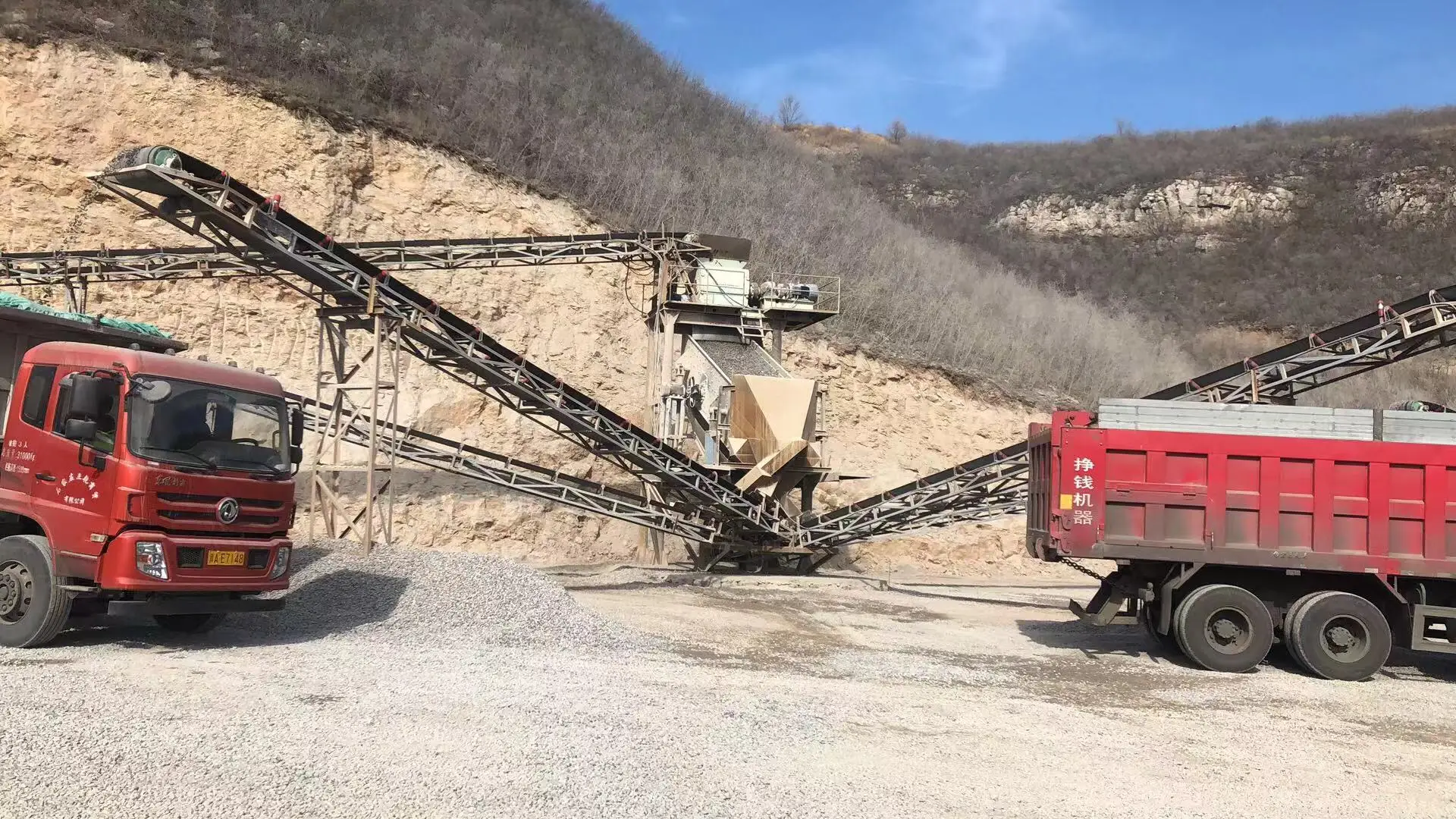

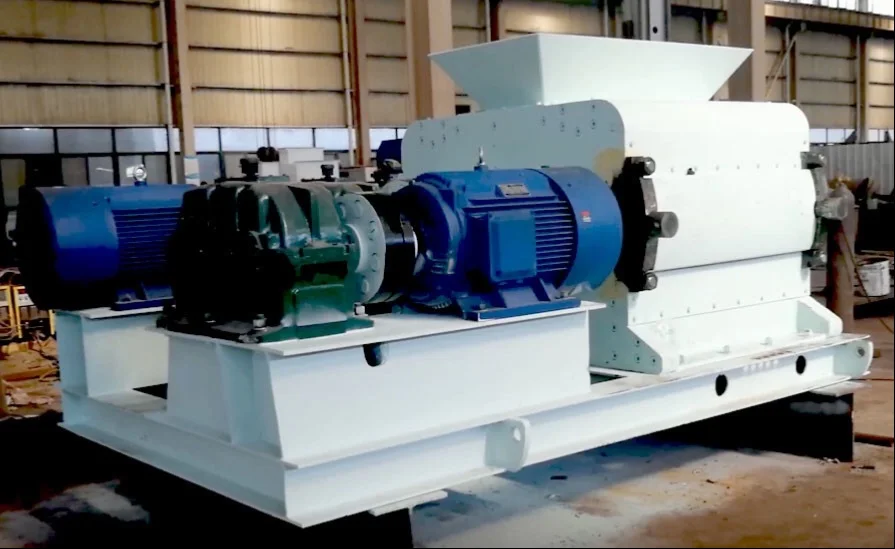

Work Site





· Uniform aggregate particle size
· Good Shape
· Low Dust at Site
· Low Noise
· Easy Maintenance
· Durable & Reliable
· Good Capacity

Raw materials: limestone
Model: 2PGC 800x1200
Capacity: 200 t/hour
Input Size：300mm
Usage: Secondary crushing
Output size: 15mm(90%)

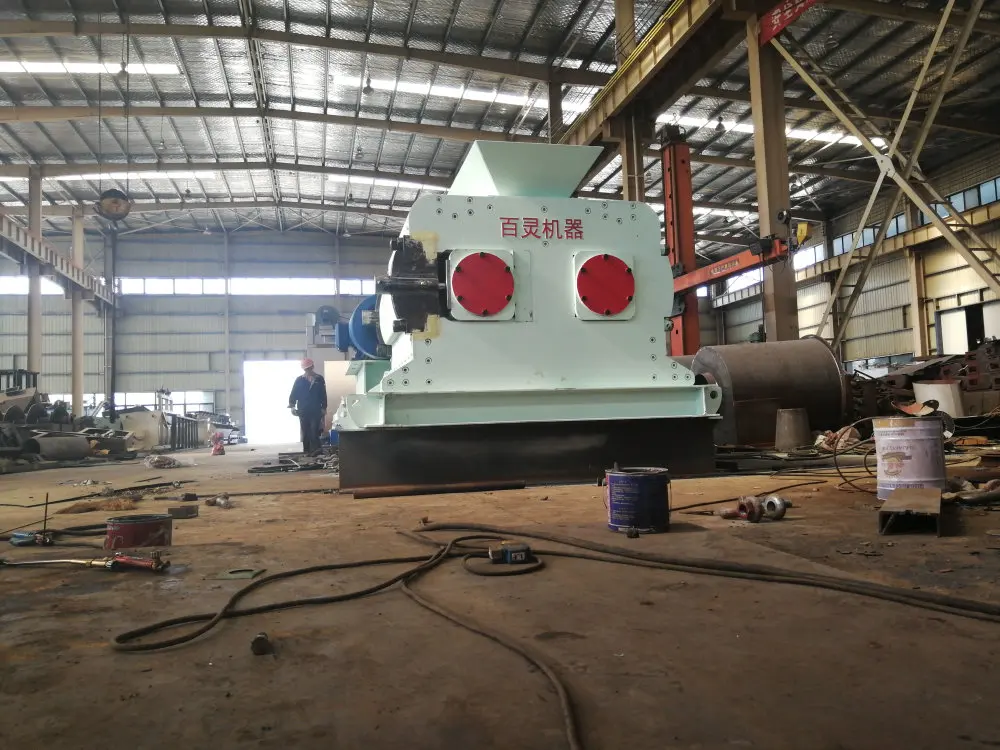

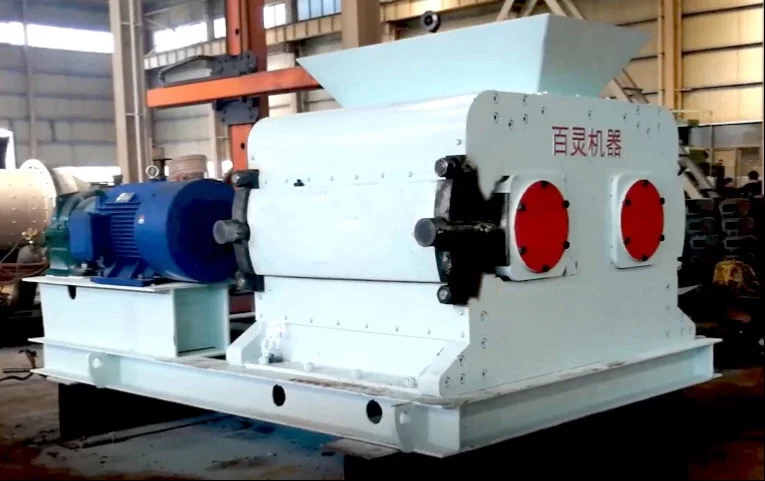

Detailed Images

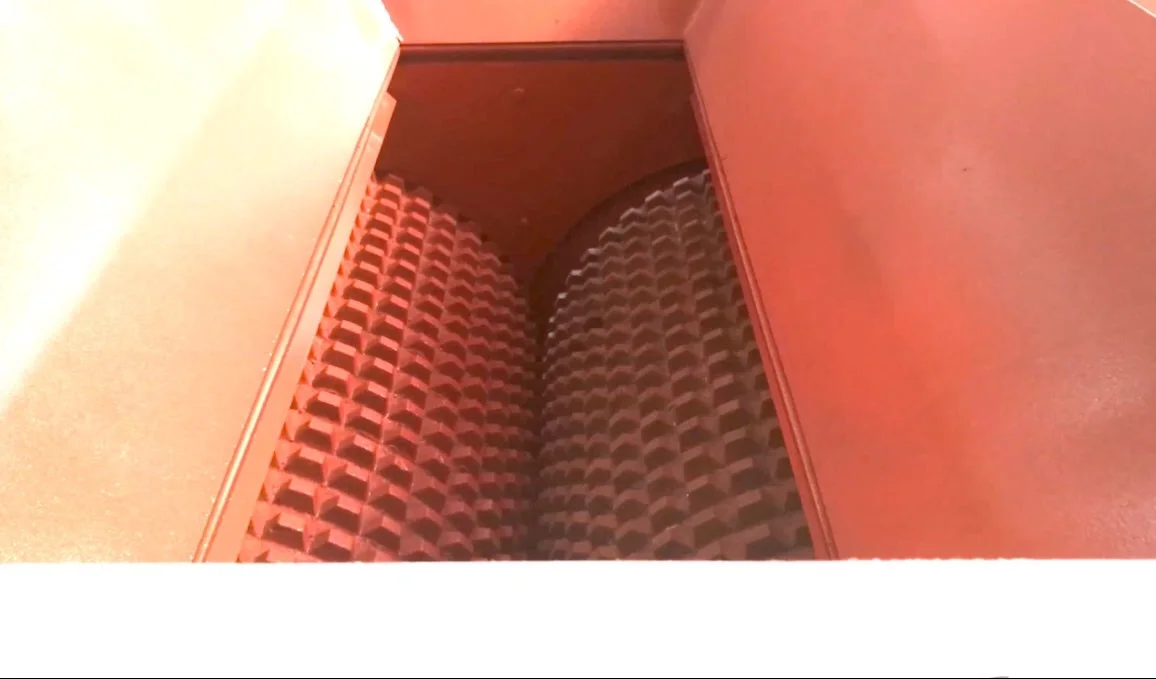

Durable Roller Skin
Materials adopt Mn13Cr2. This help making sure the roller skin could have a long service life at lease half a year.
* Now, the materials of Mn18Cr2 is avaliable for option.

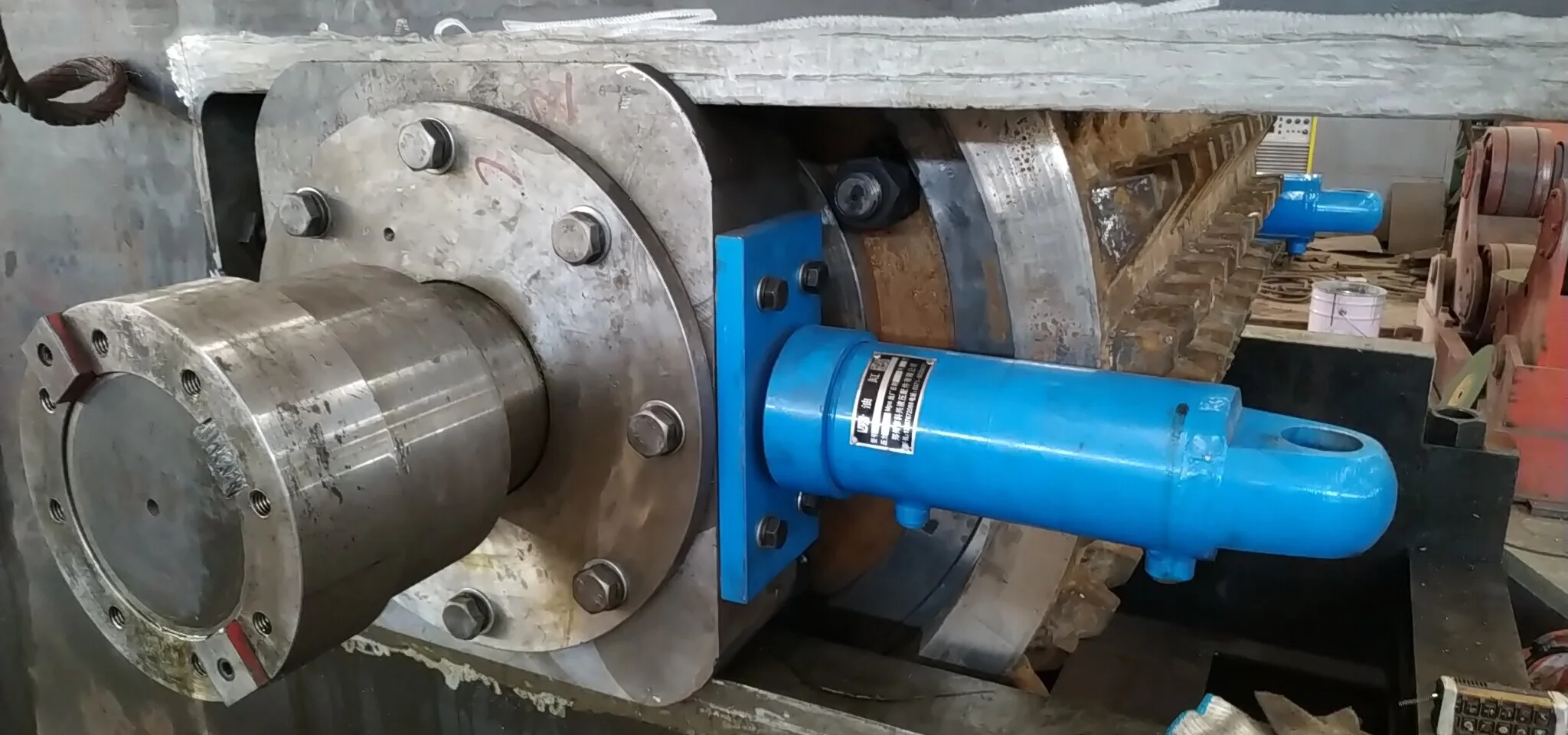

Hydraulic adjustable buffer instead of the spring adjustable buffer.
More durable, and the data will be showed on a screen. Easy knowing whether the two side has same force or not.
Modular design, easy maintenance for replacing the spare parts.


Advantages


Low Dust, friendly to the environment.
Due to the Squeeze crush way, Very little dust at the site.


Uniform Particular Size
Updated discharging design: With the hydraulic cylinder adjust device, help the pressure could be controlled according to the detail data.


Parameter


MODEL
FEEDING SIZE
(mm)
OUTPUT SIZE
(mm)
CAPACITY
(t/h)
POWER
(kw)
WEIGHT
(t)
2PGC 450X500
≤300
15-75
20-45
7.5 x 2
4.2
2PGC 600X750
≤400
   15-125
30-80
18.5 x 2
7.8
2PGC 600X900
≤400
15-125
 40-100
18.5 x 2
8.4
2PGC 600X1200
≤400
15-125
50-120
22 x 2
11.2
2PGC 800X1000
≤600
20-150
80-180
22 x 2
12.6
2PGC800X1200
≤600
20-150
100-220
30 x 2
15.2
2PGC900X900
≤600
30-150
80-180
30 x 2
14.5
2PGC1000X1300
≤750
50-150
400-600
55x 2
22
2PGC1200X1500
≤800
50-150
500-800
75 x 2
26
2PGC1500X1800
≤850
50-150
500-900
110 x 2
32
2PGC1600X2000
≤900
50-150
600-1000
160 x 2
48
2PGC1800X2000
≤1000
50-150
700-1200
200 x 2
56
2PGC2000X1800
≤1100
50-150
800-1500
250 x 2
74
2PGC2000X2000
≤1200
50-150
1000-1950
315 x 2
98

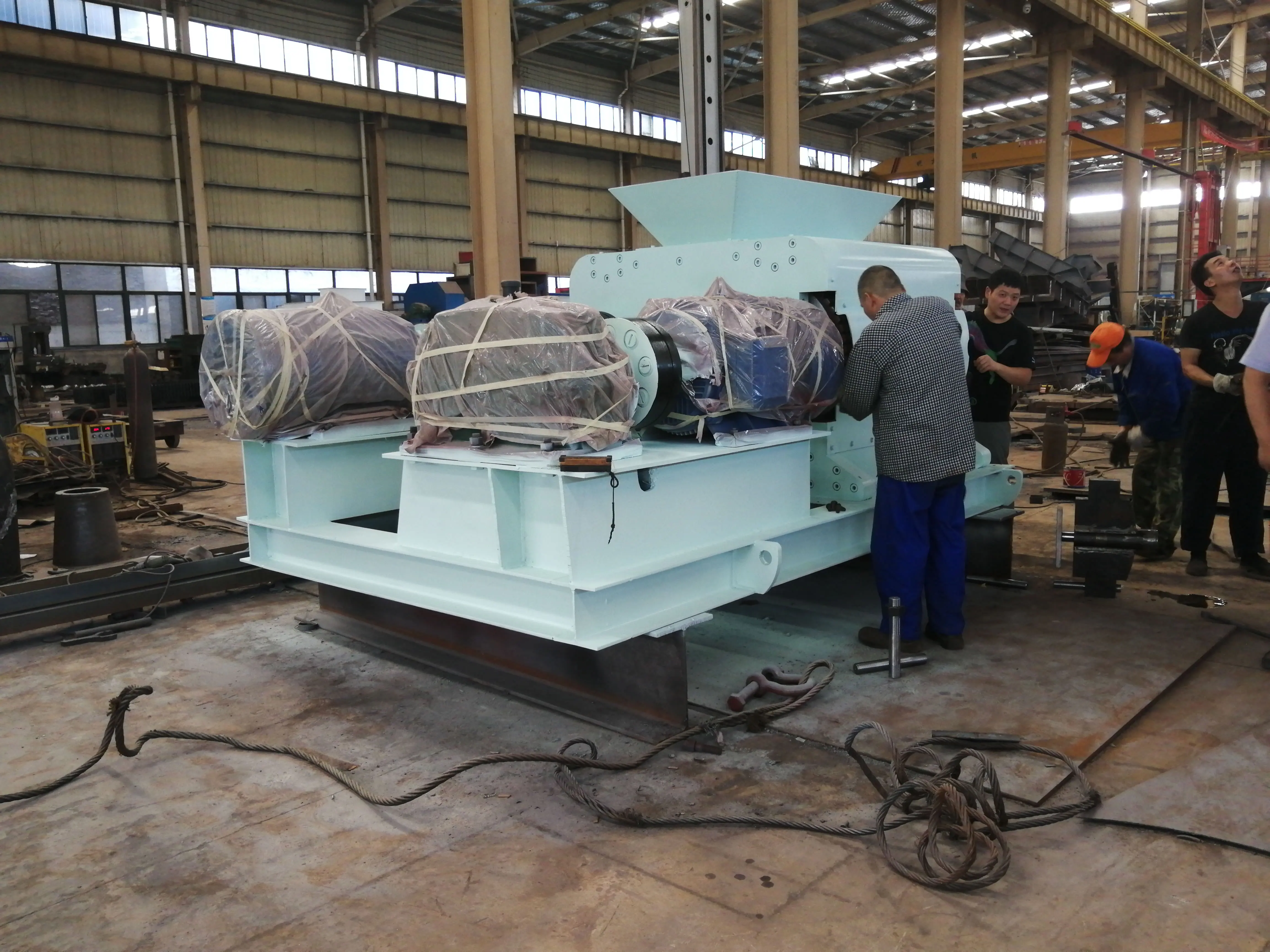

Packing & Delivery




Packing method
The main structure will be in nude, and the electrical parts and small parts will be packed in plywood case.
Delivery time
25 working days after received the advanced payment.


Application


The teeth roller crusher can be widely used where there has materials to be crushed. According to the input part design, when the particular size is less than 500mm, the teeth crusher is better. Of course, Economic indicators should be considered.


Limestone
Granite
Coal Gangue


Talc
Cobblestone
Calcite


Feldspar
Barite
Basalt
