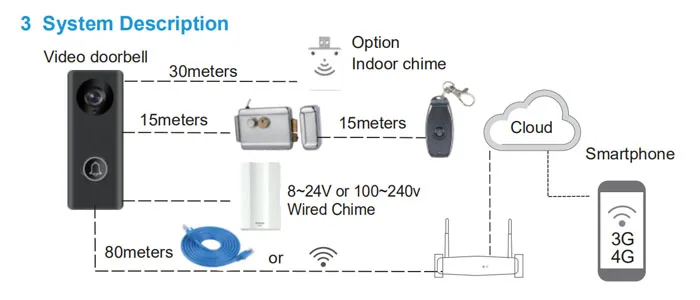

The smart doorbell can be connected via WiFi or cat5e LAN Cable. When the visitor presses the button on the doorbell, your smart device interacts with the doorbell:
Via real time video and full duplex talk
Take photos and record videos that save directly to your smart device or MicroSD card of doorbell
Activates your indoor chime with preset melodies and volume control
Further features include unlocking via smart device
1 administrator user and up to 10 guest users connect one doorbell
Work on your 8~ 24V or 100~240V Exsiting Mechanical bell
* Specifications:
Network
WiFi 802.11 b/g/n or RJ45 cable
Resolution
1920x1080
Talk
Full duplex talk
view angle
150 horizontal angle
Nigth vision
IR cut no color deviation, B/W night vision
Record mode
Manual, Record alarm, Record timer
Alarm
Motion detection, Tamper alarm
OnVIF/RTSP
The RTSP password will be set by APP
Unlock
By smart phone, remote control
APP
Yoosee
Power adapter
AC 8 ~ 24V DC 12 ~ 36V or POE

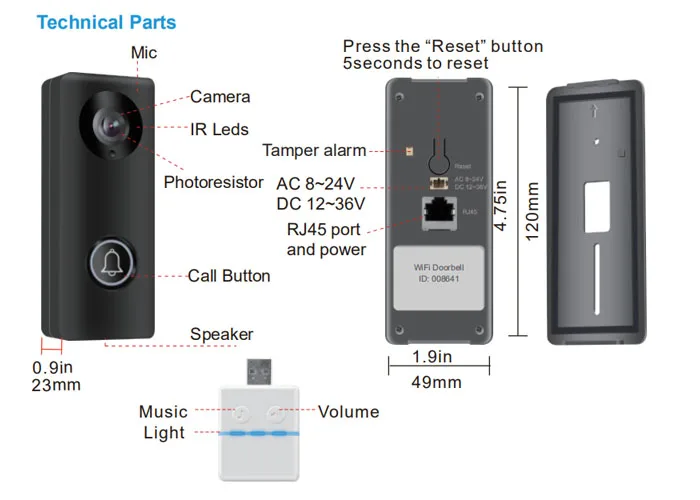

* Technical Parts:

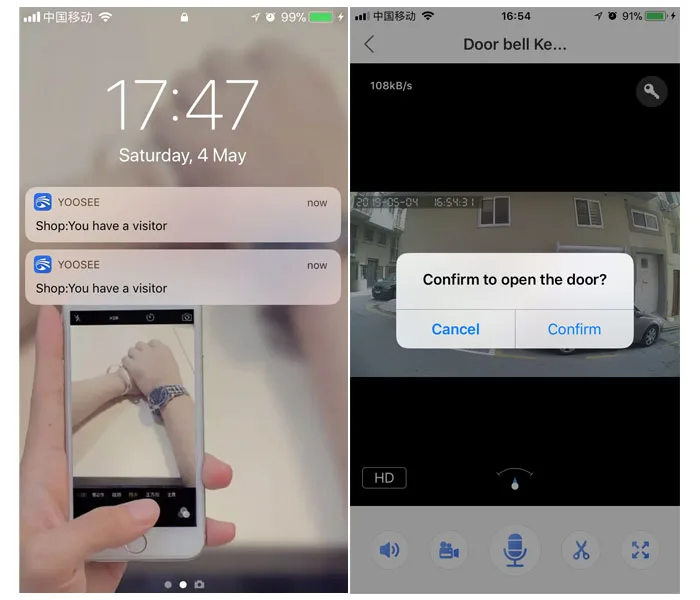

* APP Download - Yoosee

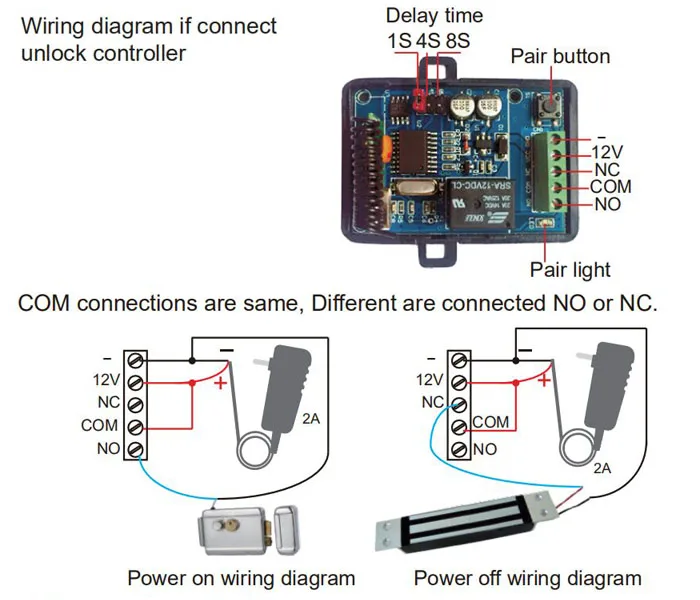

* Unlock Settings
Please check the specification of electric current for existing electronic access control, as the power charger supplied is for 1A/12V supply.
Packaging & Shipping
x1 wifi doorbelll KW05
x1 12v power adapter with DC cable
x1 Unlock wiring,
x1 POE injector
x1 Screwdriver
x1 some Screws and stopper
x1 Adhesive tape
x1 user manual
x2 connector
***Option accessories as below***:
1) Unlock control
2) Remote control
3) USB indoor chime
4) 16GB MicroSD card
5) Power regutalor
Our Services
Orders processed and shipped within 24 hours
24 months warranty
In-House Qc
Member discounts
Award winning customer support
Qauntity order discounts
Worldwide shipping
Certificates: CE, FCC, Rohs
We can suppoly with full OEM service like: Logo printing, box, APP design, Use manual, customer lanuage operation ststem, voice change etc.
Company Information
Konx International Ltd. was founded in 2009, and developed from a professional wireless technology company. Our company is headquartered in the Pearl of the Orient, Hong Kong in 2009, we set up offices in the world electronic base -Shenzhen City, with superior geographical environment and developed transportation. As a manufacturer, our company has own R&D, production, quality control, and sales teams. We mainly produce and sell wireless video door phhone, wireless peephole viewer, GSM peephole viewer. Although our company has not established for a long time, we are rich in natural sources. We not only have a young professional team with full energy, but also have a very professional quality control system. Our company has internationally advanced production equipment, a world leading development laboratory, and more than 30 development engineers, committed to providing high quality service and high quality products for customers all over the world.
FAQ

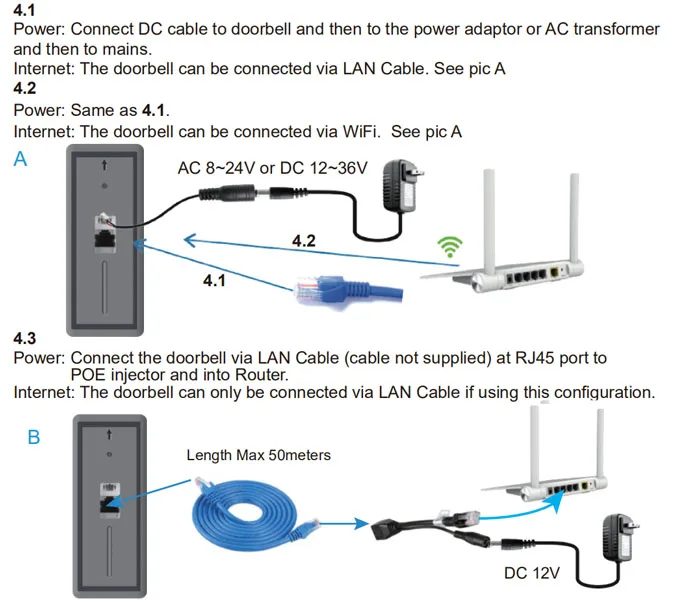

* Network Connection and Power supply
The smart doorbell can be powered and connected to the network in 3 ways, depending on location of power source and strength of internet connection. We would recommend that the LAN cable configuration is used if WiFi is not strong enough, ie the distance between the doorbell and the router is greater than 10 meters.

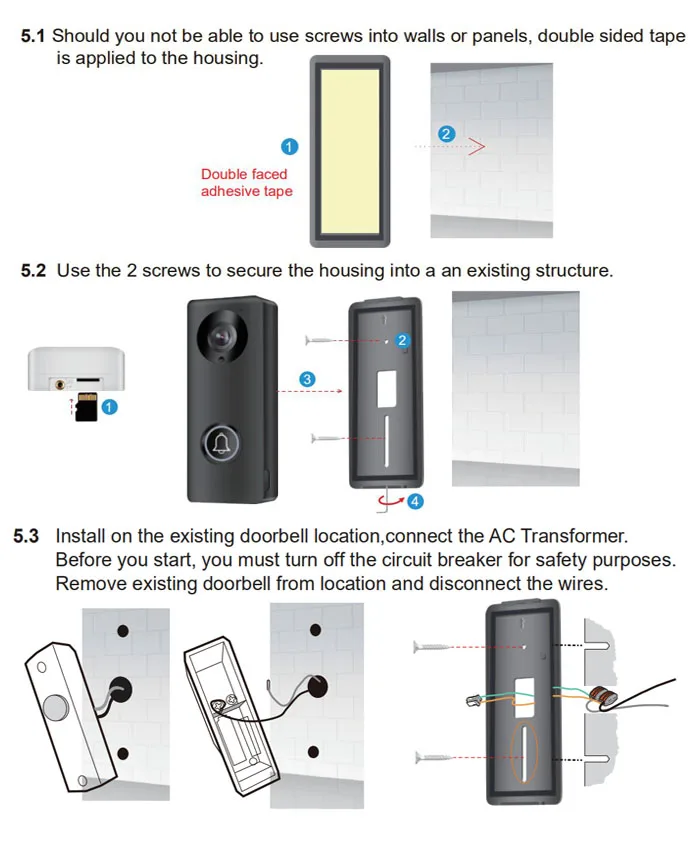

* How to installation of smart doorbell KW05?
We recommend that you carefully consider the permanent location of your Smart Doorbell, avoiding direct sunlight as well as wind and rain. The doorbell is supplied with 2x screws, double sided tape and 1x tamper alarm screws.

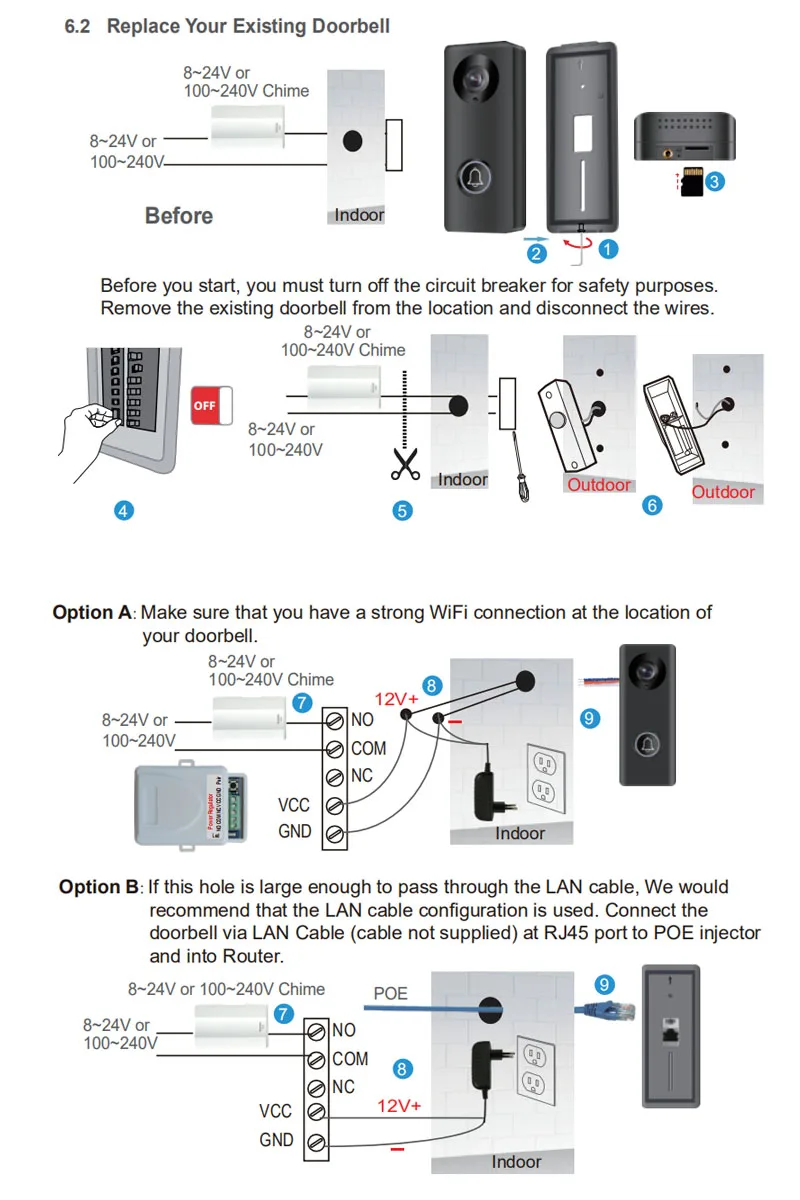

* How to Replace your 220V Exsiting Mechanical bell?

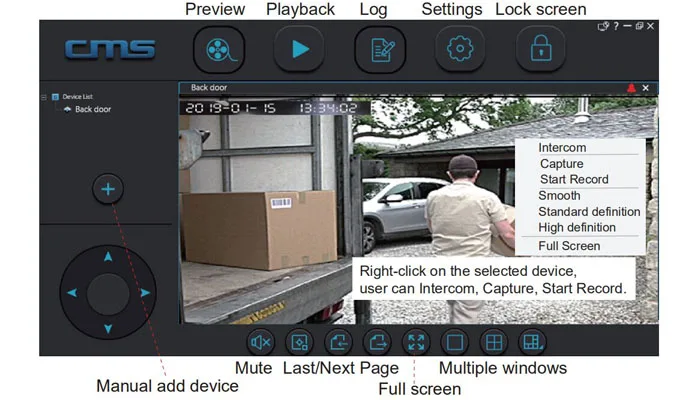

*Windows Software Introduction
Windows Client CMS default account is admin, password is blank, can logon by the username and password of the app.
Onvif connects NVR can be realized a large recording.
