New version Driver fatigue monitor system with bad driving behavior alarm,driver distraction alarm
- Category: >>>
- Supplier: Shenzhen Yuxunion Electronics Technology Co. Ltd.
Share on (62136888495):
Product Overview
Description
New version Driver fatigue monitor system with bad driving behavior alarm,driver distraction alarm
YX08 is an advanced artificial intelligent device , integrate Anti-fatigue , GPS ,4G WI-FI sharing, Double DVR, The cloud storage, Live vedio...It's include dangerous driving behavior monitor,like smoking/calling and other bad driving habit. GPS & BDS systems dynamic tracking ,Vehicle-mounted 4G WI-FI network sharing, Double DVR to record the road condition forward car and behind the car...It's integrate all new intelligent technology , Bringing you a new smart car lifestyle experience.
Product Description

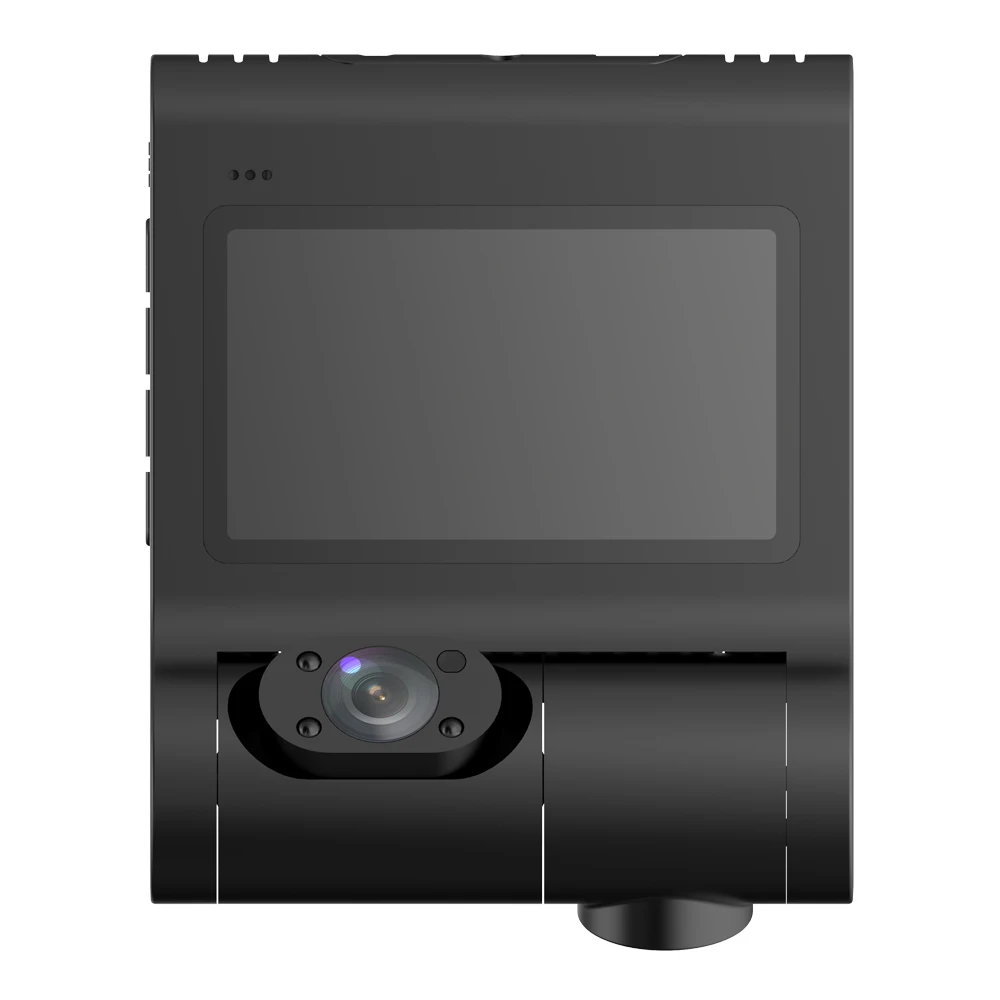

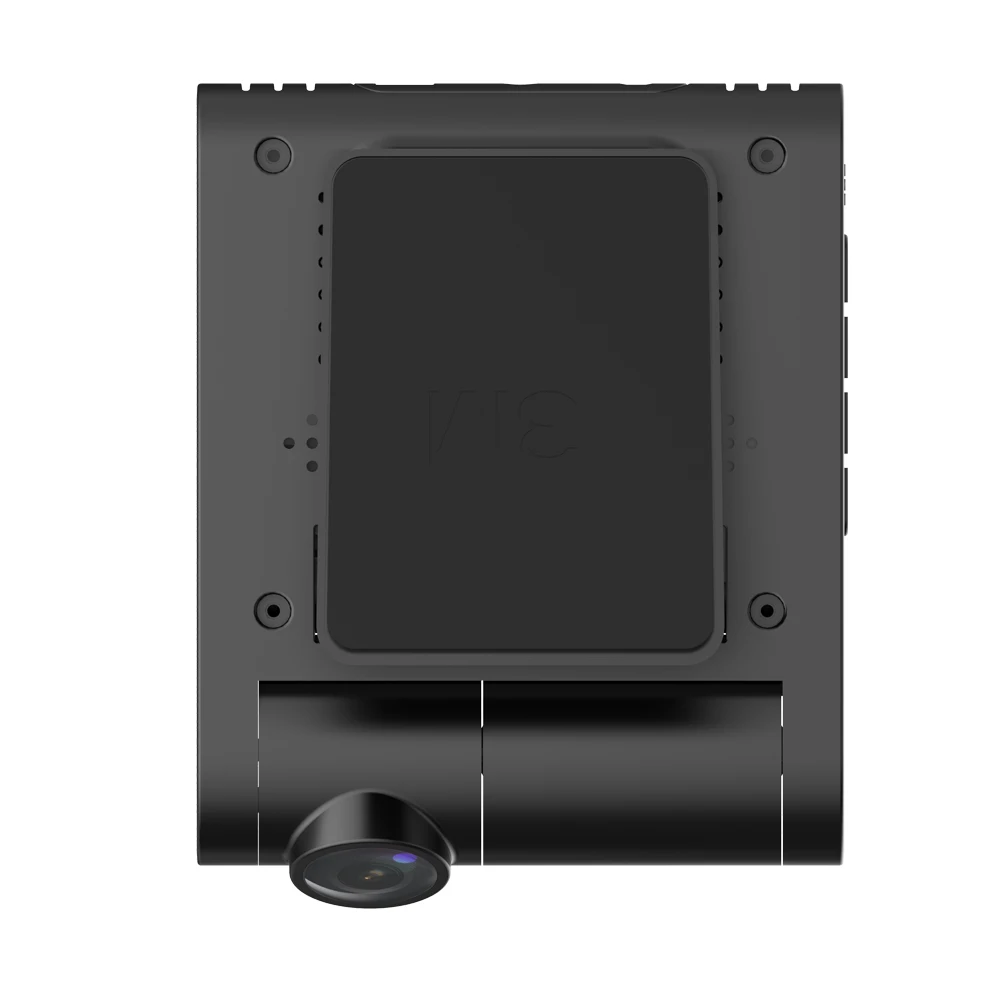

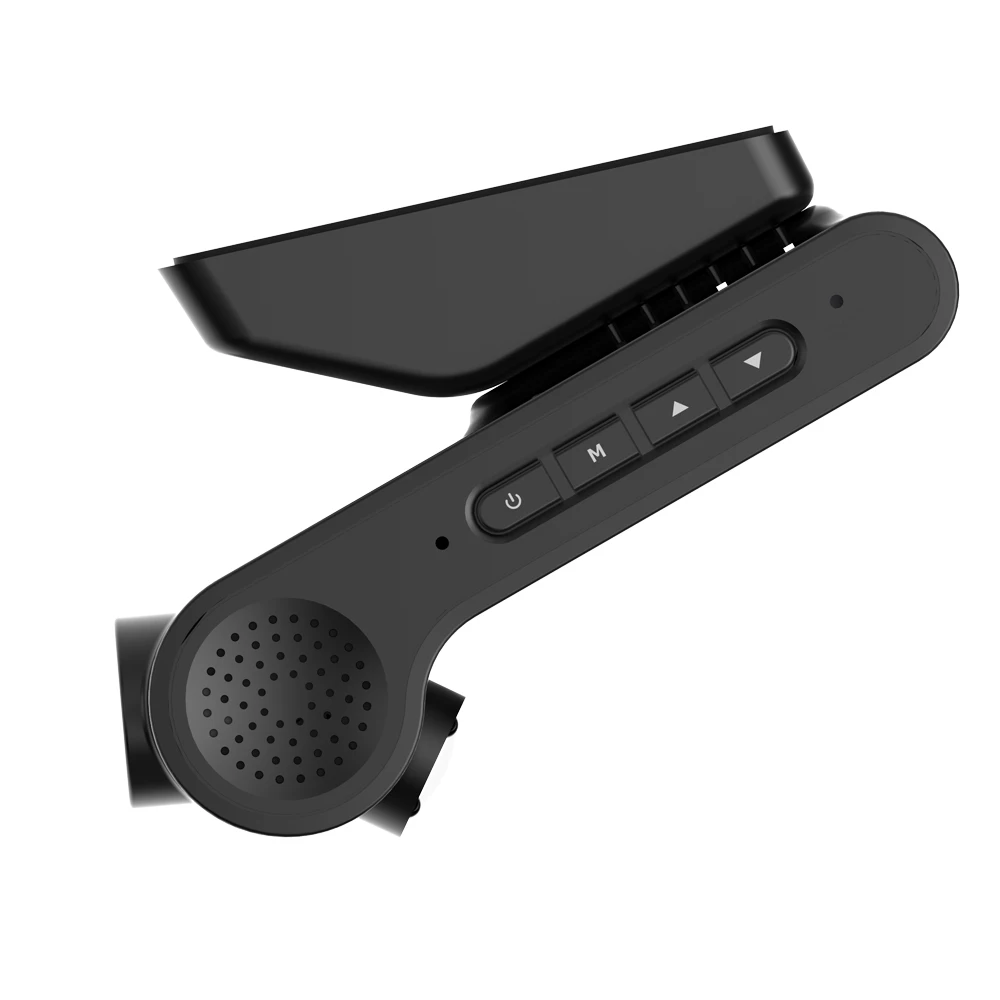

•Device appearance
•Features

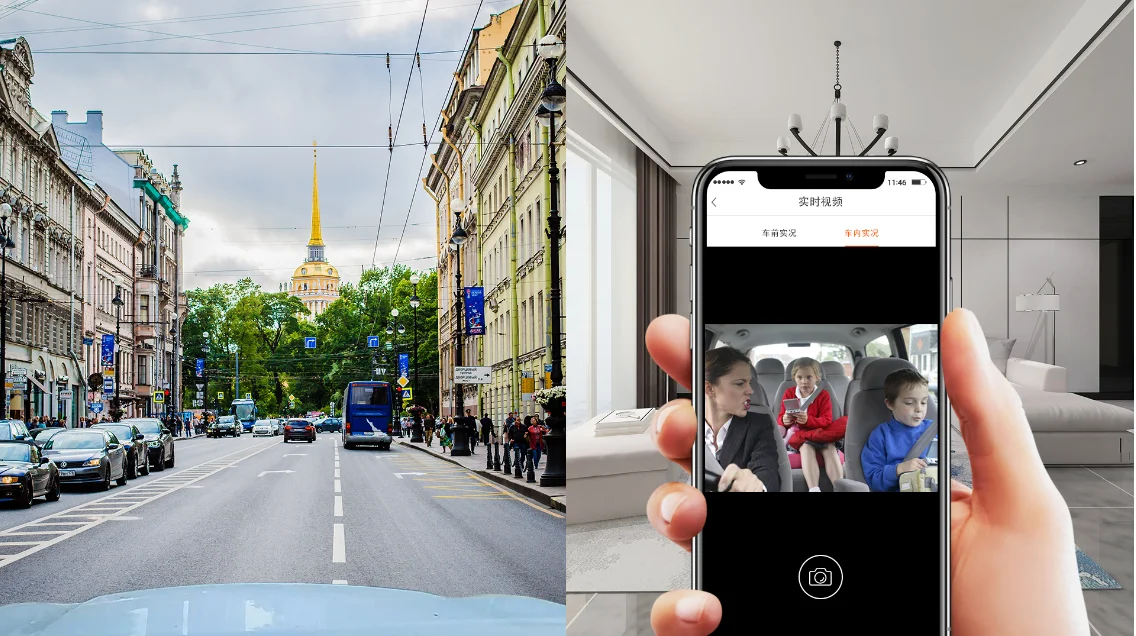

•Live streaming & Real-time road record
•Location, navigation and track record
•Vehicle-mounted WI-FI network sharing

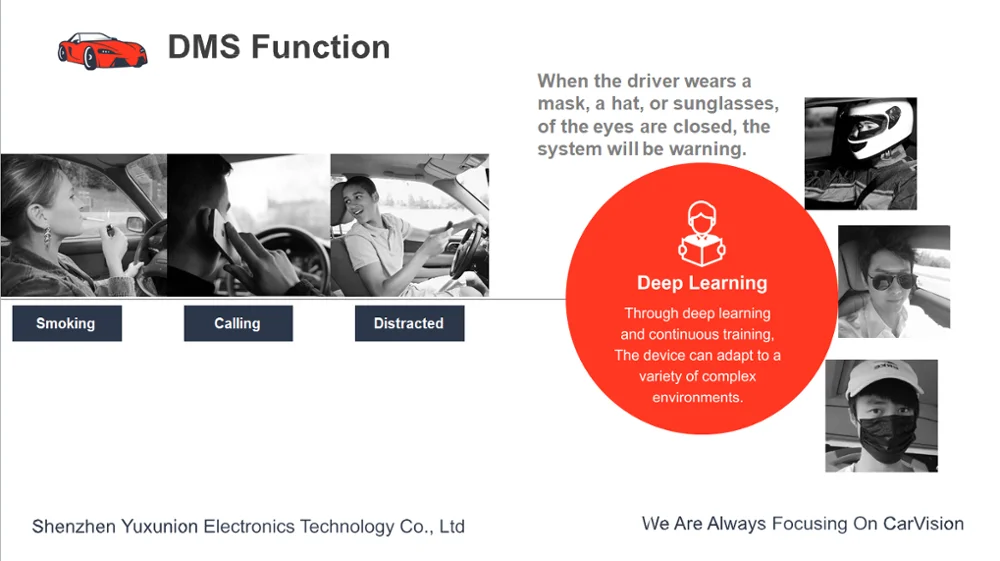

•Product Functions
1)Fatigue driving warning
Through facial detection, the DSM detects driver's eyes are abnormally keeping closed and
then warning. The warnings are divide into different levels according to vehicle speed. The
warning way is voice warning.2)Distraction warning
Through facial detection, the DSM detects driver's head turns around and then warning. The
warnings are divide into different levels according to vehicle speed. The warning way is voice
warning.3)Smoking warning
Through gesture detection, the DSM detects driver is smoking and then warning. The warnings are divide into different levels according to vehicle speed. The warning way is voice warning.
4)Calling warning
Through gesture detection, the DSM detects driver's calling and then warning. The warnings
are divide into different levels according to vehicle speed. The warning way is voice warning.
5)Driver abnormal warning
The DSM detects the driver is abnormal (like can't detect facial features over 3 seconds) and
then warning. The warning way is voice warning.
6)Driver ID recognition
When the DSM detects the driver has left the monitor scope and re-appeared, it will compare
the present driver characteristics with the previous one. If they are not the same one, then it
will warn. The warning way is voice warning.
7)Test mode switching
Switch to test mode through APP.
•Specification
Type/specification | YX08 |
Specification | |
CPU | SGKS8611 |
Internal storage | 2GBit |
Screen | 3’’ IPS MIPI 320*640 |
Front camera | JXF22(1080P),MIPI,4 glass,F2.0,140° |
Center camera | USB Camera,640X480,4 glass,F2.0,120° |
Coding/code rate | H.264 8Mbps |
G-sensor | SC7A20 |
RTC/Battery | Shared lithium battery, 290mA |
WIFI | IRRTL8189ES,2.4GWIFI, support AP |
GPS | External 2.5mm headphone jack, support AGPS, UART |
Audio | 1 output, 8ohm, 0.75W |
Microphone | 1 output, -40db±3db |
Power interface | Mini USB 2.0 Port |
TF card | Max support 128GB/C10 |
Button | 4 physical buttons, adaptive based on software features |
Working voltage | DC 5V |
Rated current | 2A |
Average current | <1.2A |
Standby average current | <3mA |
Storage temperature | -30℃ ~ +85℃ |
•Features of Driver monitor system
1.APP calibration,easy to installion .
2.Fatigue driving & Distraction driving warning .
3.Driver bad behavior warning.
4.Real-time GPS tracking.
5.Double DVR record ,Greater security.
6.Vehicle-mounted WI-FI network sharing, Enjoy quality driving experience.
More intelligent function click on detail
Packaging & Shipping
Our Services
1.We solemnly promise our products with 100% high-quality and 100% superior service.
2.Strict producing process, aging test and QC to make sure high quality production.
3.OEM & ODM are welcomed.
4.All passed systematic production standard in waterproof, shockproof, temperature resistance, humidity resistance, high definition.
5.24 hours standby after-sales team.
Company Information
FAQ
1.What's your MOQ?
-100pcs is our MOQ
2.What is your terms of packing?
-Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
3.Do you have product certisfication?
-Yes,we have CE FCC IS9001:2008 certisfication.
4.What's your delivery time?
-The sample order will be whin 7 days,the regular order depends on quantity and our inventory.
5. What is your sample policy?
-We can supply the sample if we have ready parts in stock, sample cost and courier cost are not free.
If you have any other quesions ,please contact us,we will do our best to help you!
Fill in message and click on the "Send",we will give you the best service!
We are very expecting to cooperate with you!!!
