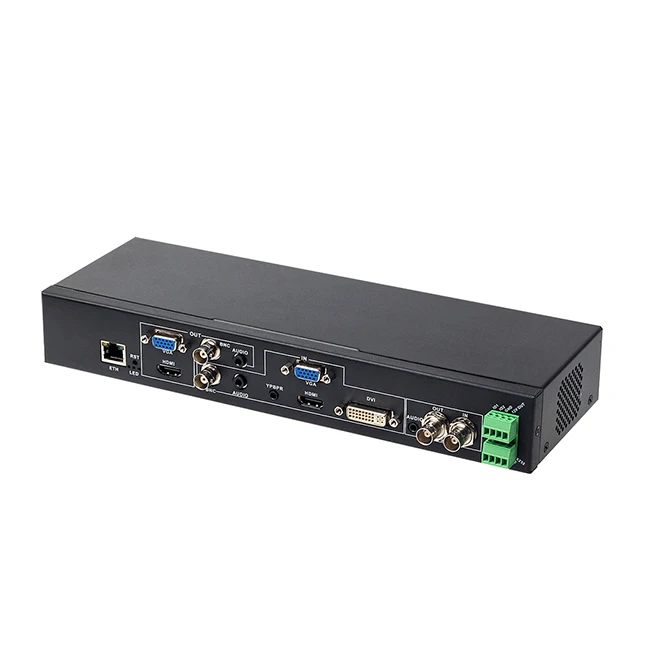

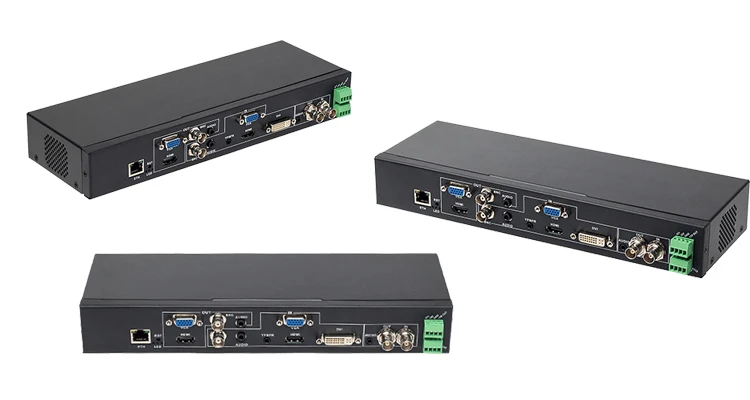

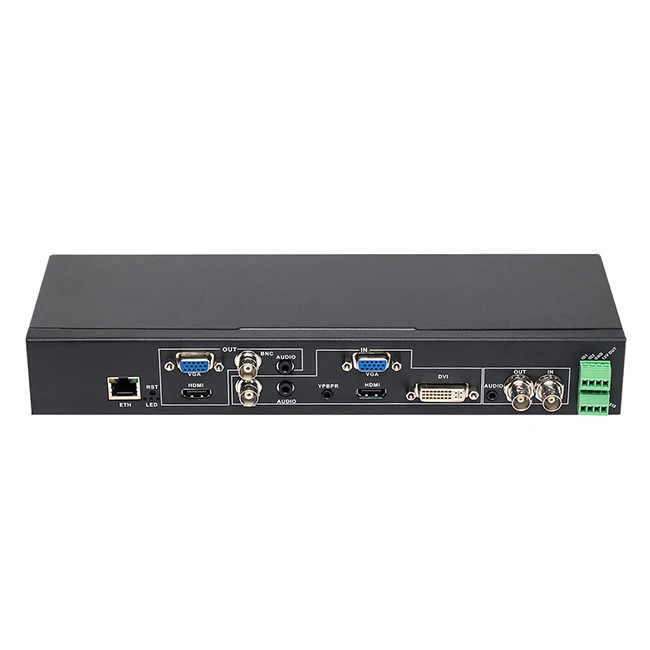

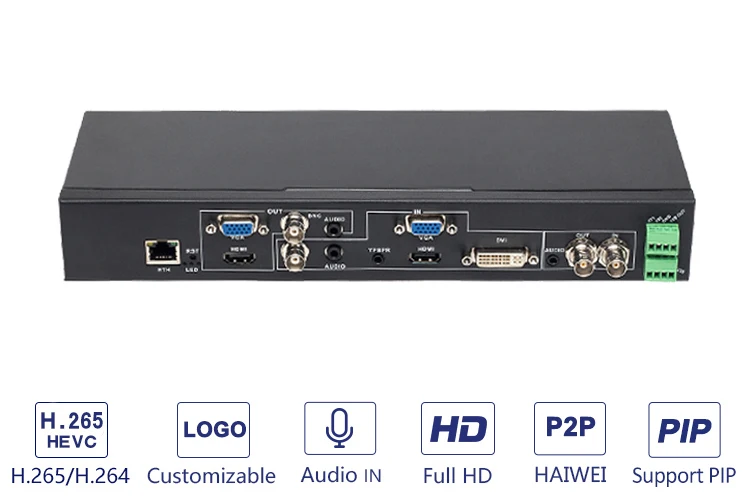

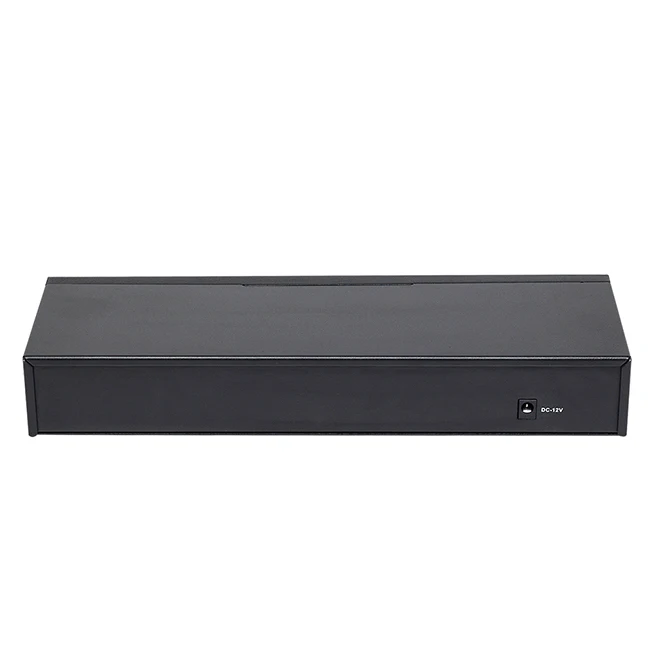

U10 H.265 HDMI/VGA/ CVBS/ YPBPR/ SDI/ DVI D IPTV Solution Digital TV Broadcast1080P IP Encoder Decoder Transcoder
- Category: >>>
- Supplier: Shenzhen Haiwei Vision Technology Co. Ltd.
Share on (62137108976):
Product Overview
Description
FULL HD IPTV TRANSCODER
Professional-Class Live Broadcast Transcoder
Model | U10 Full HD HDMI SDI VGA YPBPR SDI codec | ||||||
Encoding scheme | HEVC/ H.265, AVC H.264 MPEG-4 | ||||||
Profile | H.265 main profile, H.264 high/ main/ baseline profile | ||||||
Encoding Input | 1* HDMI/ VGA/ DVI-D/ YPBPR/ CVBS and 1* SDI | ||||||
Encoding Output | SRT/HTTP/ HLS/ RTSP over UDP TCP/ RTMP/UDP Unicast Multicast/ ON VIF/ RTP/ P-P | ||||||
Encoded resolution: | 320*180 to 1080P 60 | ||||||
Decoding Input | SRT/RTSP/ RTMP/ UDP/ HTTP/ HLS/ P-P/ SDK | ||||||
Decoding Output | HDMI/ VGA/ CVBS (NTSC/ PAL) | ||||||
Decoding Resolution | 3840*2160 30, 1080I 60/50, 1080P 60/50/30/25/24 720P 60, 576P 60, 480P 60 | ||||||
Transcoding | IP to IP (HTTP/ RTSP/ RTMP/ HLS/ UDP)H.264/ H.265 to H.265/ H.264 | ||||||
Network | 1* RJ45 Gigabyte full-duplex network. DHCP can be enabled by default. | ||||||
Mnagement | HTTP WEB GUI (80/ 90 );Haiwei video management platform;LiveX for Phone; Telnet, API, SDK ,Customized tools. I/O port, RS232 | ||||||
Accessibilities | VIdeo package: VLC/ FFMPEG Stream information rename (PMT/ transport ID/Stream ID) Image adapt (Noise/ sharpe/ filter/ contrast/ Bri/Hue ) | ||||||
1.Encoding scheme:HEVC/ H.265, AVC H.264 MPEG-4
2.Profile:H.265 main profile, H.264 high/ main/ baseline profile
3.Encoding Input:1* HDMI/ VGA/ DVI-D/ YPBPR/ CVBS and 1* SDI
4.Encoding Output :SRT/HTTP/ HLS/ RTSP over UDP TCP/ RTMP/UDP Unicast Multicast/ ON VIF/ RTP/ P-P
5.Encoded resolution:320*180 to 1080P 60
6.Decoding Input;SRT/RTSP/ RTMP/ UDP/ HTTP/ HLS/ P-P/ SDK
7.Decoding Output:HDMI/ VGA/ CVBS (NTSC/ PAL)
8.Decoding Resolution:3840*2160 30, 1080I 60/50, 1080P 60/50/30/25/24 720P 60, 576P 60, 480P 60
9.Transcoding:IP to IP (SRT/HTTP/ RTSP/ RTMP/ HLS/ UDP)H.264/ H.265 to H.265/ H.264
10.Network:1* RJ45 Gigabyte full-duplex network. DHCP can be enabled by default
11.Mnagement:HTTP WEB GUI (80/ 90 );Haiwei video management platform;LiveX for Phone; Telnet, API, SDK ,Customized tools. I/O port, RS232
12.Accessibilities:VIdeo package: VLC/ FFMPEG/Stream information rename (PMT/ transport ID/Stream ID)/Image adapt (Noise/ sharpe/ filter/ contrast/ Bri/Hue )

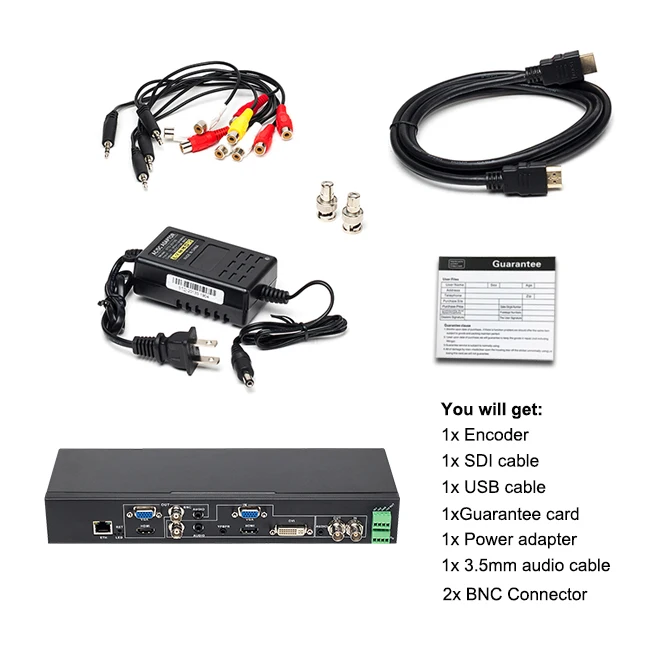

---You will get:
1 * encoder
1 * HDMI cable
1* CVBS cable (3.5MM)
1* YPBPR cable
2* BNC connector
1 * Power adapter
1 * 3.5mm audio cable
1 * Guarantee card
2.Profile:H.265 main profile, H.264 high/ main/ baseline profile
3.Encoding Input:1* HDMI/ VGA/ DVI-D/ YPBPR/ CVBS and 1* SDI
4.Encoding Output :SRT/HTTP/ HLS/ RTSP over UDP TCP/ RTMP/UDP Unicast Multicast/ ON VIF/ RTP/ P-P
5.Encoded resolution:320*180 to 1080P 60
6.Decoding Input;SRT/RTSP/ RTMP/ UDP/ HTTP/ HLS/ P-P/ SDK
7.Decoding Output:HDMI/ VGA/ CVBS (NTSC/ PAL)
8.Decoding Resolution:3840*2160 30, 1080I 60/50, 1080P 60/50/30/25/24 720P 60, 576P 60, 480P 60
9.Transcoding:IP to IP (SRT/HTTP/ RTSP/ RTMP/ HLS/ UDP)H.264/ H.265 to H.265/ H.264
10.Network:1* RJ45 Gigabyte full-duplex network. DHCP can be enabled by default
11.Mnagement:HTTP WEB GUI (80/ 90 );Haiwei video management platform;LiveX for Phone; Telnet, API, SDK ,Customized tools. I/O port, RS232
12.Accessibilities:VIdeo package: VLC/ FFMPEG/Stream information rename (PMT/ transport ID/Stream ID)/Image adapt (Noise/ sharpe/ filter/ contrast/ Bri/Hue )
---You will get:
1 * encoder
1 * HDMI cable
1* CVBS cable (3.5MM)
1* YPBPR cable
2* BNC connector
1 * Power adapter
1 * 3.5mm audio cable
1 * Guarantee card
Recommend Products

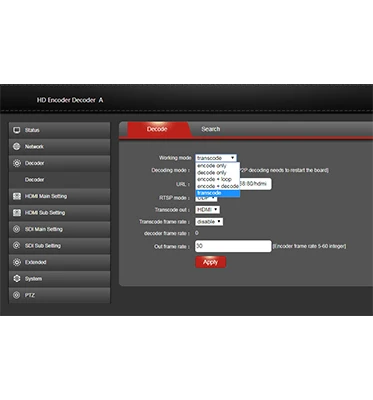

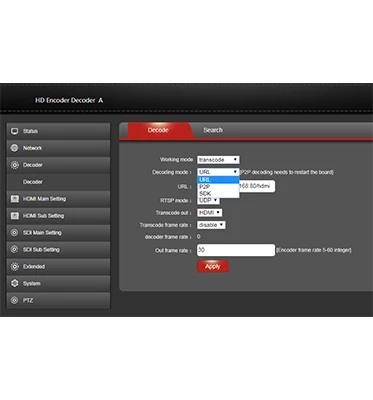

Support Transcoding Function
IP input, IP output, protocol, format, resolution, etc.

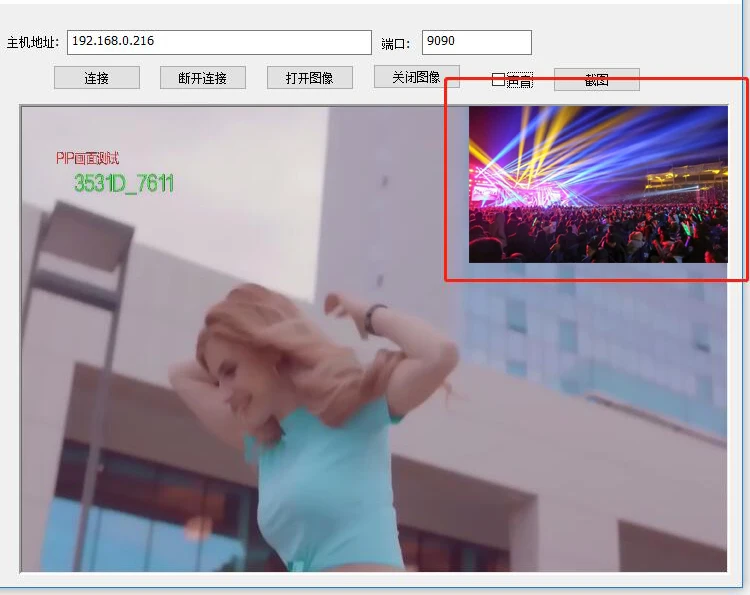

Support PIP Output
PIP size screen output resolution is optional, small screen display position can be customized

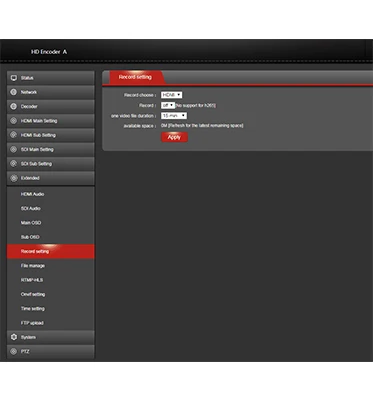

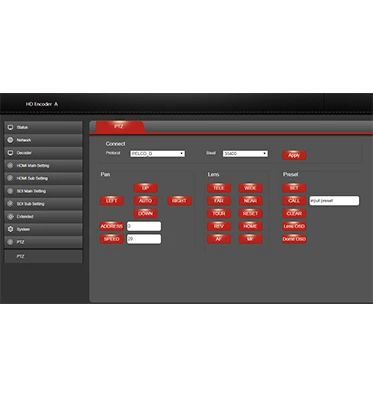

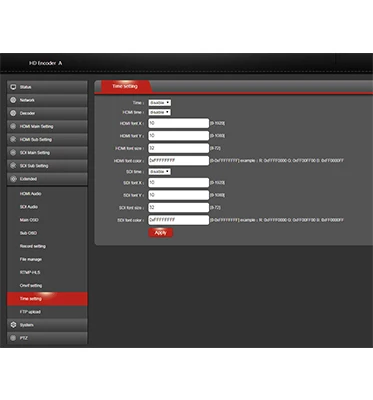

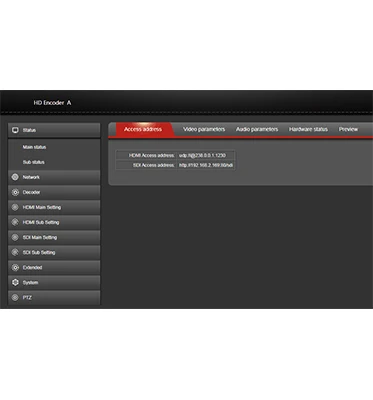

Web Interface
Support WEB passwords changing, WAN remote management(WEB) etc.
Five modes can boptional.
Support Most Live Streaming Platforms
Multi-protocol, multi-platform, all-round live marketing
Support SRT/HLS/RTSP/RTP/RTMP/ ON VIF, HTTP, UDP unicast, multicast and other protocols, as long as the live broadcast platform, support the above protocol, you can be broadcast
OSD（On-Screen Display）
About Haiwei
Haiwei is leading video streaming solutions provider in China, mainly for broadcast, webcaster, Multimedia platform, sports, IPTV operator, IPTV project for Hotel/ enterprises, military project, and city's construction. Haiwei provide SDK for integration project, can be tailored to each customer's unique market needs, and developed "IP finder", "Multi devices manager", "APP for smartphone" for different use.
FAQ
1.Q: How fast can I get the quotation?
A: We usually quote within 18 hours after we get your inquiry.
2.Q: Can we do LOGO-Customized product?
A: No problem. please contact with us and send your logo.Shipping within 5 working days when we received payment.
3.Q: Do you offer guarantee for the products?
A: We offer 24 month guarantee for the goods.
4.Q: When is your lead time?
A: 2-7 days after for production comfirmation of order
5.Q: Are you accept Paypal?
A: Yes, we are.
A: We usually quote within 18 hours after we get your inquiry.
2.Q: Can we do LOGO-Customized product?
A: No problem. please contact with us and send your logo.Shipping within 5 working days when we received payment.
3.Q: Do you offer guarantee for the products?
A: We offer 24 month guarantee for the goods.
4.Q: When is your lead time?
A: 2-7 days after for production comfirmation of order
5.Q: Are you accept Paypal?
A: Yes, we are.
