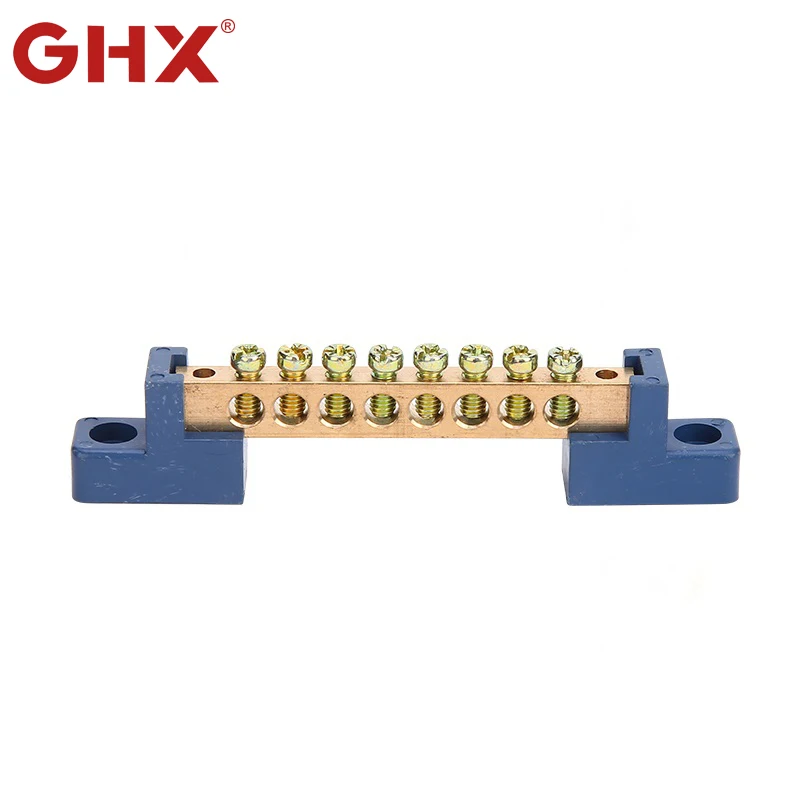

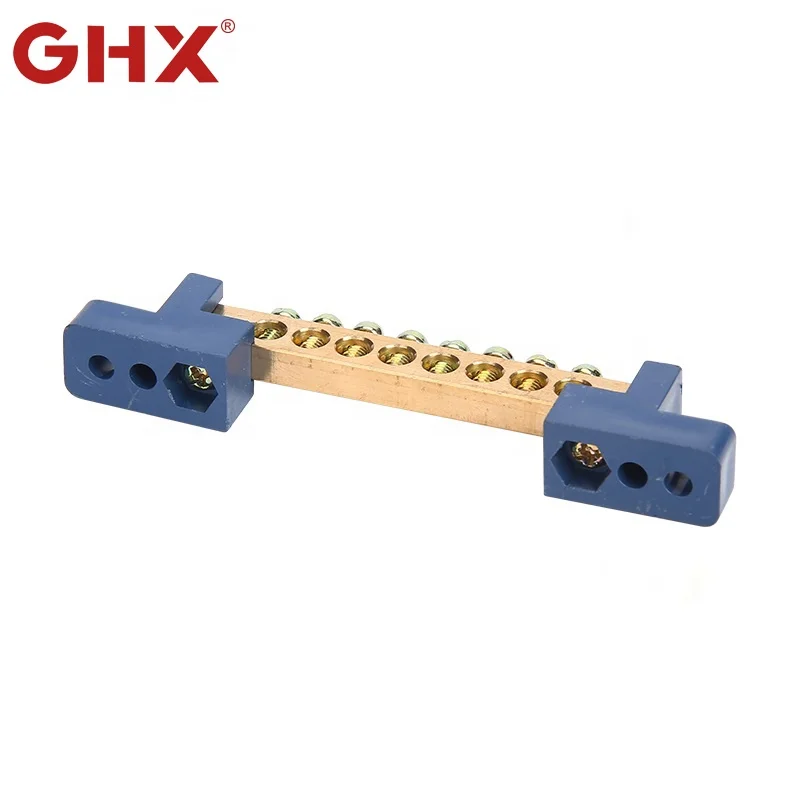

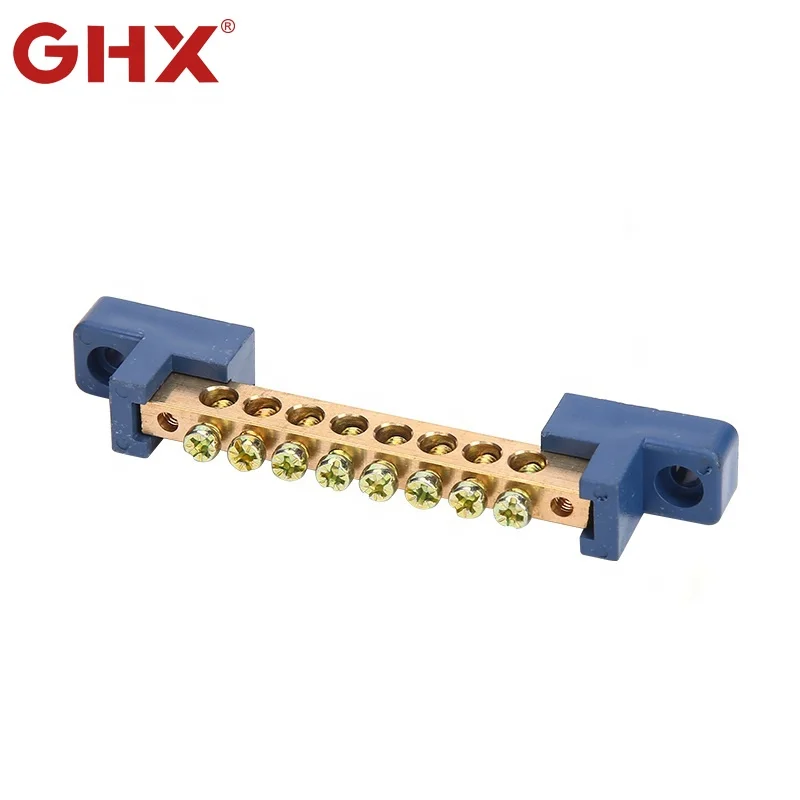

YL 004 Natural Screw Terminal 8P 6*9 With Blue Plastic Holder
- Category: Terminal Blocks >>>
- Supplier: Zhejiang Yuelong Electric Co. Ltd.
Share on (62137296632):
Product Overview
Description
Product Detail
---Material:ABS,good resist dissolve,good bounce impact fore.Working
Temperature:-20 degree celsius ~85 degree celsius.
PE,Polypropylene,inflaming retarding,low transparency,low rigidity,good bounce impact force.Working Termperature:-20 degree celsius ~65 degree celsius
---Color:Blue ang green,white,other color need customized.
---Drawing
---Dimension
| Holes | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Material |
| W*H | MM | ||||||||
| 6 | 6*9 | 53.5 | 85 | 72.5 | 22 | 12.5 | 5 | M4*7 | ABS |
| 7 | 6*9 | 60 | 91.5 | 79 | 22 | 12.5 | 5 | M4*7 | ABS |
| 8 | 6*9 | 66.5 | 98 | 85.5 | 22 | 12.5 | 5 | M4*7 | ABS |
| 10 | 6*9 | 79.5 | 111 | 98.5 | 22 | 12.5 | 5 | M4*7 | ABS |
| 12 | 6*9 | 92.5 | 124 | 111.5 | 22 | 12.5 | 5 | M4*7 | ABS |
| 6 | 8*12 | 66.5 | 95.5 | 82.5 | 26 | 12.5 | 6.5 | M5*10 | ABS |
| 7 | 8*12 | 74.5 | 103.5 | 90.5 | 26 | 12.5 | 6.5 | M5*10 | ABS |
| 8 | 8*12 | 82.5 | 111.5 | 98.5 | 26 | 12.5 | 6.5 | M5*10 | ABS |
| 10 | 8*12 | 98.5 | 127.5 | 114.5 | 26 | 12.5 | 6.5 | M5*10 | ABS |
| 12 | 8*12 | 114.5 | 143.5 | 130.5 | 26 | 12.5 | 6.5 | M5*10 | ABS |
