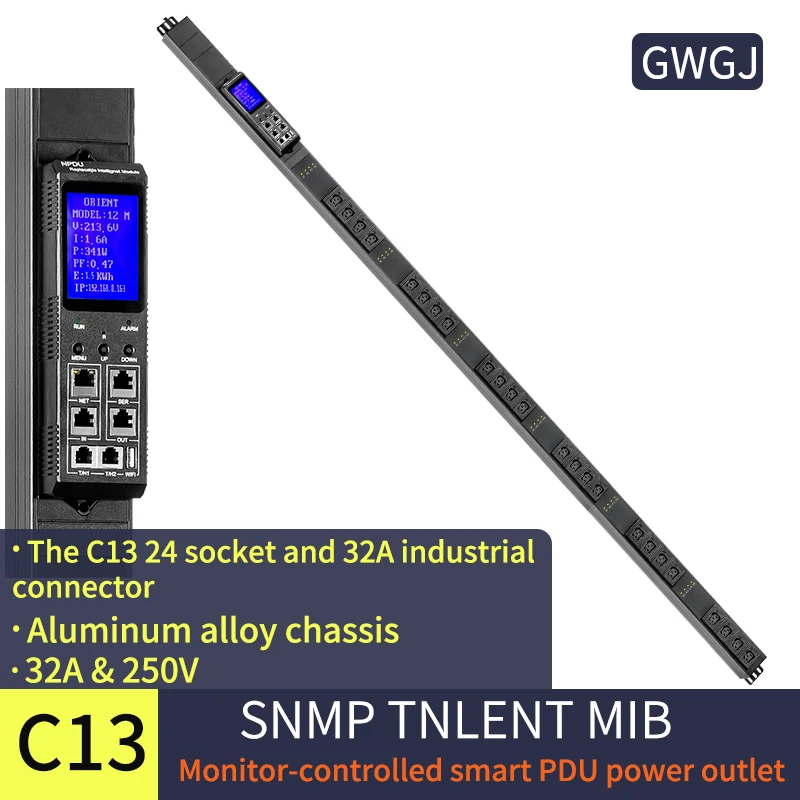

Smart PDU Cabinet Power Socket 24 Port C13 Jack Independent Switch HTTP SSH SNMP telnet 485MODBUS Protocol Monitoring Cascade
- Category: >>>
- Supplier: Shenzhen Terpress Technology Co. Ltd.
Share on (62137418987):
Product Overview
Description
Product Description

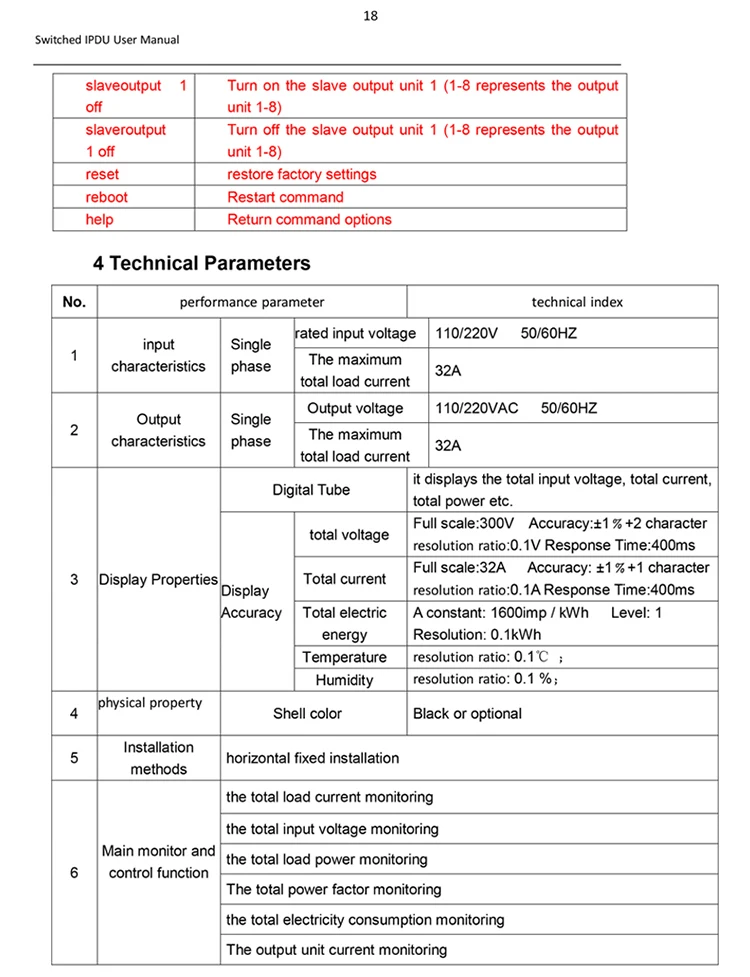

| No. | main function | functional description | explain | ||
| 1 | input characteristics | · rated input voltage | 110V/220V AC frequency 50/60 Hz; ( single phase) | ||
| 380V AC frequency 50/60 Hz;( three phase) | |||||
| 1. | Input terminal type | Standard configuration: industrial standard plug/connector. | |||
| 2. | Optional configuration: junction box. | ||||
| 3. | Cable specification | 16A:3×2.5mm²,32A:3×6.0mm²:( single phase) | |||
| 4. | 3*16A:5×2.5mm²,3*32A:5×6.0mm²;( three phase) | ||||
| 5. | Cable length | Standard: 2M; (length can also be customized) | |||
| 6. | Maximum total load current. | 16A,32A;( single phase) | |||
| 7. | 3*16A,3*32A;( three phase) | ||||
| 8. | overload protection | Total controlled single-pole circuit breaker;( single phase) | · Optional functions | ||
| 9. | Total control three-phase circuit breaker;( three phase) | ||||
| 2 | output characteristics | · Rated Output Voltage | 110/220VAC | ||
| 10. | Maximum total load current | 16A, 32A;( single phase) | |||
| 11. | 3*16A,3*32A;( three phase) | ||||
| 12. | Output socket type | ||||

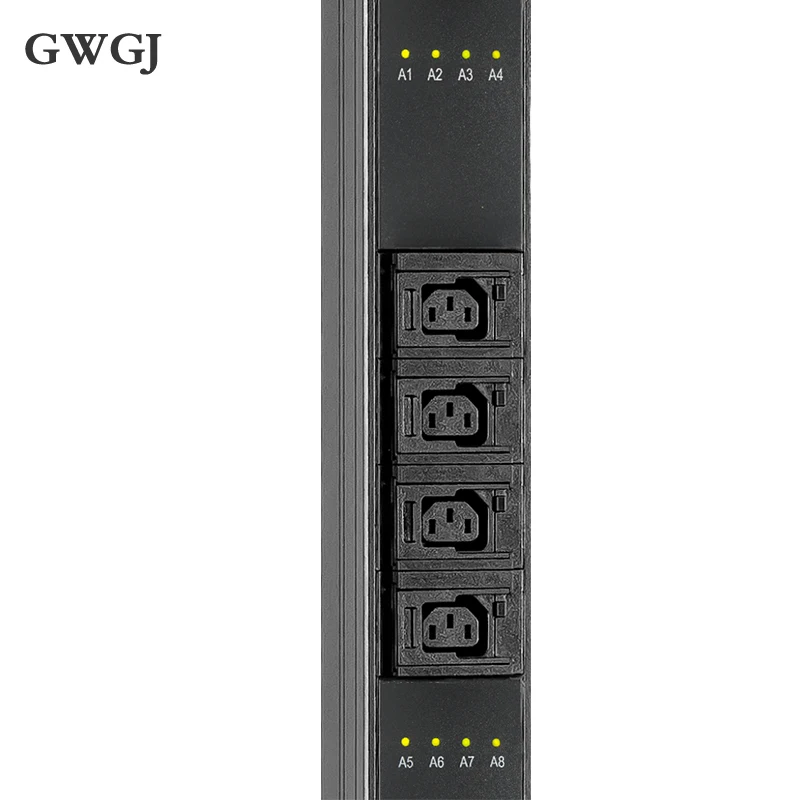

| Standard configuration: IEC320 C13 (all anti-loose structure) standard type socket; | |||||
| Selection and customization: the world's standard output socket; | |||||
| 13. | Output unit specification | I series:16,20,24,32outlets;( Total monitoring) | |||
| II series:16,20,24outlets;( individualMonitoring) | |||||
| IIIseries:16,20,24outlets;( individual control ) | |||||
| IVseries:16,20,24outlets;( individual monitoring and control) | |||||

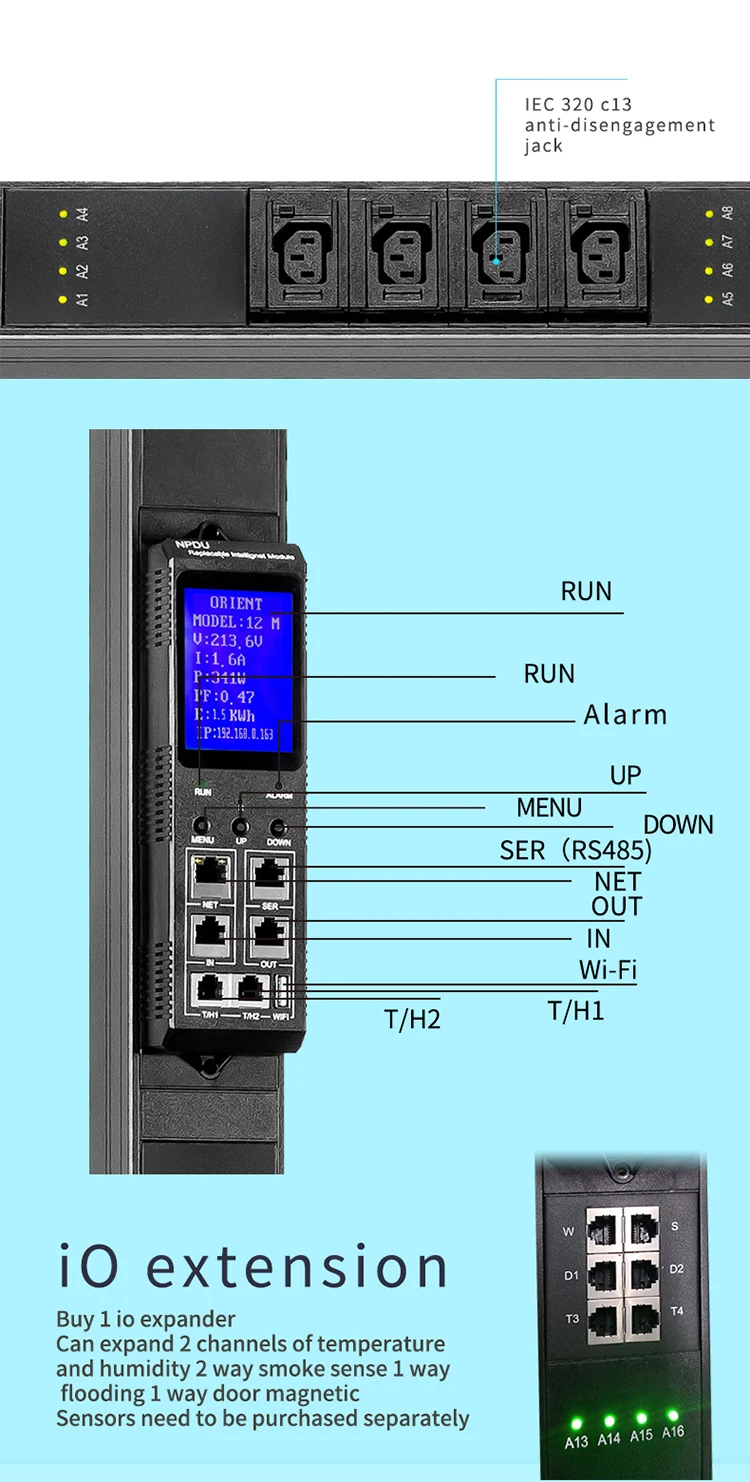

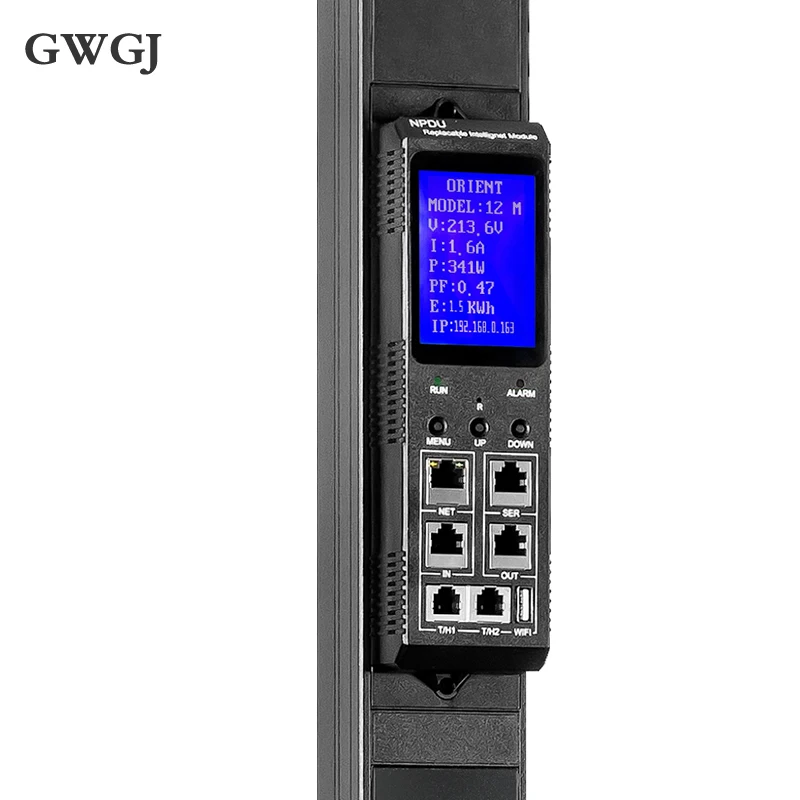

| 3 | · Display Properties | · main-control module | |||
| Blue or white LCD digital display; | |||||
| Can display total voltage, total/partial current, total power consumption, | |||||
| Total power factor, temperature/humidity, IP address, etc. | |||||
| · Measurement accuracy | total voltage | Full scale:300V Accuracy:±1+2 character | |||
| Resolution ratio:0.1V Response Time:400ms; | |||||
| total current | Full scale:32A Accuracy:±1+1 character | ||||
| resolution ratio:0.1A Response Time:400ms; | |||||
| · total electric energy | A constant:1600imp/kWh Level:1 | ||||
| resolution ratio: 0.1kWh; | |||||
| · unit current | Full scale:Accuracy:±1+1 character | ||||
| resolution ratio:0.1A Response Time:400ms; | |||||

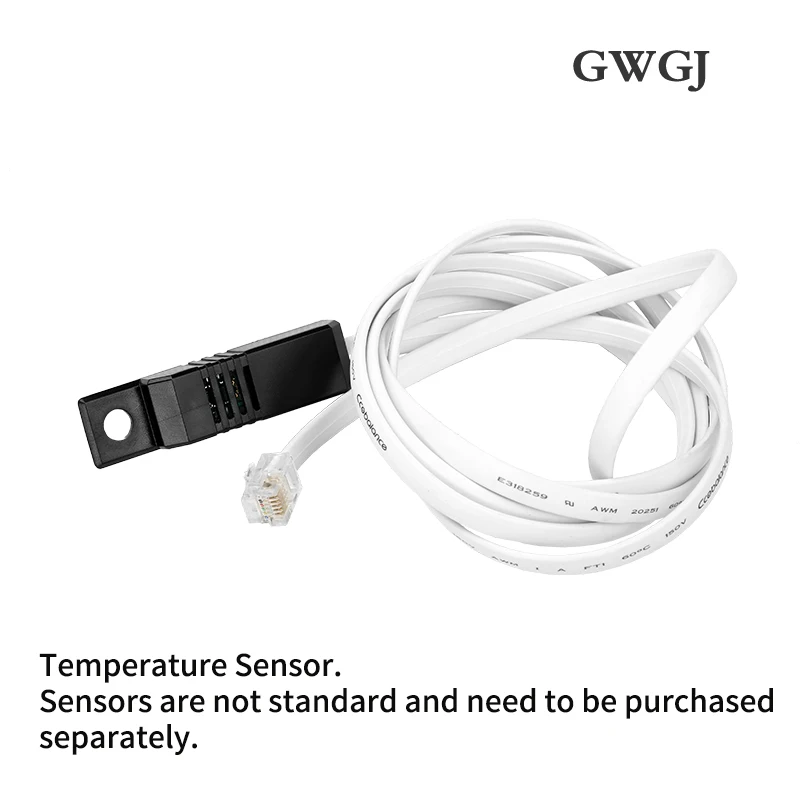

| temperature | resolution ratio: 0.1℃ ; | ||||
| humidity | resolution ratio: 0.1 ; | ||||
| 4 | environment | operating temperature | 0℃~55℃; | ||
| relative humidity | 10~90; | ||||
| storage temperature | -20℃ ~ +70℃; | ||||
