Manufacture price 4d portable color doppler ultrasound

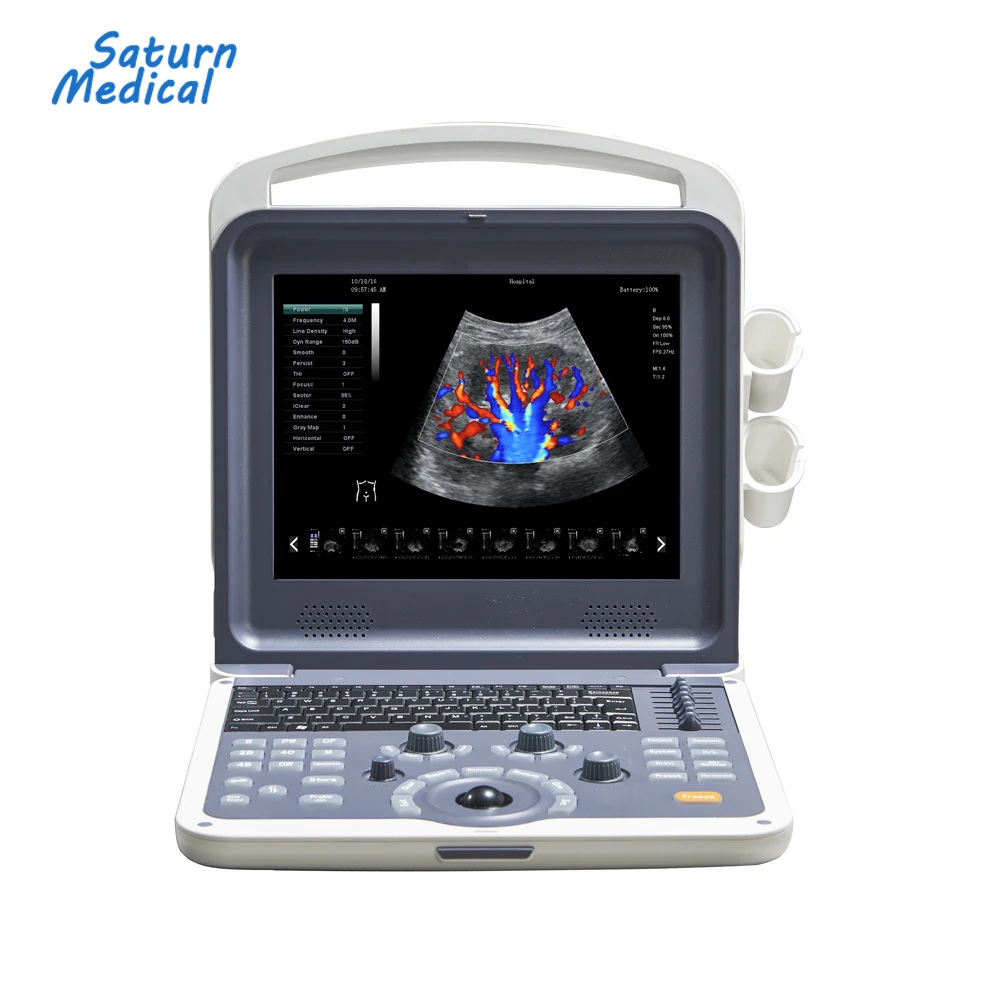

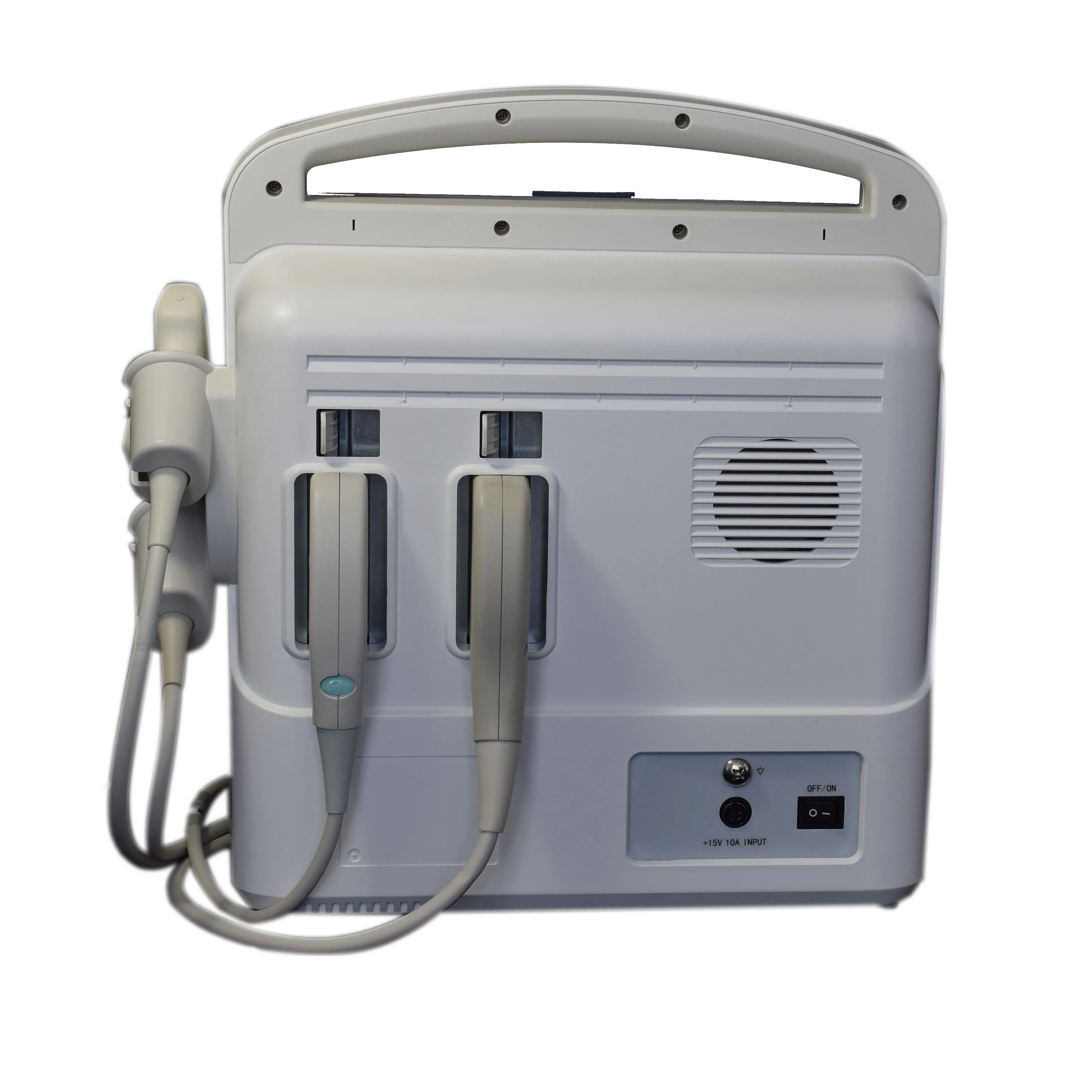

Appearance

 Smart, compact  and clamshell design

.12 inch LED monitor

.Backlit operation panel, 8TGC

.Floating keyboard

.Two active probe connectors

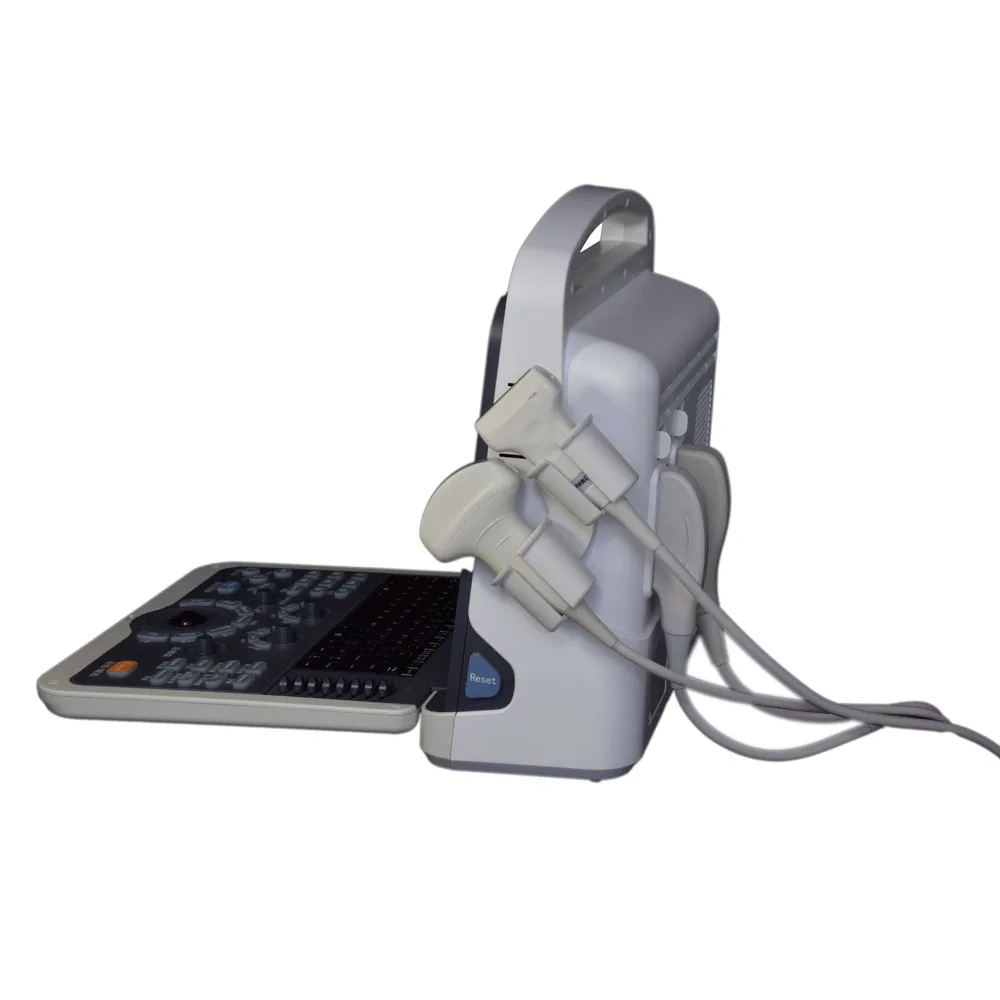

.Two probe holders

Probe

Transducer Types

.3.5Mhz convex probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)

.7.5Mhz linear probe (6.0/ 6.5/ 7.5/ 10.0/ 12.0Mhz)

.3.5Mhz micro convex probe (2.0/ 2.5/ 3.5/4.5/ 5.0Mhz)

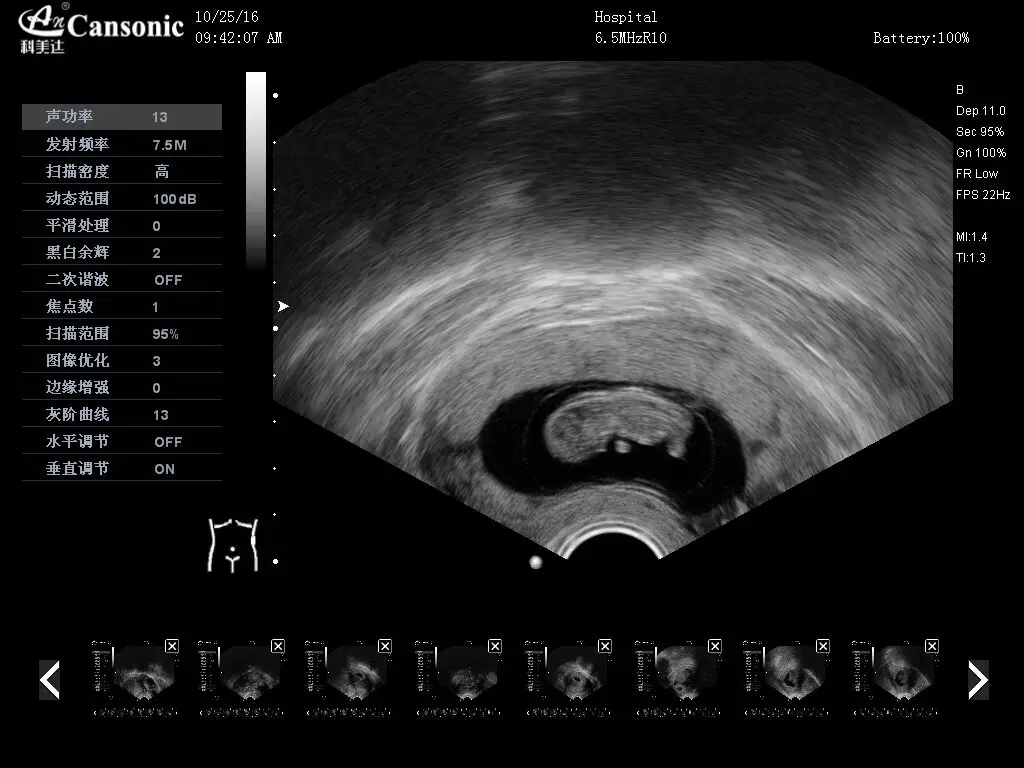

.6.5Mhz transvaginal probe  (5.0/ 6.0/ 6.5/ 7.5/ 9.0Mhz)

.3.5Mhz phased array probe (2.1/ 3.0/ 3.5/ 4.0/ 5.0Mhz)

.4D volume probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)

Applications

.Abdomen, Obstetrics, Gynecology, Pediatrics,Small parts, Artery,  Superficial organ, Orthopedics, Cardiology, Musculoskeletal, Vascular, etc

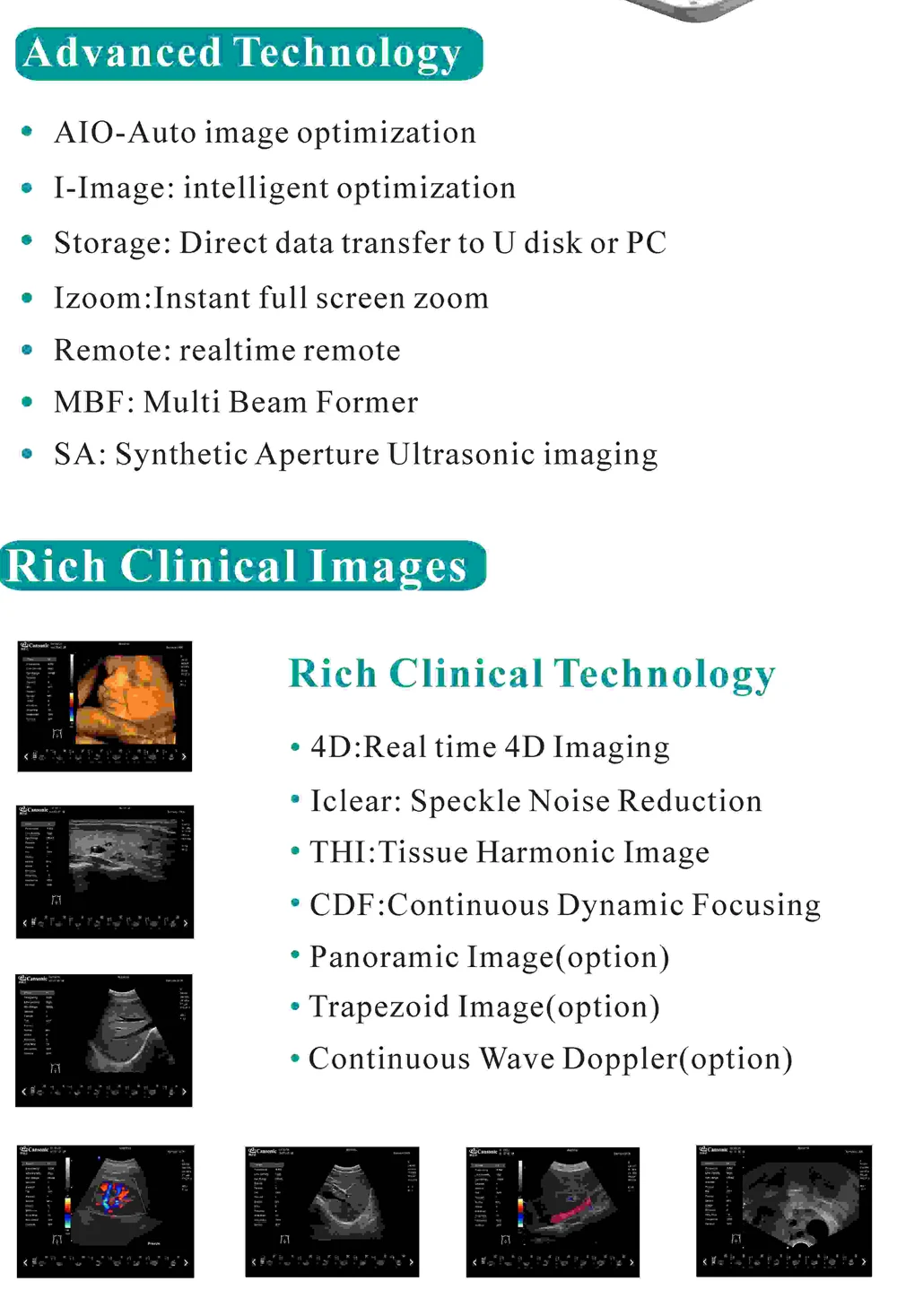

Function

.Auto Image Optimization

.Tissue Harmonic imaging

.iClear (Speckle Noise Reduction)

.iBeam (Spatial Compound Image)

.iZoom

.PIHI (Pulse-Inverse Harmonics Imaging)

.SA (Synthetic Aperture ultrasonic Imaging)

.Panoramic Image  (Option)

.Trapezoid Image (Option)

.Continuous Wave Doppler(Option)

Display mode

.B, B|B,4B, B|M,M,B|D,PW,B|PW, CF

.Duplex/Triplex mode

.CW (option)

.4D mode (option)

Zoom

.Real time zooming

- 10 Steps:  ×1.0, ×2.0, ×3.0, ×4.0, ×5.0, ×6.0, ×7.0, ×8.0, ×9.0, ×10.0

.Selectable zooming position

Focus

.Continuous dynamic focus

.1~16 selectable transmit focus

.Acoustic lens focus

.1, 2, 3, 4 focus

Memory

 Cine memory

.B mode

.M mode

.SSD (Solid State Disk) 64G

Application:

Abdomen

Urology

Gynecology

Obstetrics

Small parts

Musculoskeletal

Peripheral vascular

Cardiology

…

Physical Features

Connectivity

.Video out port

.DVI out port

.VGA out port

.2  USB port

.DICOM 3.0

Dimension

.Gross dimension:

510 mm X 500 mm X 330mm

.Net dimension:

330mm X 150 mm X 380mm

Weight

.Gross weight

12 kg

.Net weight

7 kg

Power Requirements

.Voltage: AC 100V to 240V

.Frequency: 47~63Hz

.Rated Power: ≤120VA

Operation Conditions

.Ambient temperature: 0℃to +40℃

.Relative humidity: 38%  to 85%

.Atmospheric Pressure: 700hPa to 1060hPa

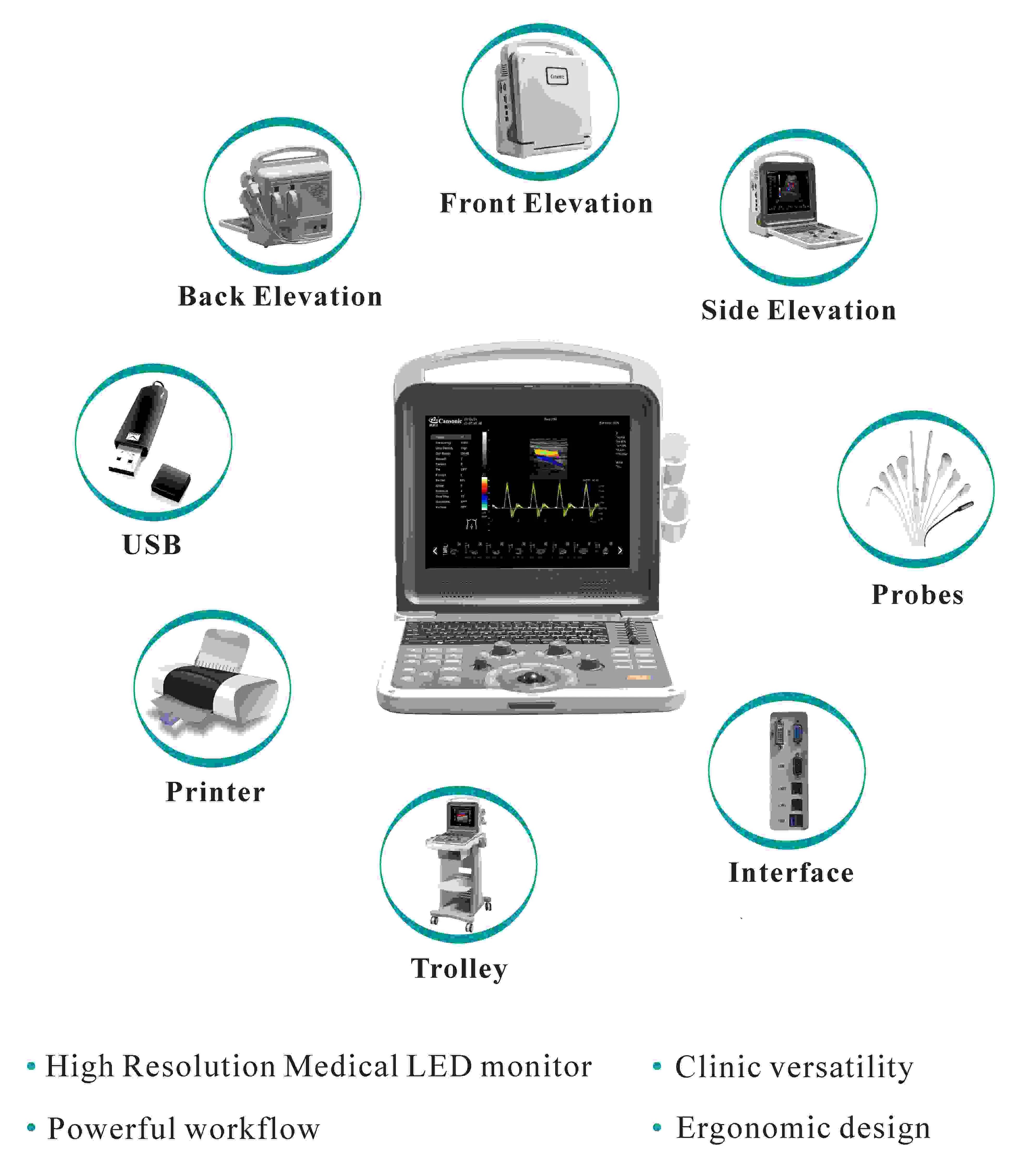

Software & Accessories

Standard Accessories

.Power Cable

.Operation Manual

.System Recovery U Disc

.Built in Li-ion battery

Optional Accessories

.B/W or color Video printer

.LaserJet or inkjet printer

.Trolley

.Aluminum case

.Biopsy guide
