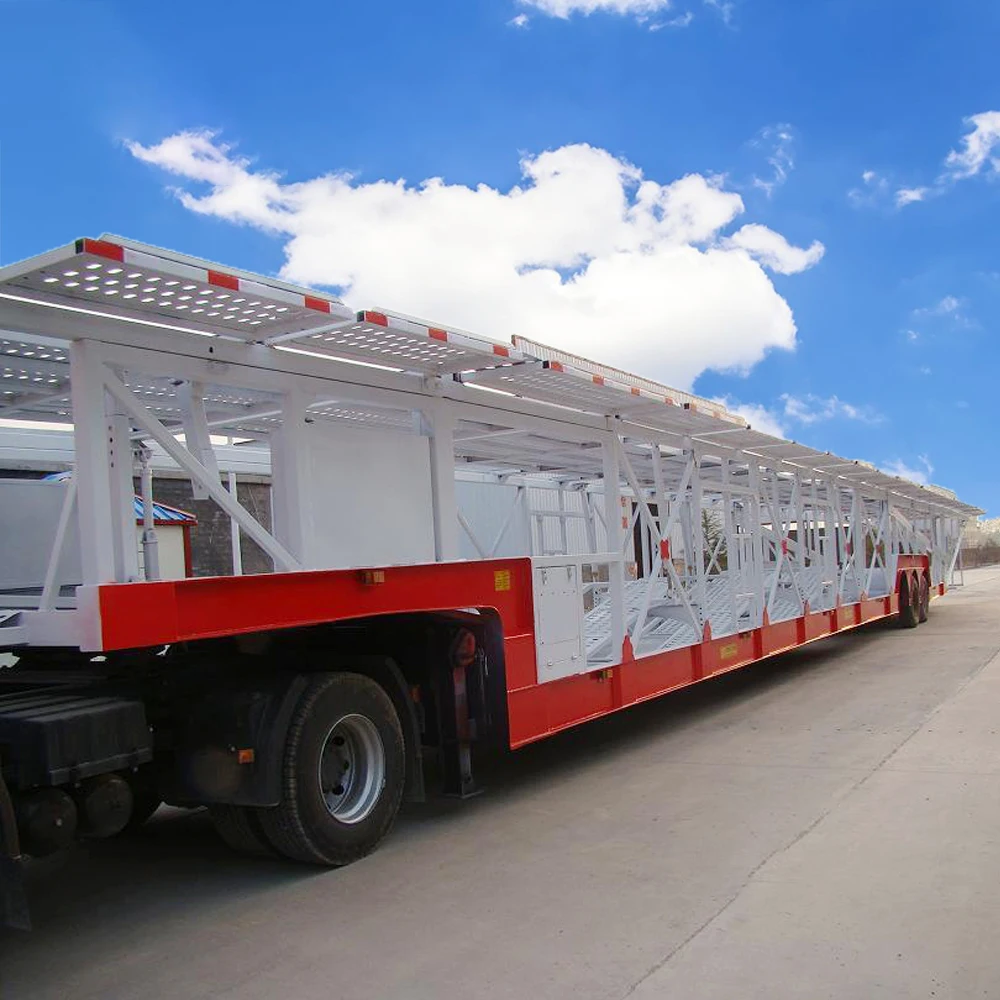

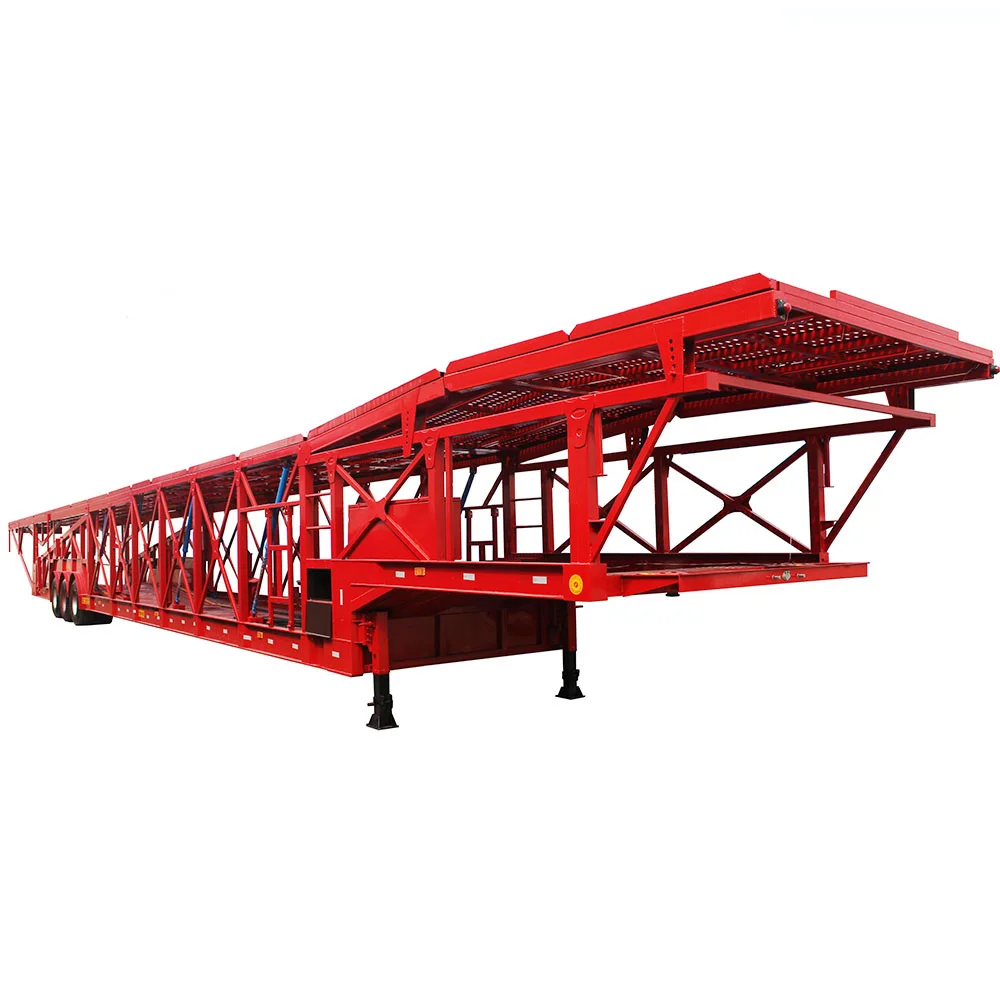

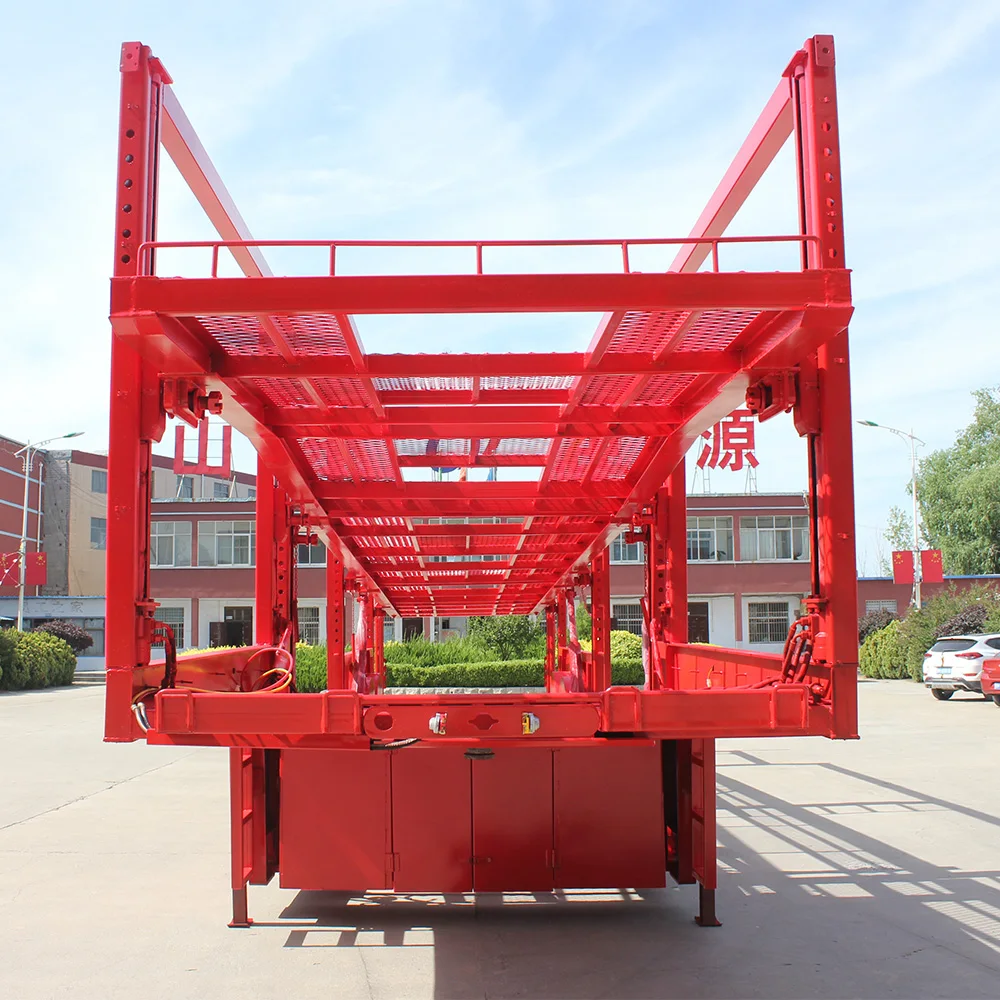

Manufacturer 2/3 axles 6 8 cars transport car carrier trailer car carrier trailer self loading for sale
- Category: Car Trailers >>>
- Supplier: Qingdao Juyuan International Trading Co. Ltd.
Share on (62137536674):
Product Overview
Description
Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more than 20 years of production experience serve for you —AOTONG

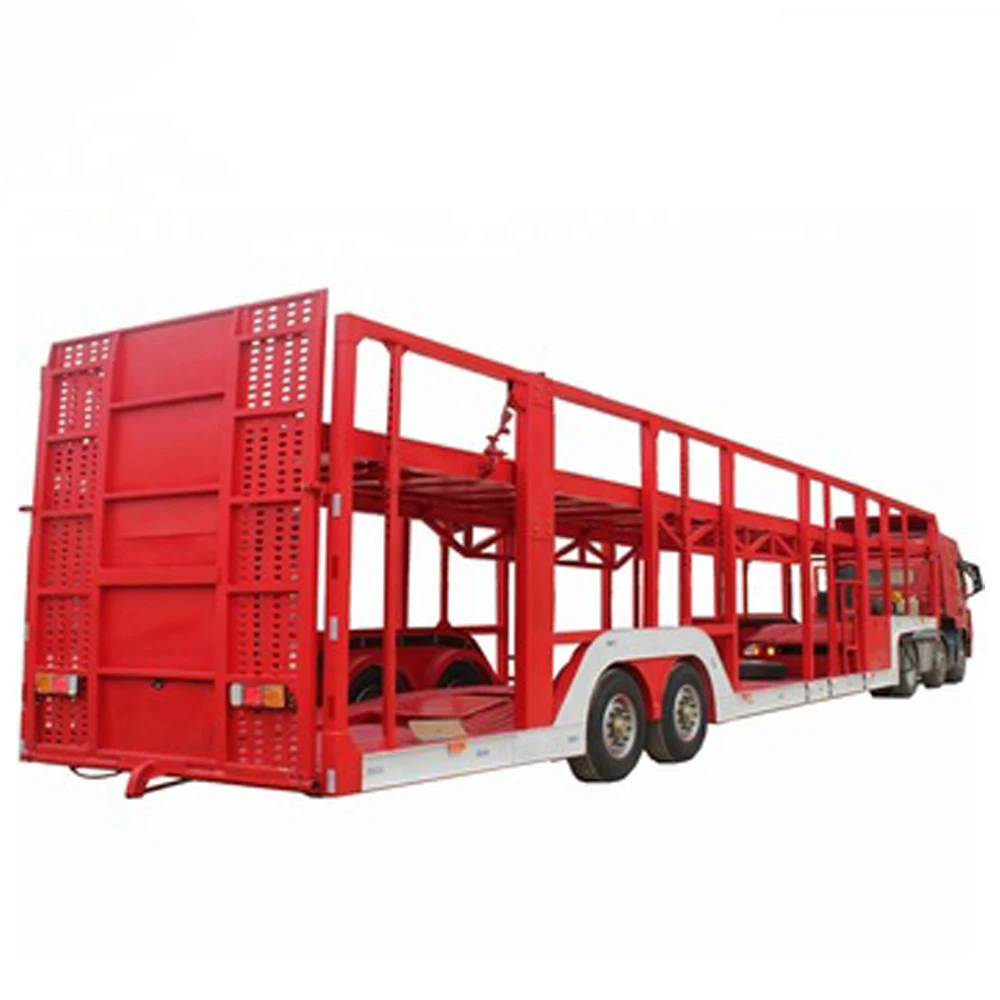

Cars Transportation Hydraulic Loading Truck Semi Trailer | ||||||||
Size | Axle No | Rating Capacity | Tire Qty | Tire Model | ||||
6 Cars Loading | 2 Axles | 50Tons | 8 sets | 825R20 | ||||
10 Cars Loading | 3 Axles | 60-70Tons | 12sets | 10.00R20 | ||||
More than 10 cars | 4 Axles | 80Tons | 16sets | 11.00R20 | ||||
Rear tread(mm) | 1840/1840 | |||||||

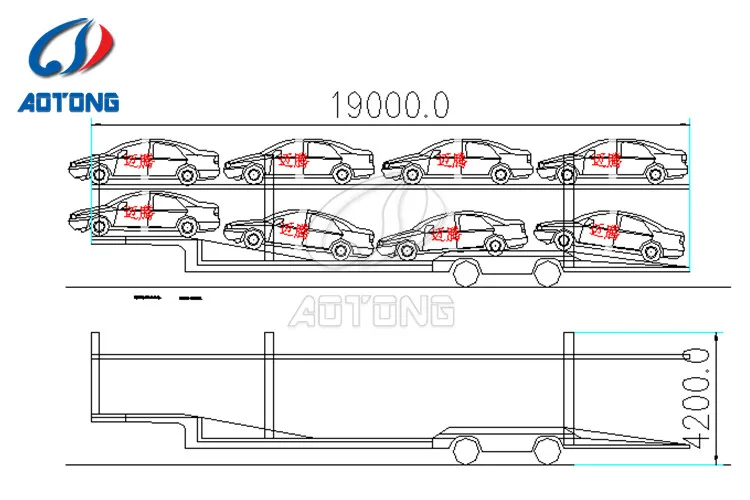

Outside Dimension L×W×H | 15800-21000x2400x3000 mm | |||||||

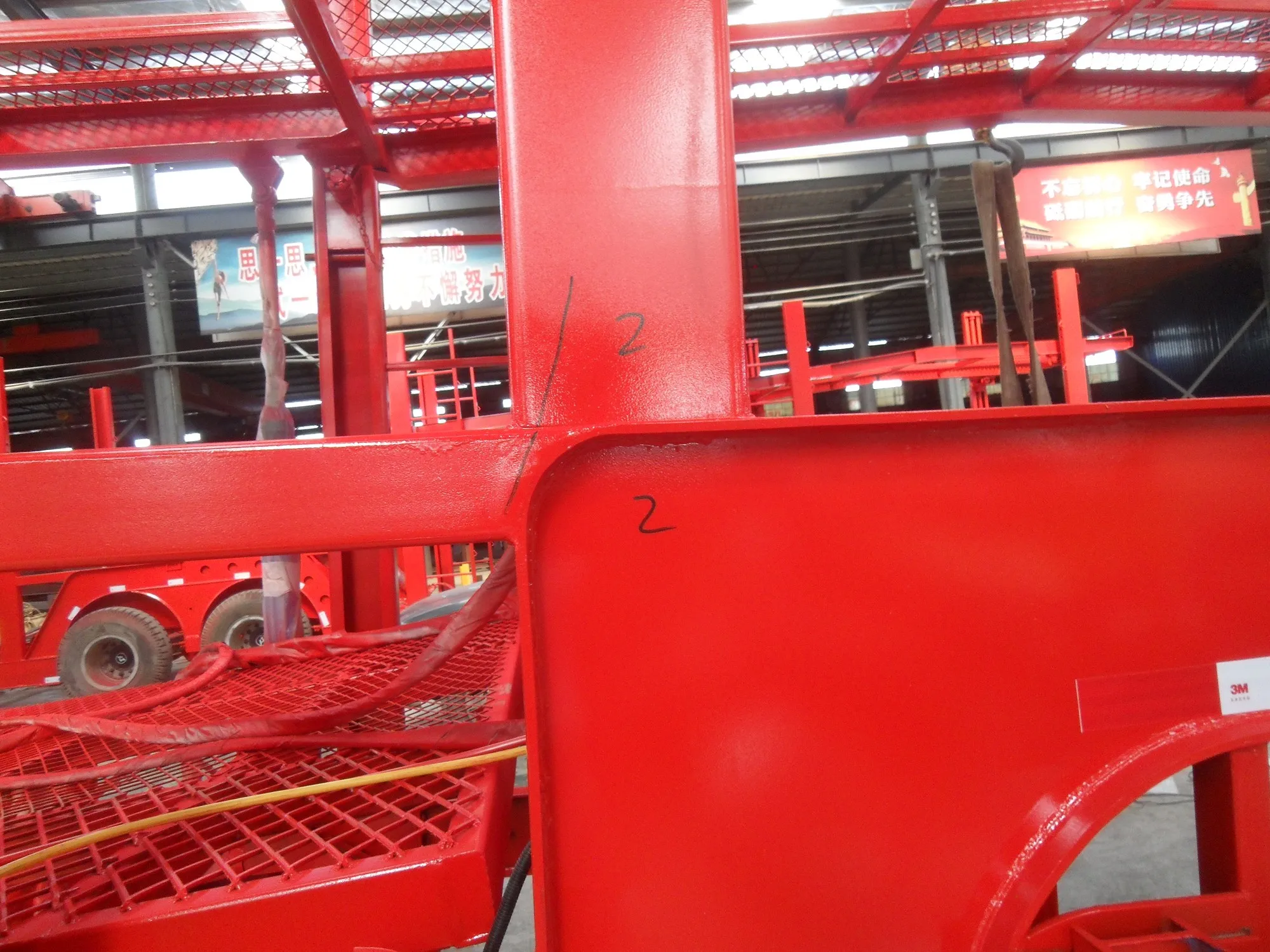

Main Frame | Q345B manganese plates, automatic submerged arc welded | |||||||

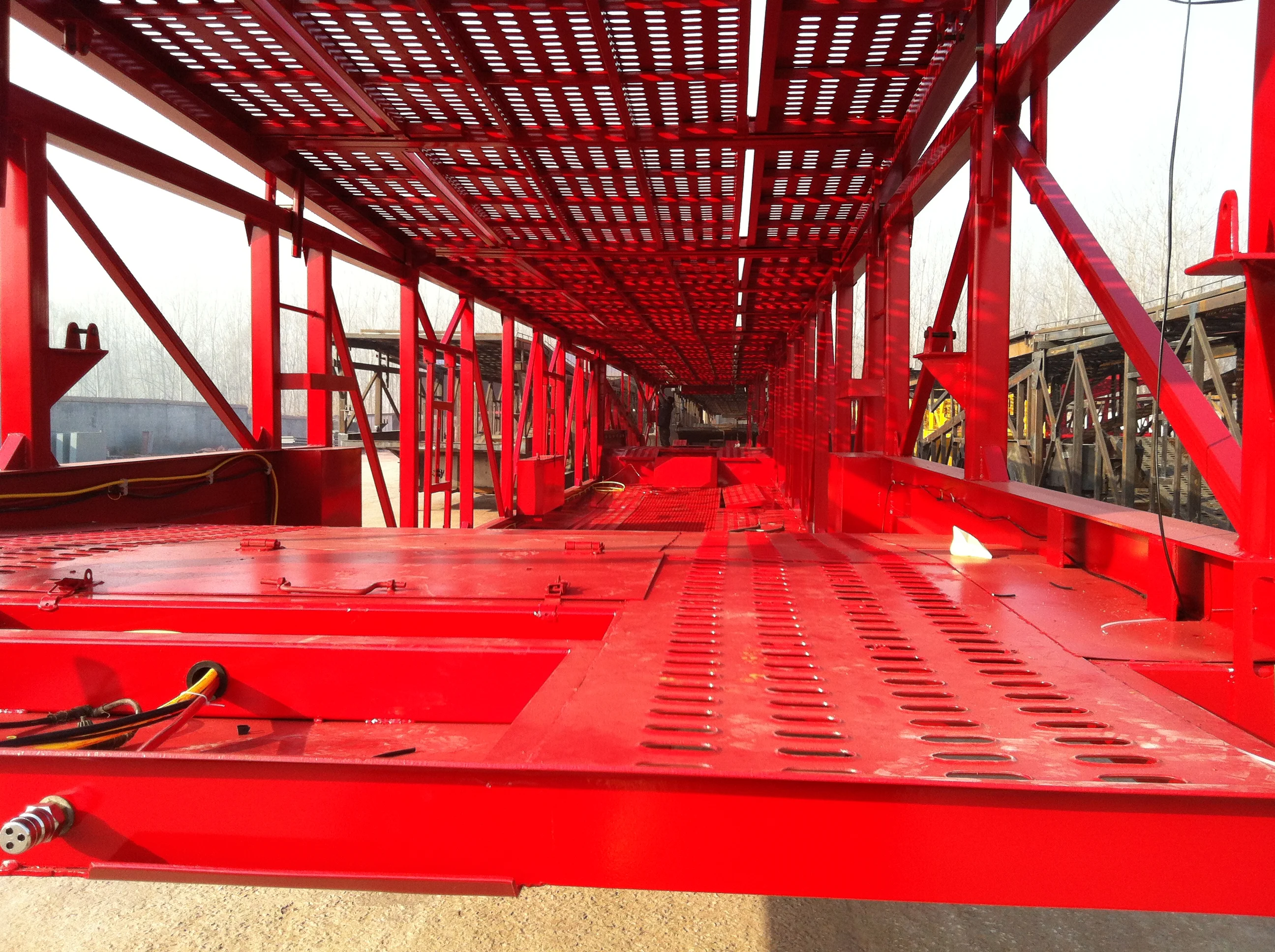

Floor | Steel Sheet 3mm thickness or diamond plate | |||||||
Suspension | Steel leaf spring suspension system | |||||||
Rated load | 30-50 T | |||||||
Pin Size | 2'(50mm) and 3.5'(90mm) inter-changeable Pin | |||||||
Spare Wheel Carrier | One set of spare wheel carrier including a riser. | |||||||
Braking System | 2-Line compressed air brake system on all wheels with additional parking brake. | |||||||
Brake Air Chamber | Automatic Air Chambers | |||||||
Electrical System | 1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness) | |||||||
Accessory | One tooling box with a set of standard trailer tool | |||||||
Landing gear | Capacity of 28ton,factory brand | |||||||
Lights System | LED electrical system to international standards includes taillights, sidelights and direction indicators. | |||||||
Loading Capacity | Two floors, | |||||||

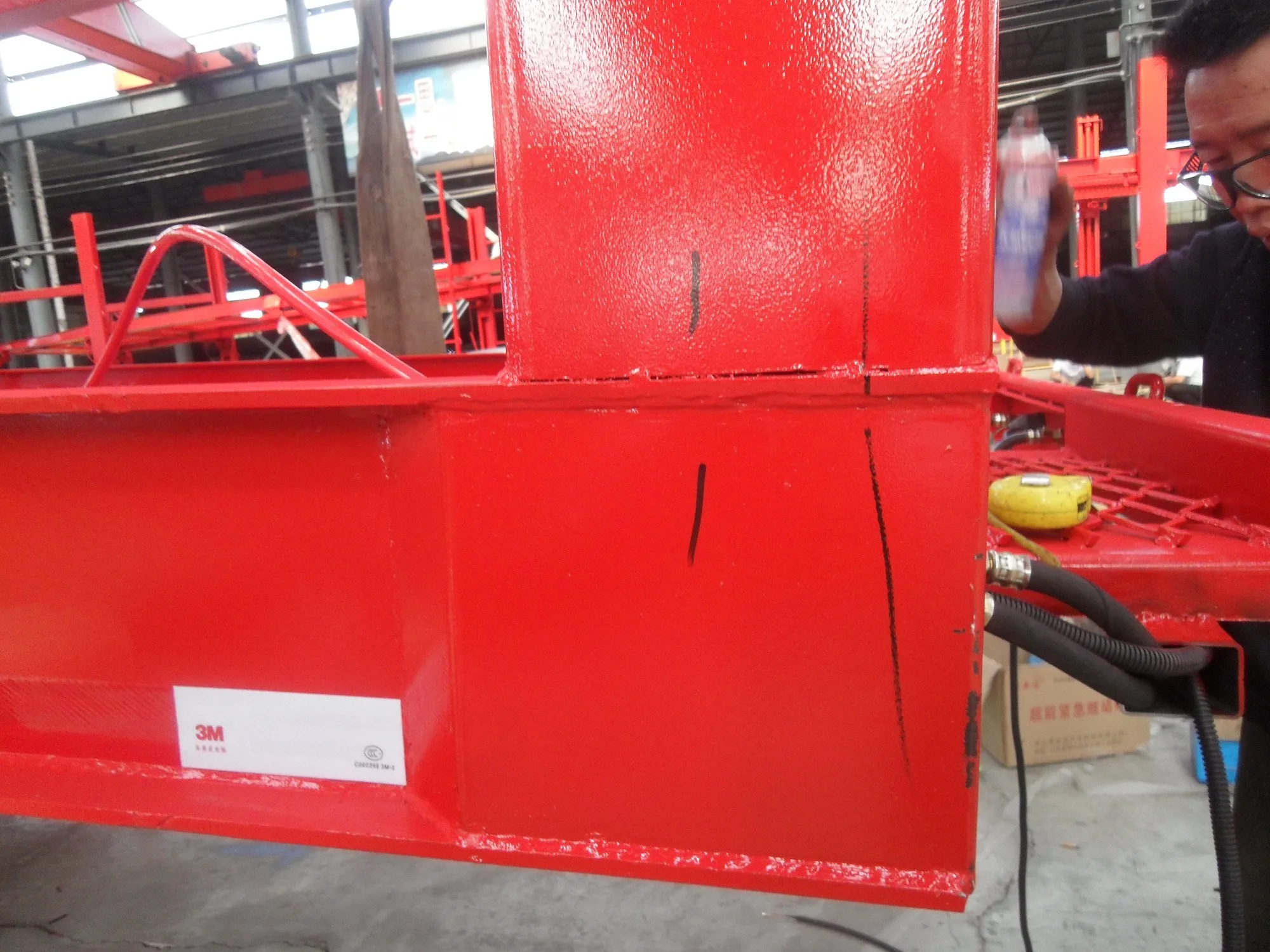

AOTONG trailer can satisfy the concentrated force, the anti bump and the distortion resistance.
AOTONG make sure that semi trailer can meet load requirements on different kind of roads and has a long service life.

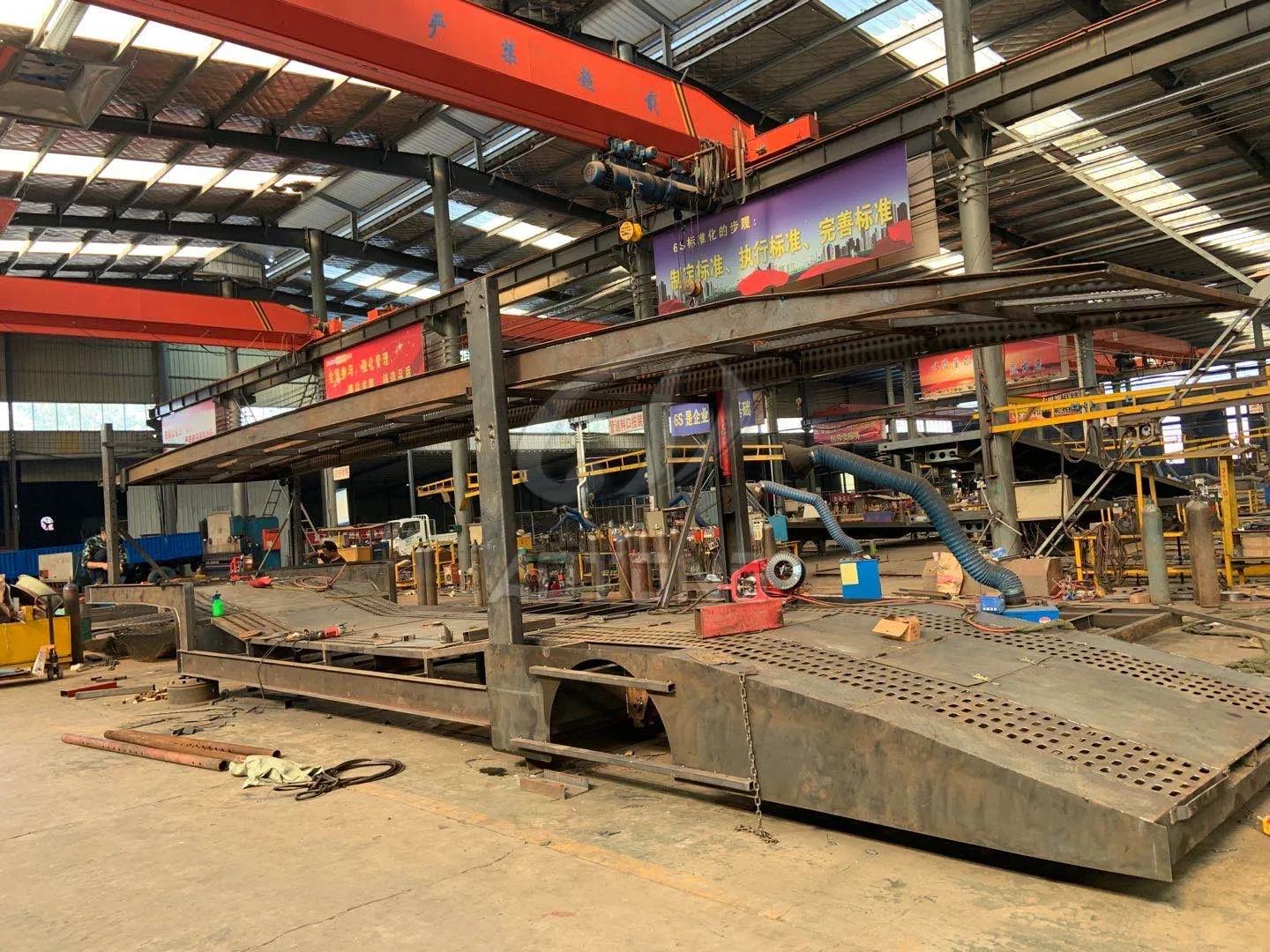

We start from every detail, carefully craft to customize your high-quality semi trailer.
Excellent design ability
We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！
Click for your own design！
Related Products
We also have rich production experience in the following models.
If this item is not what you like, then we suggest these items：
Click to get the models that have been shipped to your country！
single axle car carrier trailer
2 axles car carrier trailer
3 axles car carrier trailer
4 axles car carrier trailer

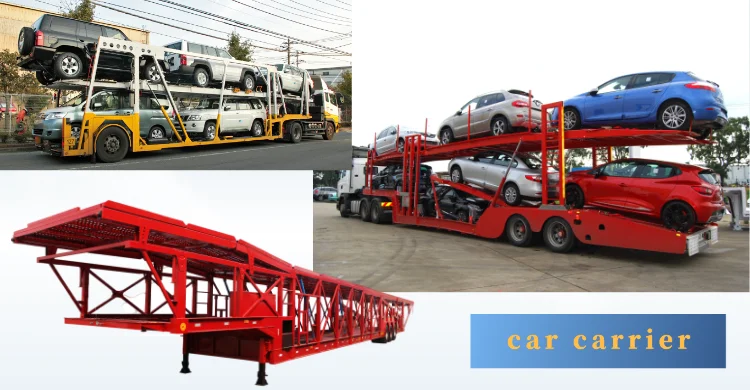

car carrier trailer
car carrier with detachable sidewall
Packing&Shipping
In nude,Polish with water wax before shipment
1. By 40ft/45ft/40fr container

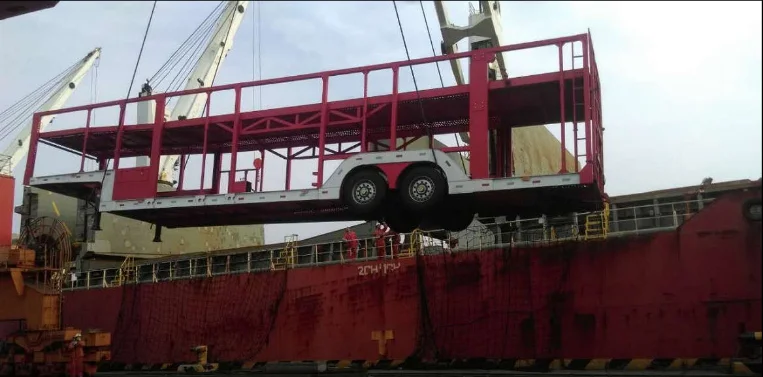

2. By bulk /roro ship
3. As your requirments.
Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.
High quality painting and professional transportation ensure good condition of goods.
