pakistan electric hoist 3 ton electric harga wire rope hoists crane

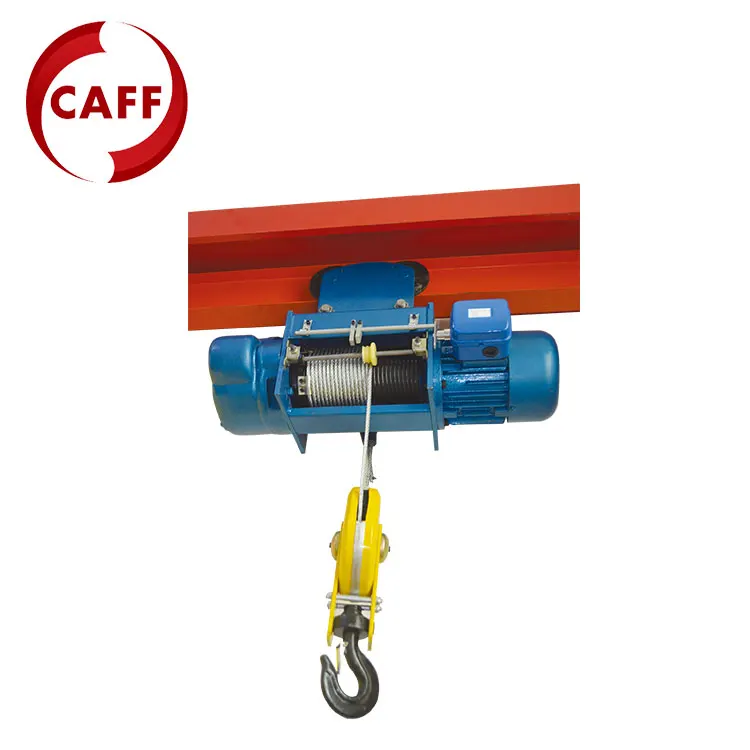

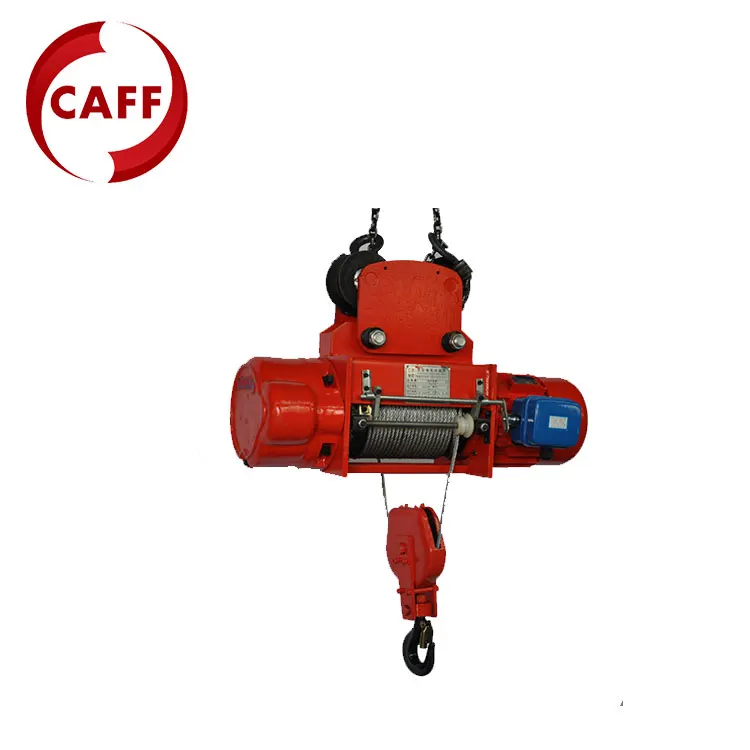

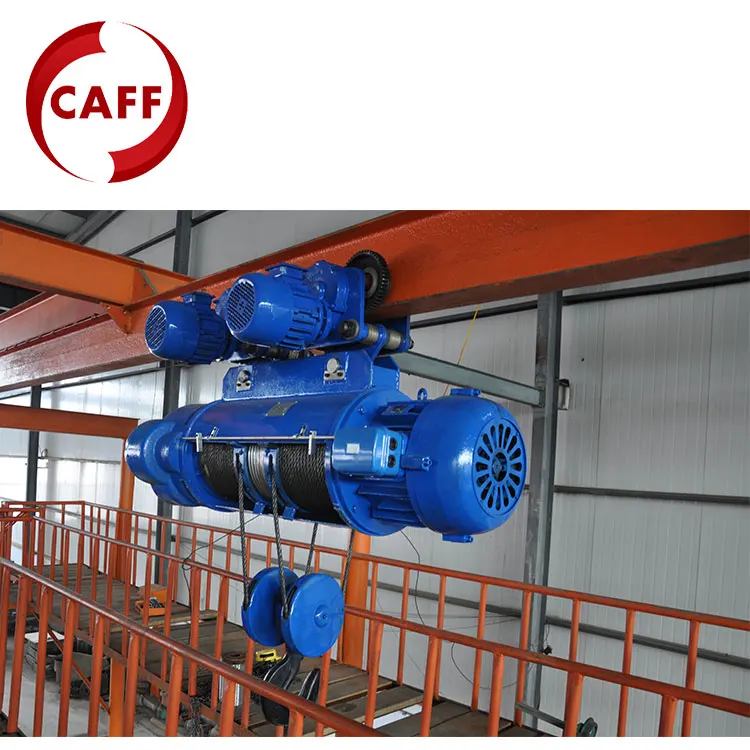

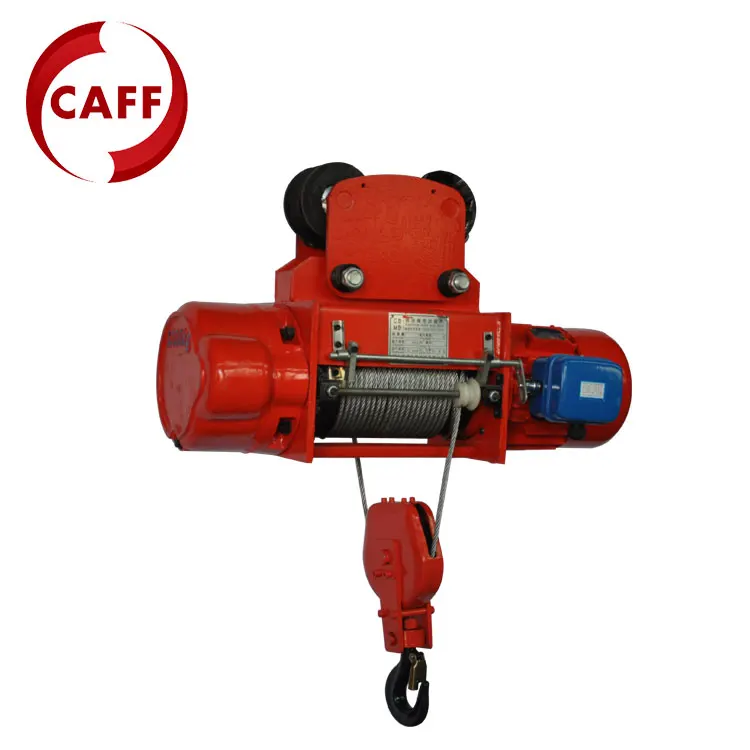

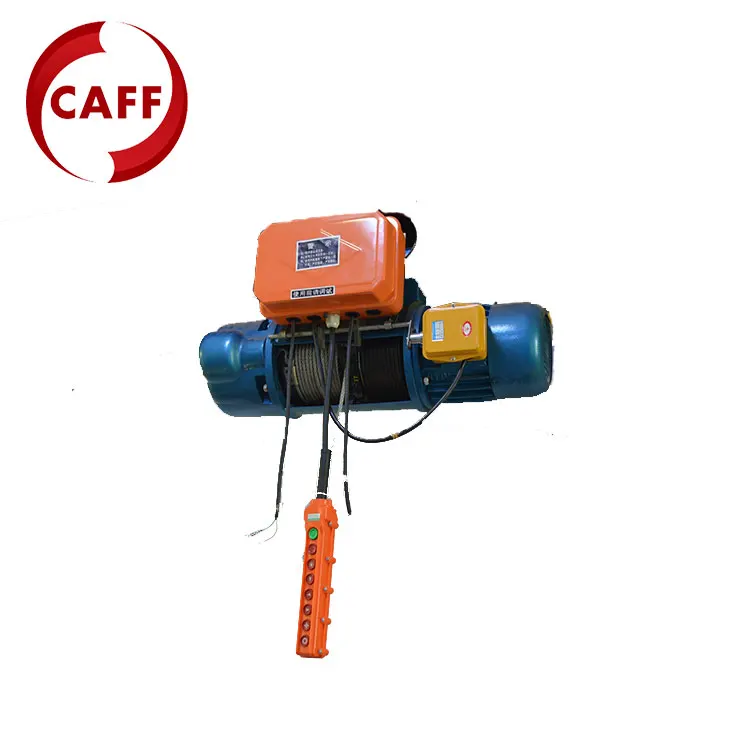

The electric wire rope hoist model CD and MD have the features of compact, light, small-size shape and smooth operation. It can be used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double girder crane, the cantilever crane and the gantry crane. The electric hoist model MD1 with double lifting speed should be used in cases where the hoist model CD1 with single speed cannot meet the requirements for fine adjusting during precision operations.

Type			CD1					CD/MD	20-12D
Loading Capacity		T	1	2	3	5	10	16	20
Lifting Height		M	6~30				9~30	9~18	12
Lifting Speed		M/min	8 (8/0.8)				7 (7/0.7)	3.5 (3.5/0.35)	5
Running Speed (M/min)		M/min	20(30)				20(30)	18	20
Structure of Lifting Wire Rope			6x37+1FC				6x37+1FC	6x37+1FC	6x37+1FC
Diameter of Lifting Wire Rope		mm	7.4	11	13	15.5	15.5	17.5	21.5
Lifting Motor	Power	kW	1.5 0.21/1.5	3 0.4/3	4.5 0.4/4.5	7.5 0.8/7.5	13 1.5/13	13 1.5/13	18.5
	Rotation	rpm	1380				1380	1380	1380
	Phases		3				3	3	3
	Voltage	V	380				380	380	380
	Current	A	4.3 0.72/4.3	7.6 1.25/7.6	11 2.4/11	18 24/7.11	30 4.3/30	30 4.3/30	41.7
	Frequency	Hz	50				50	50	50
	Power	kW	0.2	0.4	0.4	0.8	0.8x2pcs	0.8x2pcs	0.8x2pcs
Running Motor	Rotation	rpm	1380				1380	1380	1380
	Phases		3				3	3	3
	Voltage	V	380				380	380	380
	Current	A	0.72	1.25	1.25	2.4	2.4x2pcs	2.4x2pcs	2.4x2pcs
	Frequency	Hz	50				50	50	50
Working Rank			M3	M3 Middle Rank	M3 Middle Rank	M3 Middle Rank	M3 Middle Rank	M2 Light Rank
