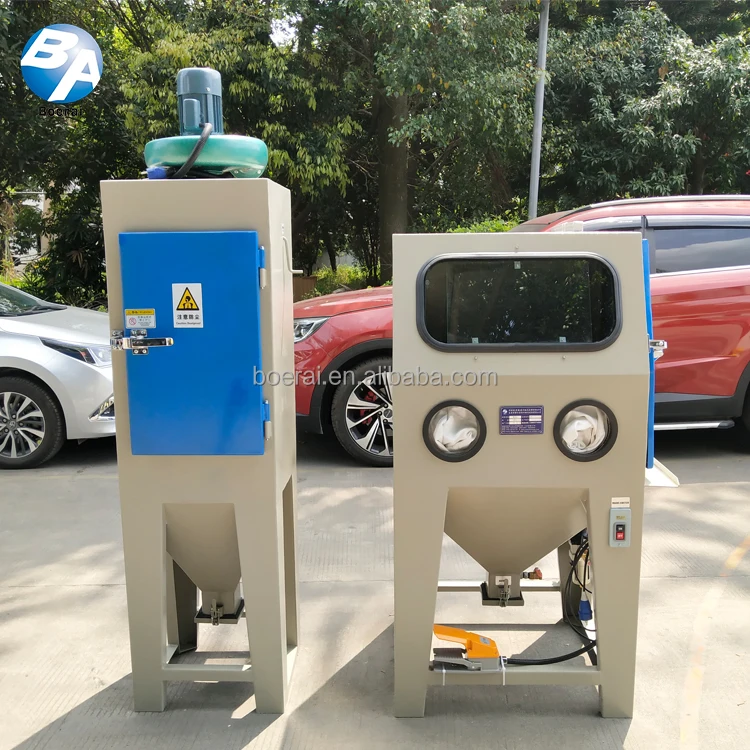

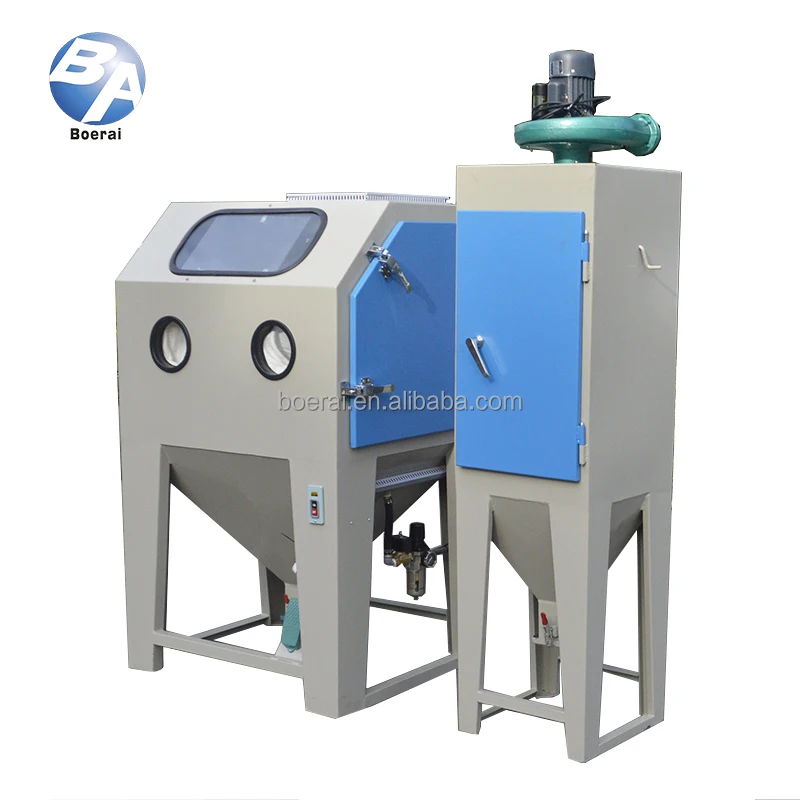

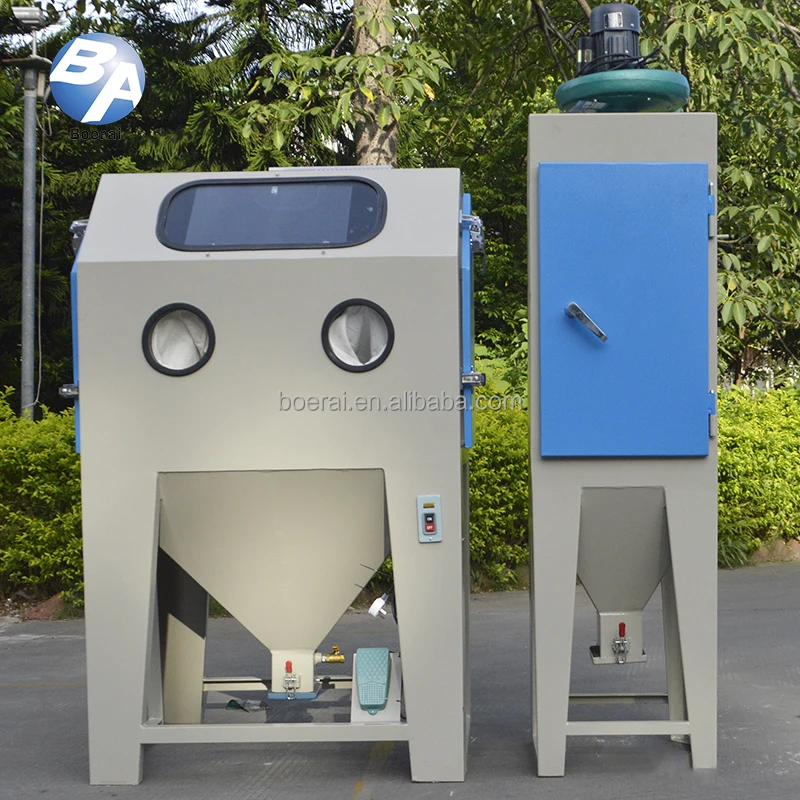

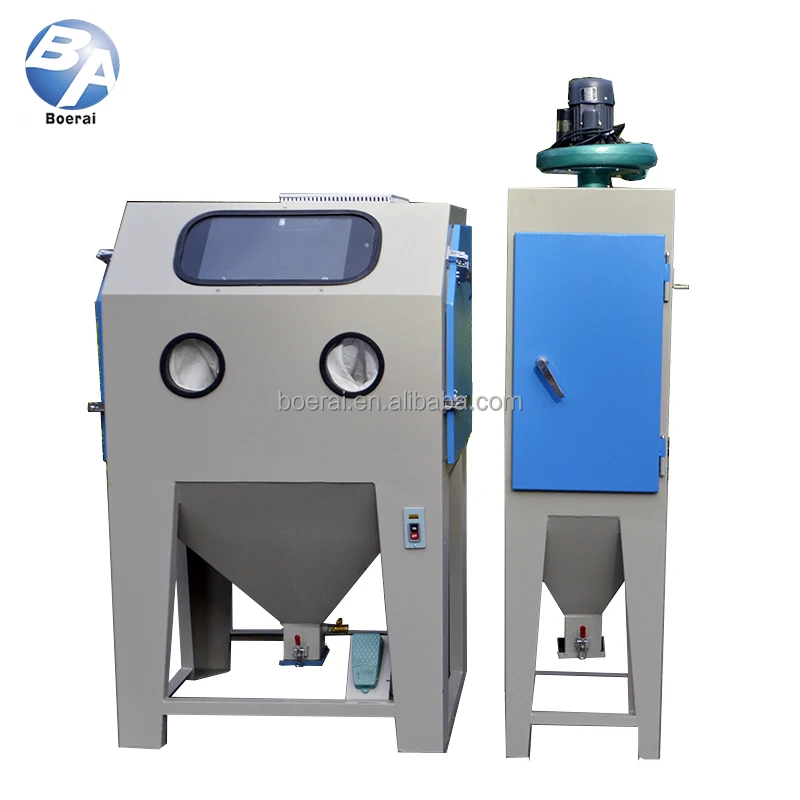

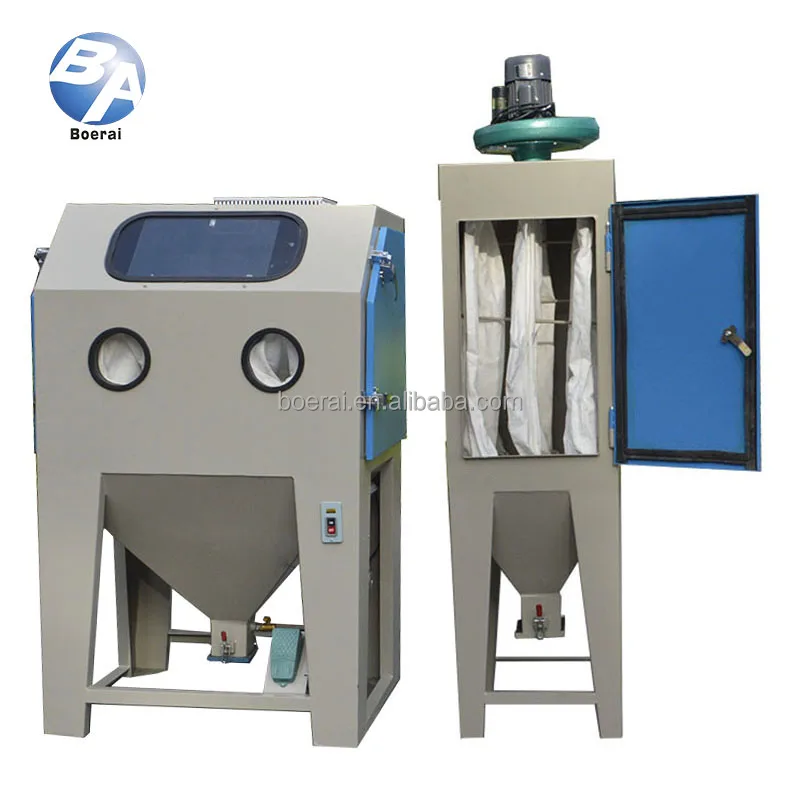

equipment CE compliant / Sand blasting machine with vacuum dust collector

Product name

Brand name

BA,CHINA

Description

• This standard sandblast machine is siphon type.


• The sand materials are recovered automatically and are easy to be replaced.


• The operation and maintenance are simple.


• It has good sealing.


• This type machine has side door.


• It can be equipped with turntable and fixed frame of spray gun.


• Its dust collector is cloth bag which saves space.

Parameter

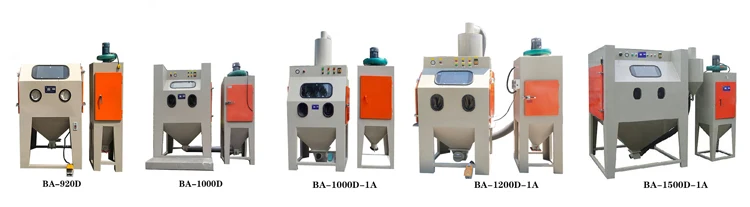

Model:BA-920D

Machine type: shot blasting

Operating mode:manuall

Power supply: Single-phase electric 220V;50~60Hz

Working pressure:30~150Psi

Compressed air supply:15~28CFM

Power:250w

Clean level :Sa2.5~Sa3

Efficiency :1~1.8 m3/min

light:28W

Gun : 1PCS

Floor space:1500*950*1900mm

Work space/Capacity:920*800*700mm

Usage

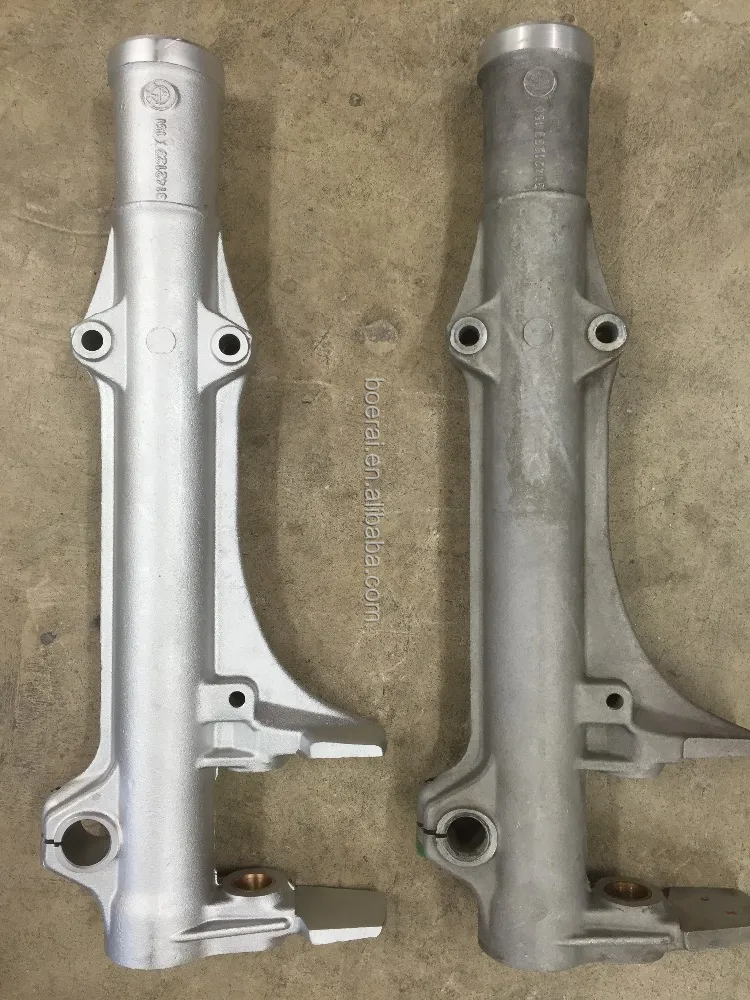

• remove casting’s oxide layer, rust.

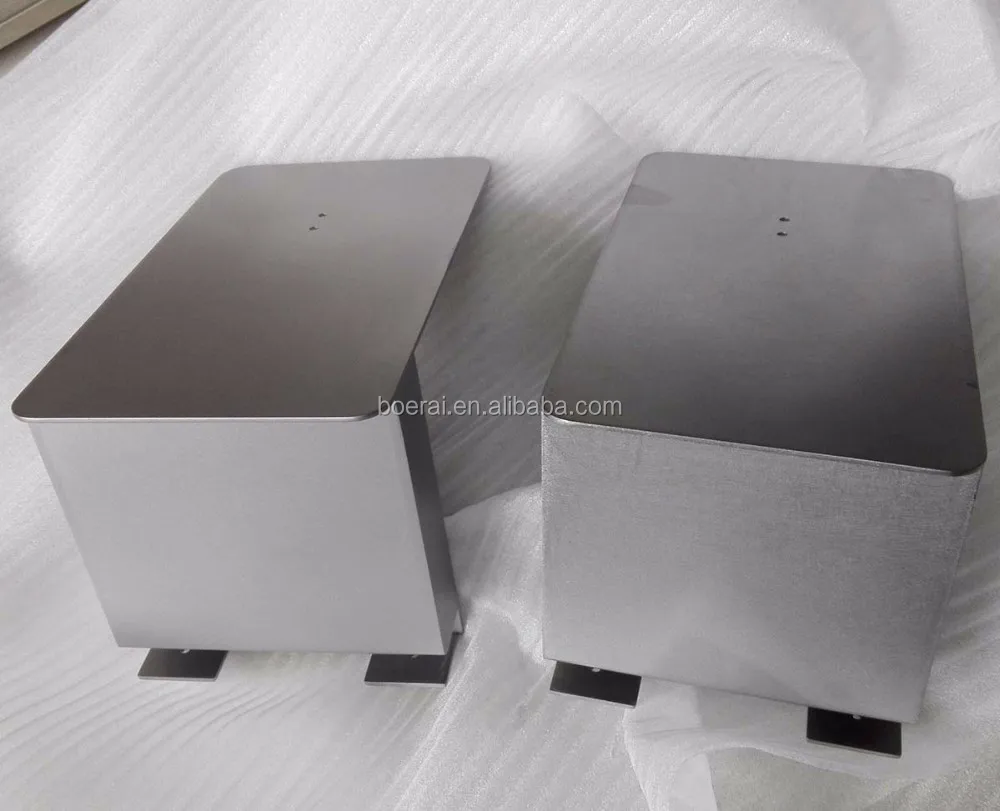

• The metal and non-metal surface’s cleaning and matting.


• The small and medium size workpiece’s sandblasting

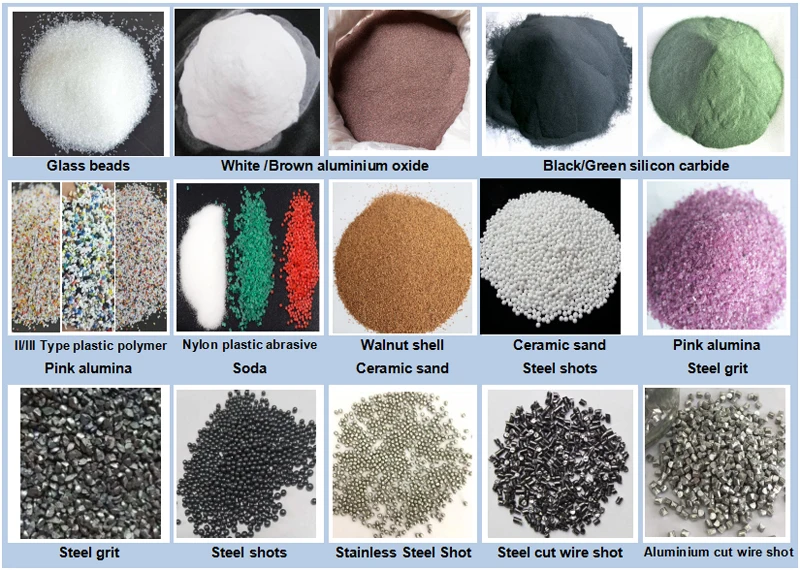

Available material

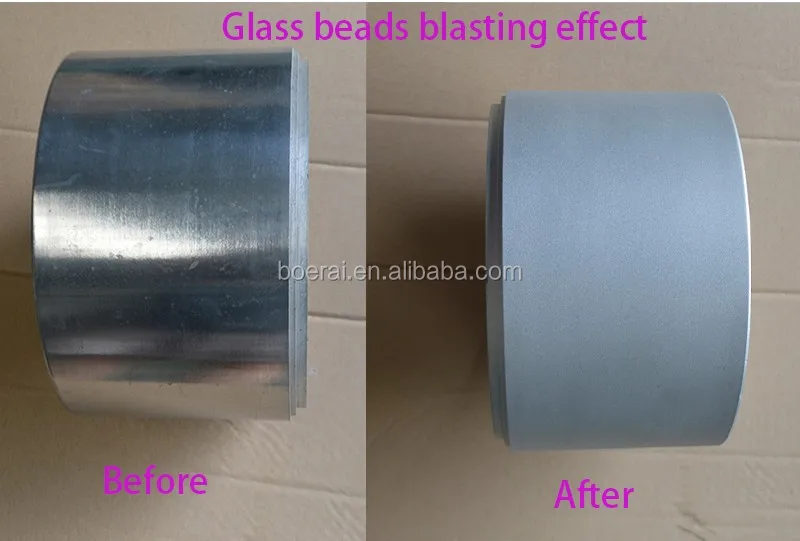

Alumina sand( corundum sand), glass bead, resin sand, walnut shell grit,steel shot(0.5mm max), steel grit, aluminum shot.
