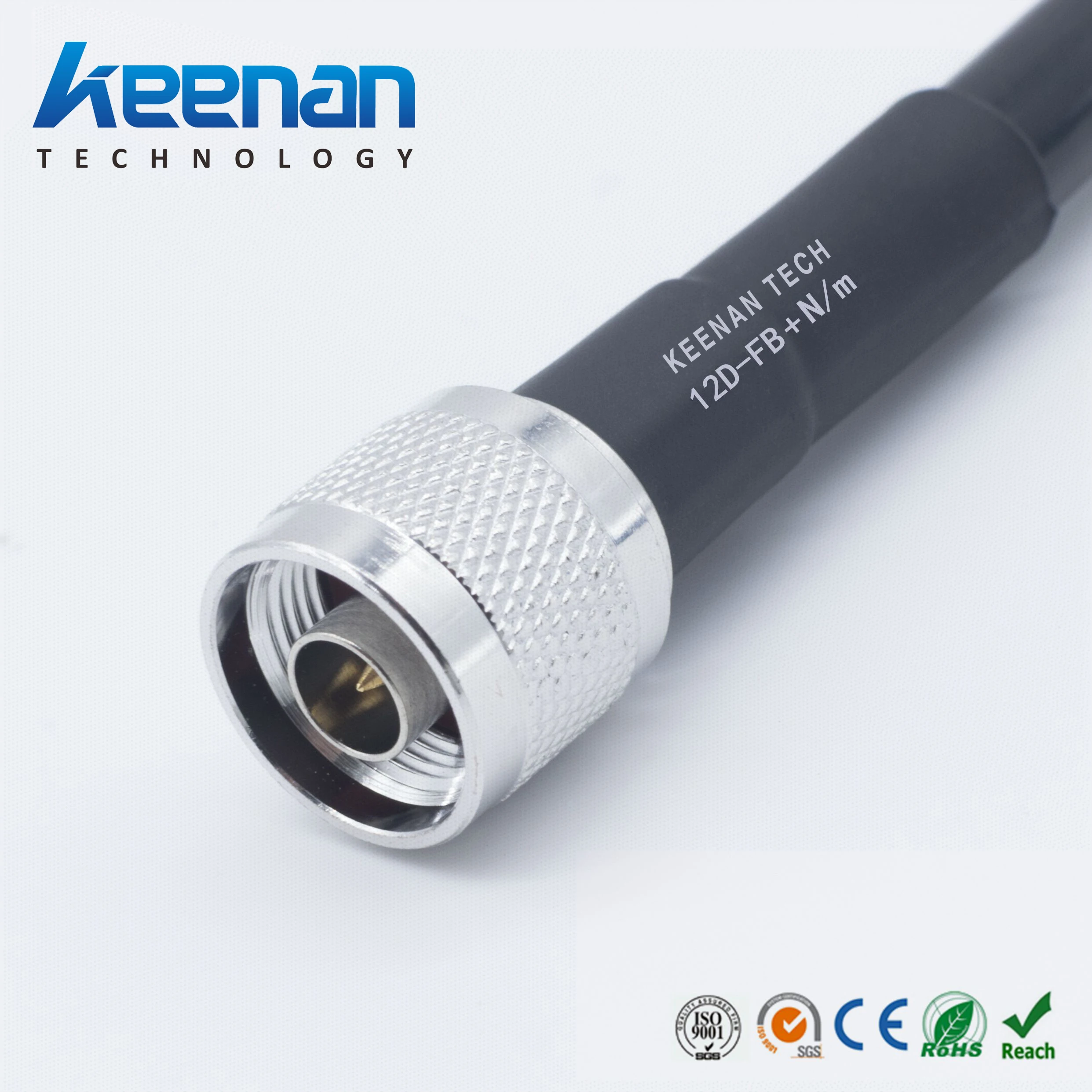

Factory RF 50ohm low loss solid coaxial cable 5D-FB 8D-FB 10D-FB 12D-FB for communication
This is a JIS foam coaxial cable with solid inner conductor. It has a good attenuation and shielding effectiveness, and has been widely applied to radio transmission,base radio antenna station and other communication systems.
• 50 Ohm data signal transmission;
• The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
• Excellent performance in high frequency,VSWR stability;
• Similar to the LMR600 coaxial cable;
• RoHS compliant;

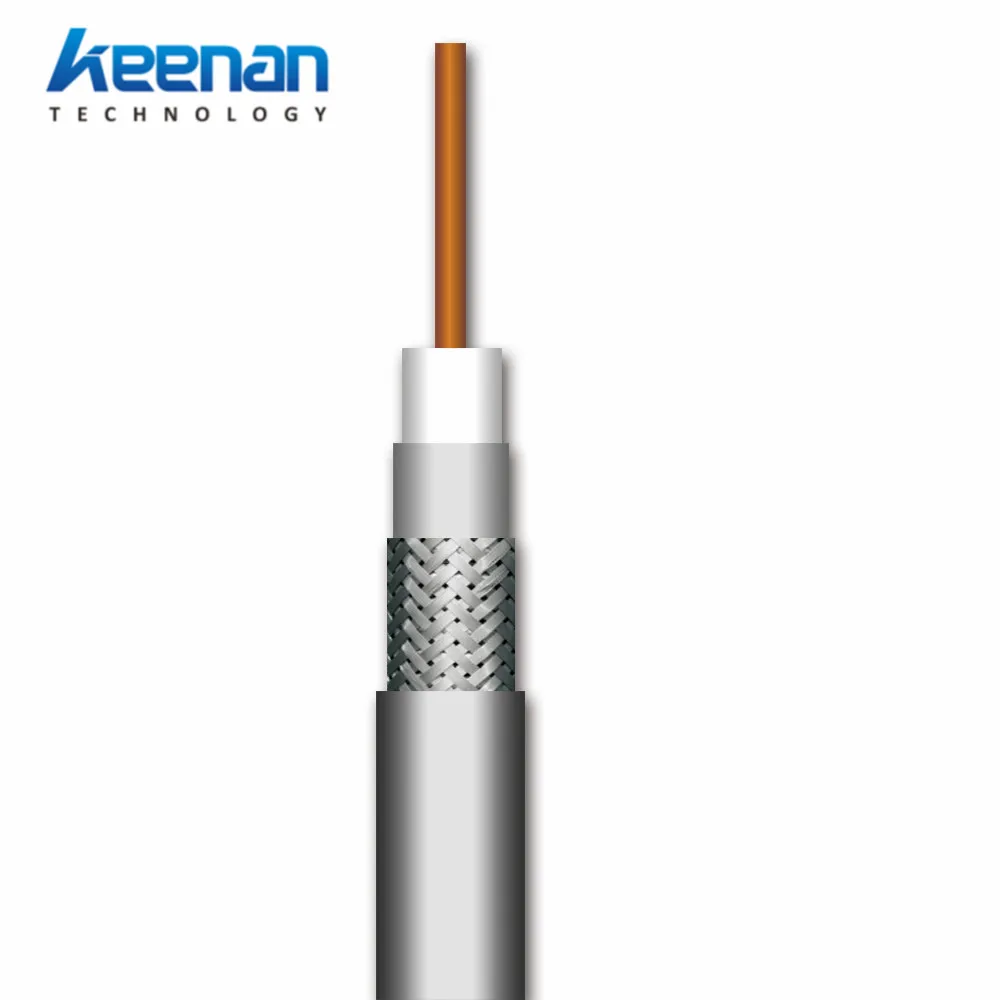

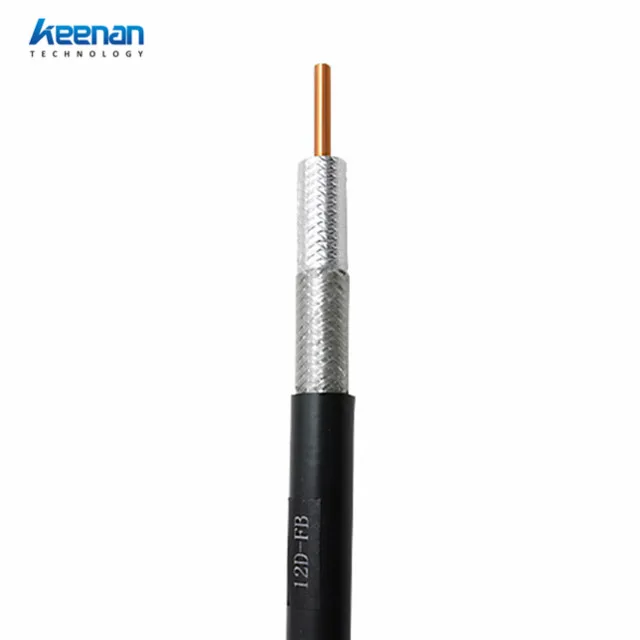

Construction
Item
| Material
| Diameter(mm)
| Remarks |
Inner Conductor
Dielectric
First Shield
Second Shield
Jacket
| Bare Copper
Foam PE
Bonded Aluminum Foil
TC Wire Braid
PVC/PE/LSZH
| 4.40
12.40
12.60
13.20
15.60
| Per customer’s requirements:
Out conductor could be 144 ,168 or 192 TC wires braiding;
Jacket could be PVC,PE or LSZH; |
Electrical Characteristics
Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Dielectric strength(kV)
V.S.W.R
Return Loss
Screening Effectiveness(db)
Min. Bending Radius (mm)
Operating Temperature(0C)
| 50±3
82±2
80.0
1.6
≤1.2 (50----3000MHz)
≥20 (50----3000MHz)
≥85
65.0
-25 to +70
|
Attenuation (@200C)
Frequency(MHz)
| Max Attenuation(dB/100m)
|
100
350
400
800
1200
1800
2000
2500
| 2.70
5.30
5.80
8.60
11.00
14.00
15.00
17.10 |

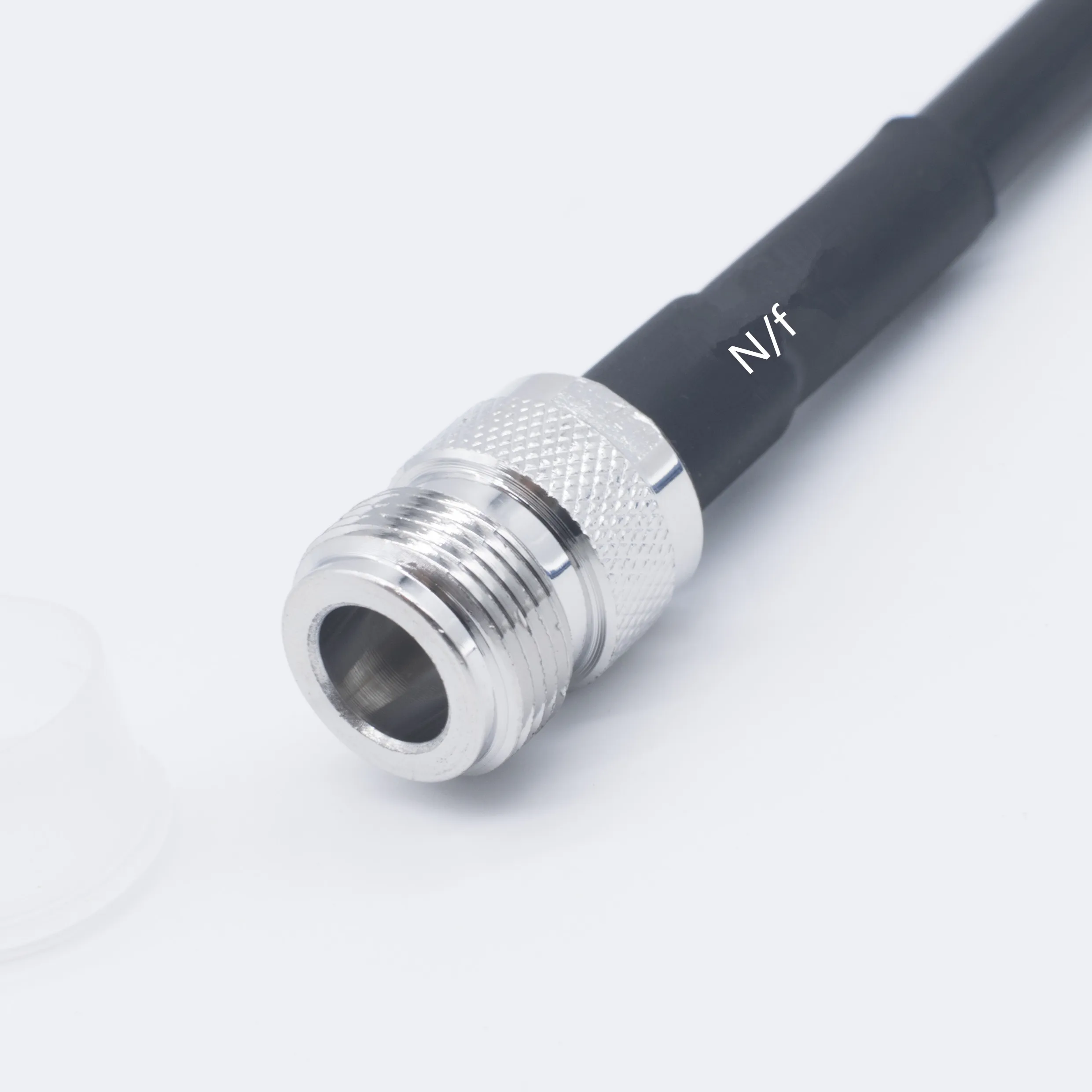

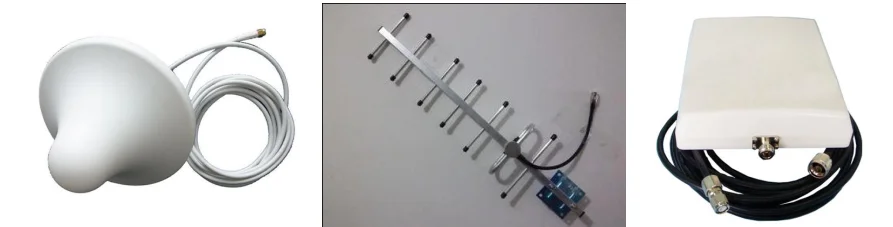

These 50 Ohm 12D-FB coaxial cables can be fixed kinds of connectors,such as N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems
More Ideas
1) If require conventional construction and materials, please click 12D-FB;
2) If require lightweight and weldable shield, please click 12D-CCA-TCCA or 12D-CCA-TC;
3) If require lightweight and lower price, please click 12D-CCA-AL or 12D-CCA-TCCA;
4) For more 12D-FB assemblies, please click 12D ASSEMBLIES;
5) Any other requirements or queries, please click CONTACT US.
