Automatic Horizontal FFS Irregular Shaped Doypack Form Fill And Seal Packing Machine

Product Overview

Description

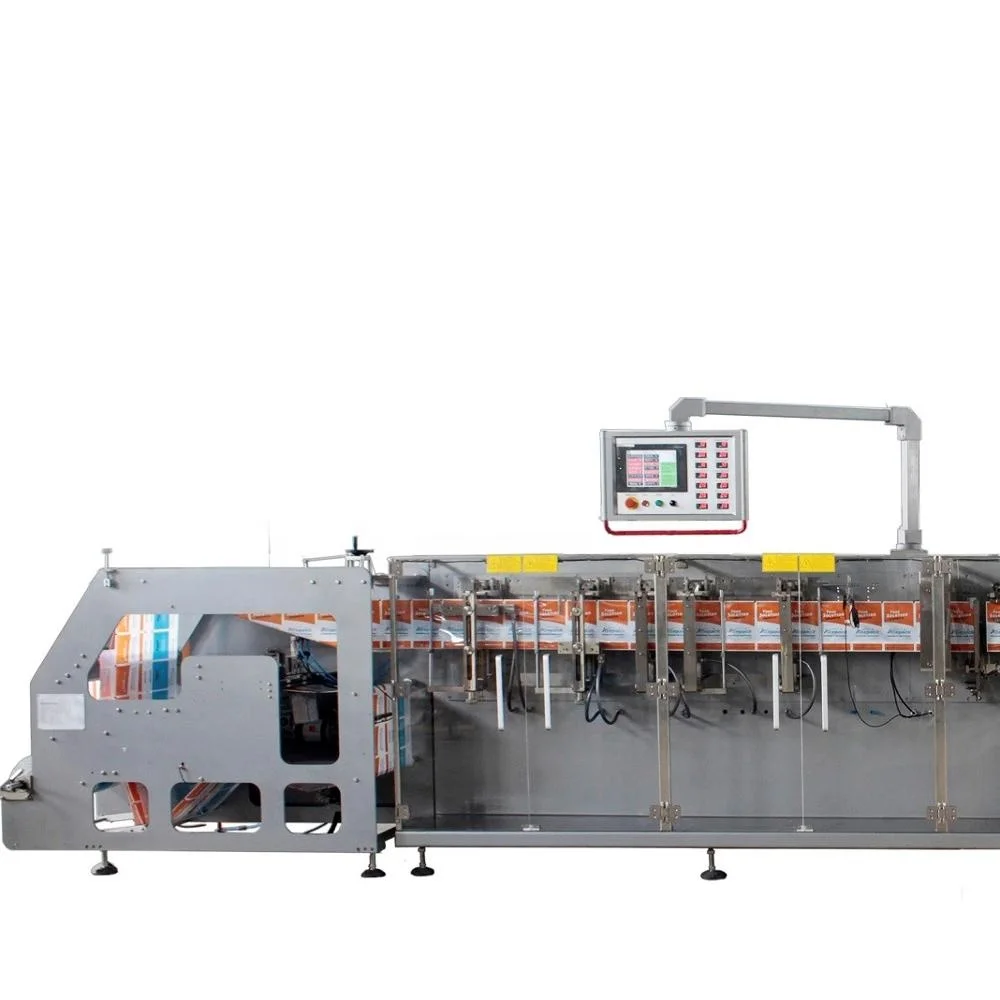

Automatic Horizontal FFS Irregular Shaped Doypack Form Fill Seal Packing Machine



This machine is applicable for packing powder, granule, liquid in form of irregular shaped flat or stand up pouch, with different patterns of sealing, include processes of irregular shaped pouch forming, product dosing, filling and pouch sealing.



Issue	Application Description
Applicable Pouch	Bottle shaped stand up pouch, other irregular shaped flat or stand up pouches
Applicable Products	Configure with different dosing devices, capable to pack with liquid, powder or granule, such as juice, honey, soybean milk, butter, energy gel, spices, etc
Applicable Packaging Material	Laminate Heat sealable packing materials such as OPP/PE, BOPP/OPP/PE, PET/AL /CPP etc.







Film Unwinding Process



Note: the gusset hole punching process applies for stand-up pouch



Pouch Forming Process

Pouch Filling Sealing Process



Note:

1)       The product filling process can be 2 stations according to project requirement

2)       The irregular shaped pouch punching can be configured in forming process according to project requirement





Standard Features



•          Apply carbon steel with plastic spraying structure covered by stainless steel 304, high strength


•          Main movement beam and pouch holding bars applied with anodic oxidation and/or harden aluminum


•          Stainless steel 304 for product touching parts


•          PLC & Touch Screen HMI Control


•          Intelligent PID temperature controller


•          Servo motor for film pre-pulling and bottom hole punching


•          Easy adjustment of the pouch length


•          Twice top and vertical sealing processes


•          Pouch vacuum and mechanical opening


•          Vacuum system powered by vacuum pump with negative pressure tank


•          Individual pressure tank for different compress air supplies


•          Pouch not open completely, no fill and seal interlock


•          Central lubrication system for punching device and other key mechanical parts


•          Visual Protective Cover


•          Cold Embossing type coding

Optional Features



•          Stainless steel 316 for product touching parts


•          Automatic film offset correction system


•          Tear notch


•          Ribbon, inkjet or laser coding


•          Cold sealing with chiller


•          AB Control System









Type 1G-xxxx	HS-1400	HMK-2000D
Packaging Speed	30-50 pouches/min	60-80 pouches/min
Lanes	1 Pouch/cycle	2 Pouches/cycle
Vertical Sealing Station	2	2
Pouch Size-Length	120-220 mm	120-220 mm
Pouch Size-Width	60-90 mm	60-90 mm
Film Pulling Driven	Servo Motor	Servo Motor
Power Consumption	8.0 kw	12 kw
Power Requirement	AC 380V 50/60HZ	AC 380V 50/60HZ
