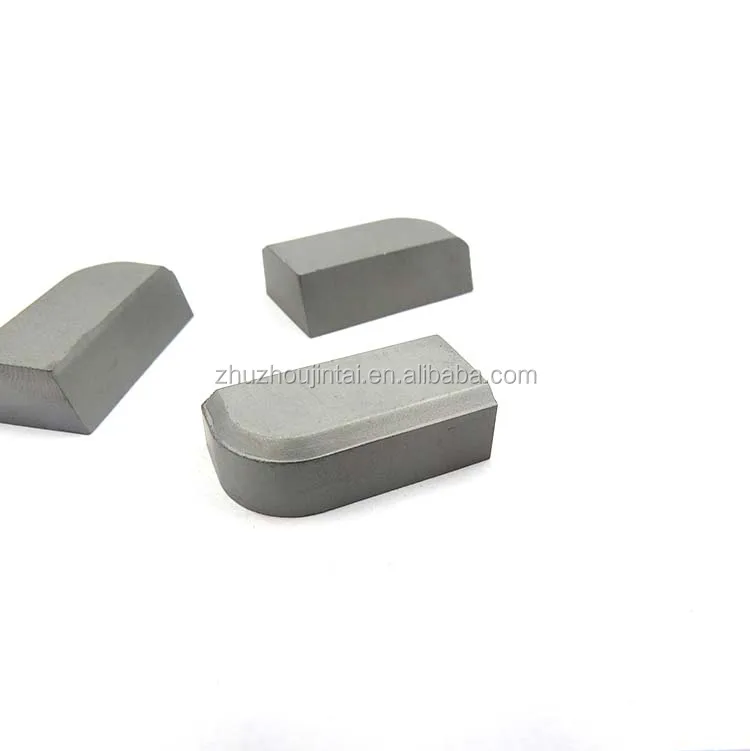

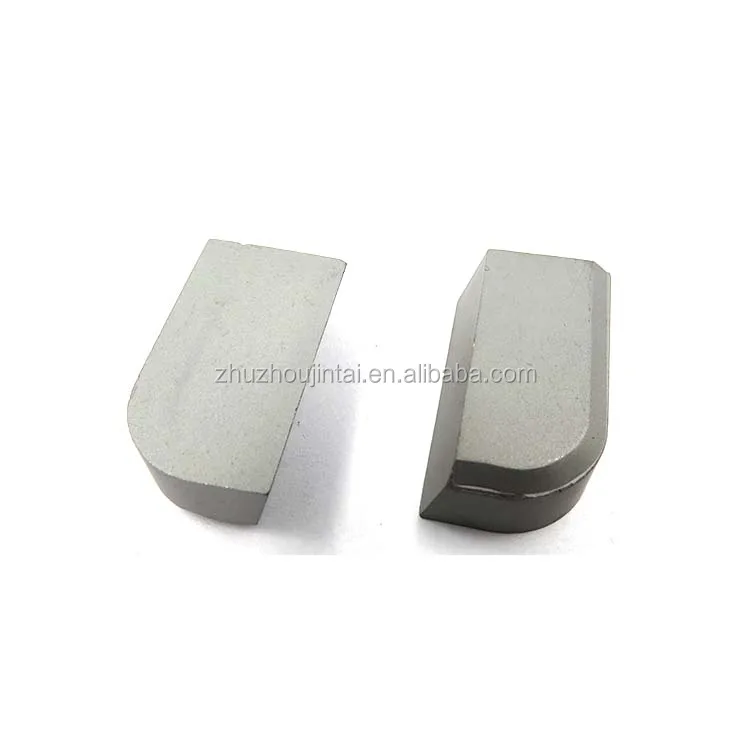

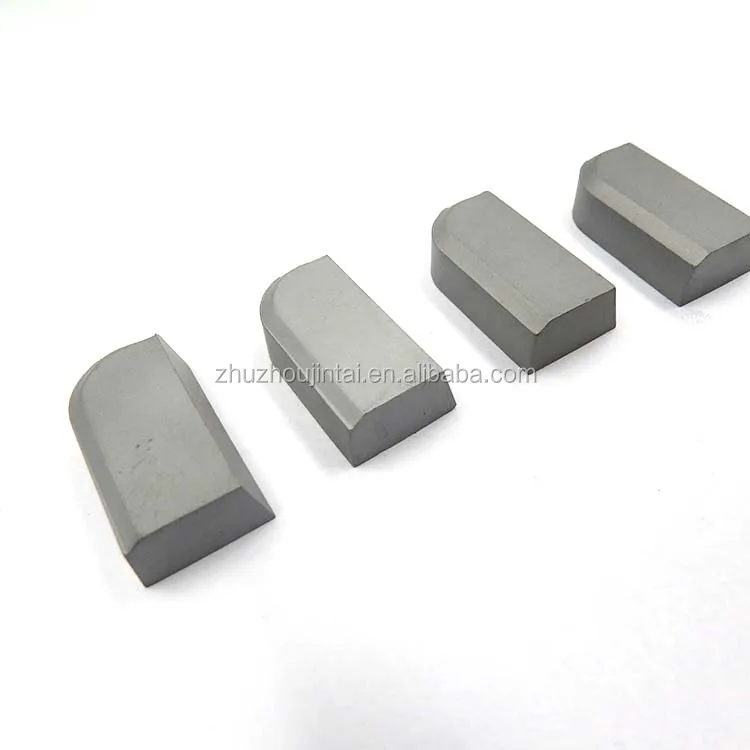

Excellent manufacturer Zhuzhou Cemented Carbide Brazed, selling high quality fast delivery tungsten carbide tip
- Category: >>>
- Supplier: Zhuzhou Jintai Cemented Carbide Co. Ltd.Zhuzhou Ltd.
Share on (62137997240):
Product Overview
Description
Product Description
Zhuzhou Jintai Cemented Carbide manufactures 2000 different varieties of standard tips conforming to ISO (International Standard), BSS (British Standard), SMS (Swedish Standard) and DIN (German Standard). Zhuzhou Jintai Cemented Carbide has developed its Sintered Metal Cutting Grades conforming to ISO standards.
Other than standard tips, Zhuzhou Jintai Cemented Carbide continuously tries to develop custom-built special tips for various industries like Automobile, Engineering, Shoe Accessories, Textile, Sugar, etc. Some of the prominent products developed successfully are Blanks for Rotary Burrs, Tips for form tools, flats for knives, Scarfer tools, tips for grooving tools, rods for boring tools, slitting cutter blanks, etc.
| ISO Code | Grade | Physical and Mechanical Properties | ||
Density g/cm3 | Hardness HRA(HV) | TRS Mpa | ||
| K05 | YG3 | 15 | 90.5 | 1300 |
| K10 | YG6X | 14.8 | 91 | 1560 |
| YG6A | 14.7 | 91.5 | 1510 | |
| K15 | YG6 | 14.9 | 89.5 | 1670 |
| K20 | YG8 | 14.6 | 89 | 1840 |
| M10 | YW1 | 13 | 91 | 1290 |
| YW3 | 12.9 | 92 | 1390 | |
| YW4 | 12.3 | 92 | 1390 | |
| M20 | YW2 | 12.9 | 90.5 | 1460 |
| P10 | YT05 | 12.6 | 92.5 | 1260 |
| YT15 | 11.3 | 91 | 1300 | |
| P20 | YS14 | 11.4 | 91.5 | 1550 |
| YT14 | 11.4 | 90.5 | 1400 | |
| YS25 | 13 | 90.5 | 1780 | |
| M10 | 60 | 12.8 | 92.5 | 1500 |
| M20 | YM20 | 13 | 91 | 1750 |
| P30 | YC30S | 12.9 | 90 | 1600 |
| P35-P40 | YC40 | 12.9 | 91 | 2200 |
| P40 | YM40 | 12.75 | 90 | 2100 |
| YC45 | 12.75 | 90 | 2300 | |
