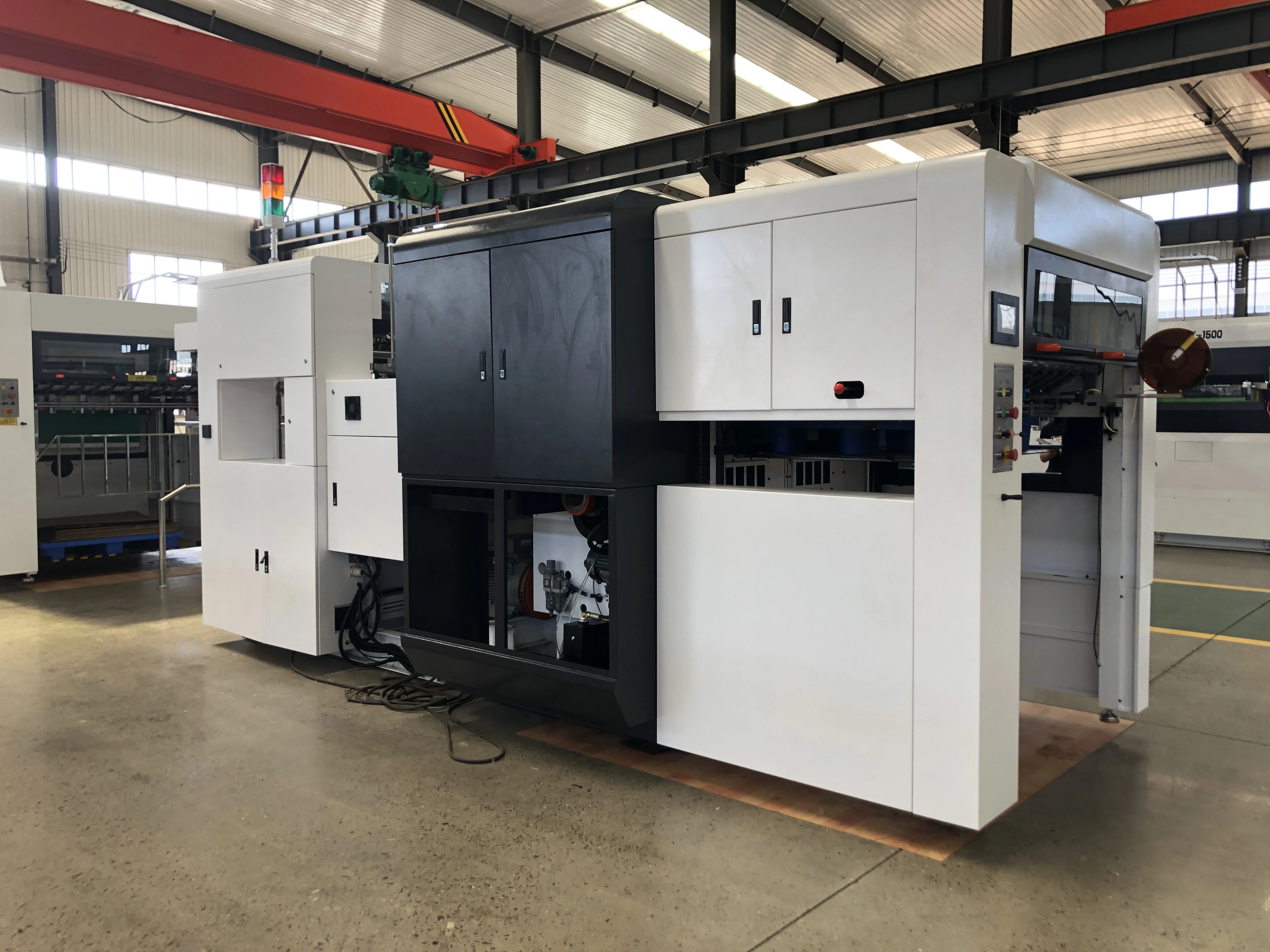

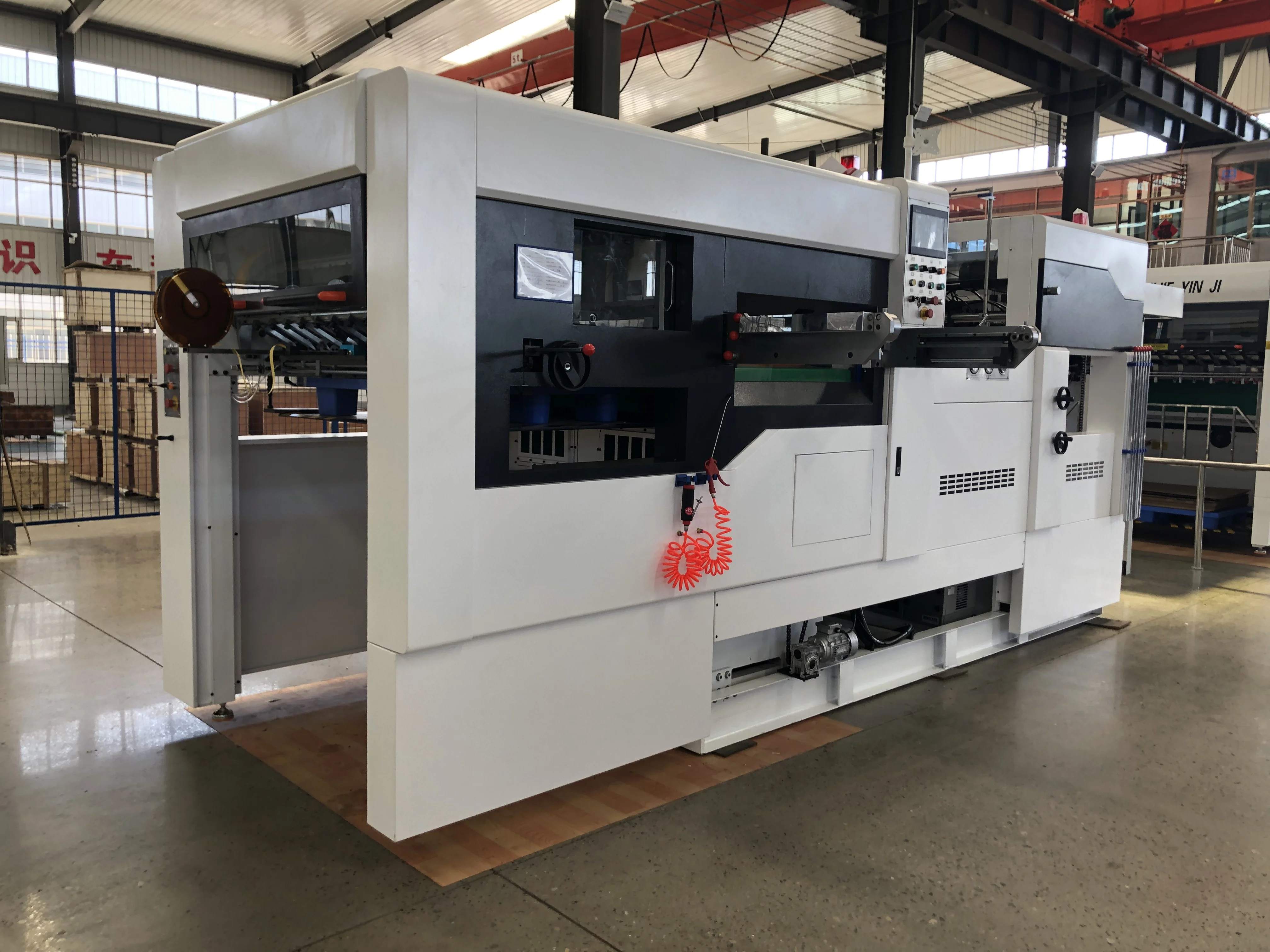

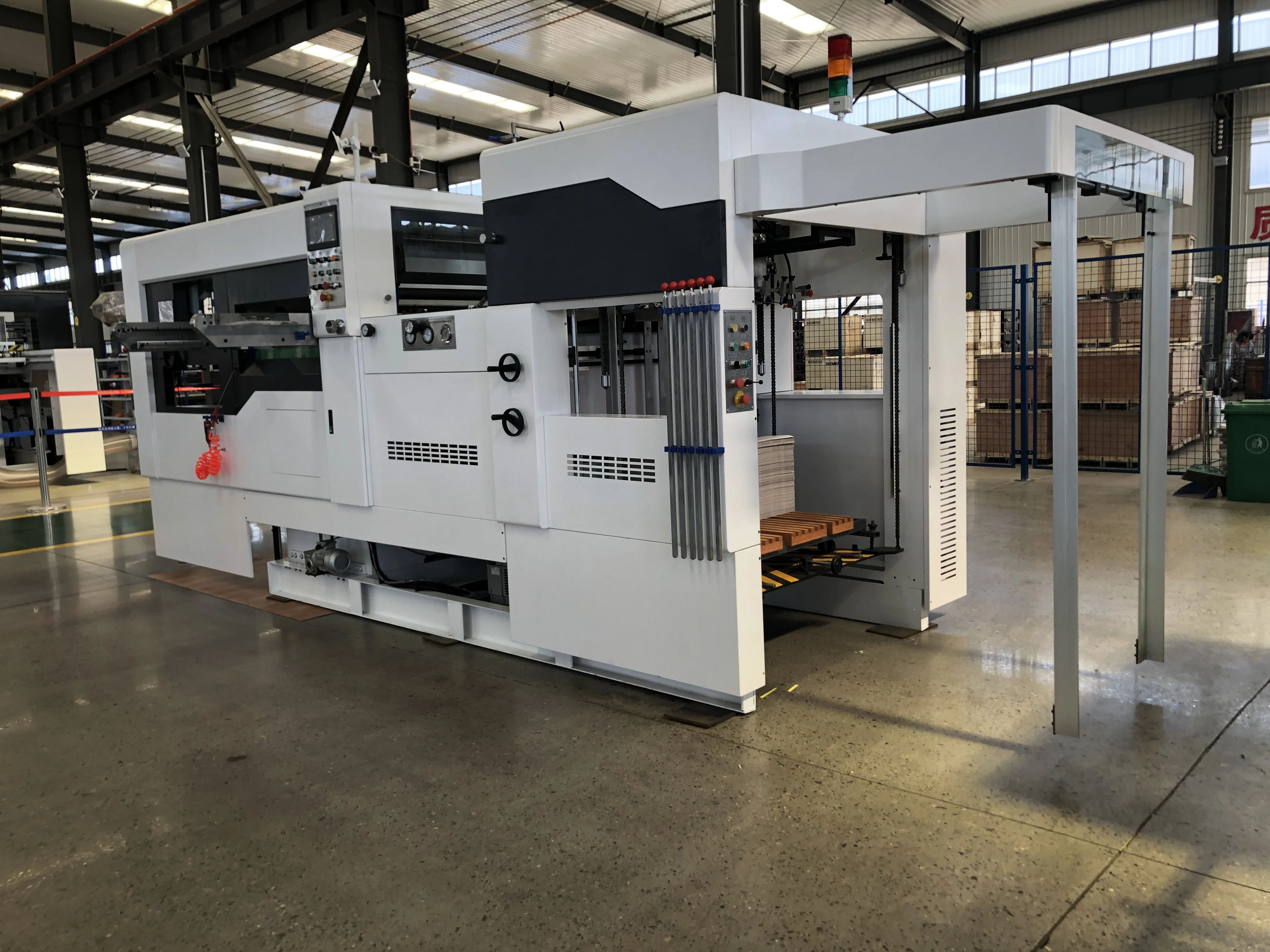

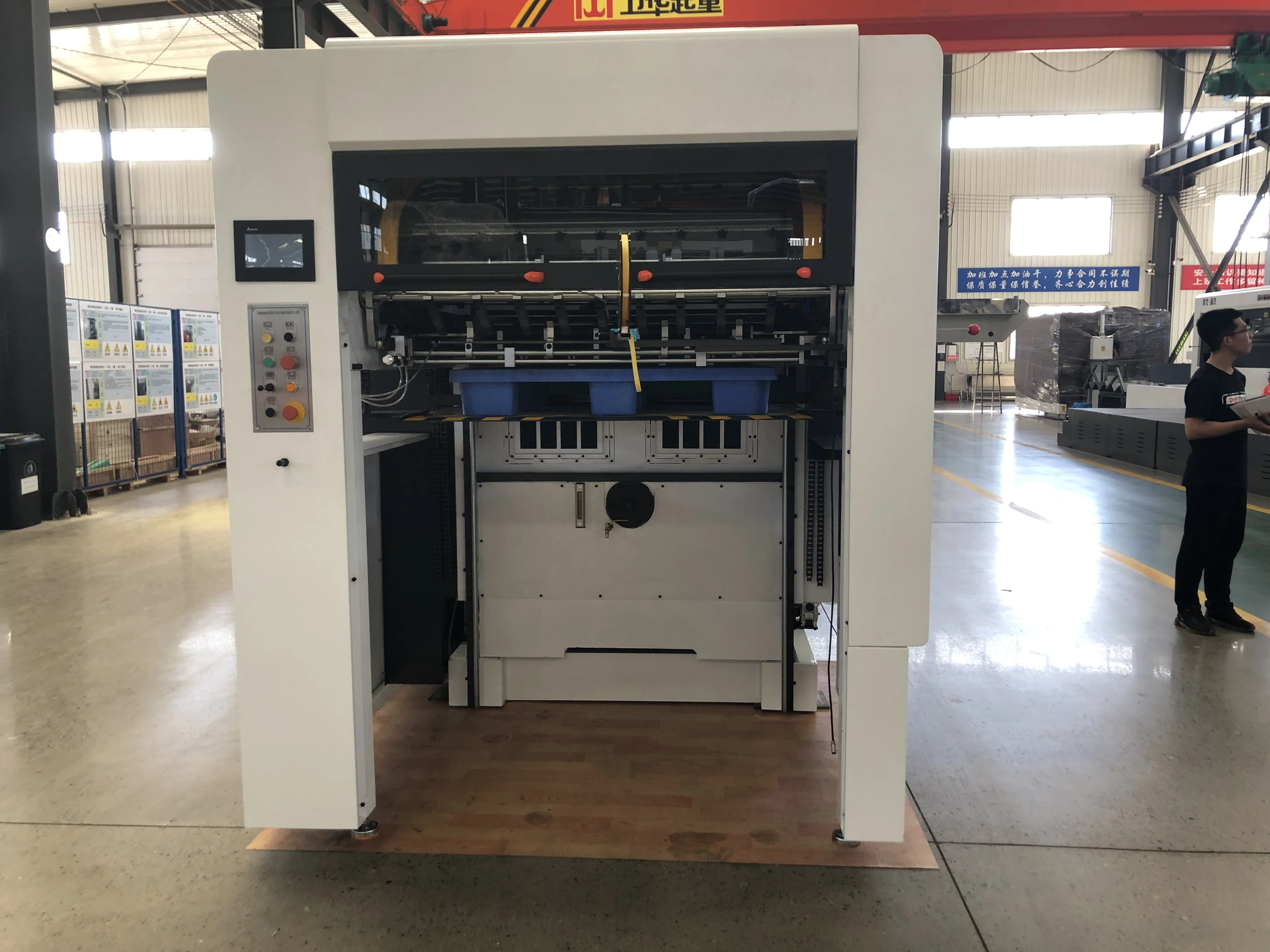

I PACK High Speed Fidek Feeding Cardboard Die cutting Machine

Product Overview

Description

UTOMATIC FLATE DIE CUTTING & CREASING MACHINE LIST



Models&Parameters	MY-1060	MY-1080	MY-1100
Max Paper Size	1060*750mm	1080*780mm	1100*780mm
Min Paper Size	400*350mm	400*350mm	400*350mm
Max Die Cutting Size	1050*730mm	1070*760mm	1080*760mm
Min Size in Mouth	5mm	5mm	5mm
Die Cutting Pressure	350N/cm²	350N/cm²	350N/cm²
Paper	Corrugated paper  ≤6mm	Corrugated paper  ≤6mm	Corrugated paper  ≤6mm
	Cardboard   200-2000g/m²	Cardboard  200-2000g/m²	Cardboard  200-2000g/m²
Max Die Cutting Speed	7000(pics/h)	7000(pics/h)	7000(pics/h)
Max Feeding Height	1000mm	1100mm	1100mm
Max Collecting Height	1000mm	1100mm	1100mm
Total Power	13.5KW	15KW	17KW
Total Weight	15T	16T	17T
	Stripping         16T	Stripping       17T	Stripping       18T
Whole Size(mm)	5600*2170*2245	5700*2170*2245	5800*2170*2245
	Stripping 7100*2170*2245	Stripping 7200*2170*2245	Stripping 7300*2170*2245





1.Functional features



*The whole machine wallboard and platform are all made of high-strength ductile iron to ensure large die cutting pressure



*Imported PLC control, touch screen adjustment, all adjustments are adjusted by motor, saving time and effort



*Equipped with pneumatic clutch and pneumatic locking plate device



*Automatic adjusting paper feeding, paper collecting and paper aligning



*Automatic counting and non-stop paper-out design, with hydraulic lifting platform feeding system, convenient for non-stop paper feeding and paper-out



* Dust removal air gun, can effectively remove the dust inside the cutting model and equipment



*When the equipment running, use the alarm bell to sound a warning tone to improve the safety warning

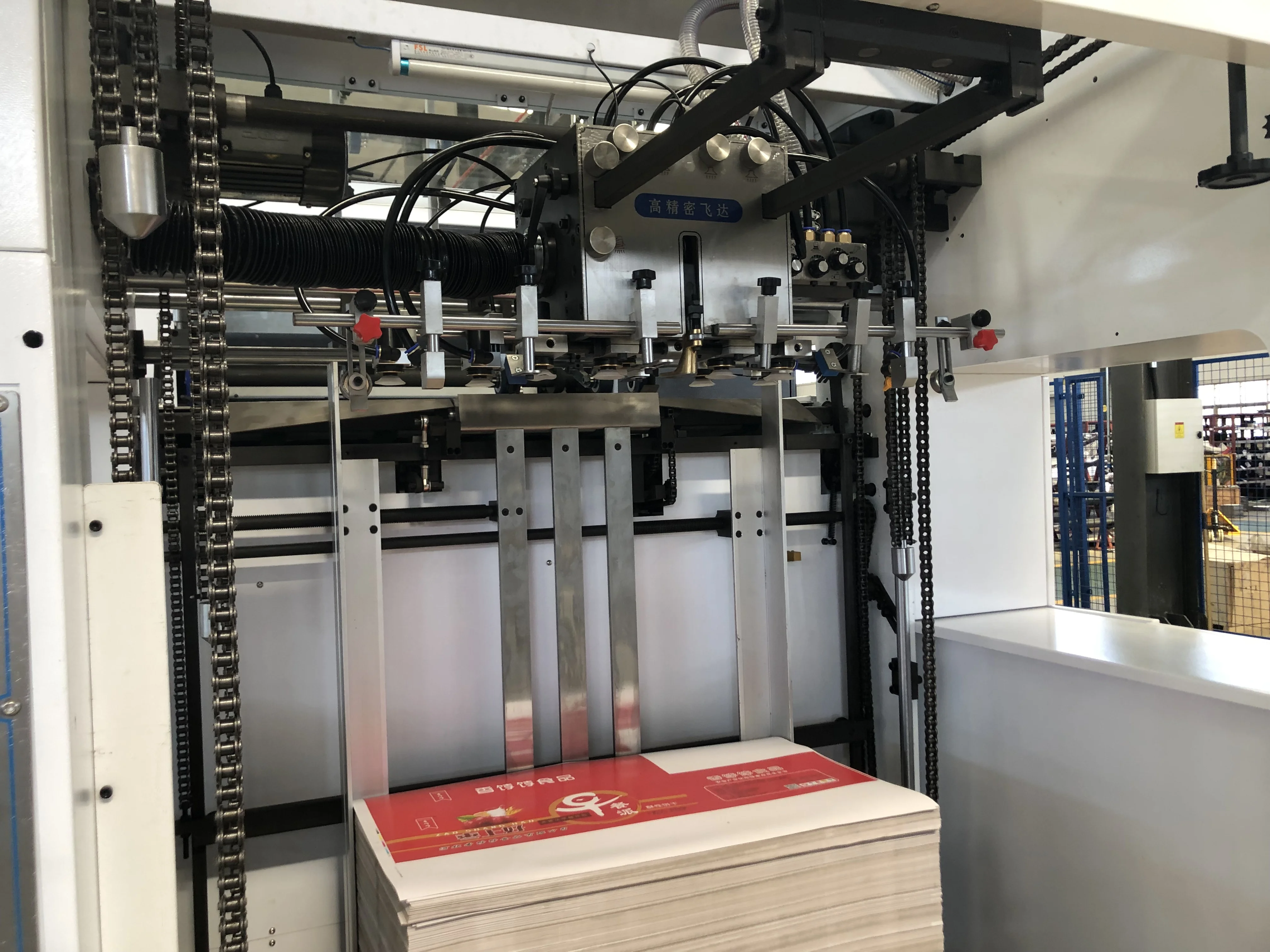

Feeding Parts



* Lifting Feeder paper feeding: suitable for all kinds of paper, high speed and stable, easy to adjust



*The whole machine is raised to maximize the height of the front pile, and the height of the rear pile reaches 1100mm.



* Install the display in the middle of the head, workers can easily see the operation of the machine behind



* Pre-pile design and special pneumatic table saves a lot of time

Main Body



*With automatic centralized lubrication system, the main chain lubrication system is set through the man-machine interface



*Patented shock absorption system for extended mainframe life and increased pressure



*Intermittent gearbox made in Taiwan ensures accurate positioning and reduces hand attack

Die cutting Part



*Die-cutting precision is controlled by fiber optic switch, and the plate and fault are automatically stopped and the cause of the problem is reflected on the touch screen



*Pneumatic sampling when the machine is working, you can check the die cutting effect at any time.



*Cutting model pressing and lifting controlled by air flotation device



*The main chain controlled by electric clutch to ensure chain stability at high speed stop



*The main chain and assist chain are regularly lubricated by PLC control





 \\
