  • Meitrack T366 Series 2G/3G/4G gps tracker with temperature sensor
Meitrack T366 Series 2G/3G/4G gps tracker with temperature sensor
Meitrack T366 Series 2G/3G/4G gps tracker with temperature sensor
Meitrack T366 Series 2G/3G/4G gps tracker with temperature sensor
Meitrack T366 Series 2G/3G/4G gps tracker with temperature sensor
Meitrack T366 Series 2G/3G/4G gps tracker with temperature sensor
Meitrack T366 Series 2G/3G/4G gps tracker with temperature sensor
Meitrack T366 Series 2G/3G/4G gps tracker with temperature sensor

Meitrack T366 Series 2G/3G/4G gps tracker with temperature sensor

Share on (62138093068):


Price:

Quantity:


Product Overview

Description


Product Overview

Specifications

\t
Dimension
\t
80.5 mm x 60 mm x 23.5 mm
\t
Weight
\t
100g
\t
I/O power cable length
\t
50 cm
\t
Power supply
\t
DC 9–90 V/1.5 A
\t
Power consumption
\t
Current in standby mode: 65 mA
\t
Operating temperature
\t
-35°C to 80°C (without battery)
\t
Operating humidity
\t
5% to 95%
\t
LED indicator
\t
Green indicator showing the GSM signal
Blue indicator showing the GPS signal
\t

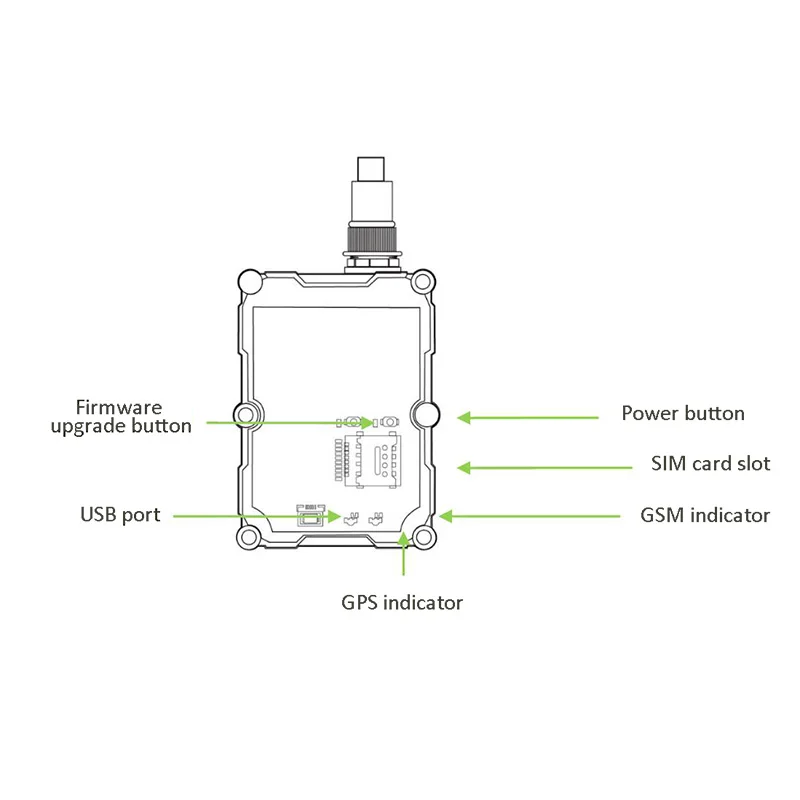

Button/Switch
\t
1 upgrade button
1 power button
\t
Memory
\t
8 MB buffer
\t
Sensor
\t
3-axis accelerometer
\t
Microphone/Speaker
\t
External (optional)
\t
GPS sensitivity
\t
-165 dB
\t
Positioning accuracy
\t
2.5m
\t
I/O port
\t
2 digital inputs and 1 analog detection input (0–30 V; selectable positive, negative, and analog detection inputs)
1 output
1 USB port
1-Wire® iButton
1-Wire® temperature sensor
1 output (voltage: 5V)
1 RS232 port (T366 RS232 version): GND/TX/RX
\t
Frequency band
\t
T366
GSM 850/900/1800/1900 MHz
T366G
T366G-E: UMTS/HSDPA: 900/2100 MHz, GSM/GPRS: 900/1800 MHz
T366G-A: UMTS/HSDPA: 850/1900 MHz, GSM/GPRS: 850/900/1800/1900 MHz
T366G-T: UMTS/HSDPA: 850/2100 MHz, GSM: 850/900/1800/1900 MHz
T366L
T366L-E: LTE FDD:B1/B3/B5/B7/B8/B20, WCDMA: B1/B5/B8, GSM/GPRS: B3/B8
T366L-A: LTE FDD:B2/B4/B12, WCDMA: B2/B4/B5
T366L-AU: LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28, LTE TDD:B40, WCDMA: B1/B2/B5/B8, GSM/GPRS: B2/B3/B5/B8
T366L-AUT:LTE FDD:B1/B3/B5/B7/B28, WCDMA: B1/B5

Accessories

\t
ACCESSORIES
\t
T366 Series tracker
\t
L wrench
\t
Hexagon screw
\t
CD download card
\t
\t
\t
OPTIONAL ACCESSORIES
\t
A52 digital temperature sensor
\t
A53 fuel level sensor
\t
A57 speaker
\t
A58 microphone
\t
A64 remote control receiver
\t
A67 remote control USB cable
\t
400 mAh battery
\t
External GPS antenna
\t
Ultrasonic fuel level sensor
\t
LED display
\t
USB cable
\t
RFID
\t
Buzzer
\t
iButton reader
\t
Relay (12 V/24 V)
\t
A89 driver fatigue monitor
\t
\t



Certificates: CE, IP67, RoHS


Meitrack MS03


Advanced GPS Tracking Software

MS03 is the newest GPS tracking innovation from Meitrack Group. Extensive programming combined with an esthetically designed user interface (UI), giving the MS03 platform a much more user friendly experience. The platform consists of an extendable database, which ultimately can meet various functional requirements and needs.

Case Study

GOVERNMENT COOPERATION ON NATIONAL TRANSPORTATION SYSTEM


T1


Cooperation with UZ government, targeting to improve and facilitate the urban transportation system management.

DLT PROJECT ON NATIONAL TRANSPORTATION SYSTEM


T333


Provide a one-stop solution for tracking and access control for various vehicles, improving Thailand's transportation system.

GARBAGE TRUCK MANAGEMENT


T366G


The system connected to T366G is applied to record the status of garbage trucks: when and how the trucks move, how each vehicle travels, and when they arrive at destination. This information can be used to analyze time spent in relation to cost. Ultimately allowing the company to make any necessary modifications to their operation.

Company Overview

Since 2002.
20,000m2 state of the art manufacturing facility based in Shenzhen, China.
Placed in-house R&D centers in Taiwan, Shenzhen and the United States.
Providing OEM&ODM service.
Providing software development service.
Global network covering Europe, USA, CIS, Middle East, and Asia Pacific Region.

R&D Center


3 R&D centers in Taiwan, USA and Shenzhen.
50+R&D professionals including advanced engineers, and supervisors.
Equipped with professional testing devices 50+intellectual properties, including industrial design patents and software copyrights.
More than 18% of sales revenues invested in research and development every year.

Manufaturing

Standardized Production Management

GPS signal generators MP9000 & MP9100 Agilent
GSM/GPRS integrated tester 8960 Reflow soldering,
SMT machine, solder paste printer, AOI tester...


Strict Quality Control

IATF16949:2016 Quality Management System

ISO9001:2015 Quality Management System
Certs: CE, FCC, RoHS,PAHs, etc.
