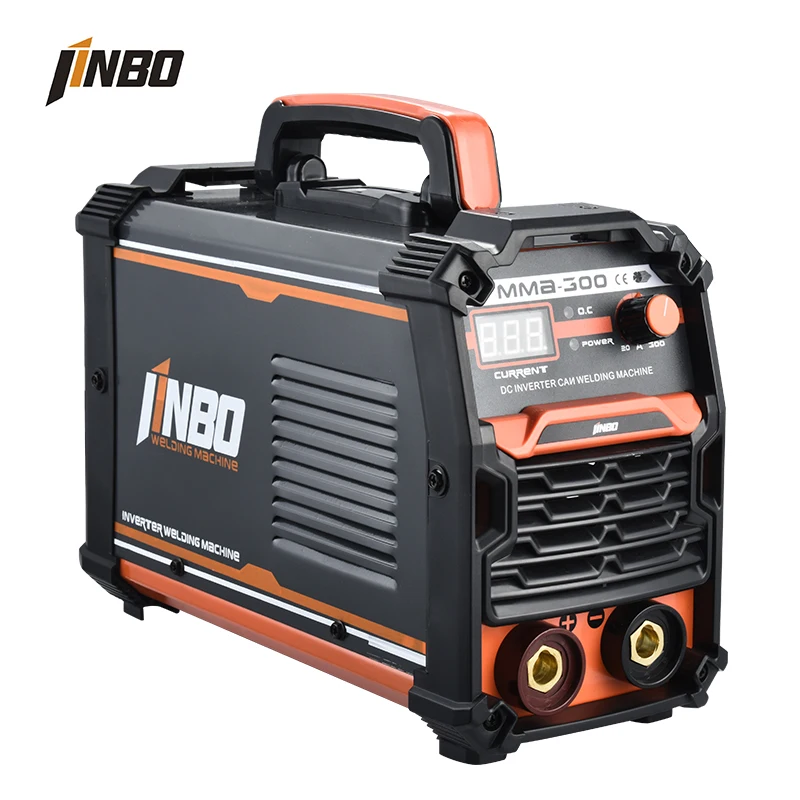

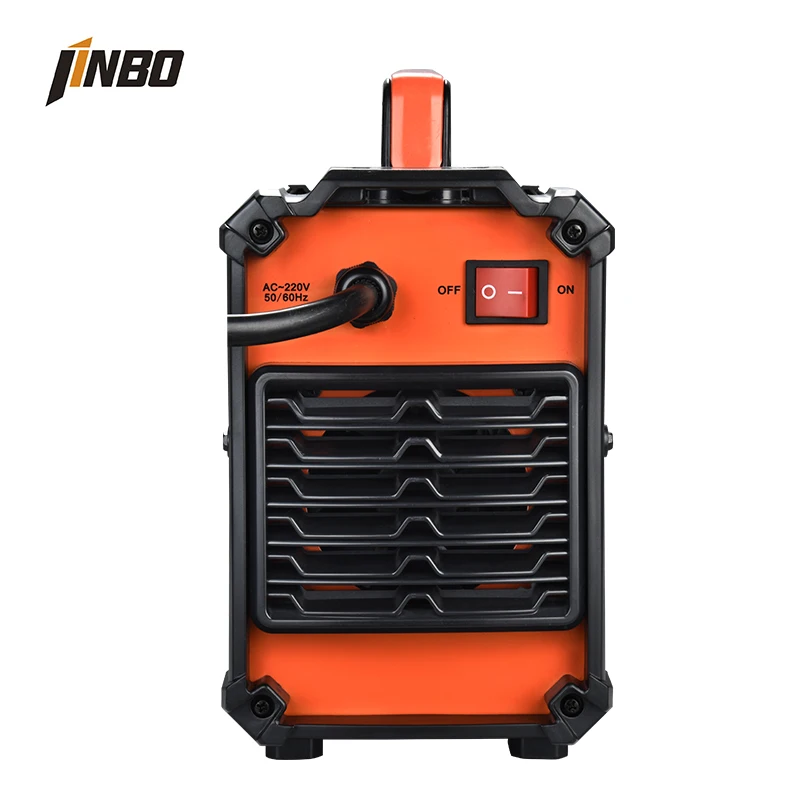

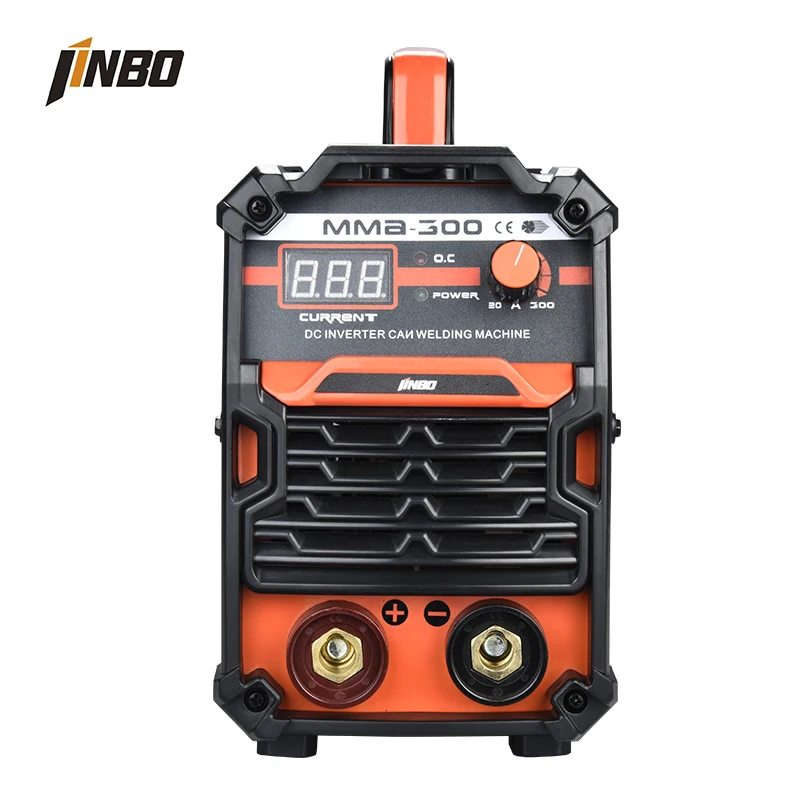

High frequency mini smart IGBT inverter arc mma 300amp welder
- Category: Arc Welders >>>
- Supplier: Wenling Tumas Machinery Co. Ltd.
Share on (62138121726):
Product Overview
Description
| Model | MMA-200C | MMA-250C | MMA-300C |
| Type | IGBT 1 PCB | IGBT 1 PCB | IGBT 1 PCB |
| AC Input Voltage(V) | AC 220V(110V can do) | AC 220V(110V can do) | AC 220V(110V can do) |
| Rated Input Power Capacity(KVA) | 5 | 5.7 | 6.6 |
| Input Frequency(Hz) | 50/60 | 50/60 | 50/60 |
| Non-load Voltage(V) | 60 | 60 | 60 |
| Output current range(A) | 20-200 | 20-250 | 20-300 |
| Rated Duty Cycle(%) | 60% | 60% | 60% |
| Efficiency(%) | 85% | 85% | 85% |
| Class of Insulation | F | F | F |
| Protection class of case | IP21 | IP21 | IP21 |
| Electrode diameter(mm) | 1.6-3.2 | 1.6-3.2 | 1.6-4.0 |
| Quick joint Size | 35-50mm | 35-50mm | 35-50mm |
| N.W./G.W.(kg) | 3.8/5.6 | 4.0/5.8 | 4.2/6 |
| Machine Size(LxWxH mm) | 340*155*235 | 340*155*235 | 340*155*235 |
|
Package Dimension (LxWxH mm) |
408*210*310 color box+foam |
408*210*310 color box+foam |
408*210*310 color box+foam |
|
420*195*320 honeycomb box |
420*195*320 honeycomb box |
420*195*320 honeycomb box |
|
|
425*175*395 BMC box+color box |
425*175*395 BMC box+color box |
425*175*395 BMC box+color box |
|
| Accessories | 1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual |
1.2m 16mm 300A clamp mask, brush, manual |
1.8m 16mm 300A holder 1.2m 16mm 300A clamp mask, brush, manual |
