Price:$56,500.00 - $57,000.00

Quantity:


Product Overview

Description


Product Description
\t
SPECIFICATIONS
\t
Model
\t
BZJ-B3
\t
Capacity
\t
3000 pcs/hour
\t
Pressure
\t
0.5-0.7 MPa
\t
Mould specification
\t
3 pieces in one mould
\t
Power
\t
Three-phase four-wire 380V50Hz 5Kw
\t
Packing Material Thickness (PVC/PET)
\t
0.15-0.5 mm
\t
Air consumption
\t
≥0.15 m2/min
\t
Max Molding Area
\t
250*180 mm
\t
Pressure
\t
0.5-0.7 MPa
\t
Max Forming Depth
\t
40 mm
\t
Punching Frequency
\t
15-20 pcs/min
\t
Max Label Length
\t
80 mm
\t
Size
\t
3850*1100*1800 mm
\t
Weight
\t
2500 Kg
\t
CAPACITY TABLE
\t
Quantity in 1 package
\t

Mould Specification
\t

Package Width
\t
Work Time (hour) / Capacity (pieces)
\t
13
\t
14
\t
15
\t
16
\t
17
\t
18
\t
1 pcs
\t
4 pcs in one mould
\t
within 42 mm
\t
37000
\t
40000
\t
43000
\t
46000
\t
48000
\t
51000
\t
1-2 pcs
\t
3 pcs in one mould
\t
50-57 mm
\t
28000
\t
30000
\t
32000
\t
34000
\t
36000
\t
38000
\t
2-5 pcs
\t
4 pcs in one mould
\t
58-85 mm
\t
18000
\t
20000
\t
22000
\t
24000
\t
26000
\t
28000
\t
6-10 pcs
\t
4 pcs in one mould
\t
86-150 mm
\t
9000
\t
10000
\t
11000
\t
12000
\t
13000
\t
14000
Detailed Images

1 Spindle Part


Principle:
Using servo double cam linkage spindle.

Features:
(1) High precision synchronized positioning of dies.
(2) High torque (maximum torque: 40000 kgm)

(3) High stability, low wear and noise.

2 Film-drawing Part


Principle:
Using servo drive chain clamp film.

Features:
The film is positioned with a smooth tolerance of ±0.2mm, large adjustable stroke and filming without pasted.

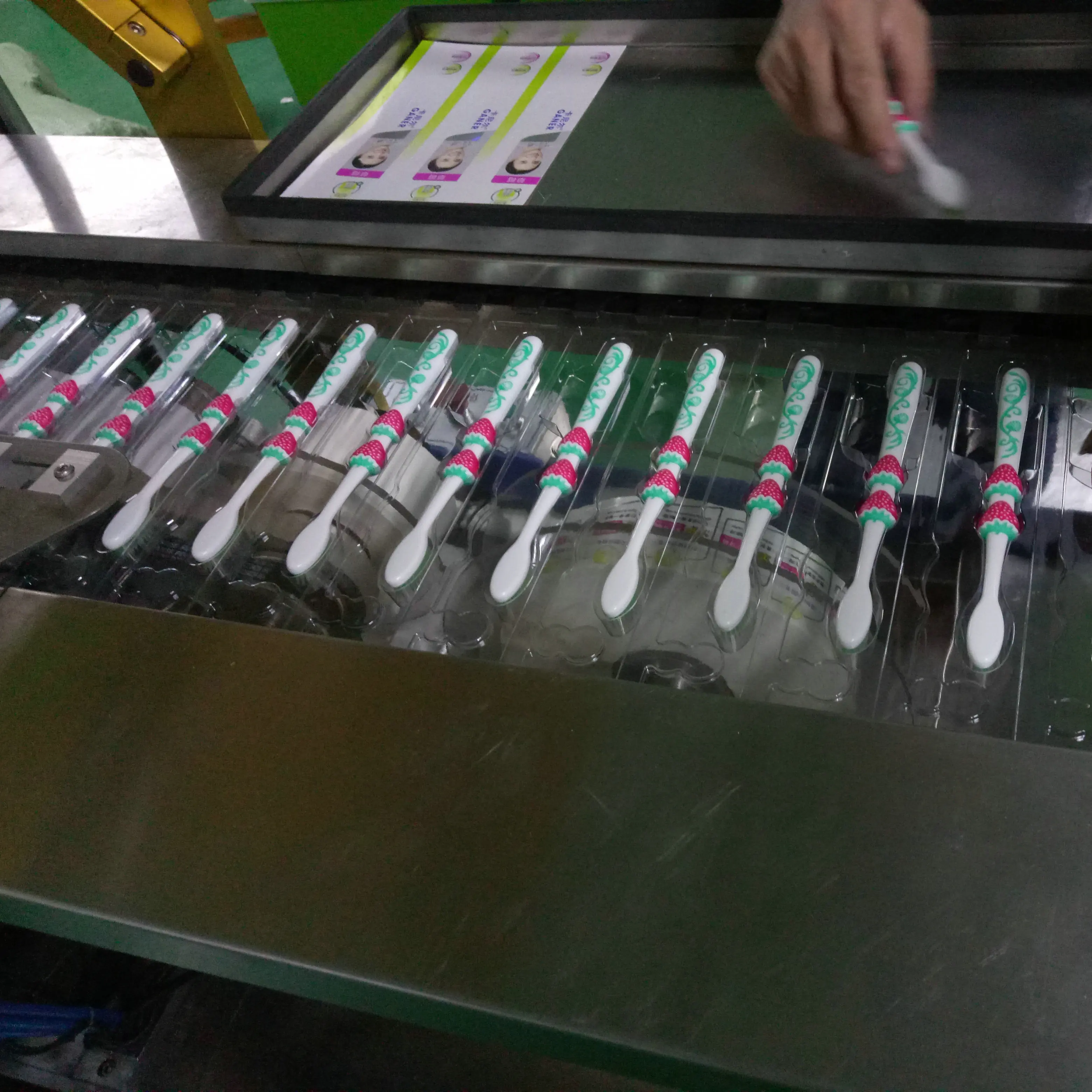

3 Blister Part


Principle:
Using pneumatic slider position

Features:
Precise blister positioning depth, compact structure, low air consumption and easy mold replacement.

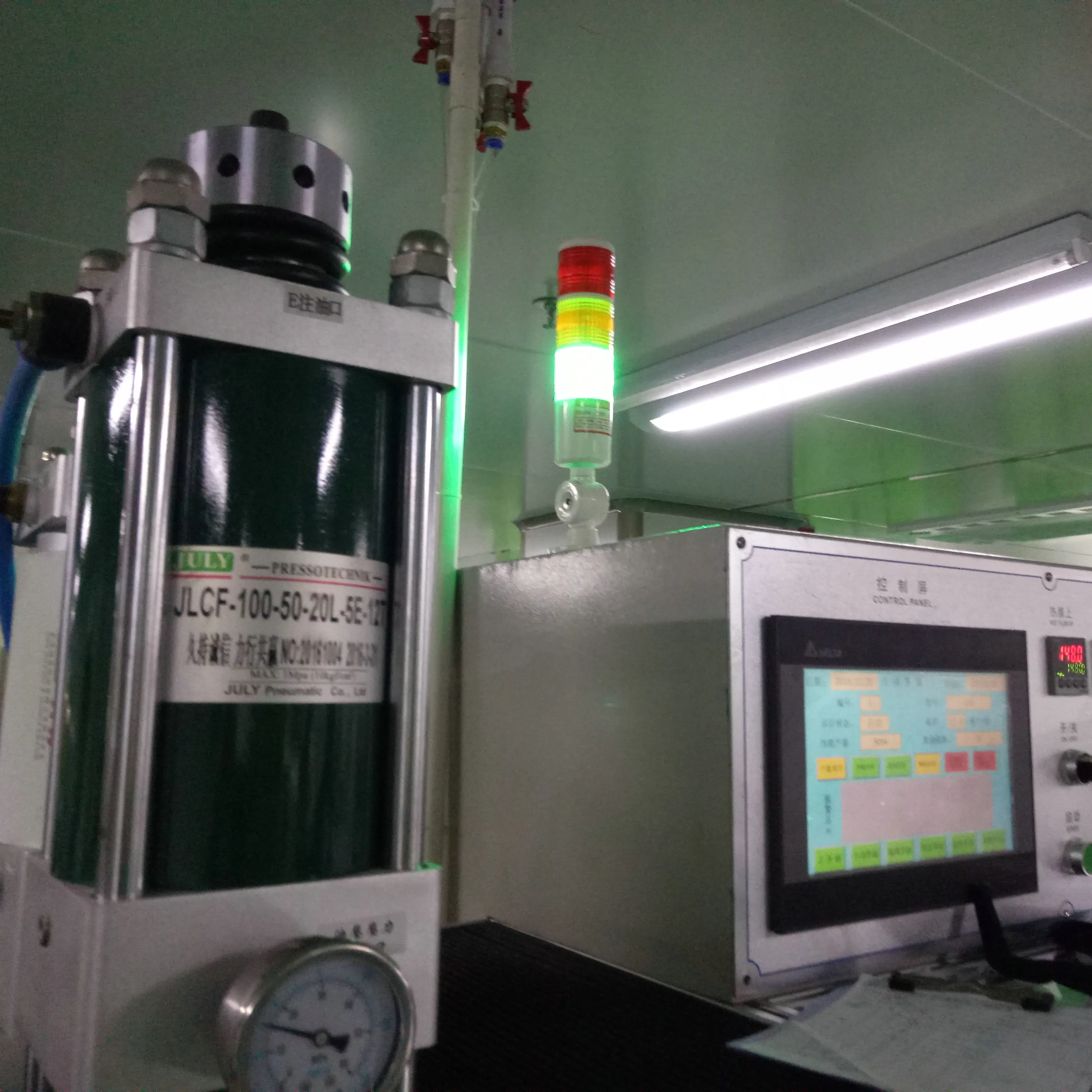

4 Heat-sealed Part


Principle:
Using heat sealed and adjustable liquid pressurized cylinder

Features:
Good heat-sealing paste effect, good flatness, high efficiency, strong adjustability of paper card thickness.

5 Punching part


Principle:
Using double cam with soft cutting and punching.

Features:
Low cost of punching die, easy replacement, small blanking force and low noise.

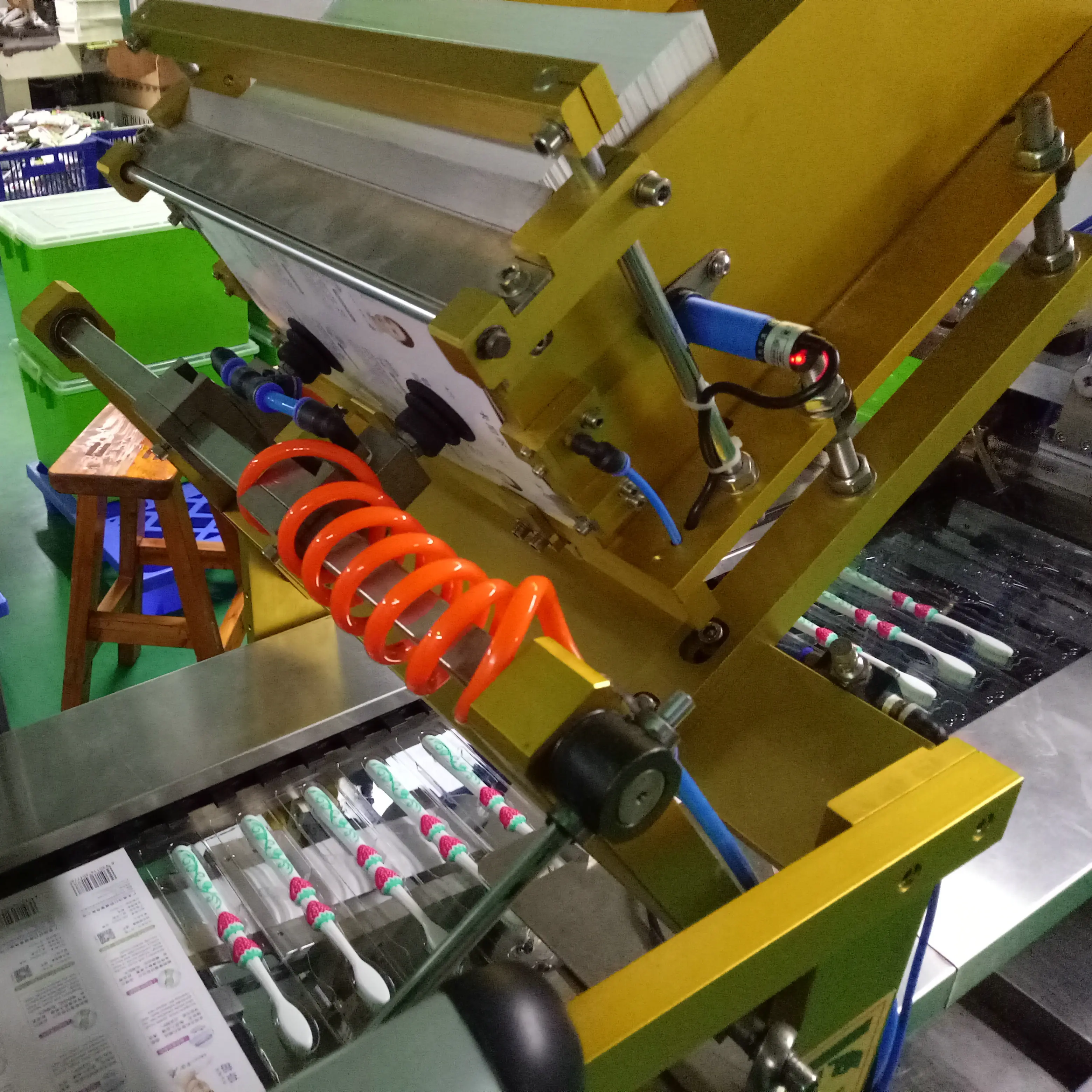

6 Paper Feeding Part


Principle:
Using special scanning prospecting type.

Features:
(1) High resolution of front and back of the paper card, not cause heat-sealing sticky on the die.
(2) Multi-layer paper card detachable function.

7 Labeling part


Principle:
Using servo drive reverse labeling.

Features:
High smooth accuracy of label positioning, strong adjust ability of three-axis and simple operation of exchanging the label.

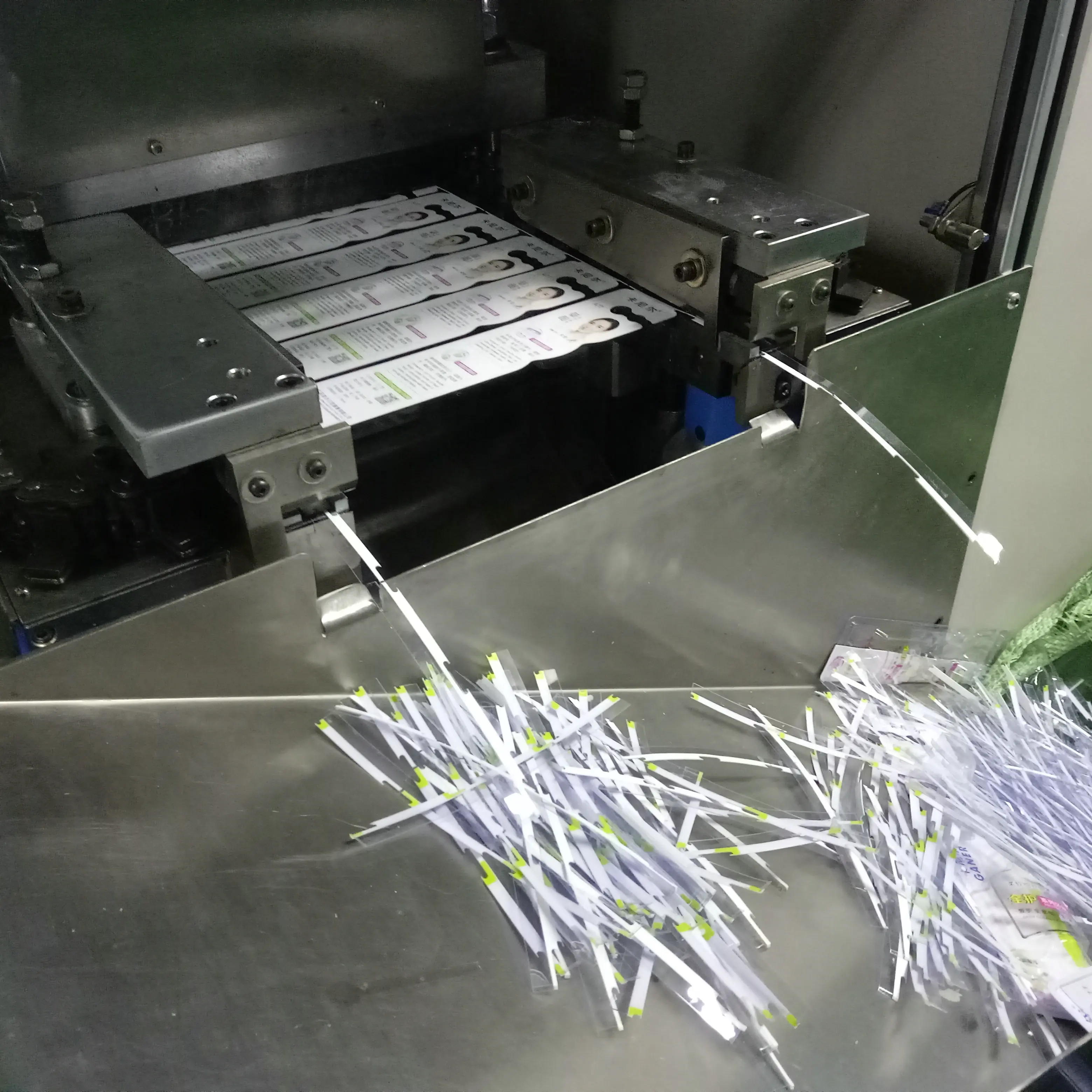

8 Trimming and discharging part


Principle:

Using automatic layout of trimming material.

Features:
(1) Simple operation, small space, high production efficiency, low downtime rate, strong adjustability and no manual material removal.
(2) Foundation of matching equipment for automatic plug-in card.


9 Vacuum, Steam and Oil Circuit Parts

Principle:
Using automatic layout of trimming material.

Features:
(1) Simple operation, small space, high production efficiency, low downtime rate, strong adjustability and no manual material removal.
(2) Foundation of matching equipment for automatic plug-in card.

Our Company
Certifications
Packing & Delivery
\t
Package
\t
Size
\t
3850*1100*1800 (mm)
\t
Weight
\t
2500 Kg
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H).

If export to european countries, the wooden box will be fumigated.

If container is too tigher, we will use pe film for packing or pack it according to customers special request.
Our Service

Pre-Sales Service

* View our factory.
* Inquiry and consulting support.
* Provide advice based on buyer funds budget.
* Toothbrush whole production line support.
* Introduction raw material suppliers

After-Sales Service


* Training how to install and operate the machine.

* Engineers available to service machinery overseas.

* 1 year non-human damage warranty on spare parts.
